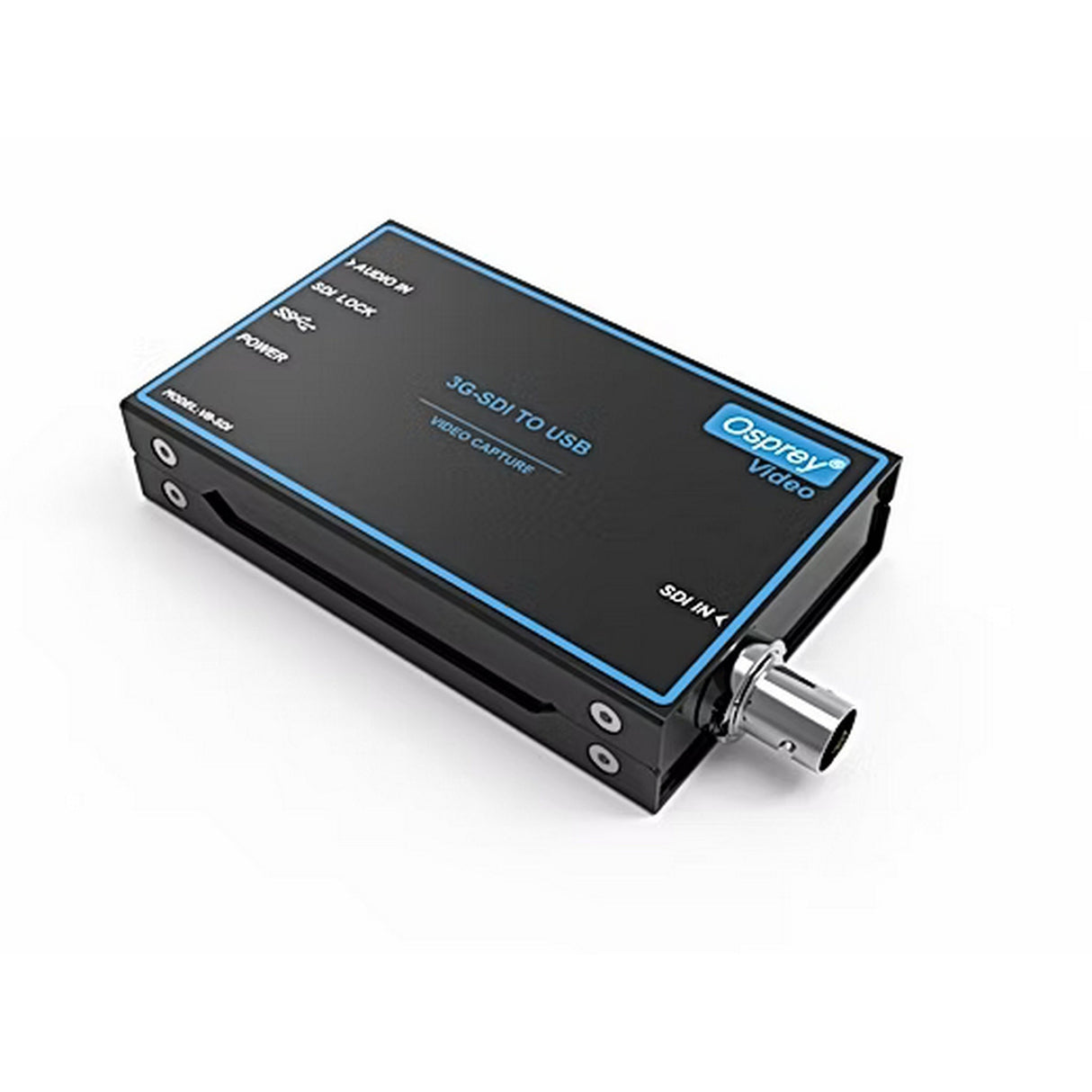

Osprey VB-SDI USB Capture Device
The Osprey VB SDI USB Capture Device provides a compact solution for capturing SDI video signals and converting them to USB for use with a wide range of software applications. Supporting professional SDI video input formats up to 1080p60, it is designed for reliable connectivity and straightforward operation. The unit includes a USB capture interface and supports embedded and external audio inputs.
With extensive USB output resolutions, the VB SDI offers flexible compatibility across broadcast, production, conferencing, and streaming environments. It delivers 16 bit PCM audio and supports YUV2 color space to maintain signal integrity. The included USB cables allow quick setup for Windows, Linux, and macOS systems.
The VB SDI is built with durable construction, offering dependable performance in studio, field, and portable workflows. Its versatile input and output support make it an adaptable tool for everyday SDI to USB video capture needs.
Key Features
- SDI input support: Captures formats up to 1080p60.
- Wide USB output formats: Extensive resolution compatibility.
- Audio support: Embedded 2 channel 16 bit PCM and external analog stereo.
- Cross platform: Works with Windows, Linux, and macOS.
- Compact capture device: USB powered with included cables.
Technical Specifications
- Model: VB SDI
- SKU: 97-00007
- SDI Video Input Formats: 1920x1080p60 59.94 60 30 29.97 25 24 23.98; 1920x1080PsF30 29.97 25 24 23.98; 1920x1080i60 59.94 50; 1280x720p60 59.94 60 30 29.97 25 24 23.98; 576i50 PAL; 480i60 NTSC
- USB Output Formats: 1920x1200 1920x1080 1680x1050 1440x900 1360x768 1280x1024 1280x800 1280x768 1280x720 1024x768 1024x576 960x540 856x480 800x600 768x576 720x576 720x480 640x480 640x360
- Audio: Embedded 2 channel 16 bit PCM 48kHz; External analog stereo audio 3.5mm
- Video Color Space: YUV2
- In the Box: 1x USB capture device; 1x 3 ft USB A to USB C cable
- OS Support: Windows 8 10 11; Linux Kernel 2.6.38 and above; macOS 10.8 and above
- Power: 5VDC 1.5A max
- Operating Temperature: 0 to 40 C
- Dimensions: 92 x 58 x 18 mm
