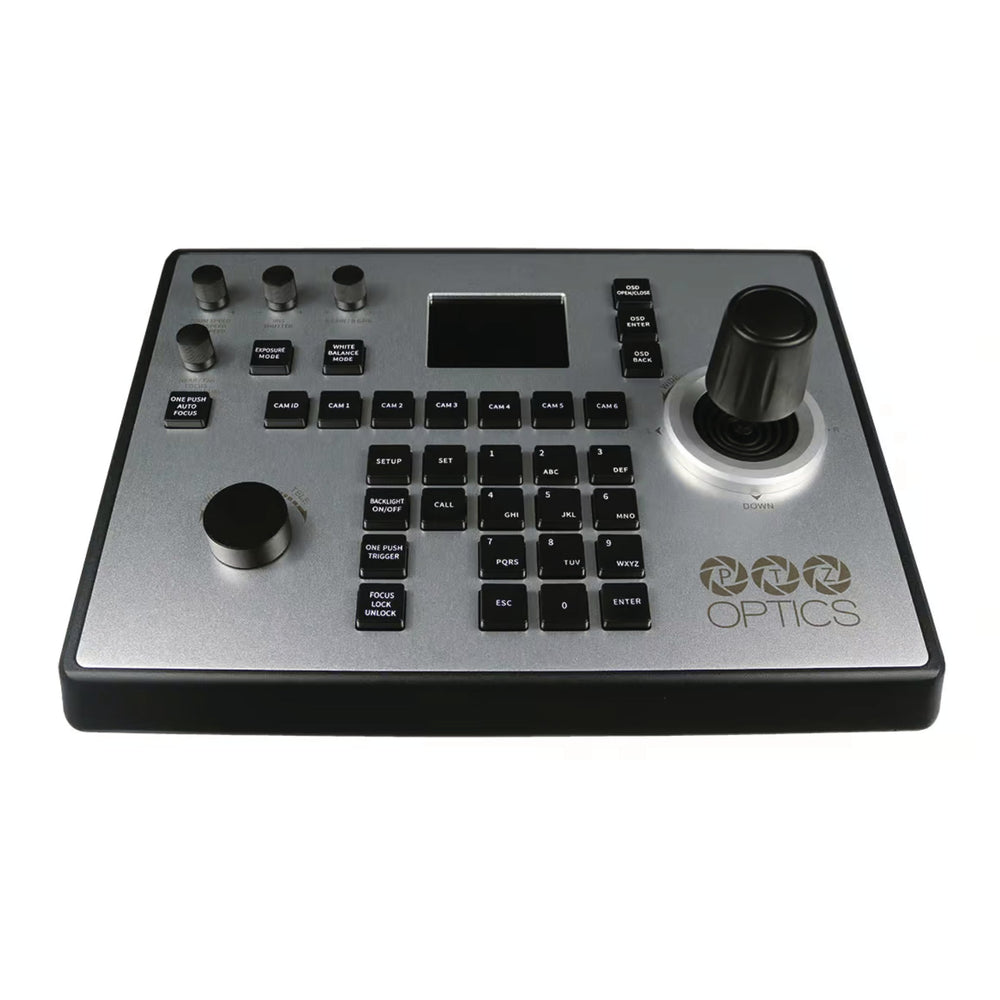

PTZOptics PT-JOY-G4 4th Generation IP Joystick Controller for PTZ Cameras
The PTZOptics PT-JOY-G4 is a 4th generation IP joystick controller designed to operate PTZ cameras over serial and IP networks. It supports common PTZ control protocols and is built for production systems, classrooms, houses of worship, and conferencing environments where precise camera movement and fast preset recall are required.
The controller offers Ethernet (RJ-45) connectivity with PoE support, along with RS-232 and RS-422/RS-485 control options for flexible integration. It is compatible with PTZOptics VISCA control workflows and supports additional protocol options for broader camera control across mixed installations.
Key Features
- 4th generation IP joystick controller for PTZ camera control over network and serial connections
- Ethernet / RJ-45 (PoE) network connection with 802.3af PoE power support
- Supports PTZOptics VISCA and VISCA over IP control protocols
- PELCO-D and PELCO-P support via serial ports for legacy integration
- WebSockets support for software-based and custom control workflows
- Supports up to 253 channels / cameras for multi-camera environments
Technical Specifications
Protocols
PTZOptics VISCA and VISCA over IP
PELCO-D and PELCO-P via Serial Ports
Limited Sony VISCA and VISCA over IP support
Limited ONVIF support
WebSockets
Baud Rate
1200 to 19200 bps
Maximum Cameras
253 channels / cameras
Maximum Recommended Distance
Ethernet: 328 ft (100 m)
RS-232: 50 ft (15 m)
RS-485: 3,937 ft (1,200 m)
RS-422: 50 ft (15 m)
Communication Interface
RS-232 control connection
RS-422 / RS-485 control connection
Ethernet / RJ-45 (PoE) network connection (supports 802.3af PoE power)
Network: NIC (TCP and UDP)
Serial/Analog: RS-232 full duplex, RS-485 semi duplex, RS-422 full duplex
Power Requirements
12V DC
Power Consumption
6W
Operating Temperature
14°F to 122°F (-10°C to +50°C)
Operating Humidity
10% to 90% (non condensation)
Warranty
2 Year Manufacturer Warranty
What’s in the Box
PT-JOY-G4
12V 2A International Power Supply
RS-232C / DB9 female to 8-pin mini-din male cable
Quick Start Guide
Grounding Pin
