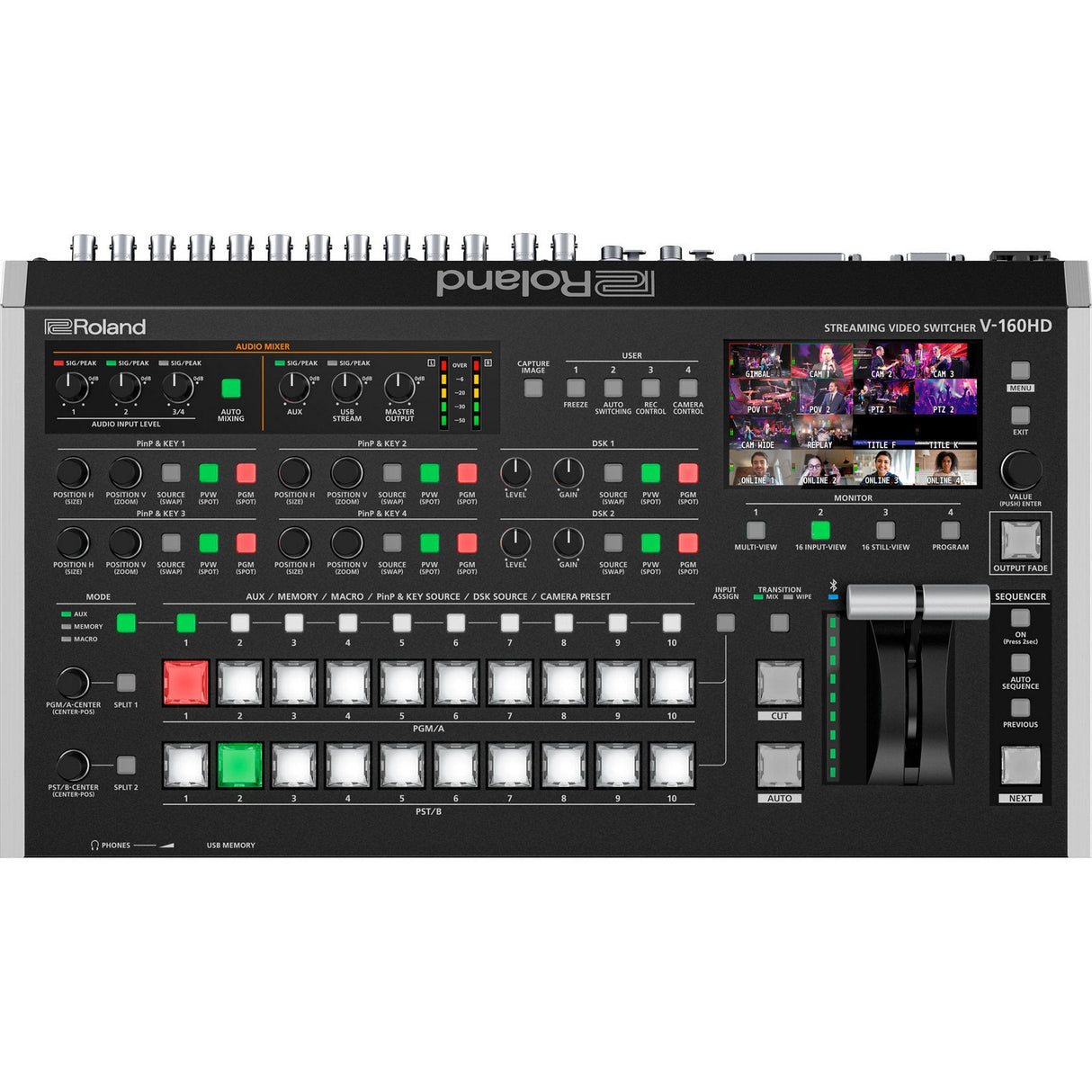

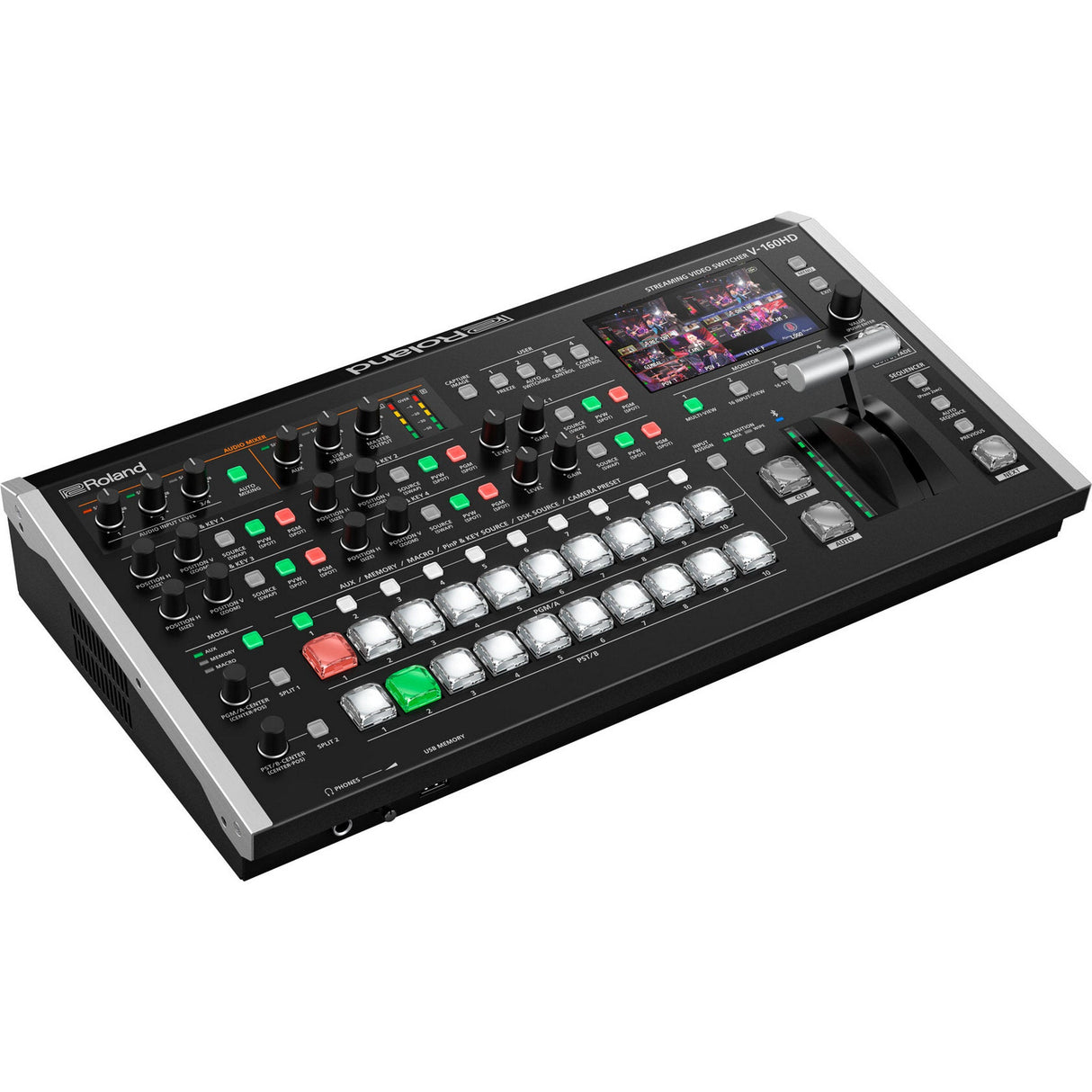

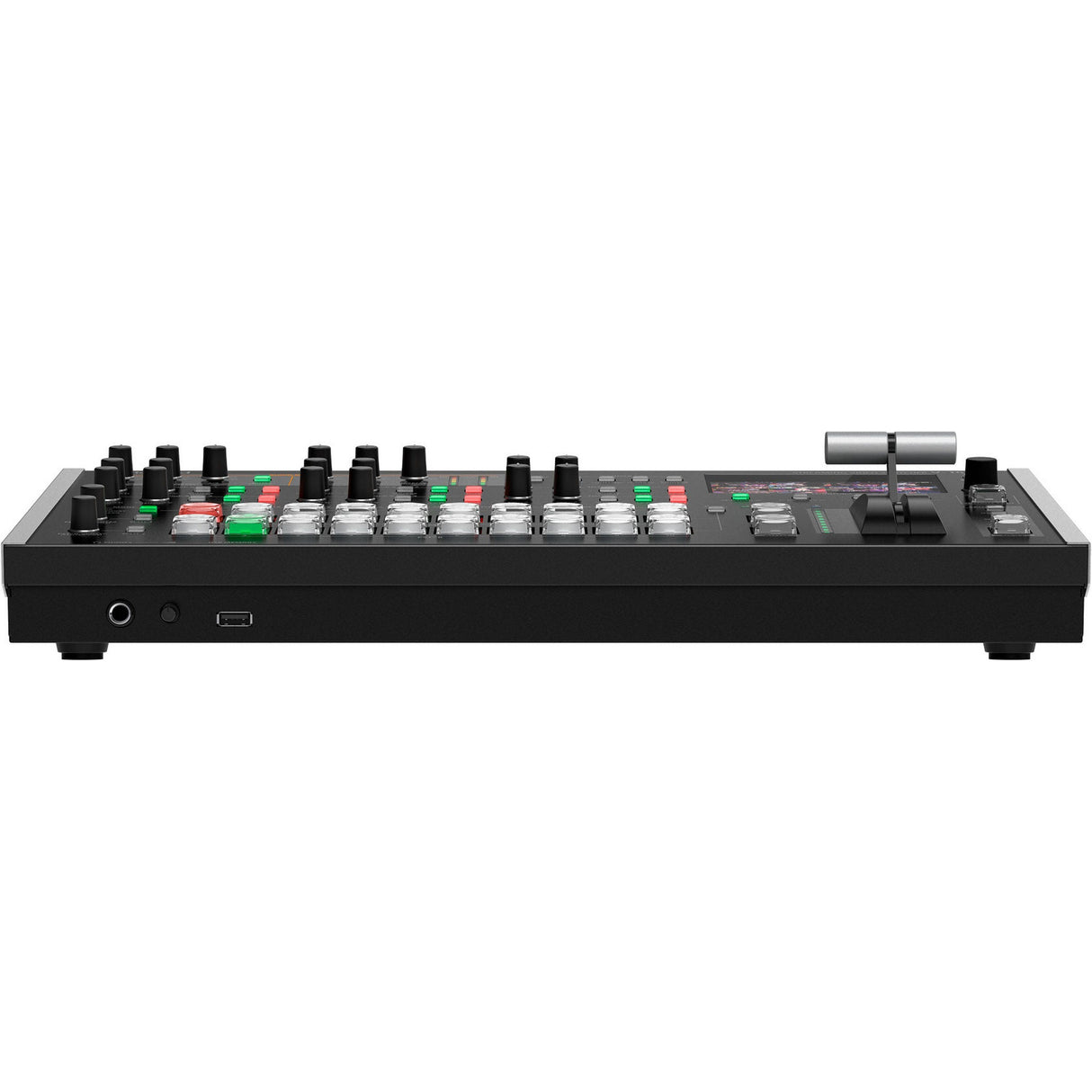

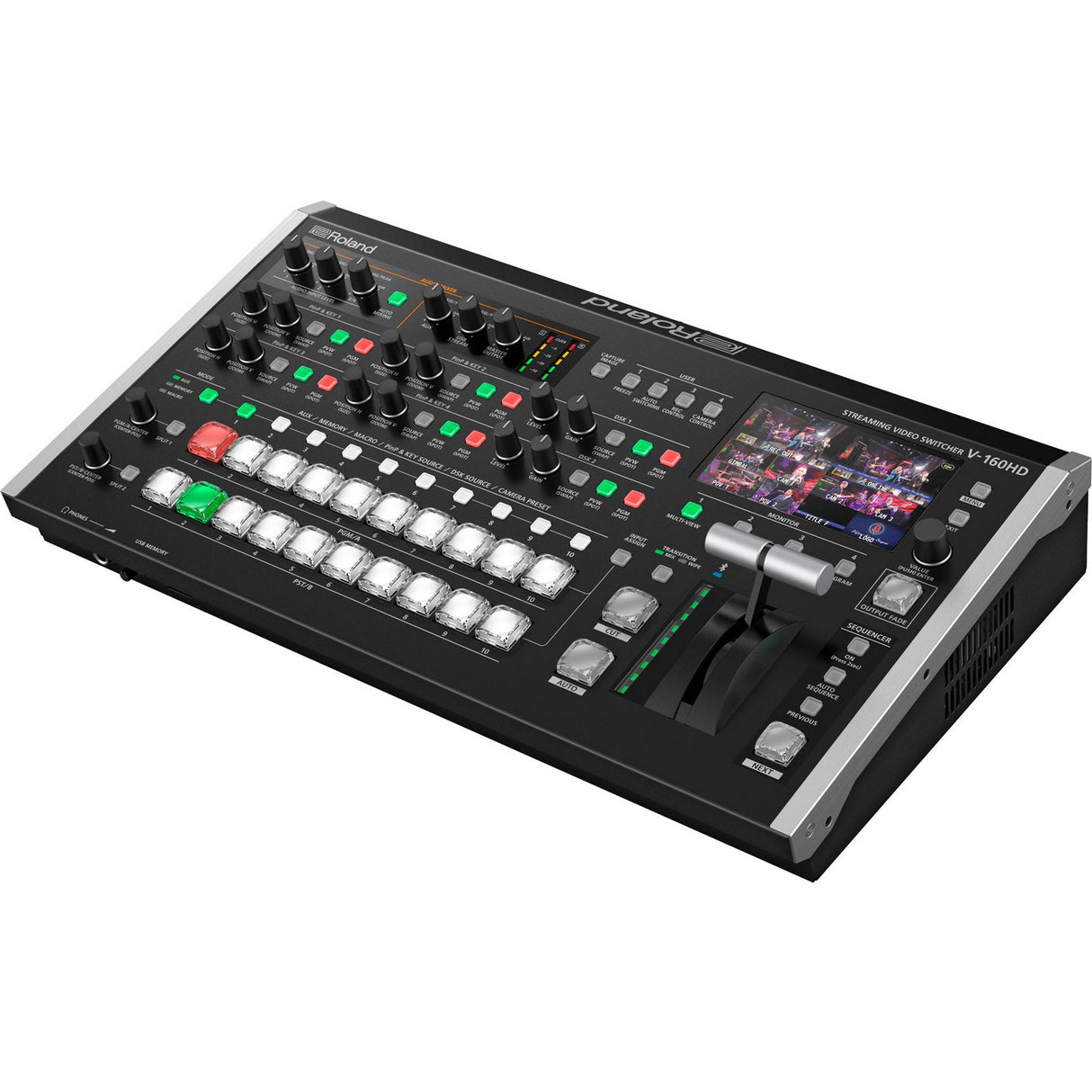

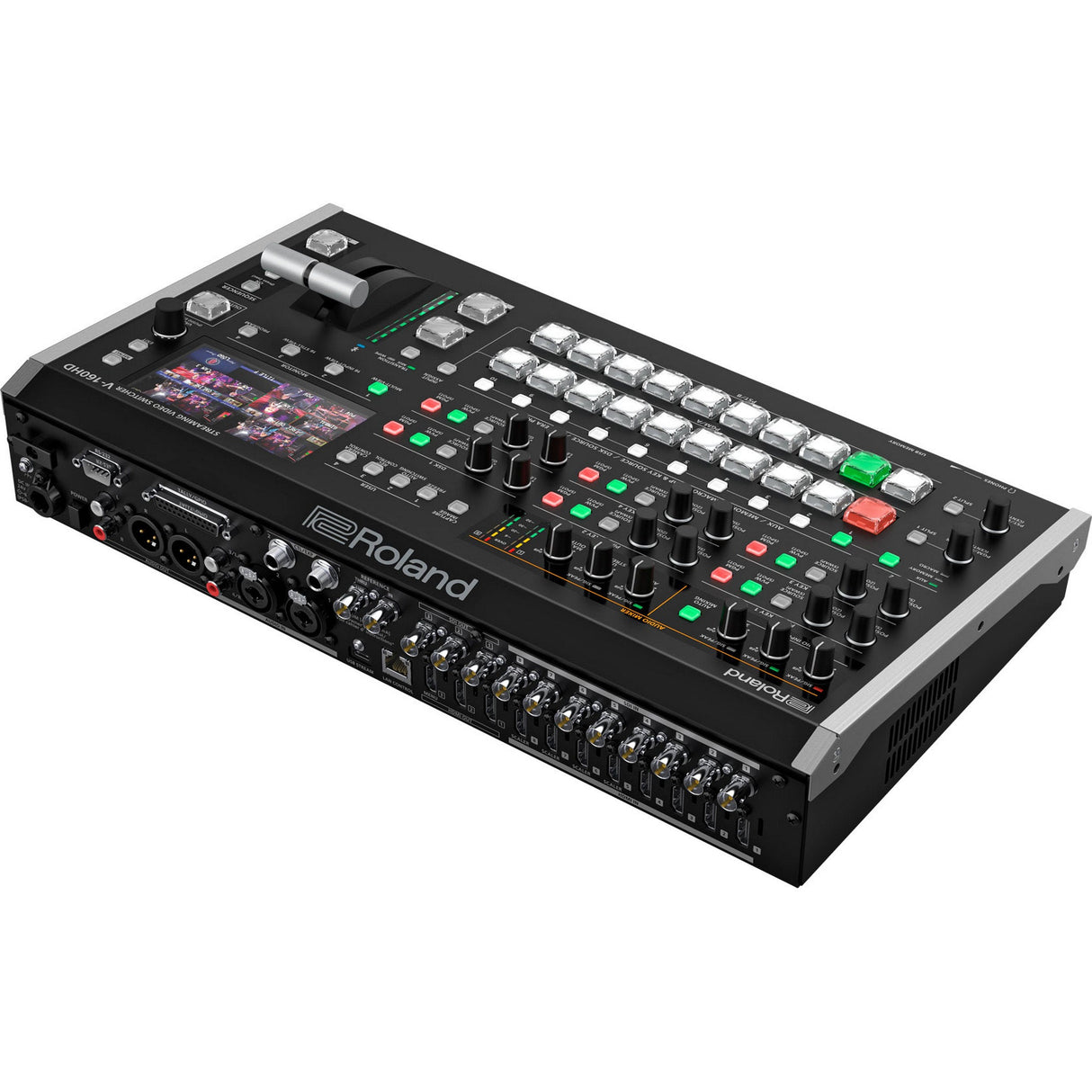

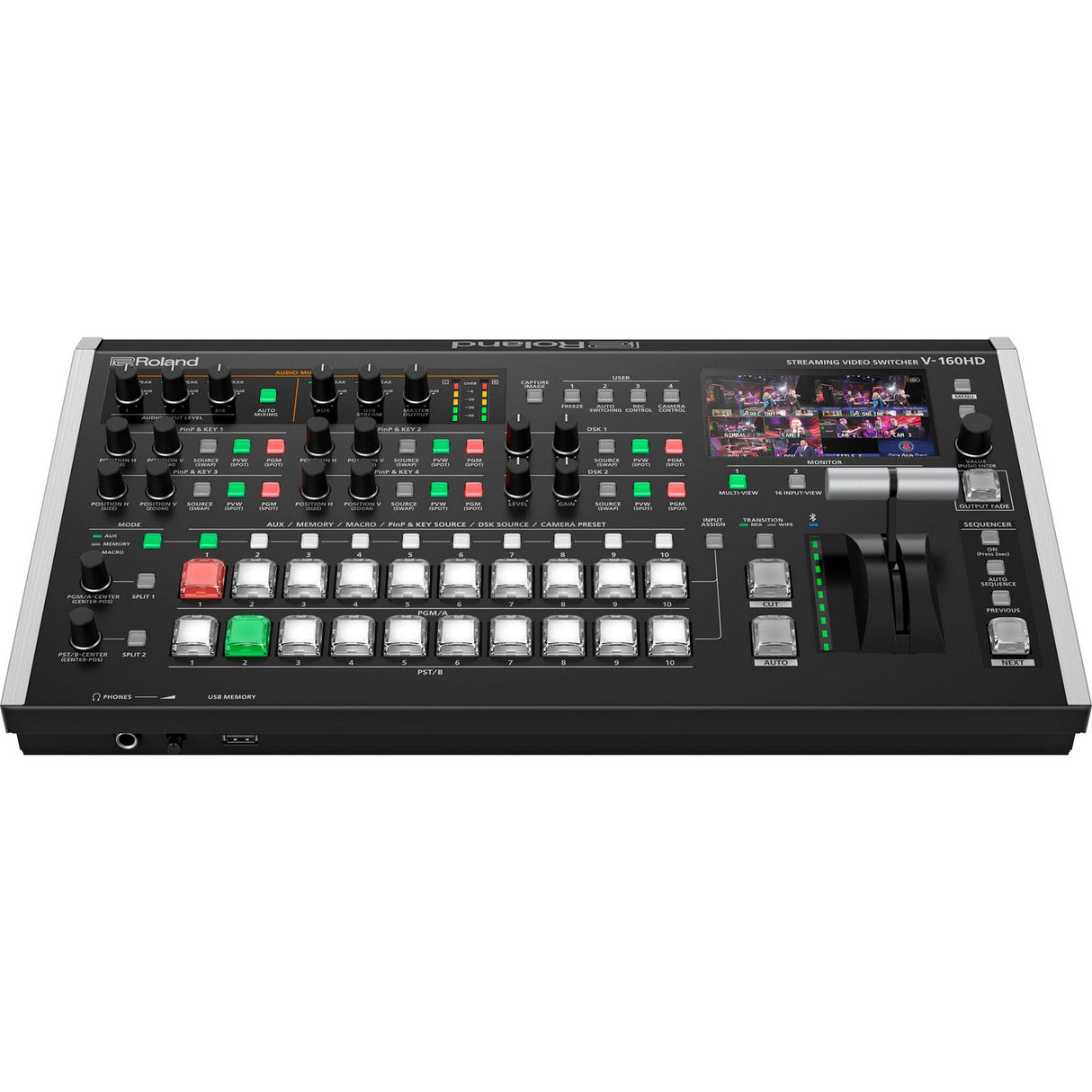

Roland V-160HD SDI/HDMI Streaming Video Switcher
The Roland V-160HD Streaming Video Switcher is a professional hybrid event production switcher built for live events, livestreaming, broadcast workflows, corporate AV, houses of worship, education, performance venues, and multi-camera productions. Designed to bring together in-person presentation and online streaming in one compact hardware platform, the V-160HD gives operators extensive SDI and HDMI connectivity, powerful video effects, USB-C streaming, integrated audio mixing, remote camera control, and show automation tools for demanding productions.
With 16 total video channels, the V-160HD supports eight 3G-SDI inputs and eight HDMI inputs for mixing cameras, computers, media players, presentation systems, and other Full HD sources. Built-in frame rate conversion helps manage mixed video sources, while four HDMI inputs include real-time scalers for connecting devices with different formats and resolutions. Seven total outputs across SDI, HDMI, and USB-C streaming allow the switcher to feed program displays, preview monitors, multi-view screens, auxiliary destinations, recording devices, and online audiences at the same time.
The V-160HD also includes an eight-layer video effects engine for polished, professional productions. Operators can use picture-in-picture, luminance key, chroma key, downstream keying, alpha keying, Roland FILL+KEY mode, still image playback, still image capture, output fade, test pattern output, and multiple transition styles. The internal still store supports up to 16 image files, including BMP, PNG, and JPEG formats, with PNG alpha channel support for graphics and overlays.
For audio, the Roland V-160HD features a 40-channel digital audio mixer with 24-bit/48 kHz processing and extensive tools for managing microphones, embedded HDMI audio, embedded SDI audio, USB streaming audio, RCA sources, and Bluetooth audio. Channel effects include high pass filter, echo canceller, anti-feedback, noise gate, de-esser, compressor, 3-band EQ, voice changer, delay, and auto mixing, while master effects include reverb, multi-band compression, loudness auto gain control, adaptive noise reduction, limiter, and more.
Advanced production control features make the V-160HD a strong solution for live operators who need speed, reliability, and repeatability. Preset memories, macros, sequencer control, auto switching, auto input detect, Smart Tally, external recording control, remote camera control for up to 16 units, and multiple control options through Bluetooth, USB, RS-232, LAN, CTL/EXP, and TALLY/GPIO provide the flexibility needed for modern professional video production.
Key Features
- Professional 16-channel hybrid event and streaming video switcher
- Eight 3G-SDI inputs with frame rate converters
- Eight 1080p HDMI inputs with frame rate converters
- Four HDMI inputs with real-time scalers for multi-format source compatibility
- Seven total outputs across SDI, HDMI, and USB-C streaming
- USB-C streaming output supports Full HD livestreaming
- 40-channel digital audio mixer with advanced processing and effects
- Eight-layer video effects engine with PinP, keying, DSK, and still image support
- 16-slot still store supports BMP, PNG, and JPEG images
- PNG alpha channel support for graphics and overlays
- Preset memory, macro control, and sequencer control for automated live production
- Integrated PTZ camera control for up to 16 remote cameras
- Smart Tally and external recording control support
- Remote control options via Bluetooth, USB, RS-232, LAN, footswitch, expression pedal, and GPIO
- 4.3-inch TFT color LCD display for onboard operation
- Includes rack-mount angles for professional installation
Technical Specifications
Video
Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Number of Video Channels: 16 channels
Video Input Formats - HDMI IN 1-4, SDI IN 1-8: 720/59.94p, 720/50p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p, 1080/50i, 1080/50p, 1080/25p, 1080/23.98p, 1080/24p
Input Processing Note: Input interlaced video signal is converted to progressive video signal by internal processing
System Format Notes: 720p system format supports 720 formats; 1080p system format supports 1080 formats
Frame Rate Notes: Supports 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, and 60 Hz depending on format
Video Input Formats - HDMI IN 5-8: 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p, 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p, 1080/23.98p, 1080/24p
PC Input Formats - HDMI IN 5-8: VGA 640 x 480/60 Hz, SVGA 800 x 600/60 Hz, XGA 1024 x 768/60 Hz, WXGA 1280 x 800/60 Hz, SXGA 1280 x 1024/60 Hz, FWXGA 1366 x 768/60 Hz, SXGA+ 1400 x 1050/60 Hz, UXGA 1600 x 1200/60 Hz, WUXGA 1920 x 1200/60 Hz
HDMI IN 5-8 Notes: Refresh rate is the maximum value of each resolution; conforms to CEA-861-E and VESA DMT Version 1.0 Revision 11; 1920 x 1200/60 Hz uses reduced blanking; input refresh rates of SVGA 800 x 600 through SXGA+ 1400 x 1050 are 75 Hz when the unit frame rate setting is 50 Hz; HDMI IN 8 supports Roland FILL+KEY signal
Video Output Formats - HDMI OUT 1-2, SDI OUT 1-3: 720/59.94p, 720/60p, 720/50p, 1080/59.94i, 1080/60i, 1080/50i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p, 1080/50p, 1080/25p, 1080/23.98p, 1080/24p
Video Output Formats - HDMI OUT 3: 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p, 1080/50p, 1080/25p, 1080/23.98p, 1080/24p
USB STREAM Output Formats: 1080/59.94p, 720/59.94p, 640 x 480/59.94p; 1080/60p, 720/60p, 640 x 480/60p; 1080/29.97p, 720/29.97p, 640 x 480/29.97p; 1080/30p, 720/30p, 640 x 480/30p; 1080/50p, 720/50p, 640 x 480/50p; 1080/25p, 720/25p, 640 x 480/25p; 1080/23.98p, 720/23.98p, 640 x 480/23.98p; 1080/24p, 720/24p, 640 x 480/24p
USB Streaming Format Support: Uncompressed YUY2 and compressed Motion JPEG supported
Still Image Support: Bitmap file (.bmp), maximum 1920 x 1080 pixels, 24-bit color, uncompressed; PNG file (.png), maximum 1920 x 1080 pixels, 24-bit color; JPEG file (.jpg, .jpeg), maximum 1920 x 1080 pixels, 24-bit color
Still Image Storage: Up to 16 files can be stored in internal memory
Still Image Export: Can be exported to USB flash drive
PNG Support: PNG alpha channel supported
Video Effects - Transitions: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Video Effects - Composition: PinP x 4 (SQUARE, CIRCLE, DIAMOND), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key, Roland FILL+KEY Mode)
Video Effects - Other: Multi-View (3 types), flip horizontal, flip vertical, still image capture, still image playback, output fade with audio and video white or black, test pattern output
Audio
Audio Processing: 24-bit, 48 kHz sample rate
Number of Audio Channels: 40 channels
USB STREAM Audio Format: Linear PCM, 16-bit, 48 kHz, 2 channels input/output
Bluetooth Audio Format: Linear PCM, 24-bit, 48 kHz, 2 channels input
HDMI IN Audio Format: Linear PCM, 24-bit, 48 kHz, 2 channels
HDMI OUT Audio Format: Linear PCM, 24-bit, 48 kHz, 8 channels
SDI IN Audio Format: Linear PCM, 24-bit, 48 kHz, 2 channels, conforms to SMPTE 299M
SDI OUT Audio Format: Linear PCM, 24-bit, 48 kHz, 8 channels, conforms to SMPTE 299M
Channel Audio Effects: High pass filter, echo canceller, anti-feedback, noise gate, de-esser, compressor, 3-band equalizer, voice changer, delay, auto mixing
Master Audio Effects: Reverb, 3-band equalizer, multi-band compressor, loudness auto gain control, adaptive noise reduction, low frequency cut, delay, limiter
Other Audio Effects: Output fade, test tone output
Common Section
Preset Memory: 30 types
Macro Control: 100 types
Sequencer Control: 1,000 steps
Other Functions: Panel lock function, EDID emulator, auto switching, auto input detect, Smart Tally, remote camera control up to 16 units, external recording control
Connectors
Video Input Connectors: HDMI IN 1-4: HDMI Type A x 4 with HDCP support; HDMI IN 5-8: HDMI Type A x 4 with HDCP and multi-format support; SDI IN 1-8: BNC type x 8, conforms to SMPTE 424M (SMPTE 425M-AB), 292M; USB STREAM: USB Type-C
Video Output Connectors: HDMI OUT 1-3: HDMI Type A x 3 with HDCP support; SDI OUT 1-3: BNC type x 3, conforms to SMPTE 424M (SMPTE 425M-AB), 292M; USB STREAM: USB Type-C
Analog Audio Input Connectors: AUDIO IN 1-2: Combo type XLR and 1/4-inch TRS phone, phantom power DC 48 V unloaded maximum, 14 mA maximum load; AUDIO IN 3/L and 4/R: RCA phono type
Digital Audio Input Connectors: USB STREAM USB Type-C, Bluetooth, HDMI IN 1-8 HDMI Type A x 8, SDI IN 1-8 BNC type x 8
Analog Audio Output Connectors: AUDIO OUT XLR type, AUDIO OUT RCA phono type, PHONES stereo 1/4-inch phone type
Digital Audio Output Connectors: USB STREAM USB Type-C, HDMI OUT 1-3 HDMI Type A x 3, SDI OUT 1-3 BNC type x 3
Other Connectors: USB MEMORY USB A type for USB flash drive and remote control from USB numeric keypad; USB STREAM USB Type-C for remote control from PC and iPad and Graphics Presenter; Bluetooth for remote control from iPad; CTL/EXP 1/4-inch TRS phone type for remote control from foot switch and expression pedal; TALLY/GPIO DB-25 type female with Tally/GPO 16 and GPI 8; RS-232 DB-9 type male for remote control; LAN CONTROL RJ45 100BASE-TX for remote control; Reference IN/THRU BNC type for Black Burst sync to frames, Bi-Level, and Tri-Level
Audio Input/Output Characteristics
Input Level: AUDIO IN 1 and 2: -60 to +4 dBu, maximum +24 dBu; AUDIO IN 3/L and 4/R: -10 dBu, maximum +10 dBu
Input Impedance: AUDIO IN 1 and 2: 9.4 k ohms with analog gain 0 to less than 24 dBu, 74.4 k ohms with analog gain 24 dBu or higher; AUDIO IN 3/L and 4/R: 47 k ohms
Output Level: AUDIO OUT XLR: +4 dBu, maximum +24 dBu; AUDIO OUT RCA: -10 dBu, maximum +10 dBu; PHONES: 92 mW + 92 mW at 32 ohms
Output Impedance: AUDIO OUT XLR: 600 ohms; AUDIO OUT RCA: 1 k ohm; PHONES: 10 ohms
Other Specifications
Bluetooth: Version 4.2
Bluetooth Profile Support: A2DP audio, GATT MIDI over Bluetooth Low Energy
Bluetooth Codec: SBC with support for content protection of the SCMS-T method
Display: 4.3-inch TFT color LCD, 480 x 272 dots
Power Supply: AC adaptor
Current Draw: 2.5 A
Power Consumption: 55 W
Operating Temperature: 32 to 104 degrees Fahrenheit
Dimensions: 17-1/4" W x 10" D x 4-1/16" H
Dimensions with Rack-Mount Angles Fitted: 18-15/16" W x 10" D x 4-1/16" H
Weight: 8 lbs 10 oz, excluding AC adaptor
What’s Included
- Roland V-160HD Streaming Video Switcher
- Startup Guide
- Leaflet “USING THE UNIT SAFELY”
- AC adaptor
- Power cord
- Rack-mount angle x 2
- Rack-mount angle mounting screw x 6
