Teradek Ranger MK II 5000 Wireless 4K HDR Video System, 5000-Feet Range, Configurable Mounts and Kits - Transmitter and Receiver / Gold Mount

Teradek Ranger MK II 5000 Wireless 4K HDR Video System, 5000-Feet Range, Configurable Mounts and Kits

The Teradek Ranger MK II 5000 wireless video system delivers uncompressed 4Kp60 HDR video with ultra-low latency (<0.01 ms) over a powerful 12G-SDI and HDMI interface. Designed for cinematic-grade transmissions, it provides up to 5000 feet (1524 meters) line-of-sight range. Whether used in full kits or as standalone transmitters or receivers, the Ranger MK II ensures secure, interference-free signal delivery across multiple frequency bands. It is available with Gold Mount or V-Mount power options to integrate seamlessly with professional camera rigs.

Engineered with robust aluminum and polycarbonate construction, the system is AES-256 encrypted for secure data transmission and is compatible with the Launchpad mobile app for remote configuration. Choose the configuration that suits your production needs — full kit, transmitter only, or receiver only — each available in Gold Mount or V-Mount versions.

Available Configurations

• Transmitter and Receiver - Gold Mount
• Transmitter and Receiver - V-Mount
• Transmitter Only - Gold Mount
• Transmitter Only - V-Mount
• Receiver Only - Gold Mount
• Receiver Only - V-Mount

Key Features (All Variants)

• Zero-Delay Transmission: Less than 0.01 ms for real-time monitoring.
• Uncompressed 4K HDR: Supports 10-bit 4:2:2 up to 4Kp60.
• Long-Range Wireless: Transmit video up to 5000 feet line-of-sight.
• Dual Video I/O: 12G-SDI and HDMI input/output options.
• Encrypted Transmission: AES-256 encryption for secure video.
• App-Based Control: Configure settings with the Launchpad app (iOS/Android).
• Multiple Frequency Bands: Operates across 4.85–6.42 GHz.
• Mount Options: Available with Gold Mount or V-Mount battery plates.

Technical Specifications

• Video Inputs: 1x HDMI 2.0, 1x 12G-SDI BNC (transmitter)
• Video Outputs: 1x HDMI 2.0, 1x 12G-SDI BNC (receiver)
• Embedded Audio: 2-channel via HDMI and SDI
• Wireless Range: Up to 5000 feet (1524 meters) LOS
• Frequency Bands: 4.85–6.42 GHz
• Encryption: AES-256 with RSA 1024 key exchange
• Power Input: 6–28 VDC via 2-pin LEMO
• Dimensions: 5.5 x 5.2 x 1.2 inches (140 x 133 x 30 mm)

Package Contents by Variant

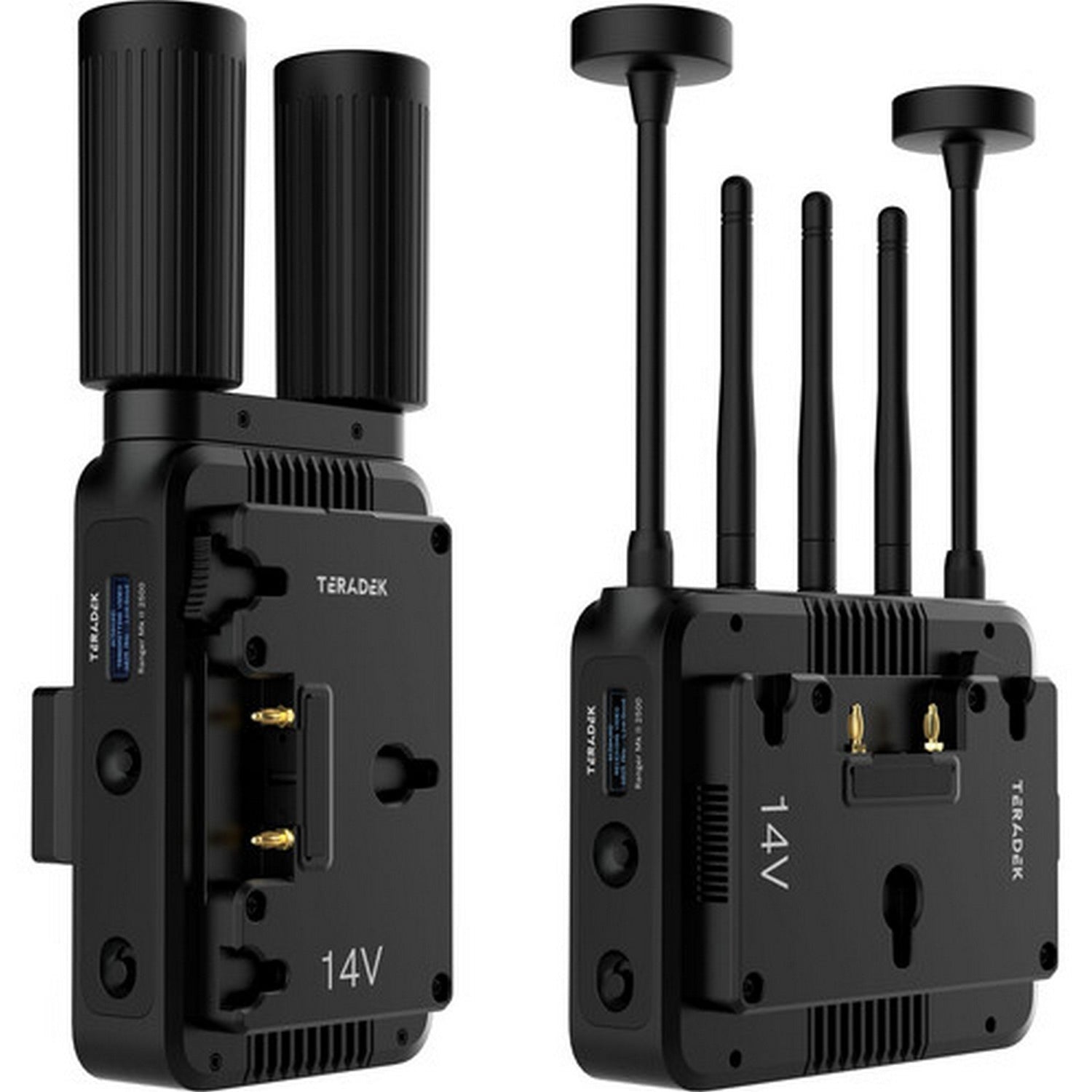

Transmitter and Receiver - Gold Mount

• Ranger MK II 5000 Transmitter (Gold Mount)
• Ranger MK II 5000 Receiver (Gold Mount)
• 2 x N-Type Antennas (TX)
• 5 x 2 dBi Antennas (RX)
• Power Accessories & Mounting Hardware

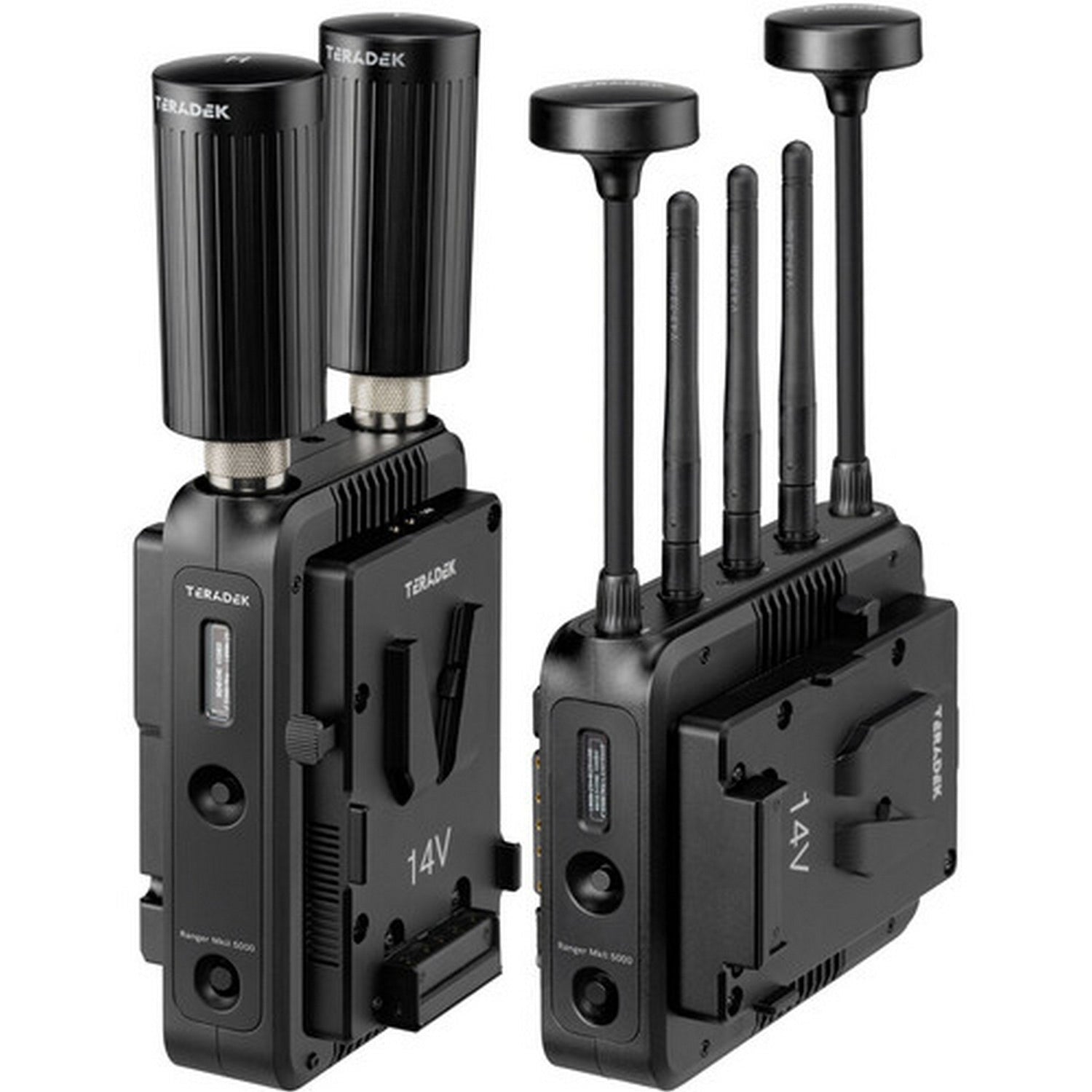

Transmitter and Receiver - V-Mount

• Ranger MK II 5000 Transmitter (V-Mount)
• Ranger MK II 5000 Receiver (V-Mount)
• 2 x N-Type Antennas (TX)
• 5 x 2 dBi Antennas (RX)
• Power Accessories & Mounting Hardware

Transmitter Only - Gold Mount

• Ranger MK II 5000 Transmitter (Gold Mount)
• 2 x N-Type Antennas
• Power Accessories & Mounting Hardware

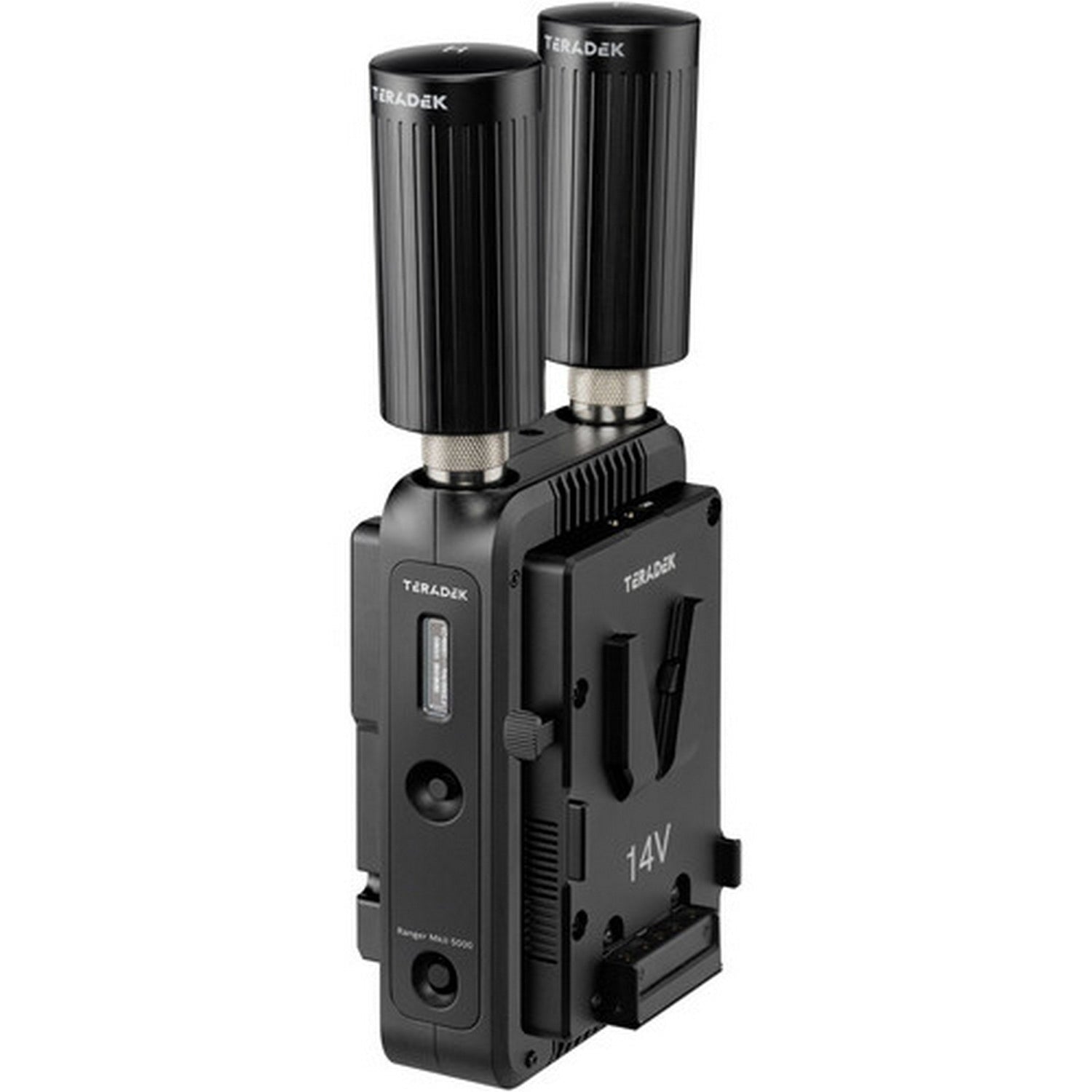

Transmitter Only - V-Mount

• Ranger MK II 5000 Transmitter (V-Mount)
• 2 x N-Type Antennas
• Power Accessories & Mounting Hardware

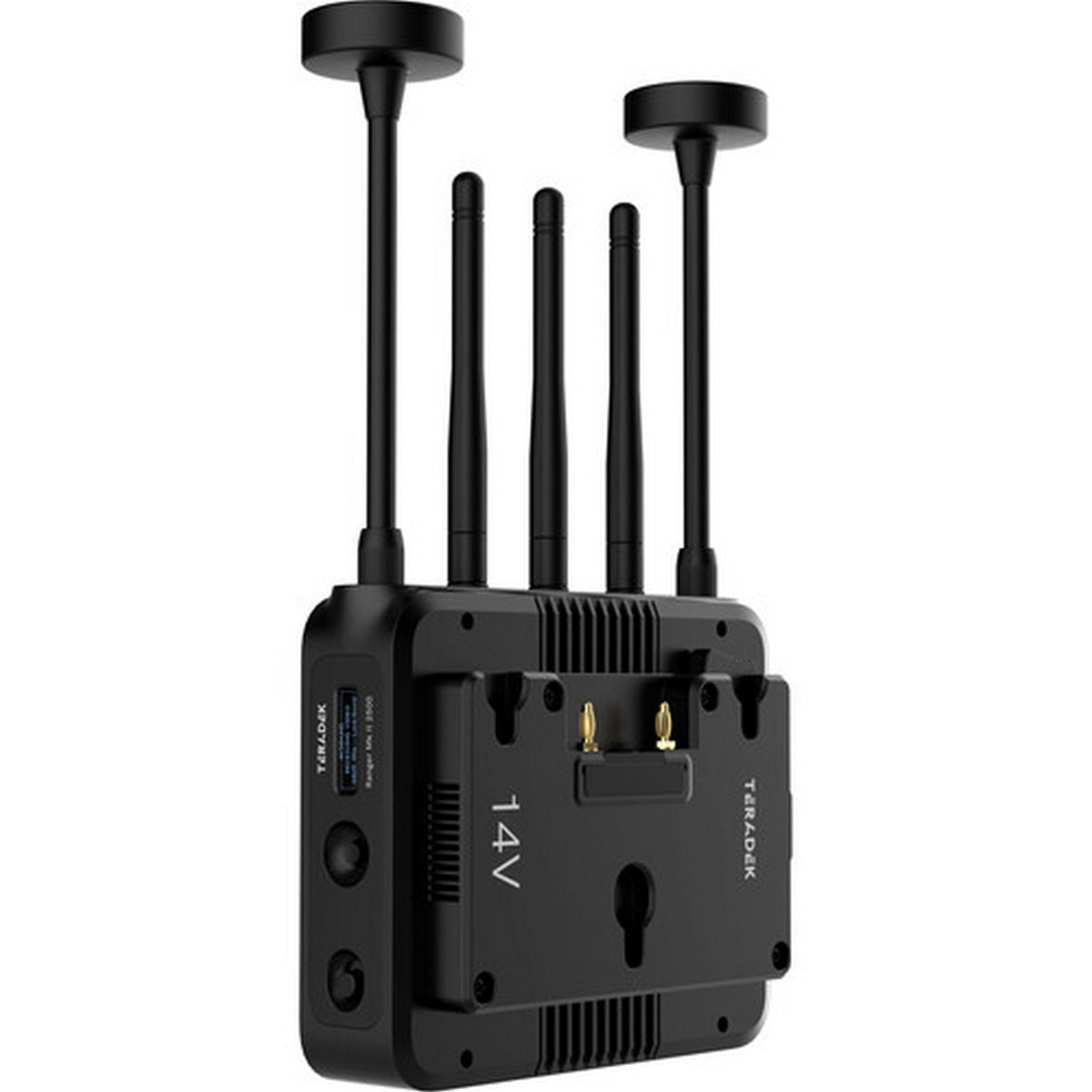

Receiver Only - Gold Mount

• Ranger MK II 5000 Receiver (Gold Mount)
• 5 x 2 dBi Antennas
• Power Accessories & Mounting Hardware

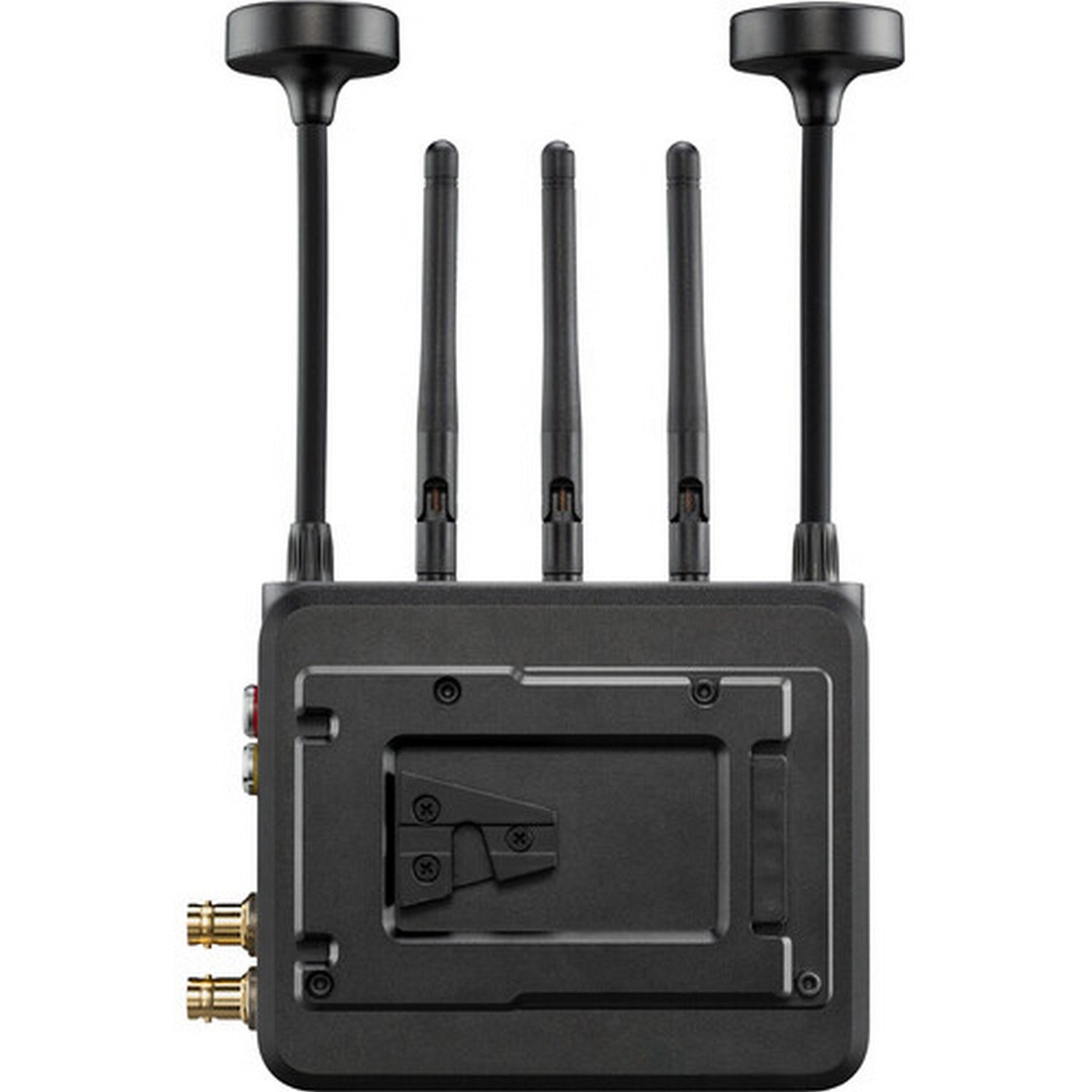

Receiver Only - V-Mount

• Ranger MK II 5000 Receiver (V-Mount)
• 5 x 2 dBi Antennas
• Power Accessories & Mounting Hardware
