Thor MAXIMUSH265P MAXIMUS H265 PRO 20x Zoom Full HD 3G SDI HDMI and IP Streaming Box Camera

The Thor Maximus H265 Pro is a versatile, high-performance camera designed for professional broadcasting, videoconferencing, and live streaming applications. Equipped with a 1/2.8" Exmor CMOS sensor and a 20x optical zoom lens, it delivers crisp 1080p video output with support for H.265, H.264, and MJPEG compression formats. Its compact box-style design makes it ideal for fixed installations in environments such as government facilities, educational institutions, and corporate settings.

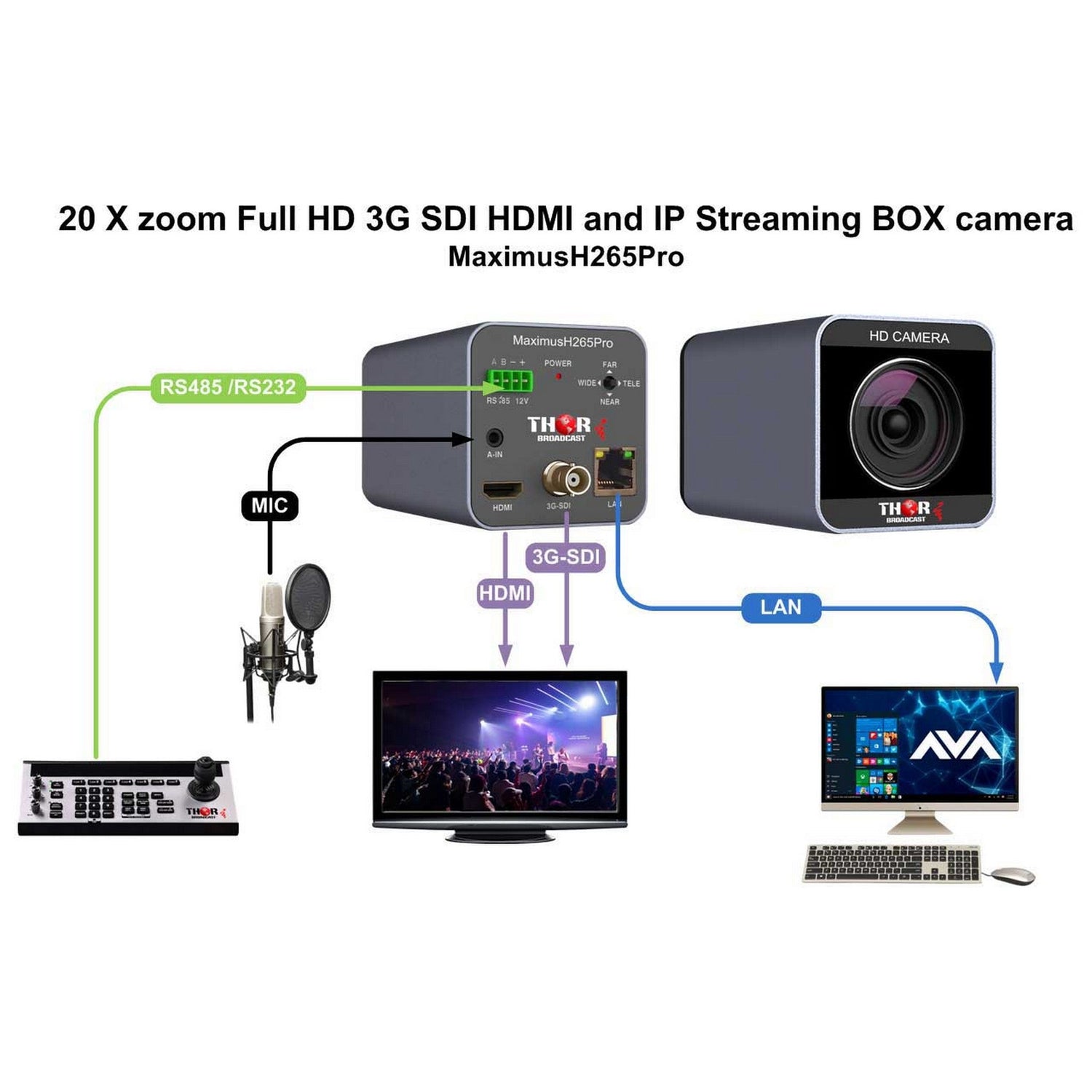

This camera offers multiple simultaneous outputs, including 3G-SDI, HDMI, and IP streaming via RTSP and RTMP protocols, ensuring seamless integration into various workflows. Advanced features like 2D/3D digital noise reduction, auto focus, auto iris, and a user-friendly OSD menu enhance image quality and ease of use. Remote control capabilities through RS-232, RS-485, and VISCA/Pelco protocols provide flexible operation options.

Key Features:

• 1/2.8" Exmor CMOS sensor with 2.38 Megapixel resolution
• 20x optical zoom lens (f=4.7mm–94.0mm, F1.6–3.5)
• 12x digital zoom
• Horizontal field of view: 65° (wide) to 2.9° (telephoto)
• Supports resolutions up to 1080p60, 1080i60, and 720p60
• Video outputs: 3G-SDI, HDMI, and IP streaming (RTSP/RTMP)
• Compression formats: H.265, H.264, MJPEG
• Advanced 2D/3D digital noise reduction
• Auto exposure, auto focus, and auto iris functions
• Remote control via RS-232, RS-485, VISCA, and Pelco D/P protocols
• On-screen display (OSD) menu with five-directional control
• Compact dimensions: 70mm (W) x 70mm (H) x 122mm (L)
• Lightweight design: 0.44 lbs (0.2 kg)

Technical Specifications:

Sensor: 1/2.8" Exmor CMOS, 2.38 Megapixel
Lens: f=4.7mm–94.0mm, F1.6 (wide)–3.5 (telephoto)
Optical Zoom: 20x
Digital Zoom: 12x
Field of View: 65° (wide) to 2.9° (telephoto)
Video Resolutions: 1080p60/50/30/25, 1080i60/50/30/25, 720p60/50
Video Outputs: 3G-SDI, HDMI, IP streaming (RTSP/RTMP)
Compression Formats: H.265, H.264, MJPEG
Control Interfaces: RS-232, RS-485, VISCA, Pelco D/P
Power Supply: 12V DC (JEITA type)
Dimensions: 70mm (W) x 70mm (H) x 122mm (L)
Weight: 0.44 lbs (0.2 kg)

Package Contents:

• Thor Maximus H265 Pro Camera
• 12V DC Power Adapter
• Mounting Hardware
• User Manual
