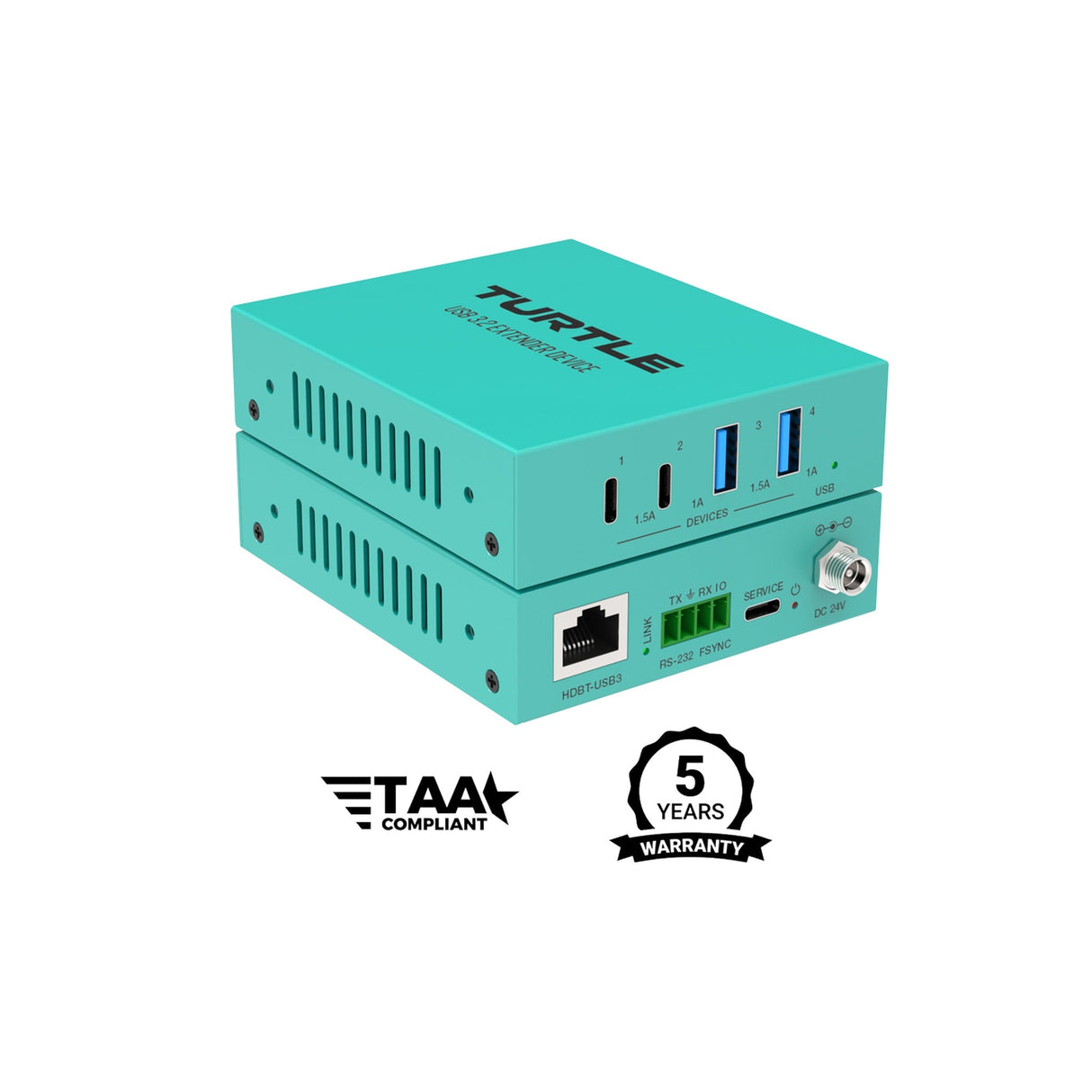

Turtle AV USB 3.2 5Gbps Extender Kit
The Turtle AV USB 3.2 5Gbps 100 Metre Extender Kit enables high-speed USB 3.2 connectivity over long distances — up to 100 metres / 328 feet using a single CAT6a / CAT6 / CAT7 cable. This makes it ideal for professional AV setups, conference rooms, studio gear, cameras, storage devices, or any application where USB devices need to be located far from the host computer.
This extender kit supports full USB 3.2 Gen1 data rates up to 5 Gbps, with backward compatibility for USB 2.0 and USB 1.1 devices. It includes both a host (transmitter) unit and a device (receiver) unit in rugged metal enclosures, facilitating reliable plug-and-play operation without drivers. Both units support power-over-cable (PoC), meaning only one power supply is needed — powering either end also powers the other automatically over the CAT cable.
With multiple USB A and USB C ports, RS-232 and GPIO passthrough for control/sync, low latency performance, and a compact design suitable for racks or concealed installation, this extender kit provides a robust solution for long-distance USB connectivity in demanding professional AV environments.
Key Features
- 100-metre USB Extension: Extend USB 3.2 signals up to 100 metres (328 feet) over CAT6a / CAT6 / CAT7 cable.
- High-Speed USB 3.2: Supports up to 5 Gbps data transfer — suitable for cameras, storage, audio interfaces, and peripherals.
- Backward Compatible: Works with USB 2.0 and USB 1.1 devices as well.
- Plug-and-Play: No drivers or software needed — connect and go.
- Power over Cable (PoC): Power either the host or receiver — the other end will draw power automatically over the CAT link.
- Multiple Ports: Provides a mix of USB-C and USB-A outputs at the receiver for broad device compatibility.
- Control & Sync Support: RS-232 and FSYNC / GPIO passthrough for remote control or synchronization in professional setups.
- Rugged Metal Enclosure: Durable build suitable for racks, conference rooms, studios, or mobile rigs.
Technical Specifications
- USB Protocol: USB 3.2 Gen1
- Data Rate: Up to 5 Gbps
- Maximum Extension Distance: 100 metres (328 feet) via CAT6a / CAT6 / CAT7 cable
- ESD Protection: IEC 61000-4-2: ±8 kV air-gap / ±4 kV contact discharge
- Connections (Transmitter): 1 × USB-C Host input, 1 × USB-C device output, 2 × USB-A device outputs, 1 × RJ45 HDBT-USB3 link (PoC), RS-232, GPIO / FSYNC, firmware service port
- Connections (Receiver): RJ45 HDBT-USB3 link input (PoC), 2 × USB-C device ports, 2 × USB-A device ports, RS-232, GPIO / FSYNC, firmware service port
- Housing: Metal enclosure
- Dimensions (per unit): 100 mm × 85 mm × 25.5 mm (approx. 3.94 in × 3.35 in × 1.00 in)
- Weight (per unit): ~265 g (TX) / ~275 g (RX)
- Power Supply: Single 24 V DC adapter (included), supports PoC over CAT link to power both units
- Power Consumption: TX up to 23 W, RX up to 35 W (combined up to ~58 W max) depending on connected devices and cable loss
- Operating Temperature: 32–104 °F (0–40 °C)
- Humidity (Operating): 20–80% RH (non-condensing)
