Vaddio RoboFLIP 30 HDBT Ceiling Mounted PTZ Camera Standalone, or with OneLINK HDMI/Bridge/Bridge Express System - No System

Vaddio RoboFLIP 30 HDBT Ceiling Mounted PTZ Camera Standalone, or with OneLINK HDMI/Bridge/Bridge Express System

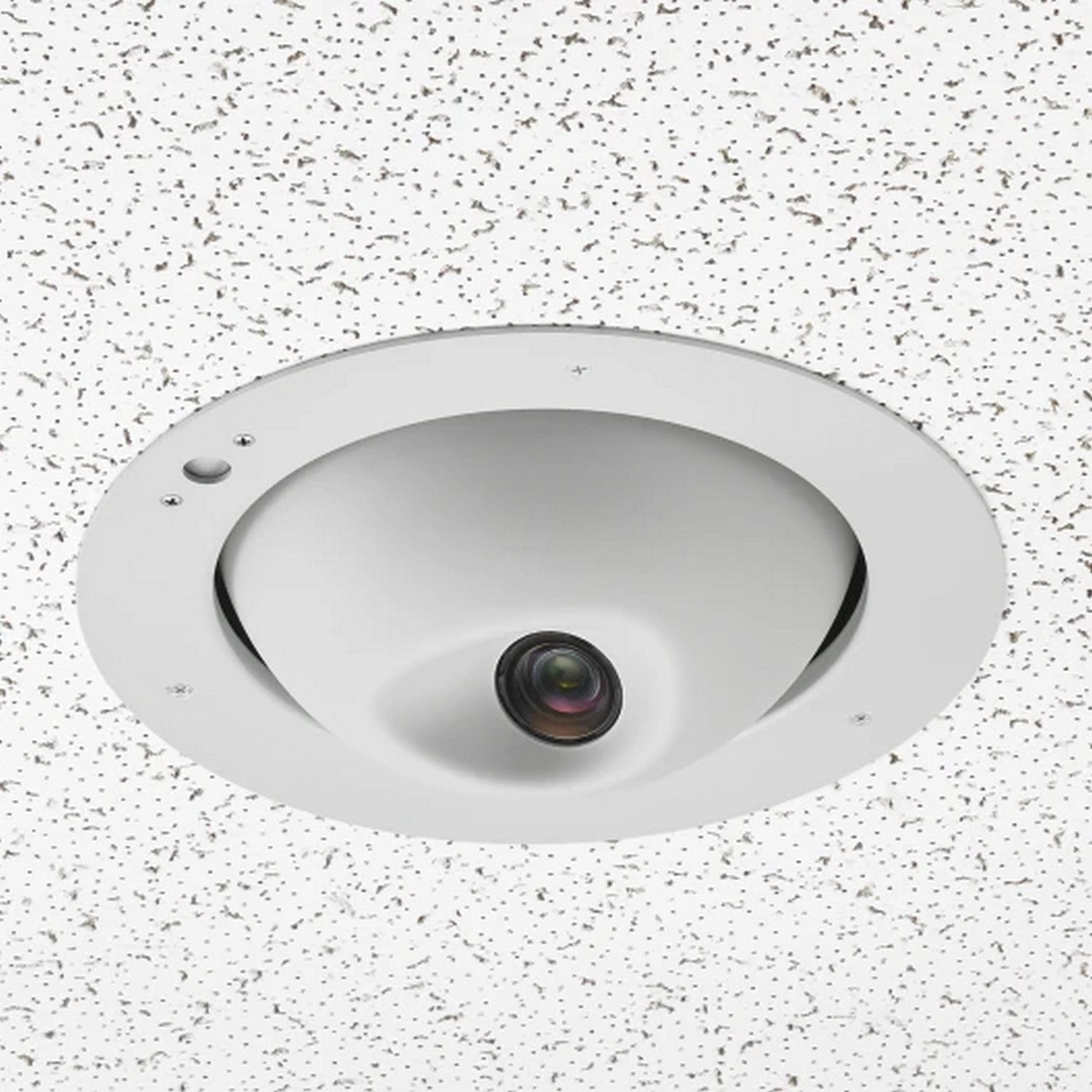

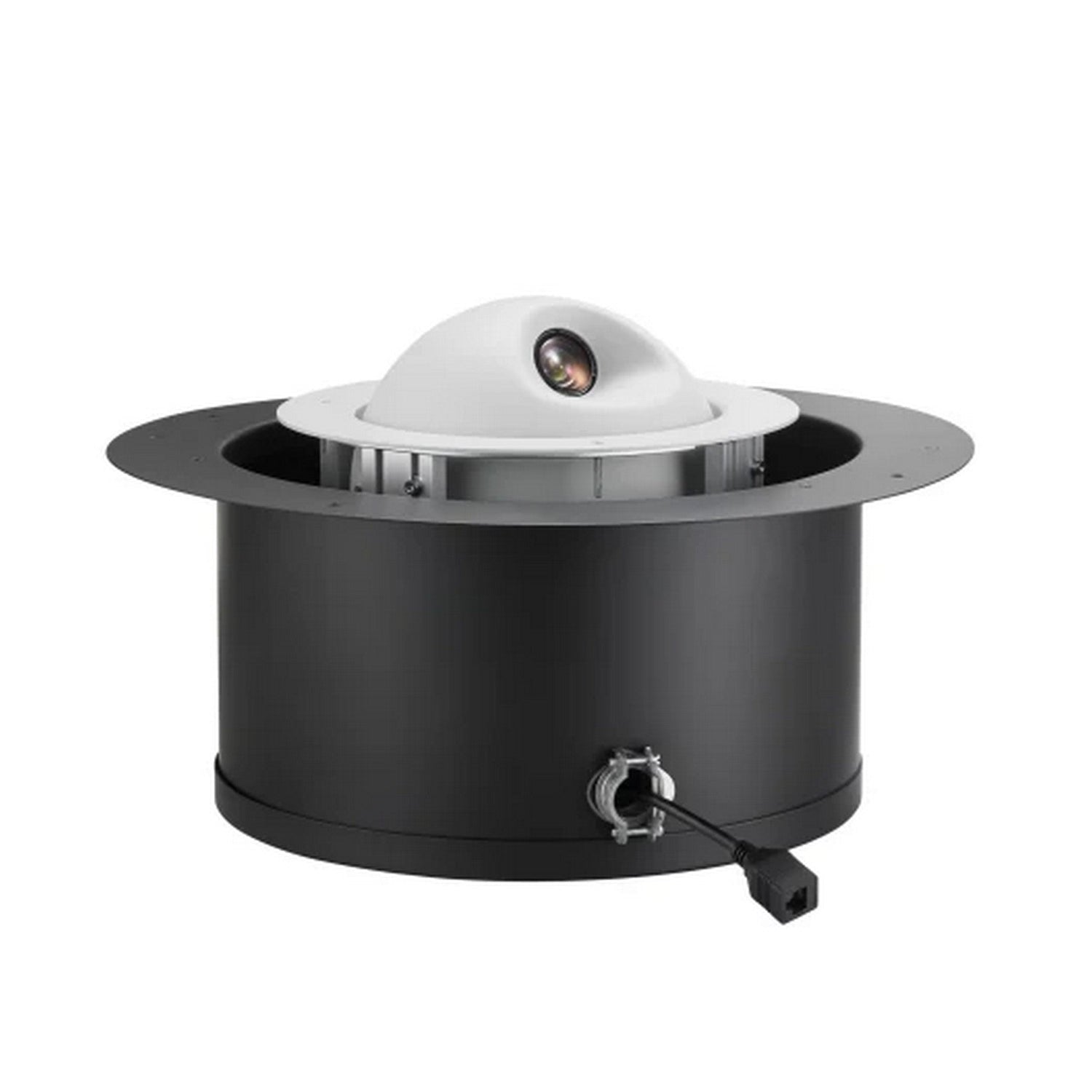

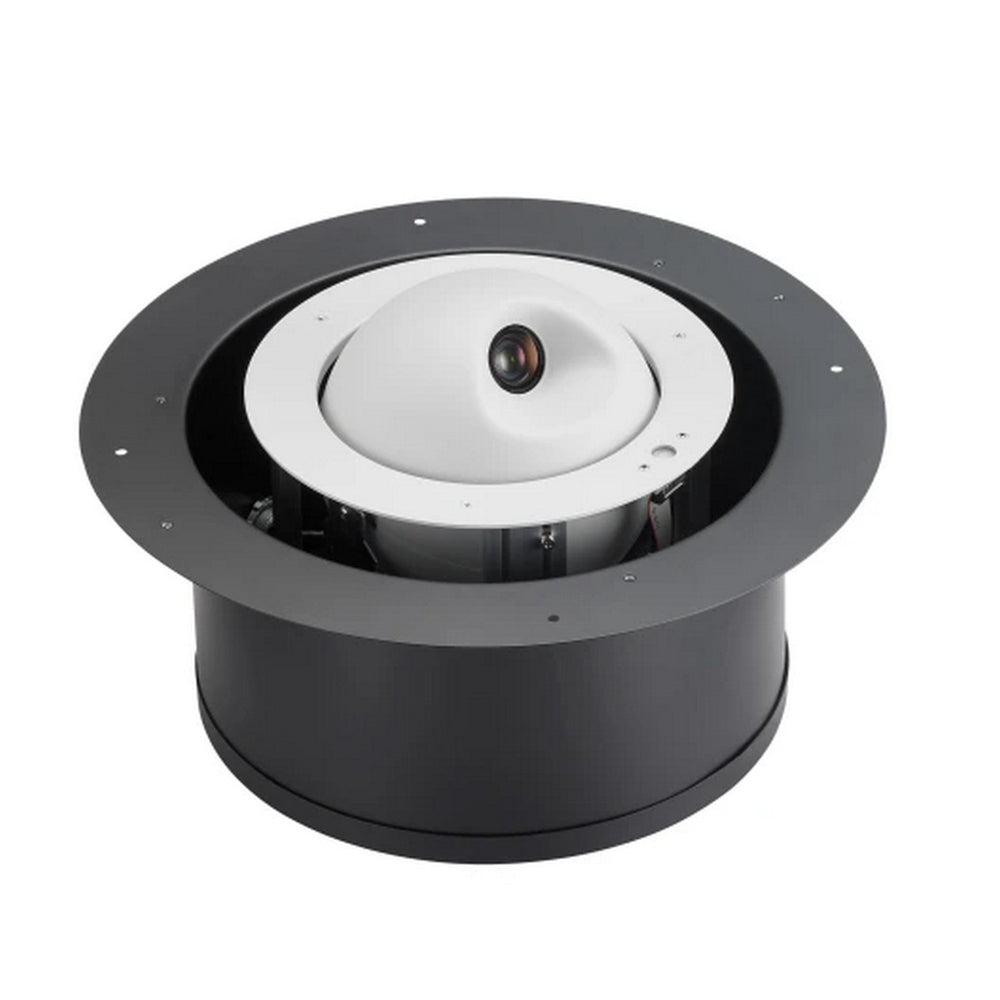

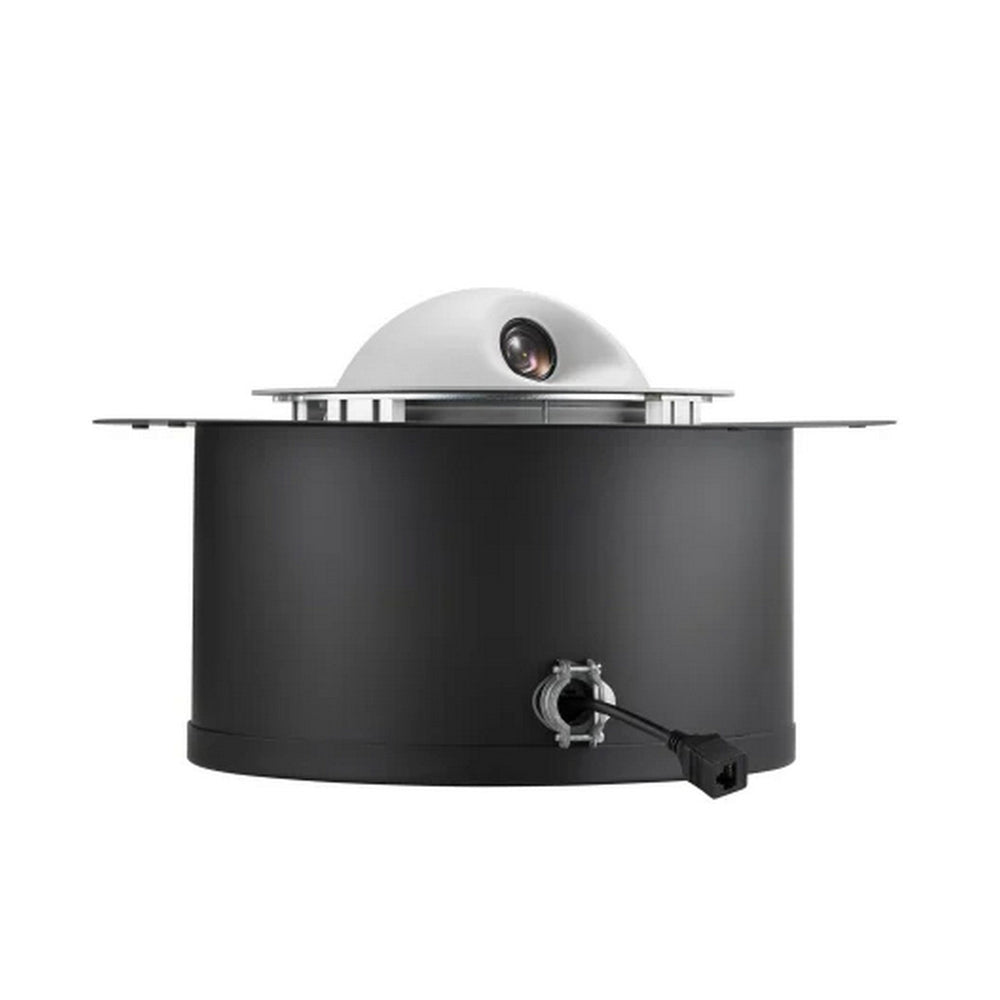

The Vaddio RoboFLIP 30 HDBT is a ceiling-mounted PTZ camera designed for professional AV environments requiring discreet installation and high-quality video capture. Featuring a 1/2.5" Exmor R CMOS sensor and up to 30x zoom, it delivers Full HD 1080p/60 video with exceptional clarity. The camera's unique design allows it to retract into its enclosure when not in use, providing a clean ceiling line and ensuring privacy.

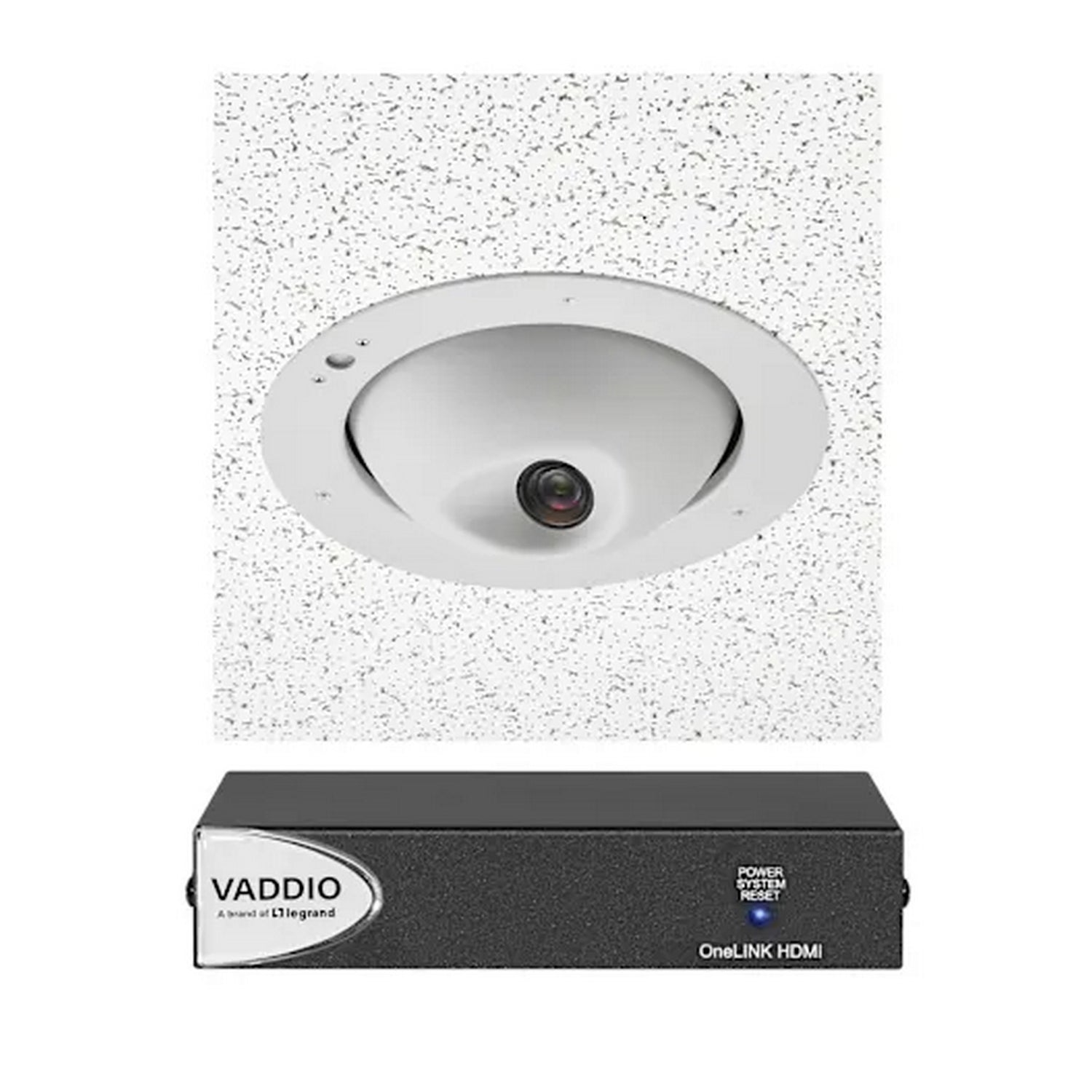

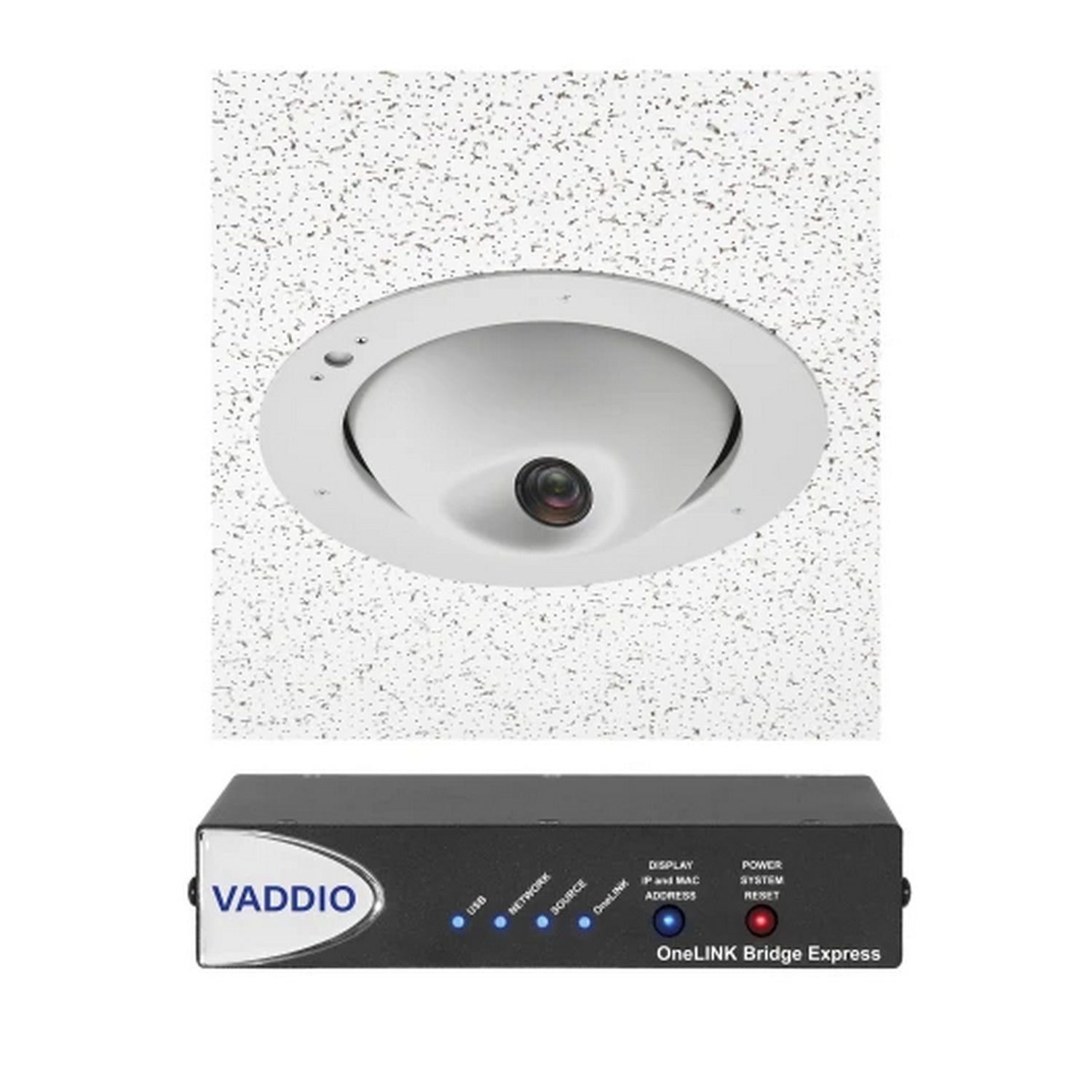

This camera is available in four configurations: Standard, OneLINK HDMI, OneLINK Bridge, and OneLINK Bridge Express. Each system utilizes HDBaseT technology for power, video, and control over a single Cat-5e/6 cable, simplifying installation and reducing cable clutter. The OneLINK systems offer additional connectivity options, including HDMI, USB 3.0, 3G-SDI, and IP streaming, catering to various integration needs.

Key Features

• Full HD 1080p/60 Video: Delivers high-definition video for professional applications
• 30x Zoom: Provides detailed close-ups with smooth pan, tilt, and zoom operations

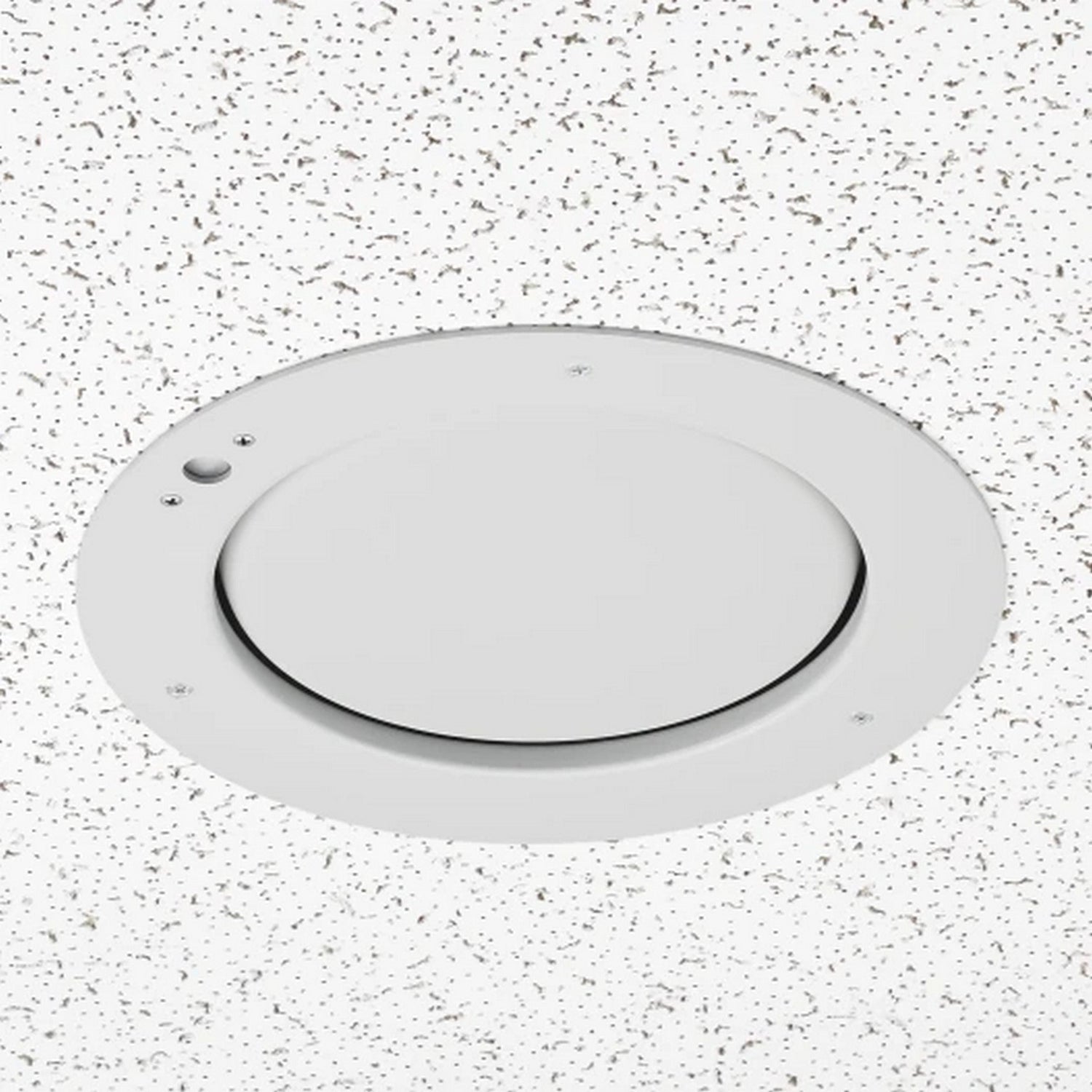

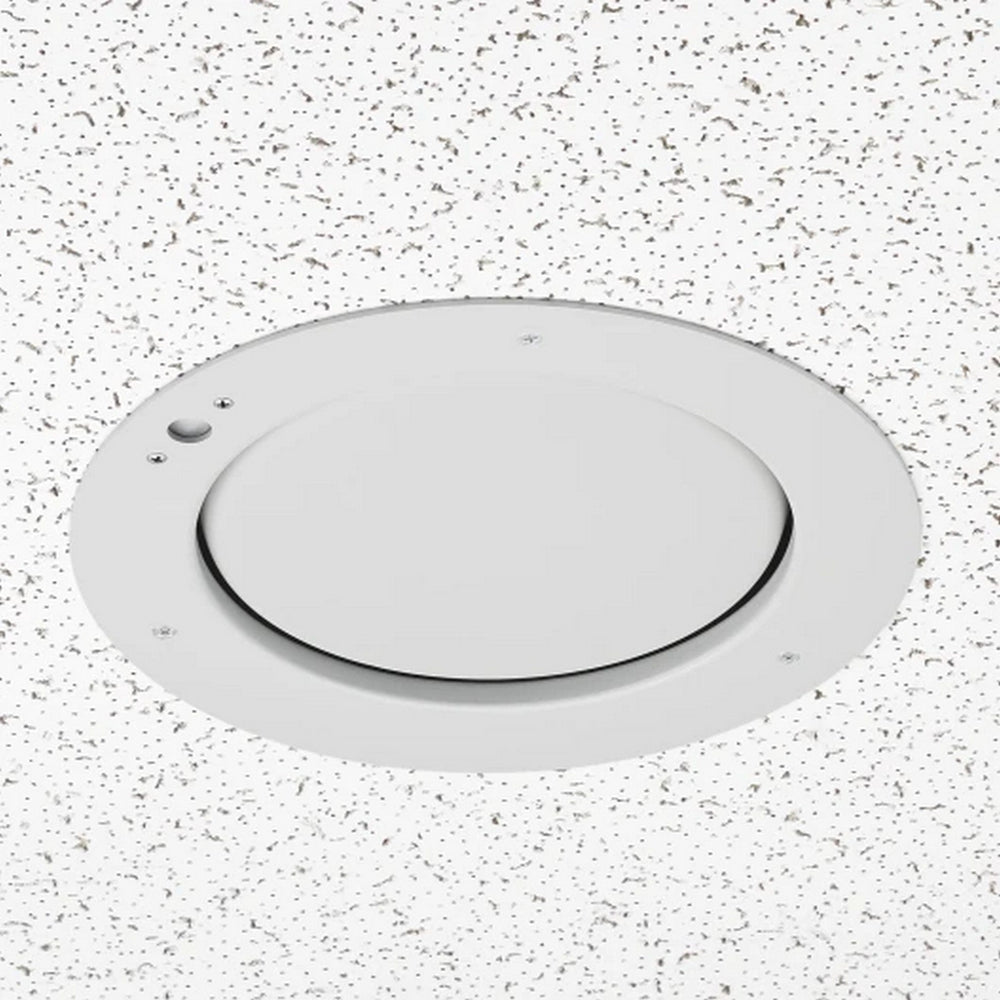

• Recessed Ceiling Mount: Conceals the camera when not in use for a clean aesthetic
• HDBaseT Connectivity: Simplifies installation with power, video, and control over a single cable
• Multiple System Options: Choose from Standard, OneLINK HDMI, OneLINK Bridge, or OneLINK Bridge Express configurations
• Silent Operation: Equipped with BLDC direct drive motors for quiet movement
• Flexible Control: Supports IR remote, RS-232, Telnet, and web-based control interfaces

Technical Specifications

• Image Sensor: 1/2.5" Exmor R CMOS
• Effective Pixels: 8.51 Megapixels
• Optical Zoom: 20x
• Digital Zoom: Up to 30x
• Field of View: Horizontal: 70.2° to 3.4°
• Pan Range: ±160°
• Tilt Range: +90° to -30°
• Pan/Tilt Speed: 0.35°/sec to 120°/sec
• Video Output: HDBaseT; additional outputs vary by system configuration
• Control Interfaces: IR, RS-232, Telnet, Web UI
• Power: PoE++ (802.3bt)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)

What's Included in the Box

• RoboFLIP 30 HDBT Camera
• White Trim Ring with IR Receiver and Courtesy Light Button
• Tile Support Brace
• Vaddio IR Remote Commander
• Installation Guide
• System-Specific Components: OneLINK HDMI Interface, OneLINK Bridge Interface, or OneLINK Bridge Express Interface (depending on configuration)
