Vaddio RoboSHOT 12E HDBT PTZ Camera with OneLINK Bridge Express System - Black

Vaddio RoboSHOT 12E HDBT PTZ Camera with OneLINK Bridge Express

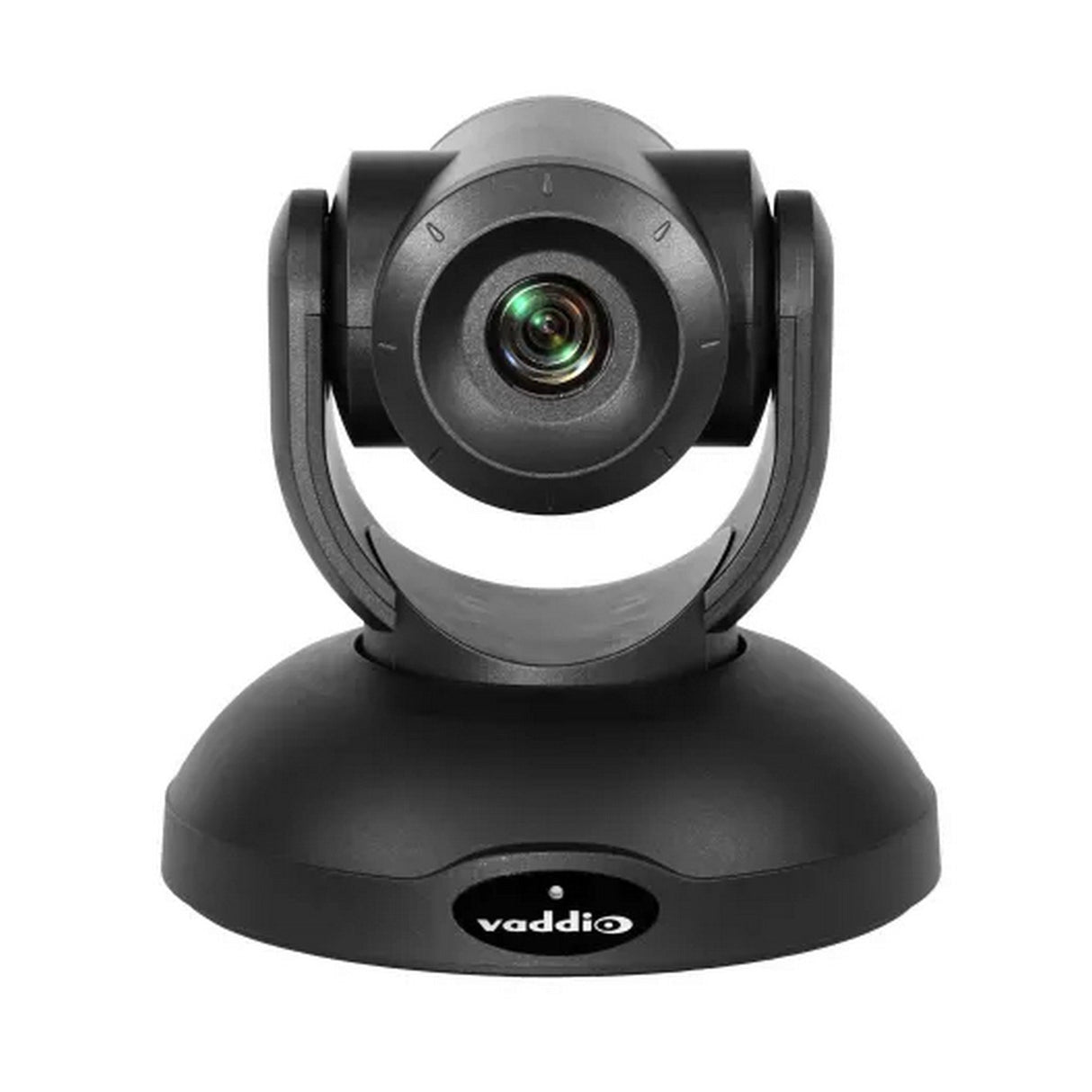

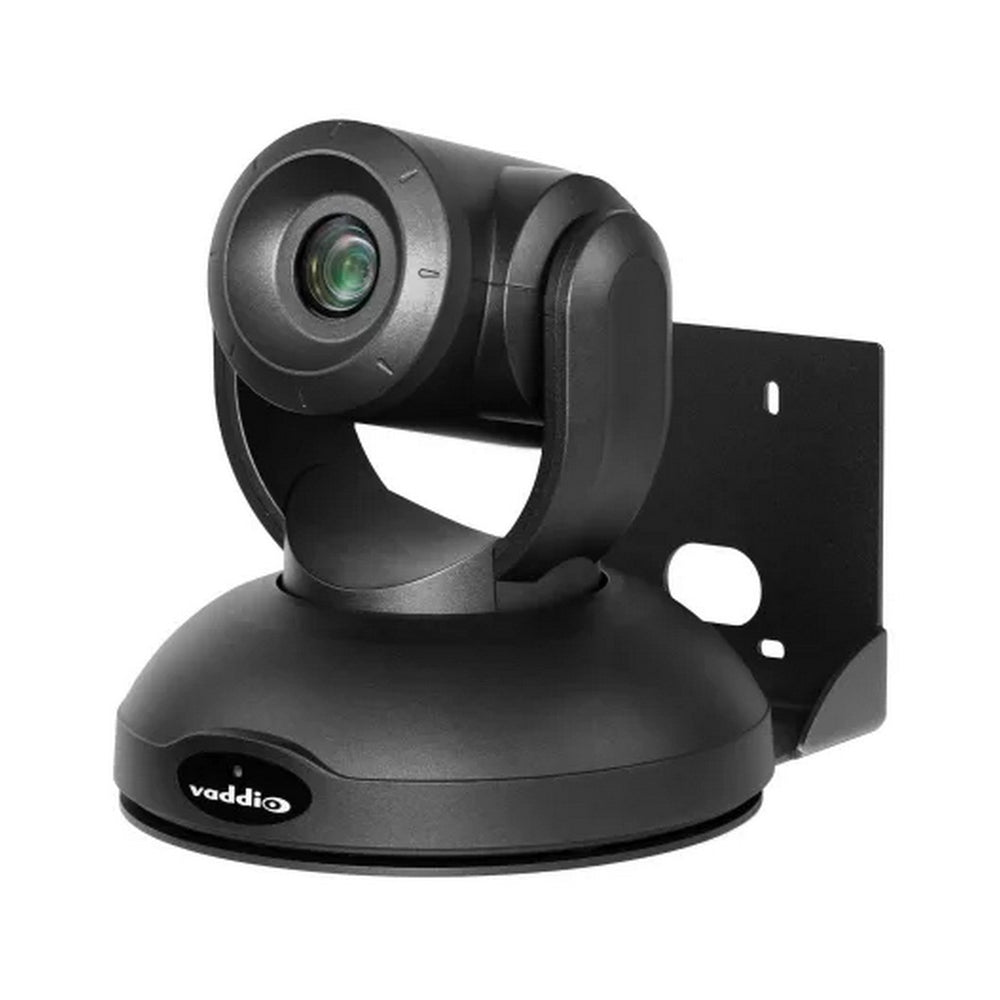

The Vaddio RoboSHOT 12E HDBT PTZ Camera is a professional-grade camera designed for superior video performance and flexible integration. Engineered with an 8.51 Megapixel Exmor R CMOS sensor, this camera delivers stunning 1080p resolution at 60fps, making it ideal for high-end production, broadcasting, and live streaming environments. The powerful 12x optical zoom allows for exceptional clarity even at a distance, while Tri-Synchronous motion ensures fluid pan, tilt, and zoom movements for seamless operation.

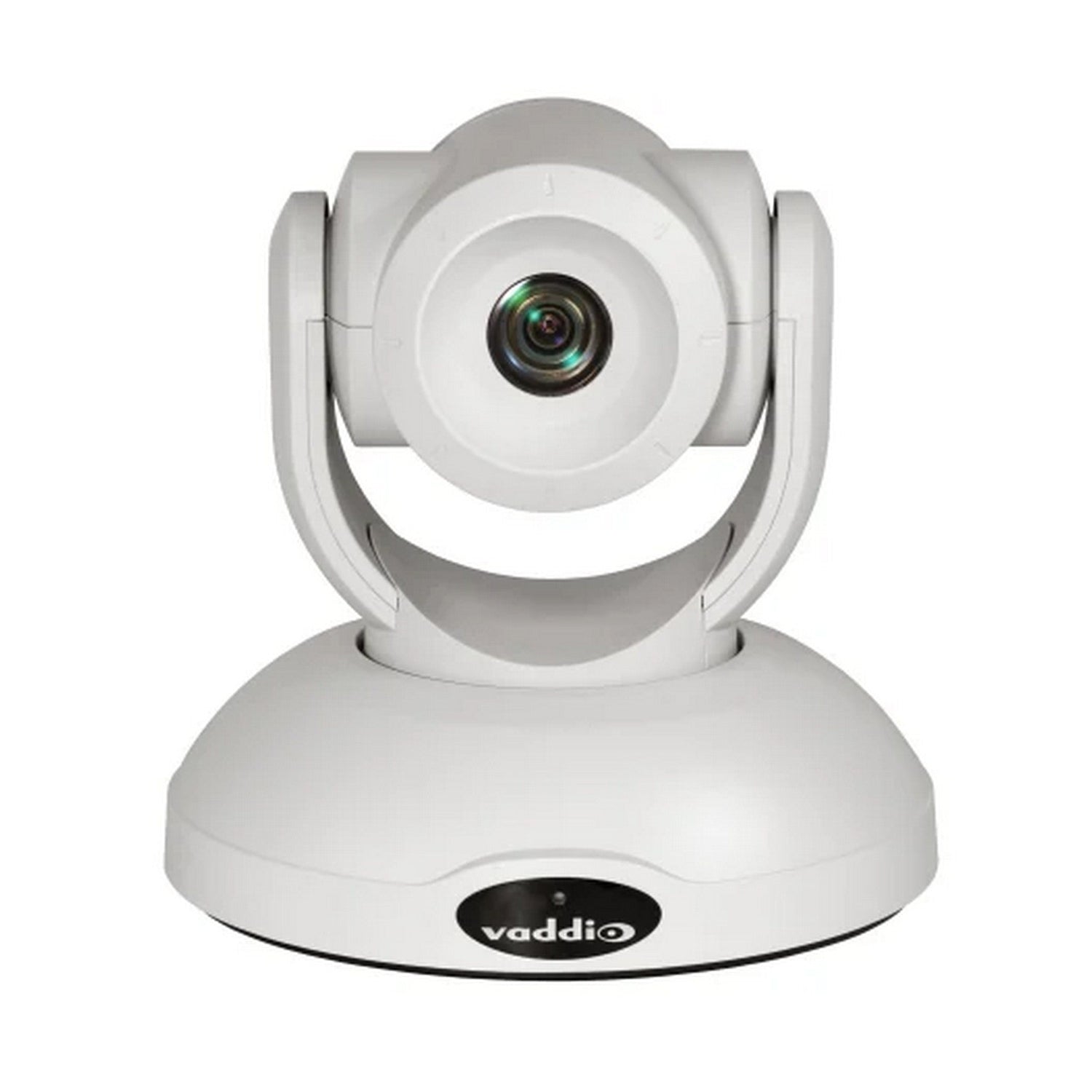

This camera is available in two color options—Black and White—providing ultimate flexibility for installation needs. With HDMI, HDBaseT, and IP streaming outputs, and integrated power, control, and video transmission over a single Cat-5e/6 cable, the RoboSHOT 12E HDBT drastically simplifies cabling and setup. It's perfect for lecture halls, conference rooms, houses of worship, and other professional AV spaces requiring premium camera performance with minimal infrastructure complexity.

Key Features

• High-Resolution Sensor: 8.51 Megapixel 1/2.5" Exmor R CMOS for native 1080p video
• Zoom Capability: 12x optical zoom
• Smooth Motion: Tri-Synchronous PTZ for fluid, silent camera movement

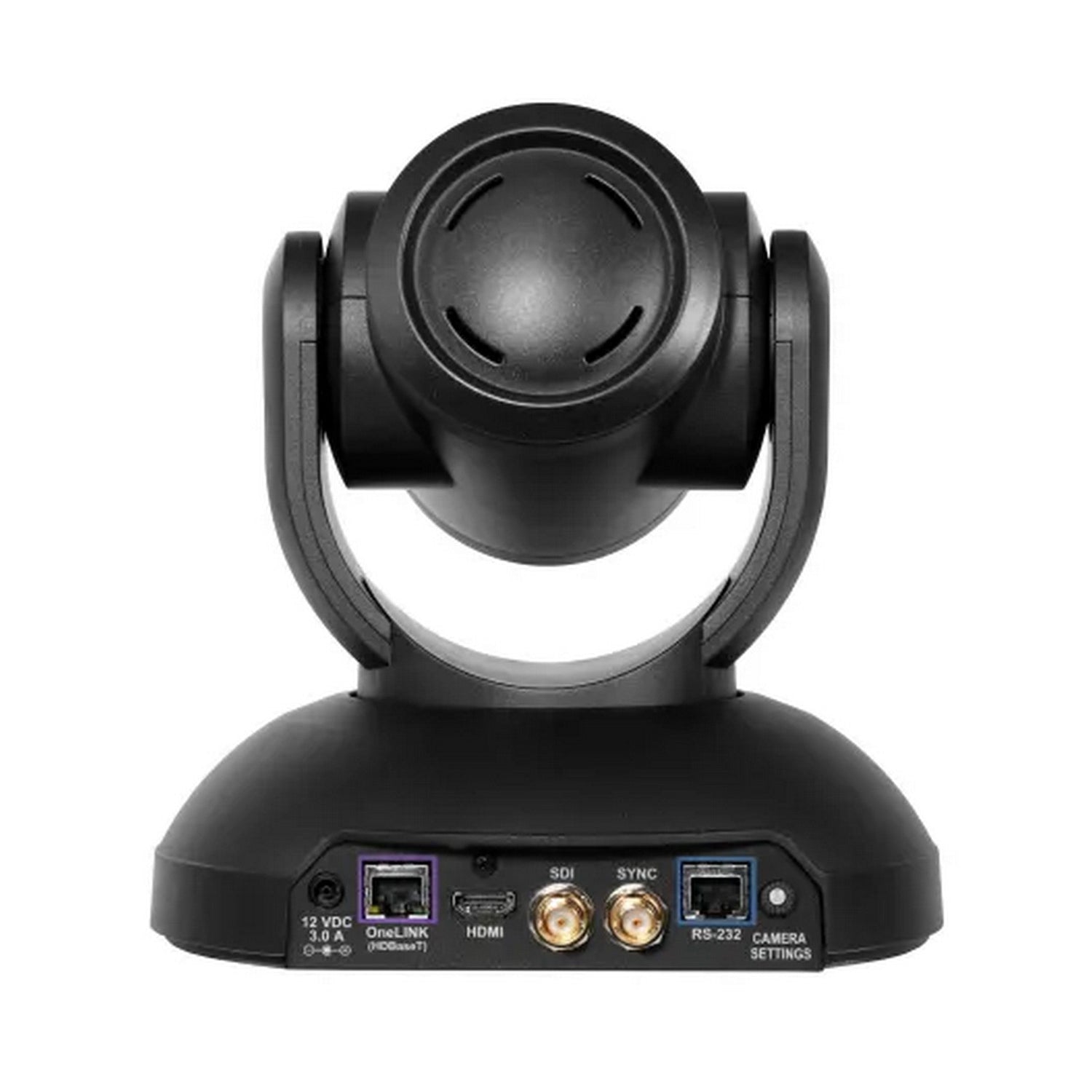

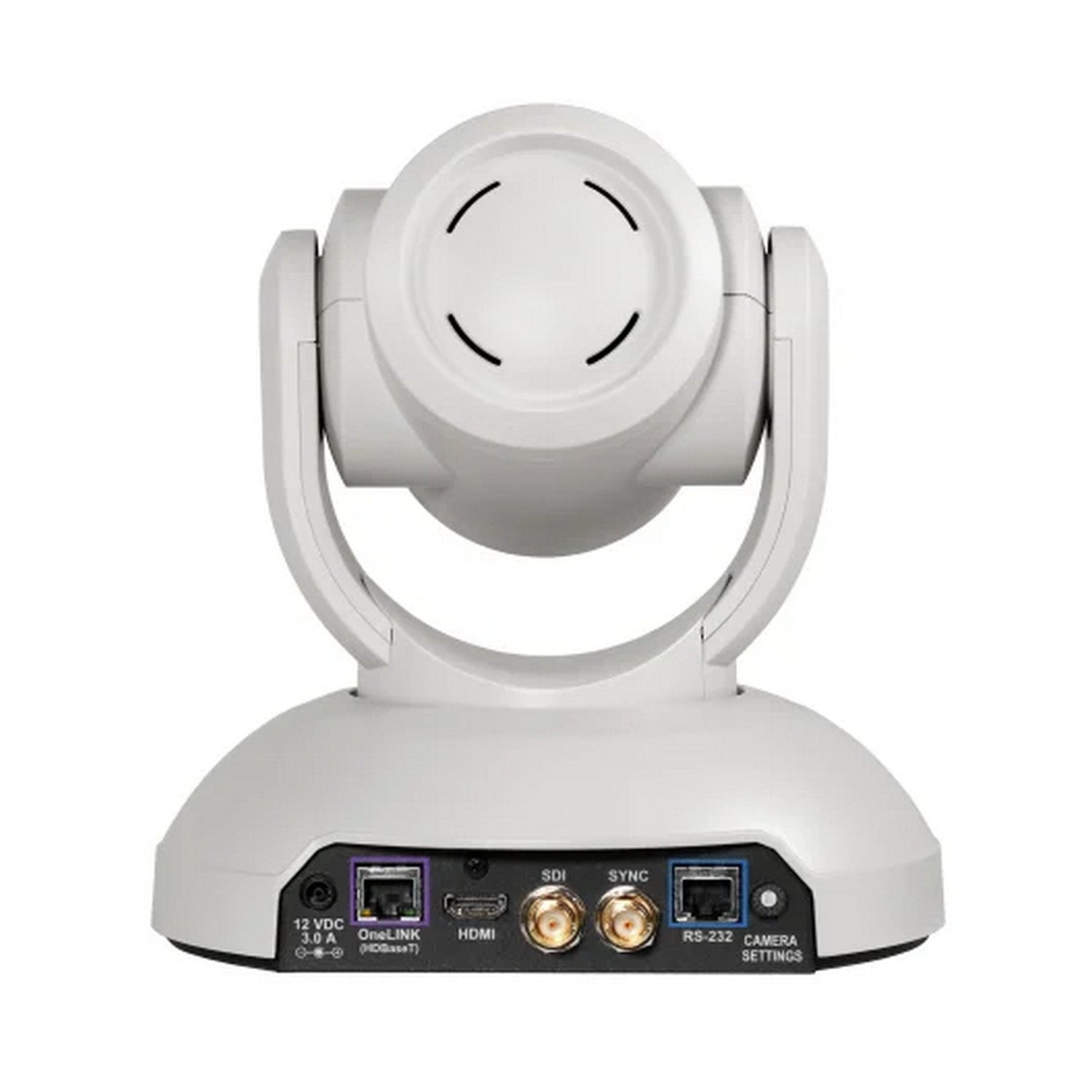

• Multiple Video Outputs: HDMI, HDBaseT, and IP streaming

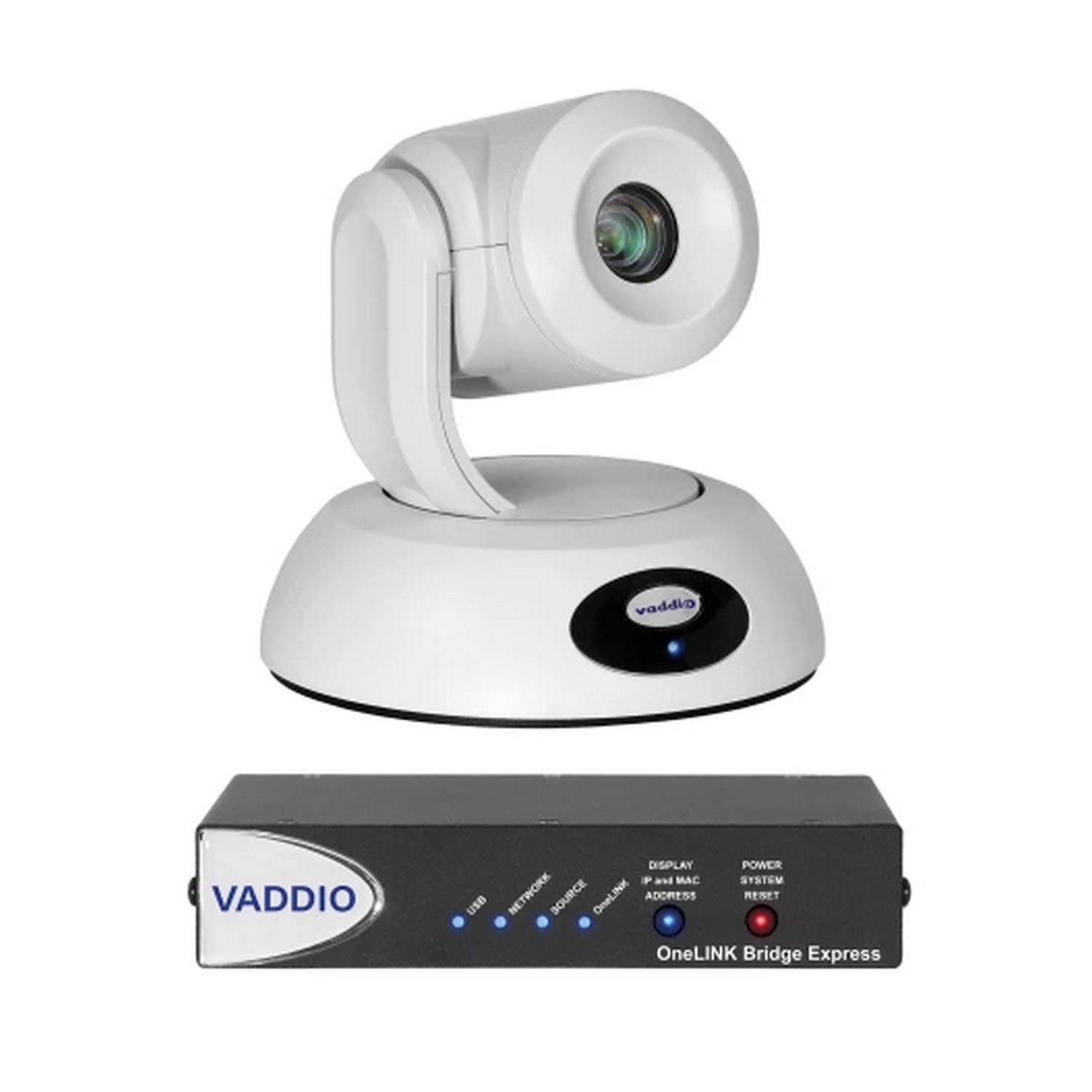

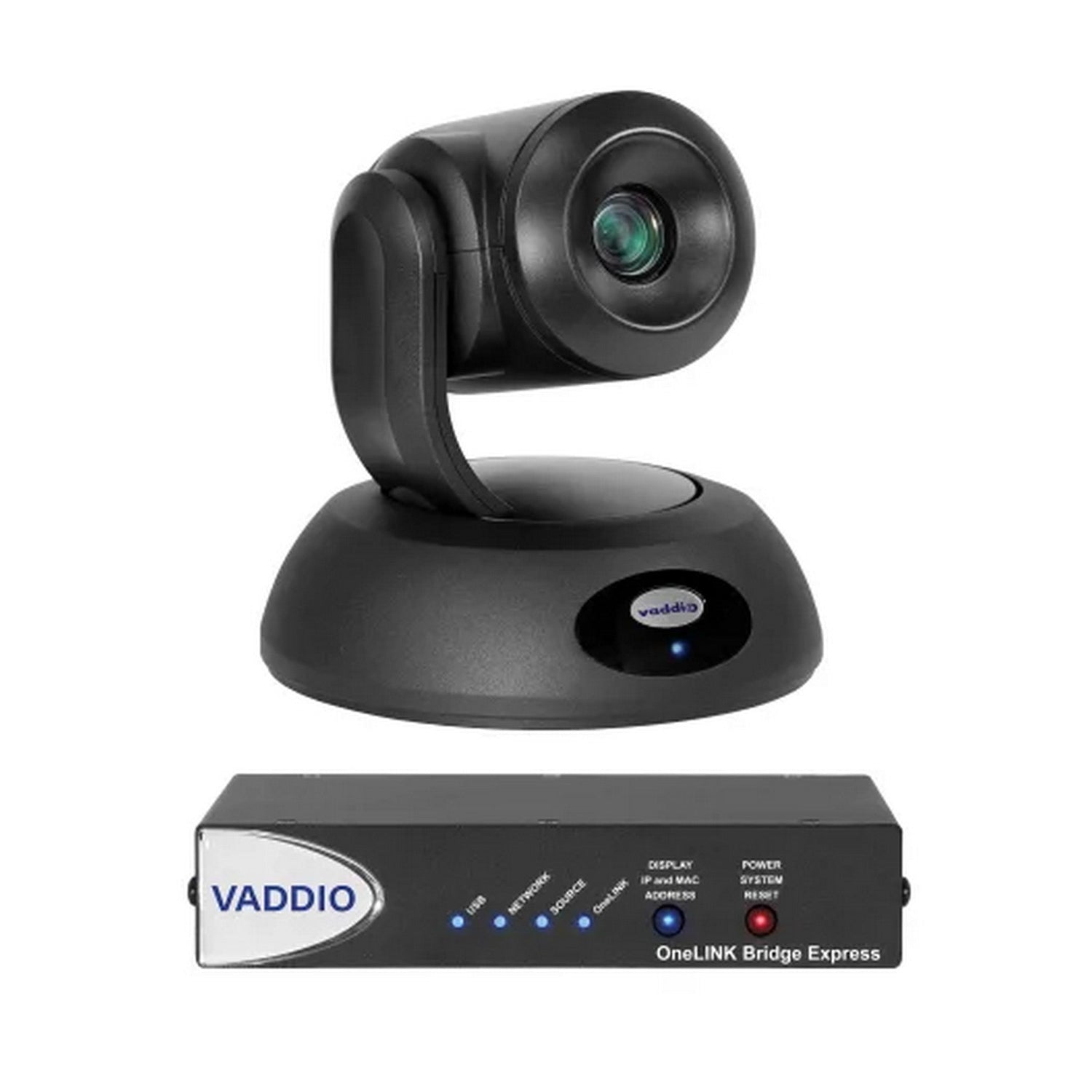

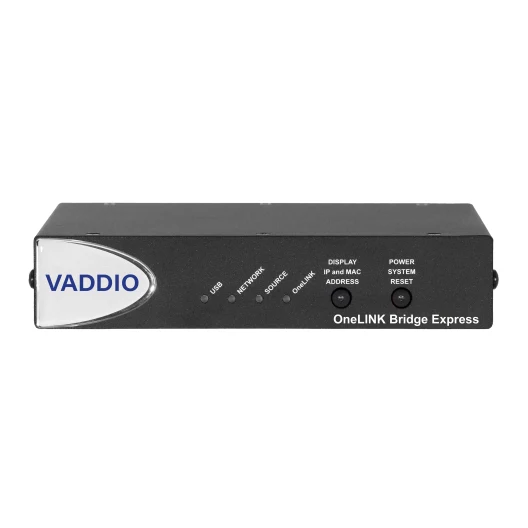

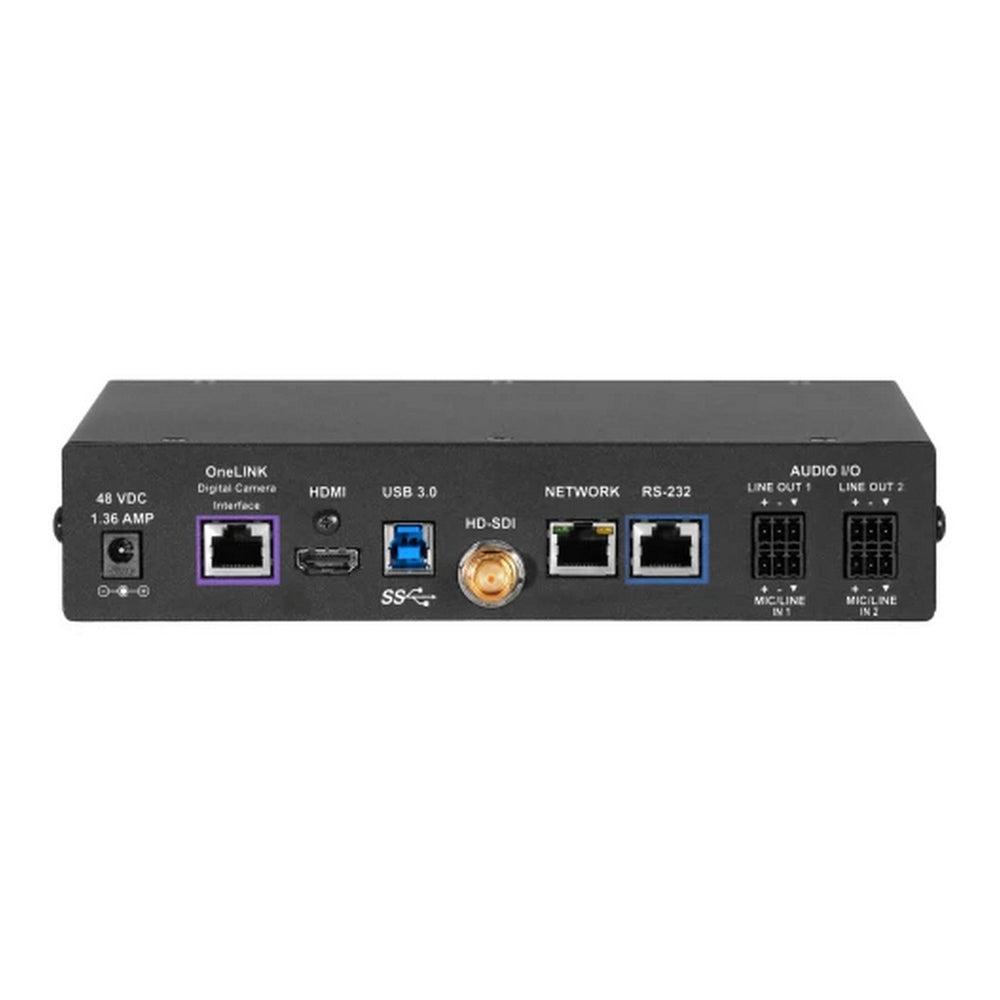

• OneLINK Bridge Express System: Power, video, and control over a single cable
• Wide Field of View: 70.2° wide end to 4.1° tele end
• Low-Light Performance: Operates in lighting as low as 1.0 lux
• Preset Functionality: Stores up to 16 PTZ positions
• Remote Control: Supports IR, RS-232, and IP control

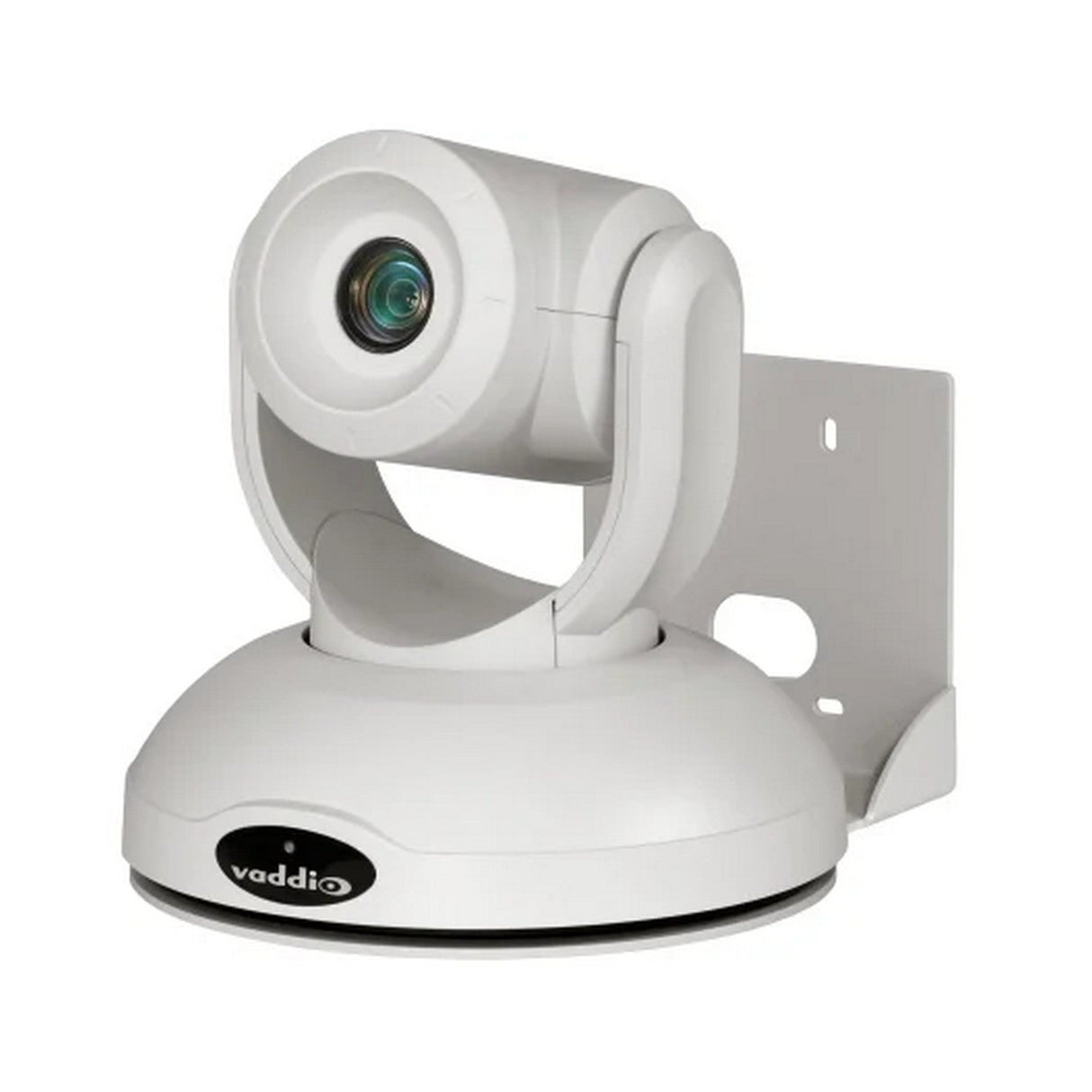

• Flexible Mounting: Includes wall mount and mounting hardware

Technical Specifications

• Image Sensor: 1/2.5" Exmor R CMOS
• Resolution: 1920 x 1080 (1080p) at 60fps
• Zoom: 12x Optical
• Field of View: Horizontal 70.2° to 4.1°
• Lens Aperture: f/2.0 to f/3.8
• Outputs: HDMI, HDBaseT, IP Streaming
• Control: IR, RS-232, IP
• Power: PoE+ (802.3at)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity: 20% to 80% non-condensing
• Dimensions (W x H x D): 7.05 x 6.94 x 6.75 inches
• Weight: 4.85 lbs (2.2 kg)

What's Included in the Box

• RoboSHOT 12E HDBT Camera (Black or White)
• Thin Profile Wall Mount (Black or White) with Mounting Hardware and Installation Manual
• Vaddio IR Remote Commander
• PoE+ Midspan Power Injector
• Quick-Start Guide
