Vaddio RoboSHOT 40 UHD PTZ Camera with OneLINK Bridge/OneLINK Bridge Express System - Black / with OneLINK Bridge

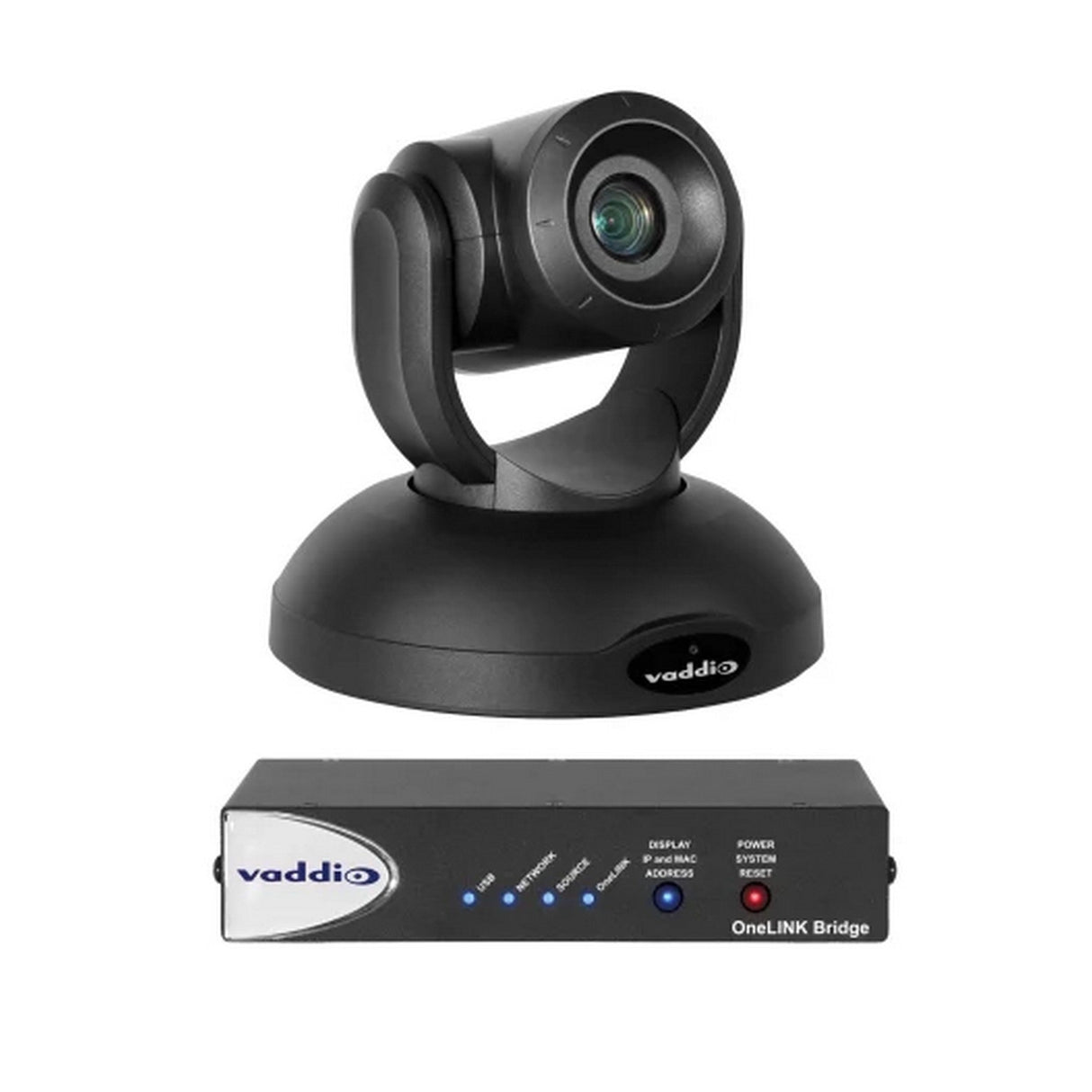

Vaddio RoboSHOT 40 UHD PTZ Camera with OneLINK Bridge and OneLINK Bridge Express

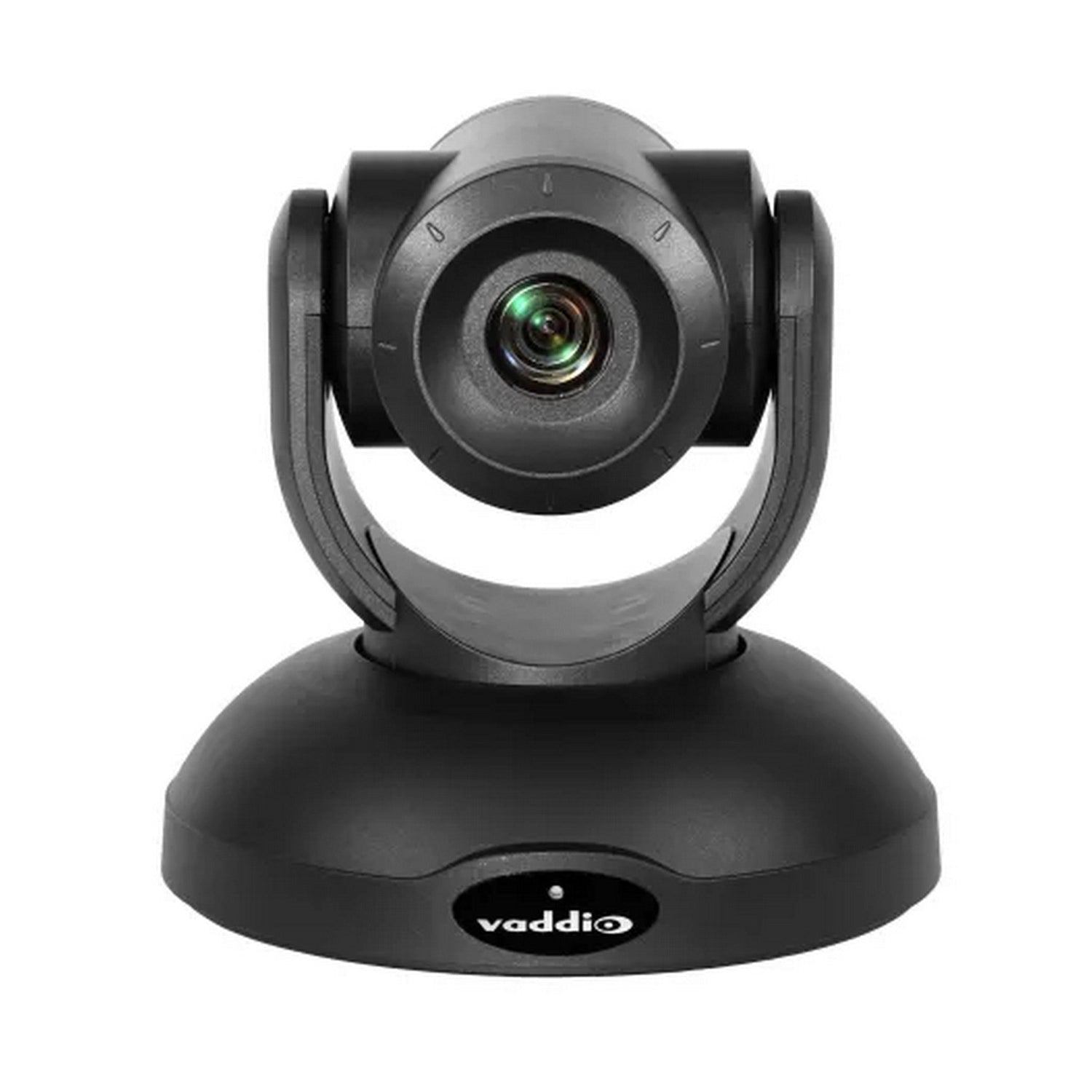

The Vaddio RoboSHOT 40 UHD PTZ Camera is a professional-grade PTZ camera built for superior video performance and flexible integration. Engineered with an 8.51 Megapixel Exmor R CMOS sensor, this camera delivers stunning 4K resolution (3840 x 2160p at 30fps), making it ideal for high-end production, broadcasting, and live streaming environments. The powerful 20x optical zoom and up to 30x lossless zoom at 4K allow for exceptional clarity even at a distance, while Tri-Synchronous motion ensures fluid pan, tilt, and zoom movements for seamless operation.

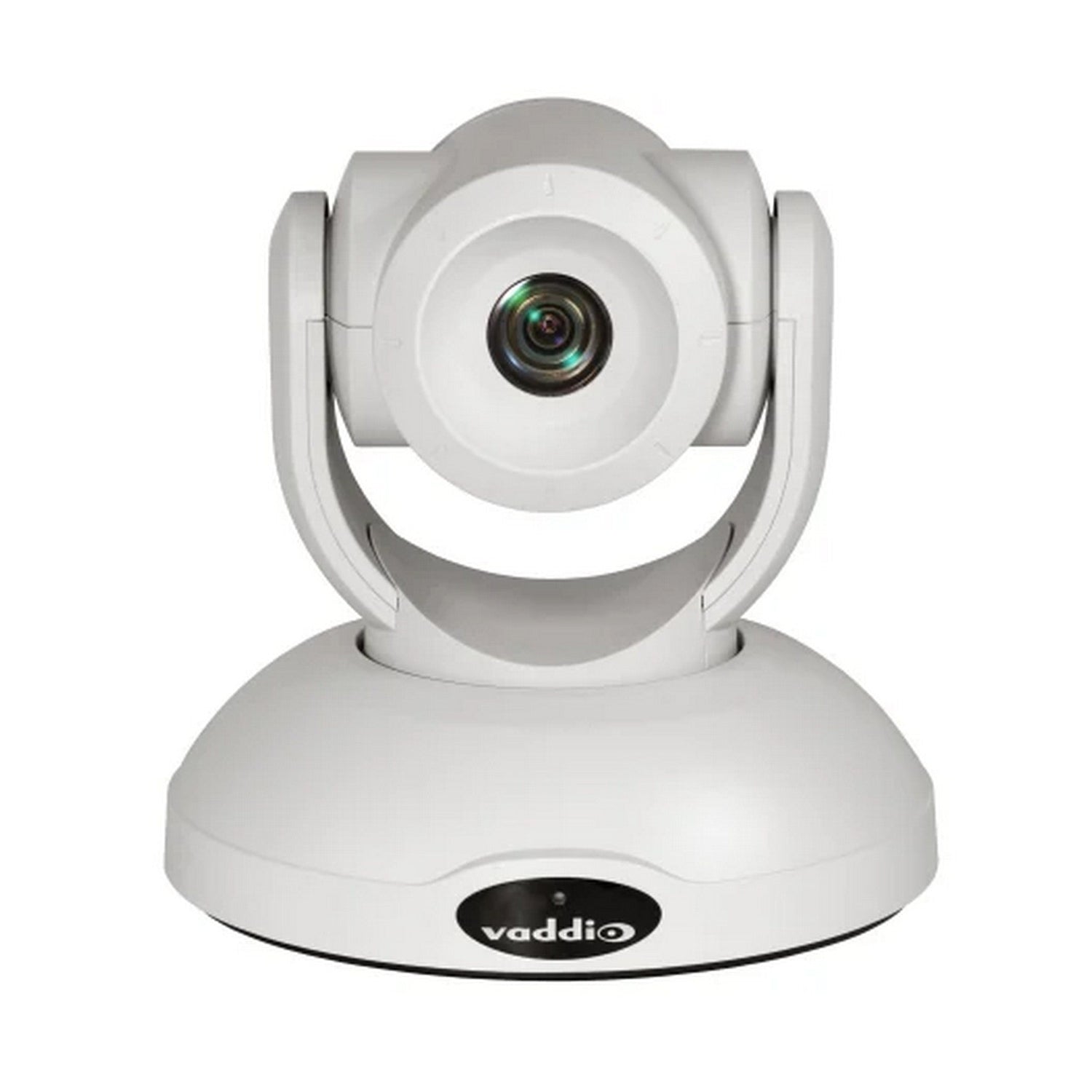

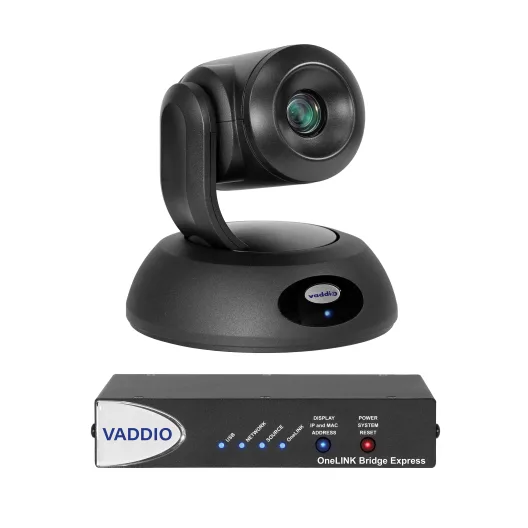

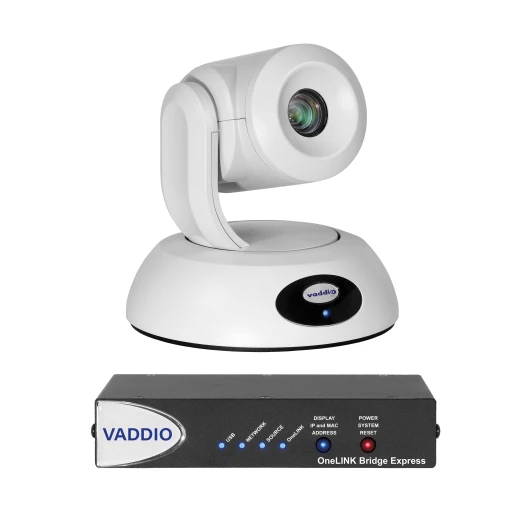

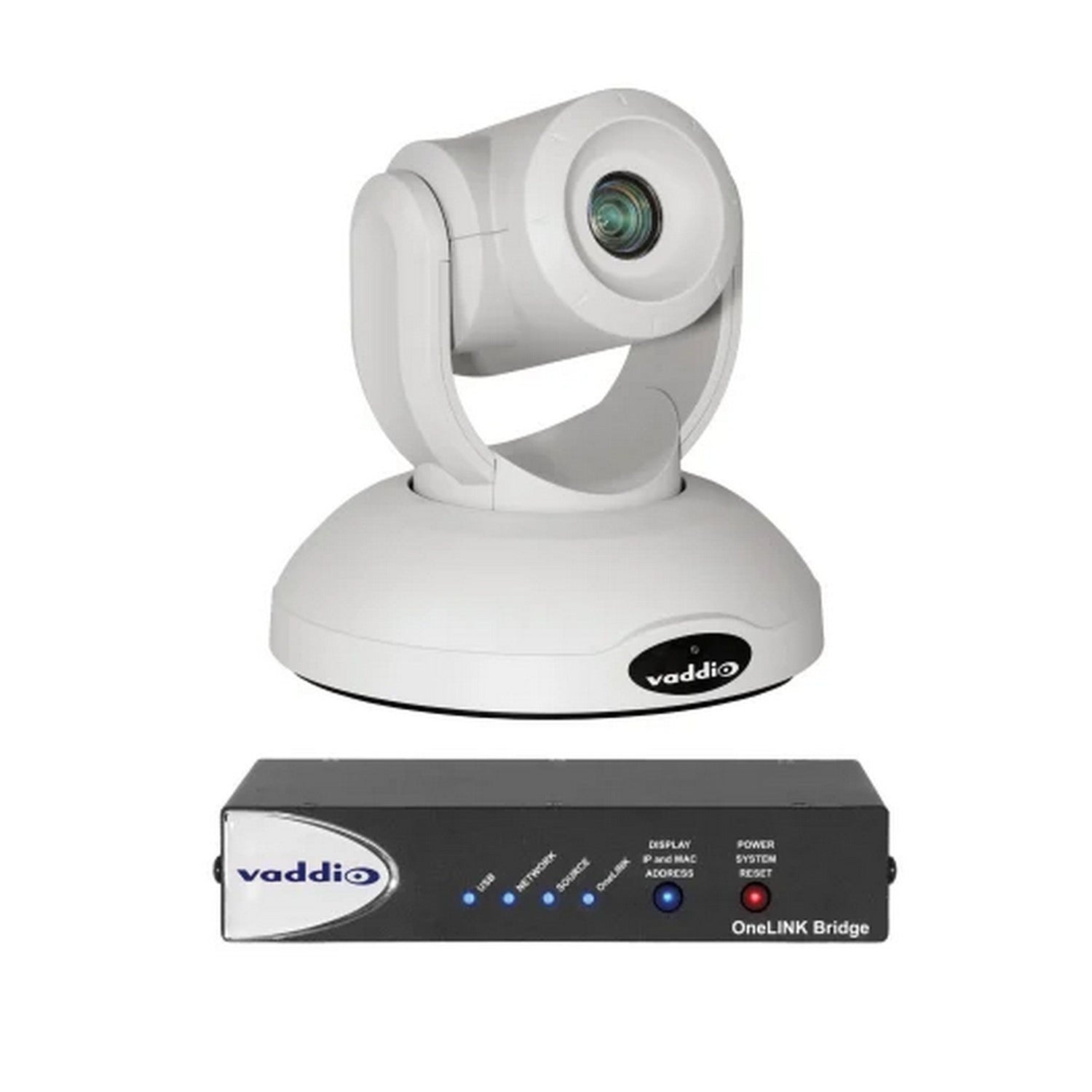

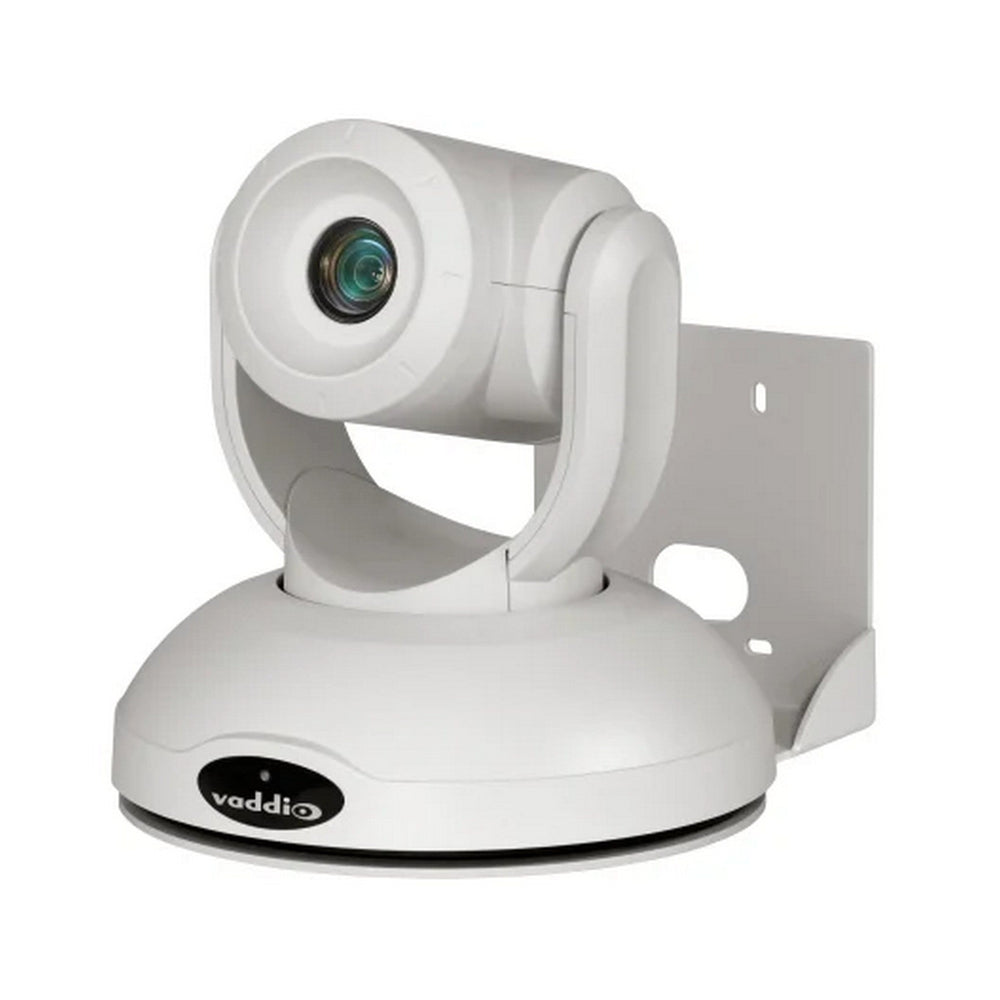

This camera is available in four configurations—Black and White versions with either a OneLINK Bridge or OneLINK Bridge Express extension system—providing ultimate flexibility for installation needs. With HDMI, 3G-SDI, and IP streaming outputs, and integrated power, control, and video transmission over a single Cat-5e/6 cable, the RoboSHOT 40 UHD drastically simplifies cabling and setup. It's perfect for lecture halls, conference rooms, houses of worship, and other professional AV spaces requiring premium camera performance with minimal infrastructure complexity.

Key Features

• High-Resolution Sensor: 8.51 Megapixel 1/2.5" Exmor R CMOS for native 4K video
• Zoom Capability: 20x optical zoom, up to 30x lossless zoom at 4K
• Smooth Motion: Tri-Synchronous PTZ for fluid, silent camera movement
• Multiple Video Outputs: HDMI, 3G-SDI, and IP streaming

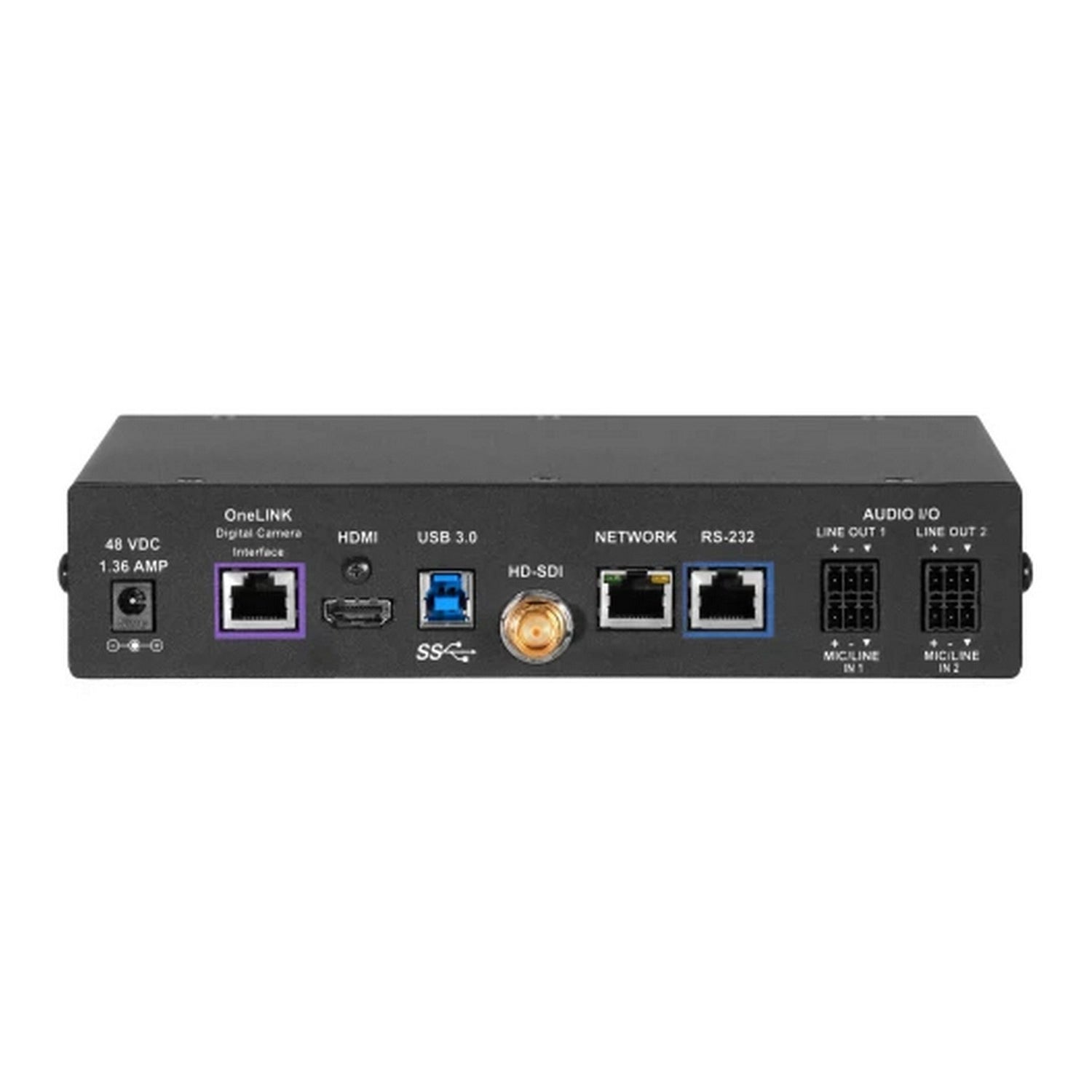

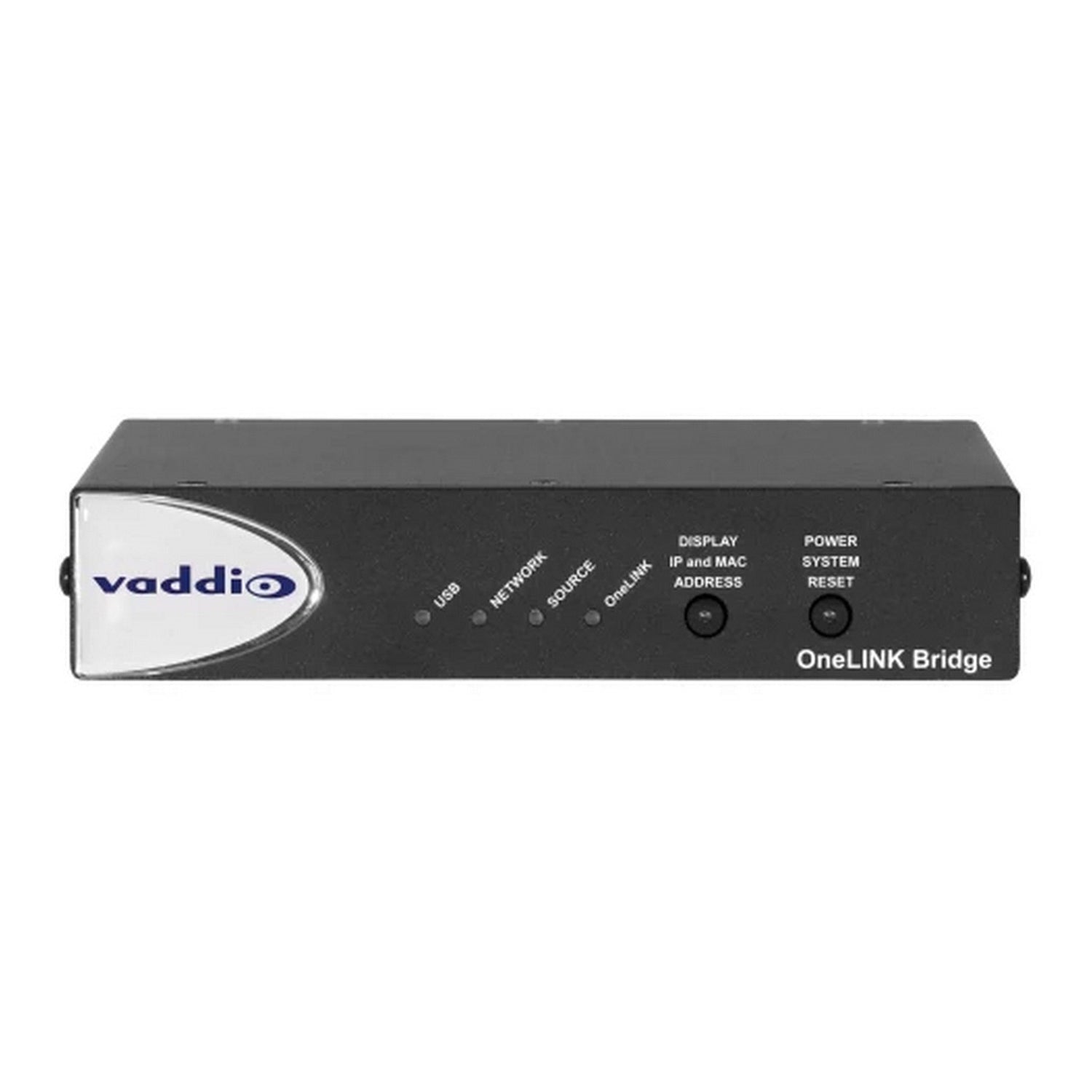

• OneLINK Bridge System: Power, video, and control over a single cable
• Wide Field of View: 2.05° to 70.2° horizontal angle
• Low-Light Performance: Operates in lighting as low as 1.6 lux
• Preset Functionality: Stores up to 16 PTZ positions
• Remote Control: Supports IR, RS-232, and IP control

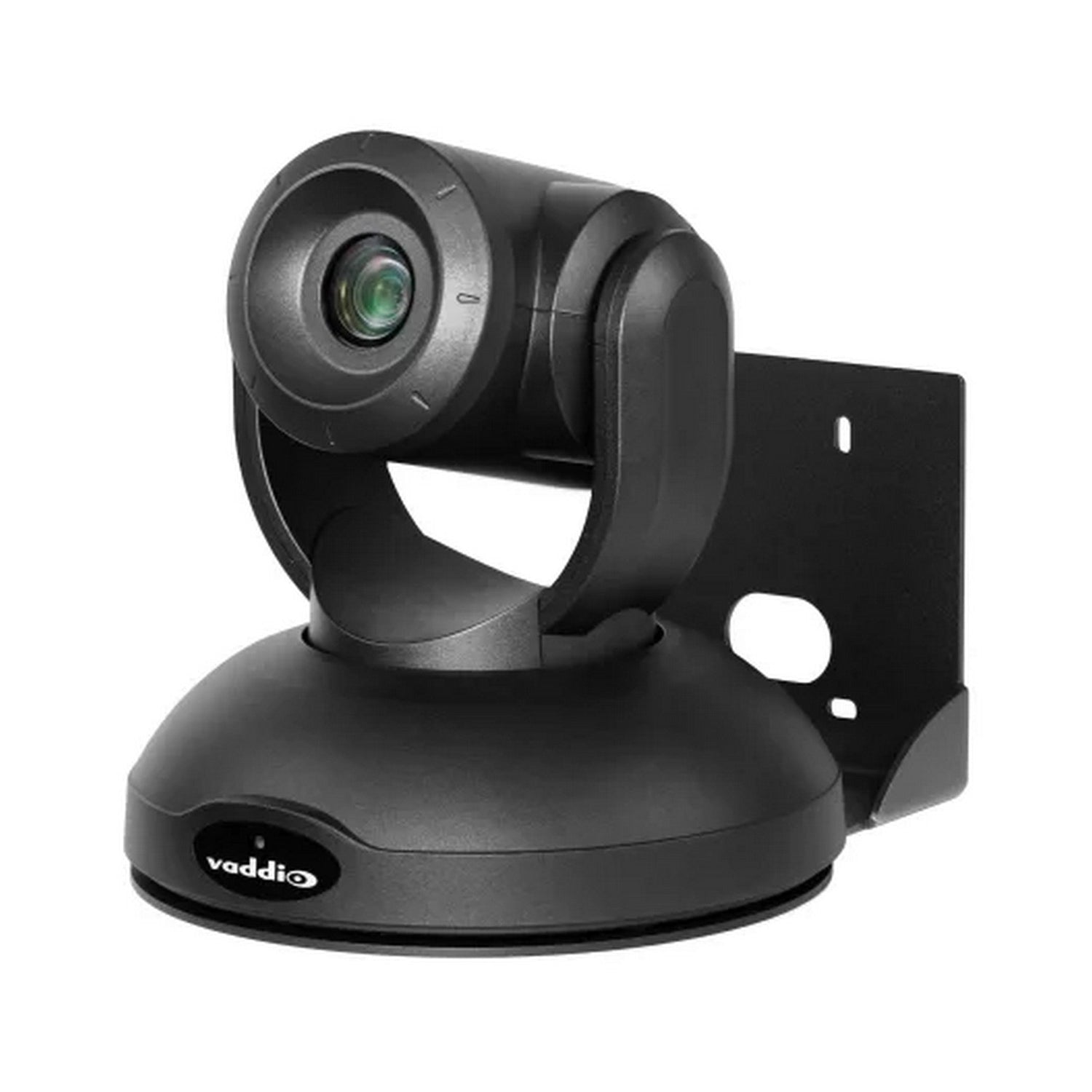

• Flexible Mounting: Includes wall mount and mounting hardware

Technical Specifications

• Image Sensor: 1/2.5" Exmor R CMOS
• Resolution: 3840 x 2160 (4K) at 30fps
• Zoom: 20x Optical, 30x Lossless at 4K
• Field of View: Horizontal 2.05° to 70.2°
• Lens Aperture: f/2.0

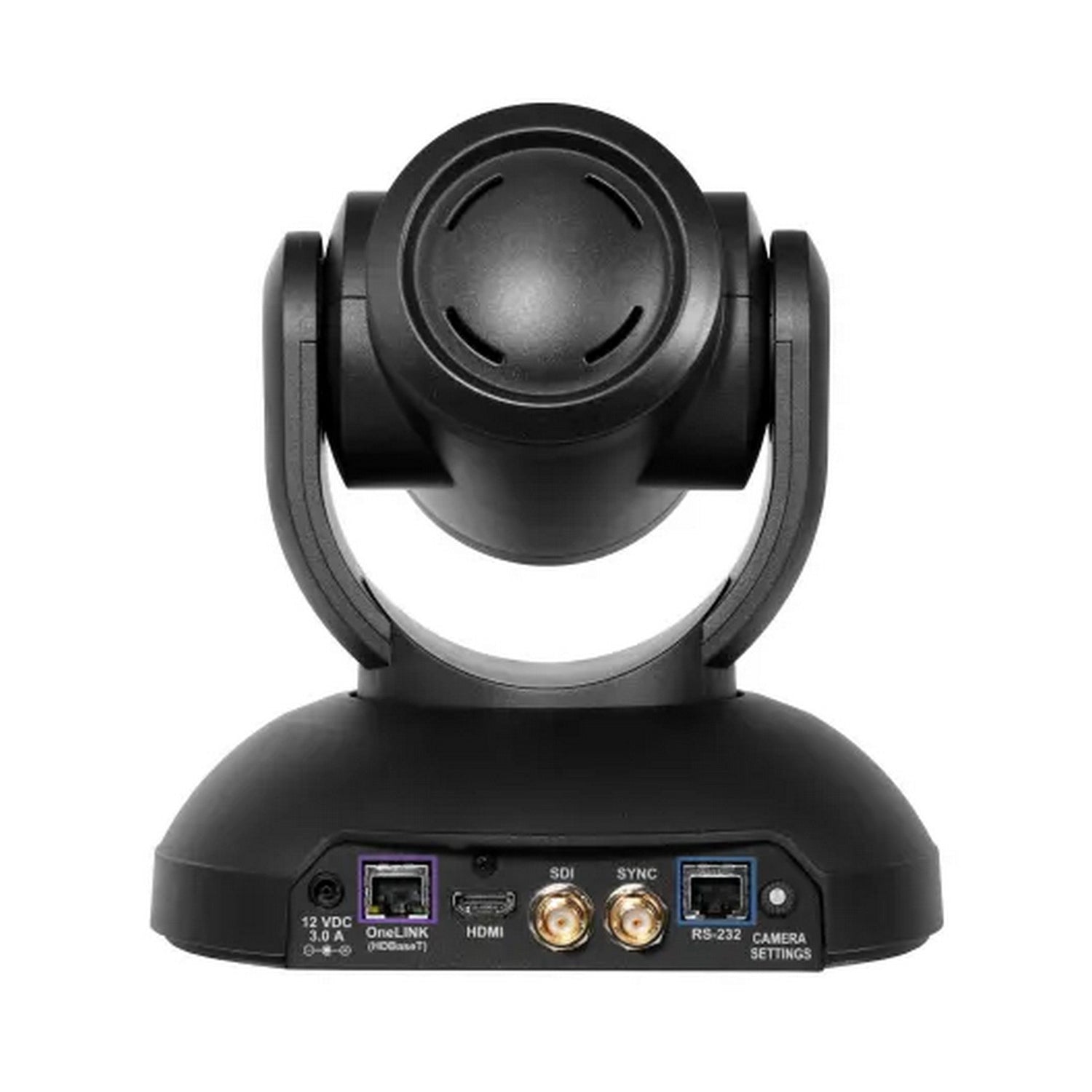

• Outputs: HDMI, 3G-SDI, RJ-45 (HDBaseT)
• Control: IR, RS-232, IP
• Power: 12 VDC or PoE++ (802.3bt)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity: 20% to 80% non-condensing
• Dimensions (W x H x D): 8 x 7.9 x 5.5 inches
• Weight: 6 lbs (2.7 kg)

What's Included in the Box

• RoboSHOT 40 UHD Camera
• Thin Profile Wall Mount with Hardware
• IR Remote Commander
• Quick-Start Guide
• OneLINK Bridge or Bridge Express System (based on configuration)
