VigilLink 2-Port 4K60 HDMI KVM Switcher

VigilLink 2-Port 4K60 HDMI KVM Switcher

The VigilLink VLKV-H2021 is a cutting-edge 2x1 KVM switcher designed to streamline your workspace by allowing seamless control of two computers using a single keyboard, mouse, and monitor setup. This device supports ultra-high-definition resolutions up to 4K at 60Hz with 4:4:4 chroma subsampling, ensuring crystal-clear visuals for both professional and personal applications. Whether you're a graphic designer requiring precise color accuracy or a gamer seeking immersive experiences, the VLKV-H2021 delivers exceptional performance to meet your needs.

Equipped with HDMI 2.0 compliance and HDCP 2.3 support, this switcher ensures compatibility with the latest multimedia content protection standards, providing a secure and reliable connection for all your devices. The inclusion of USB 3.0 ports allows for high-speed data transmission up to 5Gbps, facilitating efficient KVM operations and peripheral sharing. Additionally, the switcher's virtual interaction function automatically wakes up connected PCs from standby mode, reducing switching time and enhancing workflow efficiency.

User convenience is at the forefront of the VLKV-H2021's design. It offers multiple control options, including direct switching via front panel buttons, an IR remote control, or hotkeys through a connected keyboard or mouse. This flexibility ensures that users can choose the most comfortable and efficient method for their specific setup. Moreover, the switcher boasts wide compatibility across various operating systems, including Windows, macOS, and Linux, and requires no additional drivers—making it a true plug-and-play solution for diverse computing environments.

Key Features

• Supports resolutions up to 4K at 60Hz with 4:4:4 chroma subsampling for superior image quality.
• HDMI 2.0 and HDCP 2.3 compliant, ensuring compatibility with the latest content protection standards.
• USB 3.0 ports enabling data transmission speeds up to 5Gbps for swift peripheral connectivity.
• Virtual interaction function that automatically wakes connected PCs from standby mode, minimizing switching delays.
• Multiple control methods: front panel buttons, IR remote, and keyboard/mouse hotkeys for user flexibility.
• Plug-and-play design with broad operating system compatibility, including Windows, macOS, and Linux.

Technical Specifications

HDMI Compliance: HDMI 2.0
HDCP Compliance: HDCP 2.3
Video Bandwidth: 18Gbps
Audio Latency: No Latency
Video Latency: No Latency
Video Resolution: Up to 4K at 60Hz, 2K at 60Hz/144Hz
IR Level: 5Vp-p
IR Frequency: Fixed frequency 38KHz
Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth: 8/10/12bit
HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
CEC Support: Yes
Audio Formats:
HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
L/R OUT: PCM 2.0CH
ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

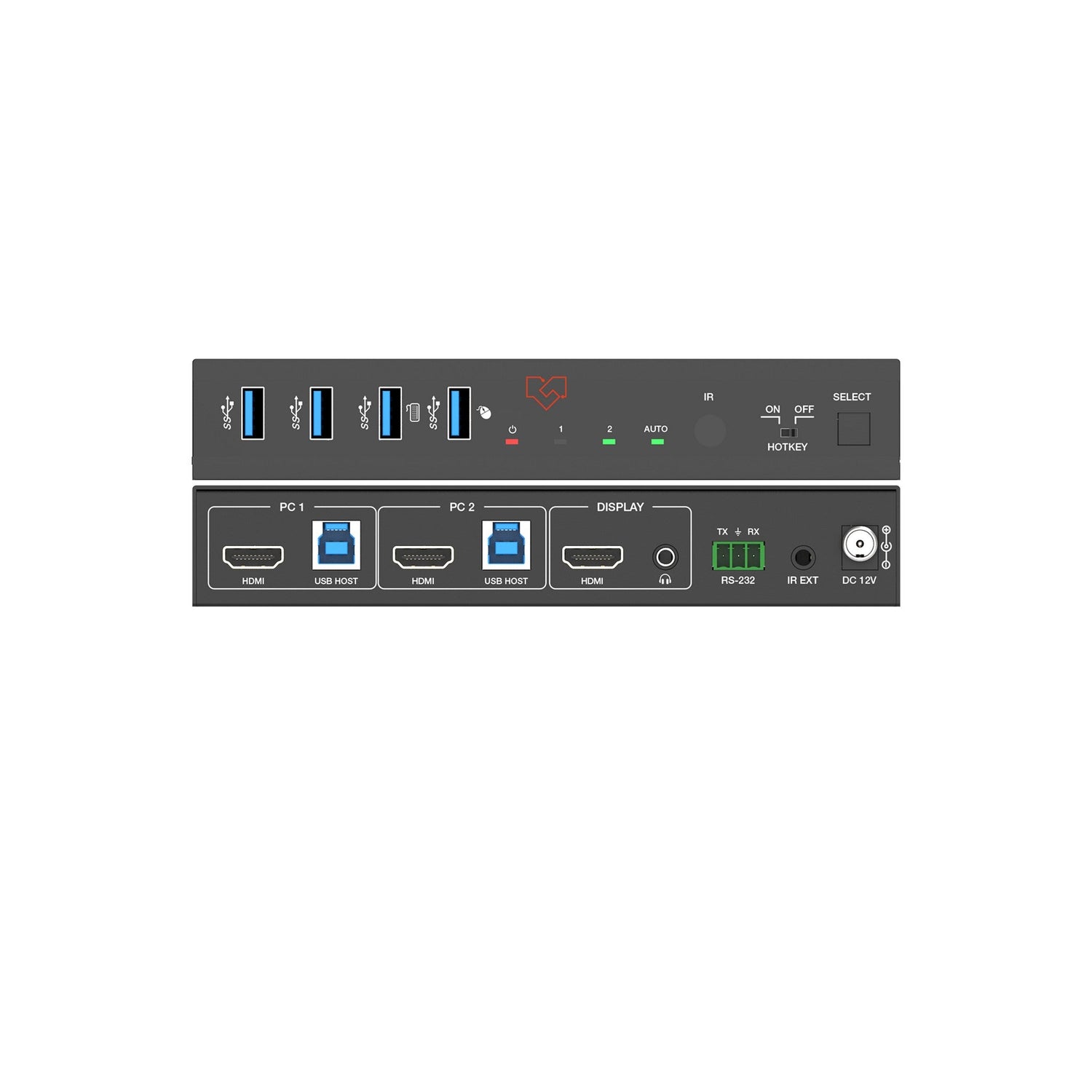

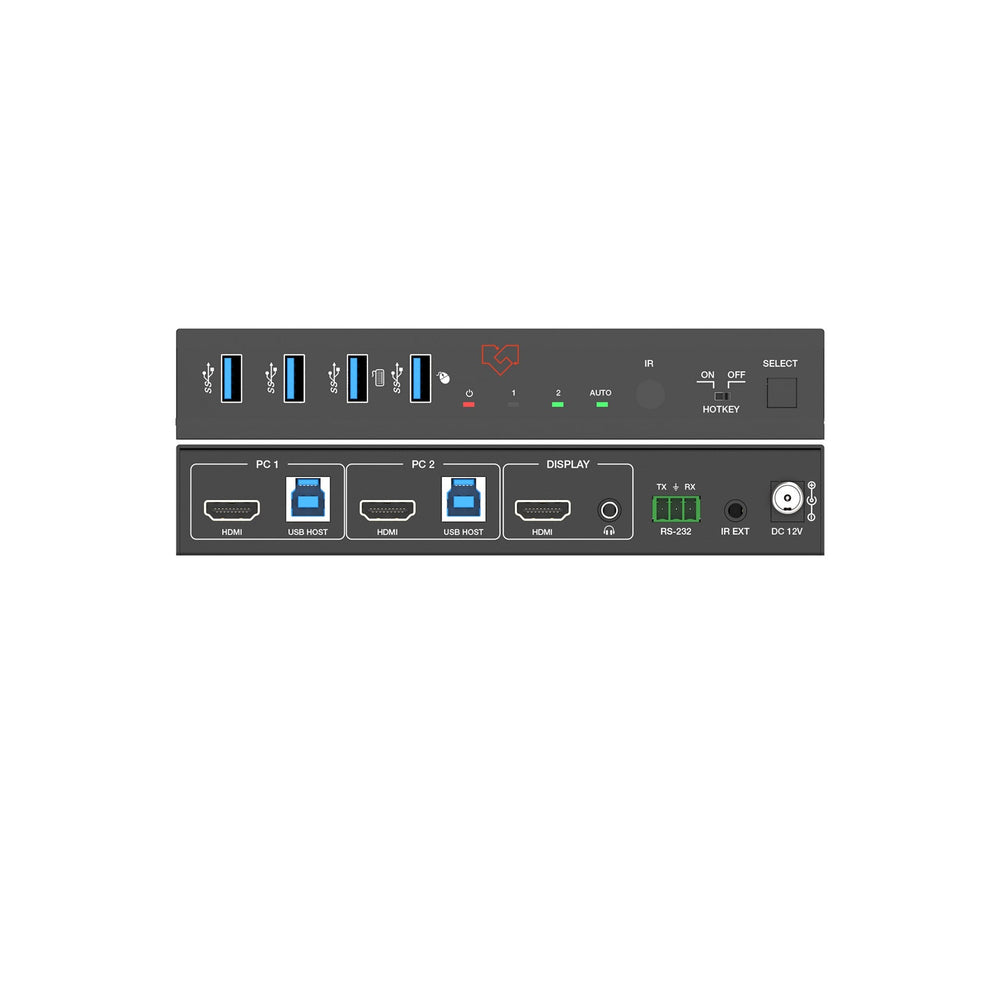

Connection

Input: 2 x HDMI input [Type A, 19-pin female]
Output: 1 x HDMI output [Type A, 19-pin female], 1 x L/R audio output [3.5mm Stereo Mini-jack]
Control Ports: 1 x RS-232 [3-pin 3.81mm phoenix connector], 1 x IR EXT [3.5mm Stereo Mini-jack], 2 x USB HOST [USB Type B], 4 x USB DEVICES [USB Type A]

Mechanical

Housing: Metal Enclosure
Color: Black
Dimensions: 6.89" [W] x 3.94" [D] x 1.18" [H]
Weight: 1.12 lbs

Power Supply

Input: AC 100 - 240V 50/60Hz
Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption: Typical value: 5.16W, Standby mode: 0.6W

Environmental

Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -4°F ~ 140°F (-20°C ~ 60°C)
Relative Humidity: 20 - 90% RH (No condensation)

What's Included

• 1 x VLKV-H2021 2-Port 4K60 HDMI KVM Switcher
• 1 x 12V/1A Multinational Locking Power Supply
• 1 x User Manual
