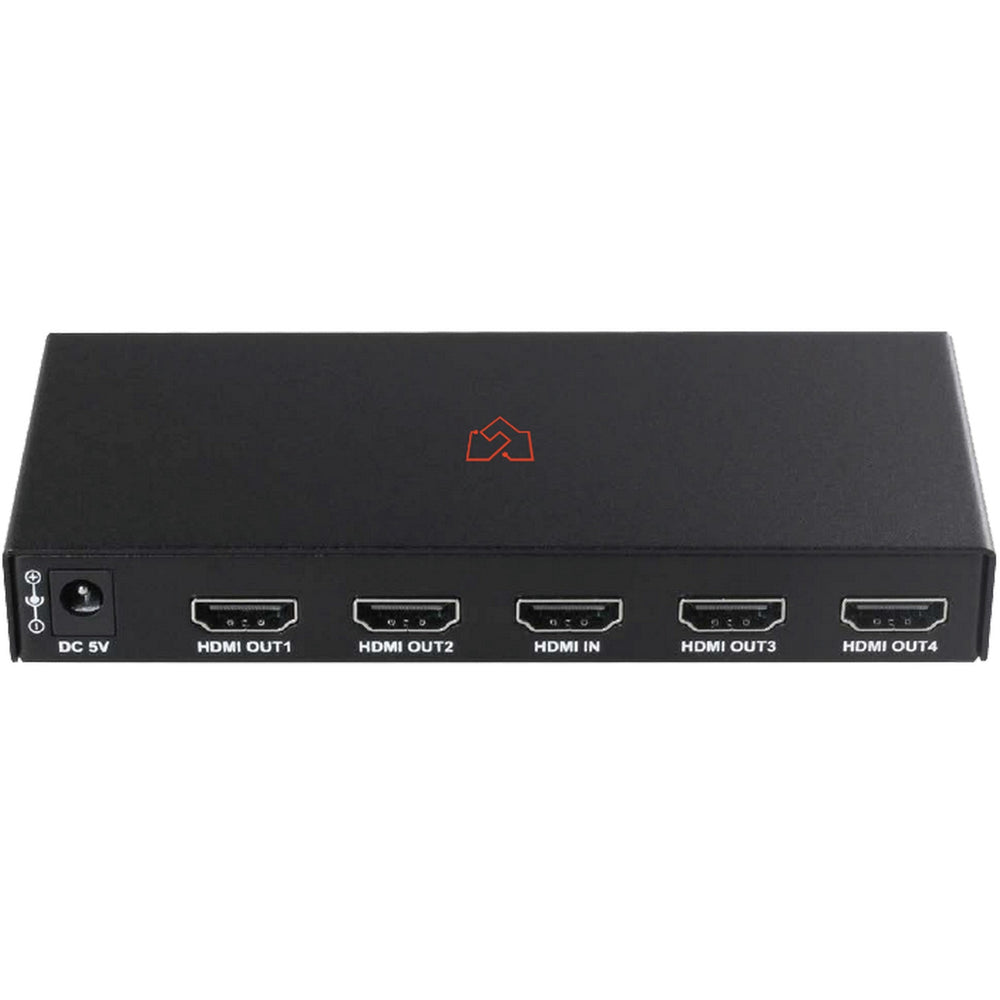

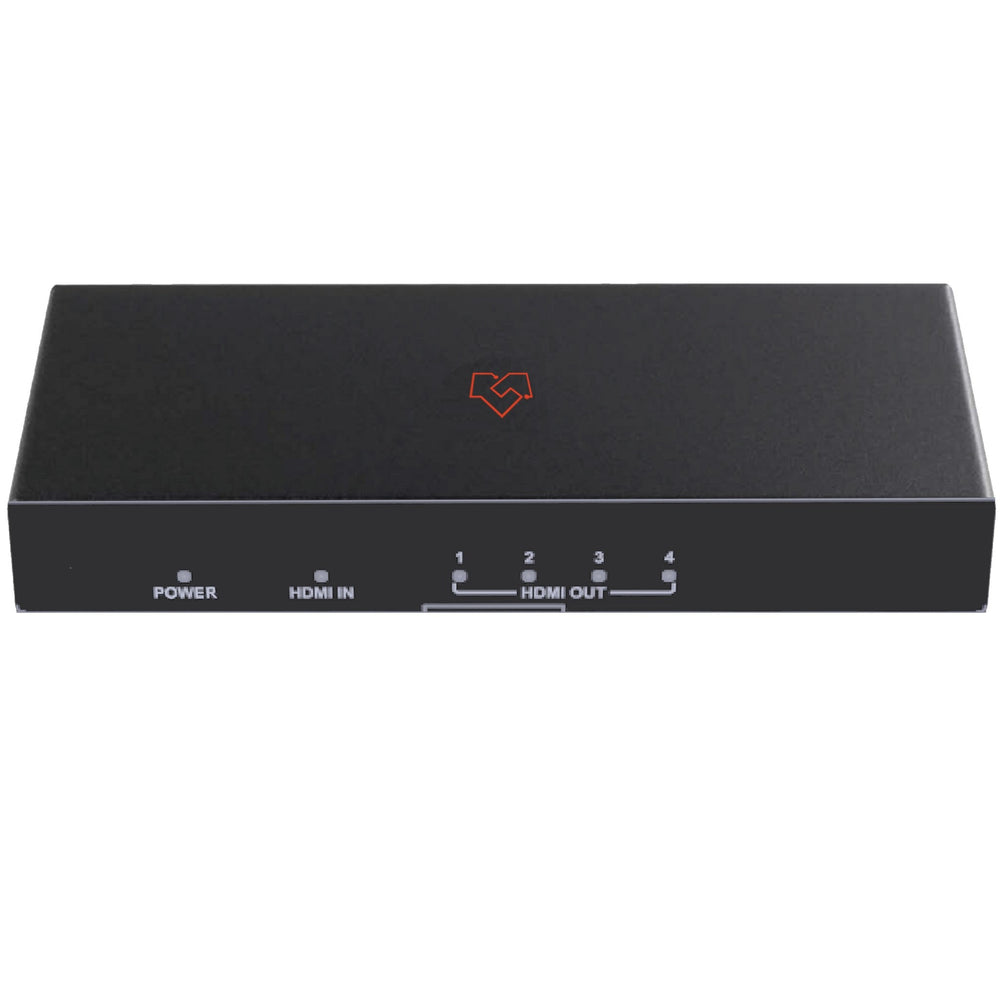

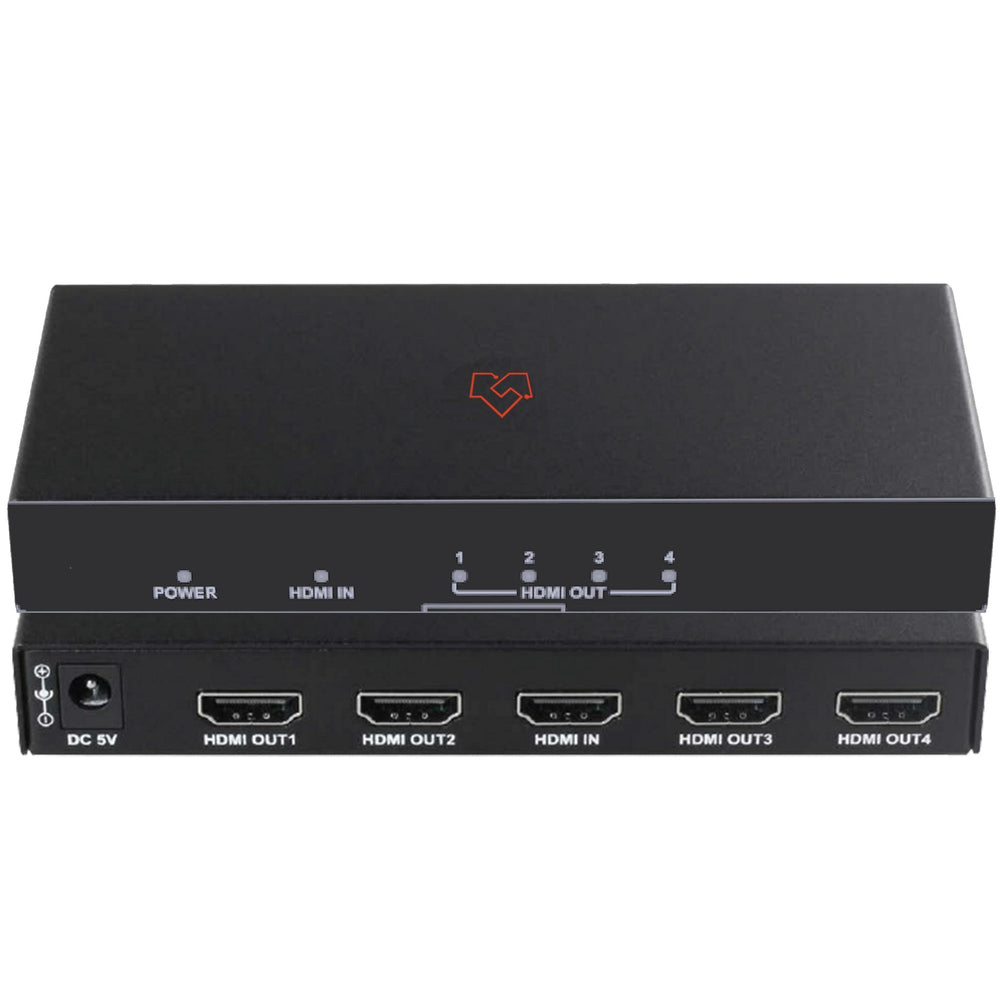

VigilLink VLSP-14H20D: 4K HDMI 2.0 Splitter with HDR and Scaler
The VigilLink VLSP-14H20D is a high-performance HDMI 2.0 splitter designed to distribute one HDMI source to multiple displays while maintaining superior video and audio quality. With full support for 4K@60Hz 4:4:4, HDR, and HDCP 2.2, this splitter ensures stunning visual clarity and compatibility with the latest high-definition content. It is ideal for professional AV installations, home theaters, conference rooms, and digital signage applications that demand seamless signal distribution.
Featuring advanced scaling technology, the VLSP-14H20D optimizes output resolutions to match the connected display’s capabilities, ensuring optimal performance without compromising quality. The splitter supports resolutions up to 4096x2160@60Hz, including 4K@60Hz, 4K@30Hz, 1080p, 1080i, and 720p. With a maximum data rate of 18Gbps and a 600MHz pixel clock, it guarantees ultra-smooth video transmission with no lag or degradation.
Audio performance is equally impressive, as the VLSP-14H20D fully supports HDMI 2.0 audio formats, including PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X. Designed for extended reach, it enables long-distance signal transmission up to 100m with minimal loss. Built with durability in mind, the compact yet robust design features ESD protection and operates efficiently within a wide temperature range. Whether for professional AV applications or high-end entertainment setups, this HDMI splitter is a reliable solution for flawless signal distribution.
Key Features

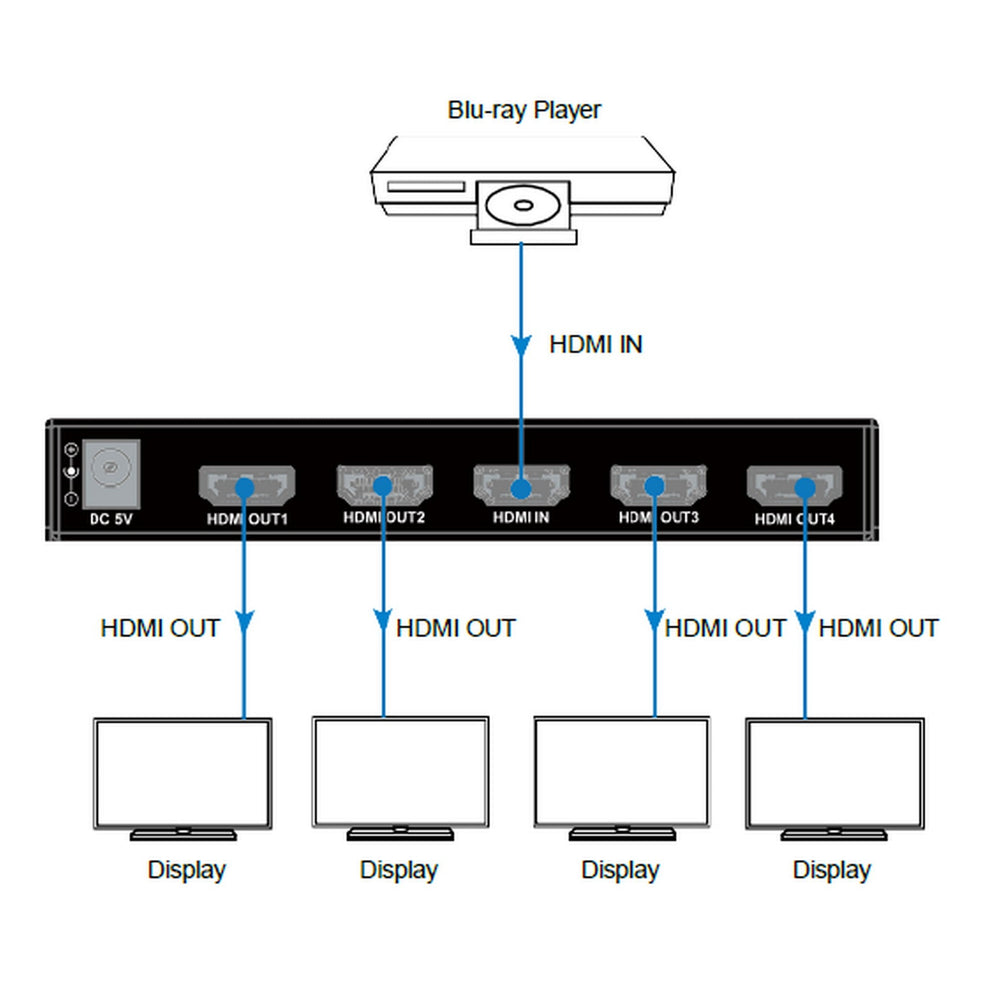

- Distributes a single HDMI source to multiple HDMI displays
- Supports 4K@60Hz 4:4:4, HDCP 2.2, HDR, and 3D for exceptional video quality
- Scaler function ensures optimal resolution for connected displays
- Supports resolutions up to 4096x2160@60Hz, including 4K@30Hz and 1080p
- Delivers a maximum data rate of 18Gbps and a 600MHz pixel clock
- Fully supports HDMI 2.0 audio formats, including Dolby Atmos and DTS:X
- Extended transmission distance up to 100m
- Compact and durable design with ESD protection
Technical Specifications
Video
Input/Output Signal Type: HDMI with 4K@60Hz 4:4:4, HDCP 2.2, HDR, 3D, Scaler
Input/Output Resolution Supported: Up to 4096x2160@60Hz, including 4K@60Hz, 4K@30Hz, 1080p, 1080i, 720p
Deep Color: 4K: 8/10/12-bit; 1080p: up to 16-bit
Maximum Data Rate: 18Gbps
Maximum Pixel Clock: 600MHz
Audio
Audio Format Supported: PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X (HDMI 2.0 specification)
Transmission Distance
HDMI Cable Range:
1080p@60Hz: Input/Output: 50ft
4K@30Hz: Input: 33ft, Output: 50ft
4K@60Hz: Input/Output: 16ft
Mechanical
Operating Temperature: 32°F to 113°F (0°C to 45°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Humidity: 10% to 90%, non-condensing
Product Weight: 0.53 lbs
Power Supply: DC 5V 1A
Power Consumption: 4K: 1.8W; 1080p: 1.1W
Transport Distance: 100m
Product Dimensions: 5.5" x 0.8" x 2.6"
ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
