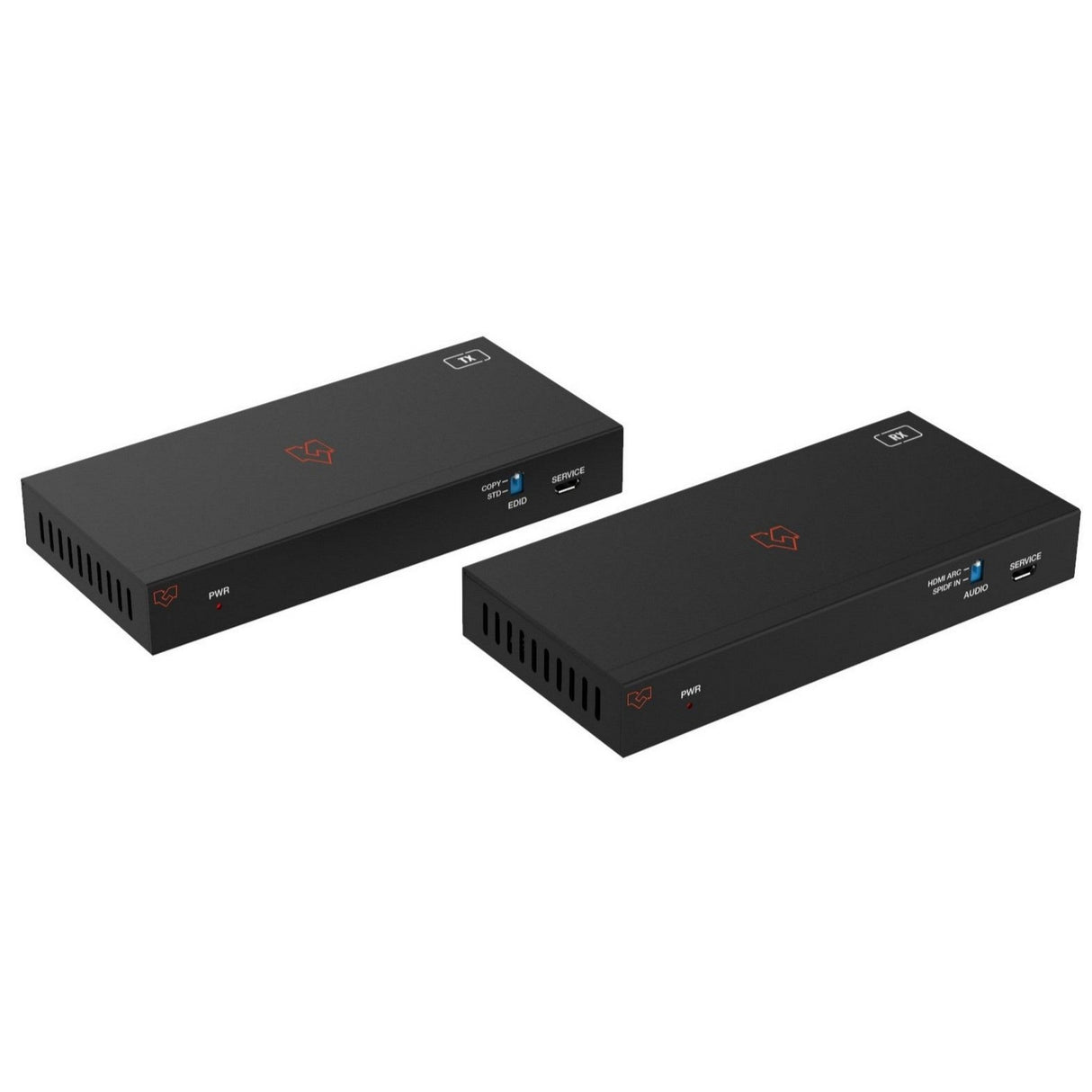

VigilLink VLEX-HT2070R-TR: 4K HDMI 2.0b HDBaseT Extender with Audio and IR Control
The VigilLink VLEX-HT2070R-TR is a versatile and powerful 4K HDMI extender designed for professional AV installations and home theater systems. Offering HDMI 2.0b and HDCP 2.2 compliance, it supports 4K video resolution at 60Hz with high-quality color reproduction, including RGB and YCbCr 4:4:4 color space. This extender supports advanced HDR formats, including HDR10, HDR10+, Dolby Vision, and HLG, ensuring stunning visuals and an immersive viewing experience. With its video bandwidth of 18Gbps, the VLEX-HT2070R-TR provides the capacity to transmit high-definition video and audio signals over long distances with no loss of quality.
With wide compatibility for various audio formats, including LPCM 7.1 channel, Dolby True HD, and DTS-HD Master Audio via HDMI, and Dolby 5.1, DTS 5.1, and PCM 2.0 via optical SPDIF, this extender ensures rich and clear sound quality. The VLEX-HT2070R-TR is ideal for settings requiring high-quality video and audio distribution over longer distances without compromising signal integrity. It supports a wide range of IR frequencies (20k-60kHz) and includes bi-directional PoC (Power over Cable) functionality, which simplifies installation by reducing the need for additional power sources. The metal housing ensures durability, while its compact design allows for easy integration into AV setups.
This extender is equipped with a variety of connection options, including HDMI input and output, HDBT input and output, SPDIF audio input and output, and comprehensive IR control with both IR in and out ports. Additionally, the VLEX-HT2070R-TR supports RS-232 control for seamless integration with automation systems. Designed to operate in a wide range of temperatures, from 32°F to 104°F (0°C to 40°C), and with a storage temperature range of -4°F to 140°F (-20°C to 60°C), this extender ensures reliable performance in various environments. The VLEX-HT2070R-TR is a reliable and high-performance solution for professional AV systems requiring seamless signal transmission over long distances.
Key Features
- HDMI 2.0b and HDCP 2.2 compliant for secure, high-quality signal transmission
- Supports up to 4K@60Hz RGB/YCbCr 4:4:4 video resolution
- Wide compatibility with HDR formats: HDR, HDR10, HDR10+, Dolby Vision, and HLG
- 18Gbps video bandwidth for high-definition video and audio transmission
- Audio support: LPCM 7.1CH, Dolby True HD, DTS-HD Master Audio, Dolby 5.1, DTS 5.1, PCM 2.0 via SPDIF
- Transmission range of up to 492 feet (150 meters) at 1080p
- Bi-directional PoC function for simplified installation
- Wideband IR frequency range (20kHz-60kHz) for seamless control integration
- RS-232 support for easy automation system integration
- Compact and durable metal housing
Technical Specifications
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K@60Hz RGB/YCbCr 4:4:4
IR Level: 5Vp-p
IR Frequency: Wideband 20k-60kHz
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth: 8-bit, 10-bit, 12-bit (1080p); 8-bit (4K60); 8-bit, 10-bit, 12-bit (4K24/30)
HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats: HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Audio; Optical: Dolby 5.1, DTS 5.1, PCM 2.0

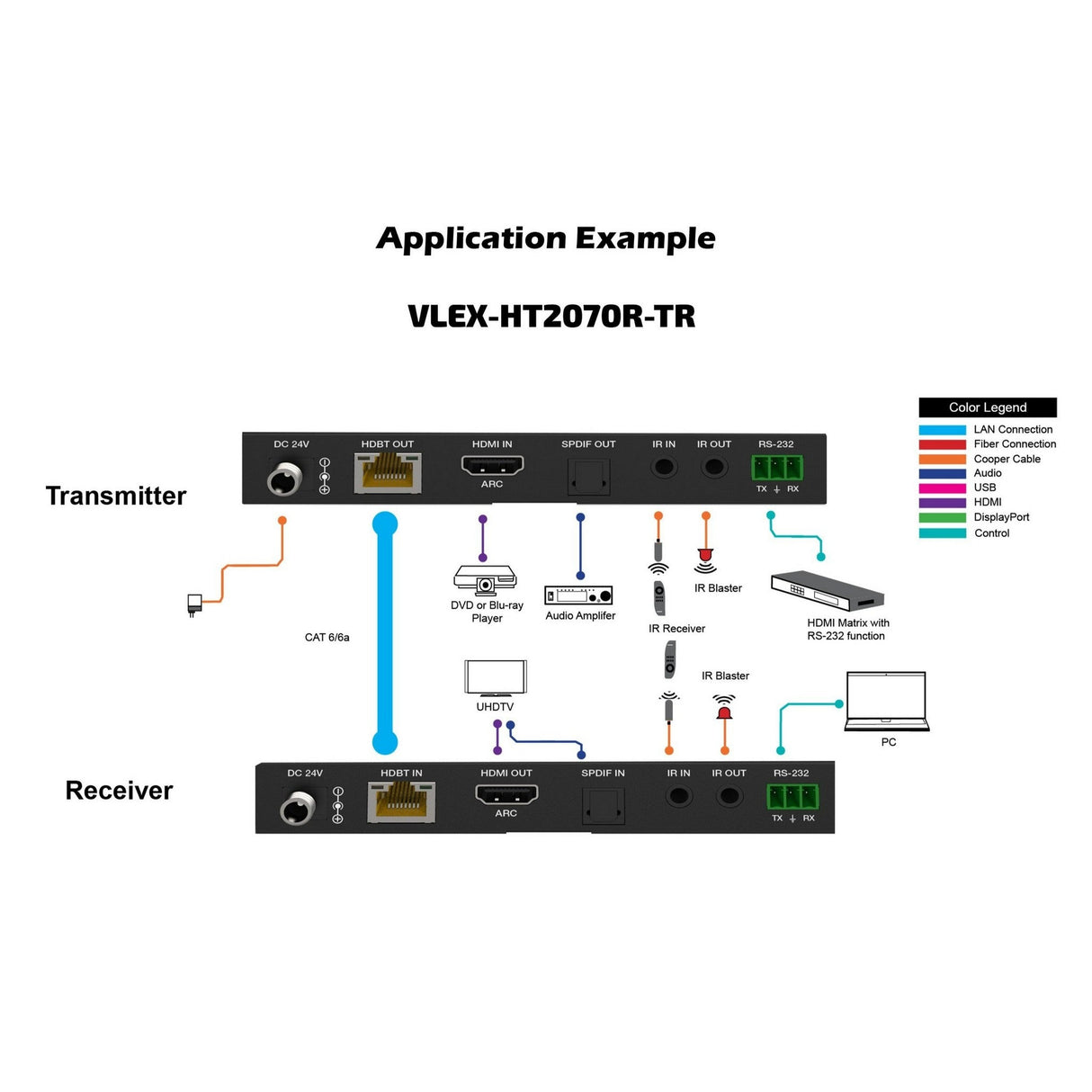

Connection:

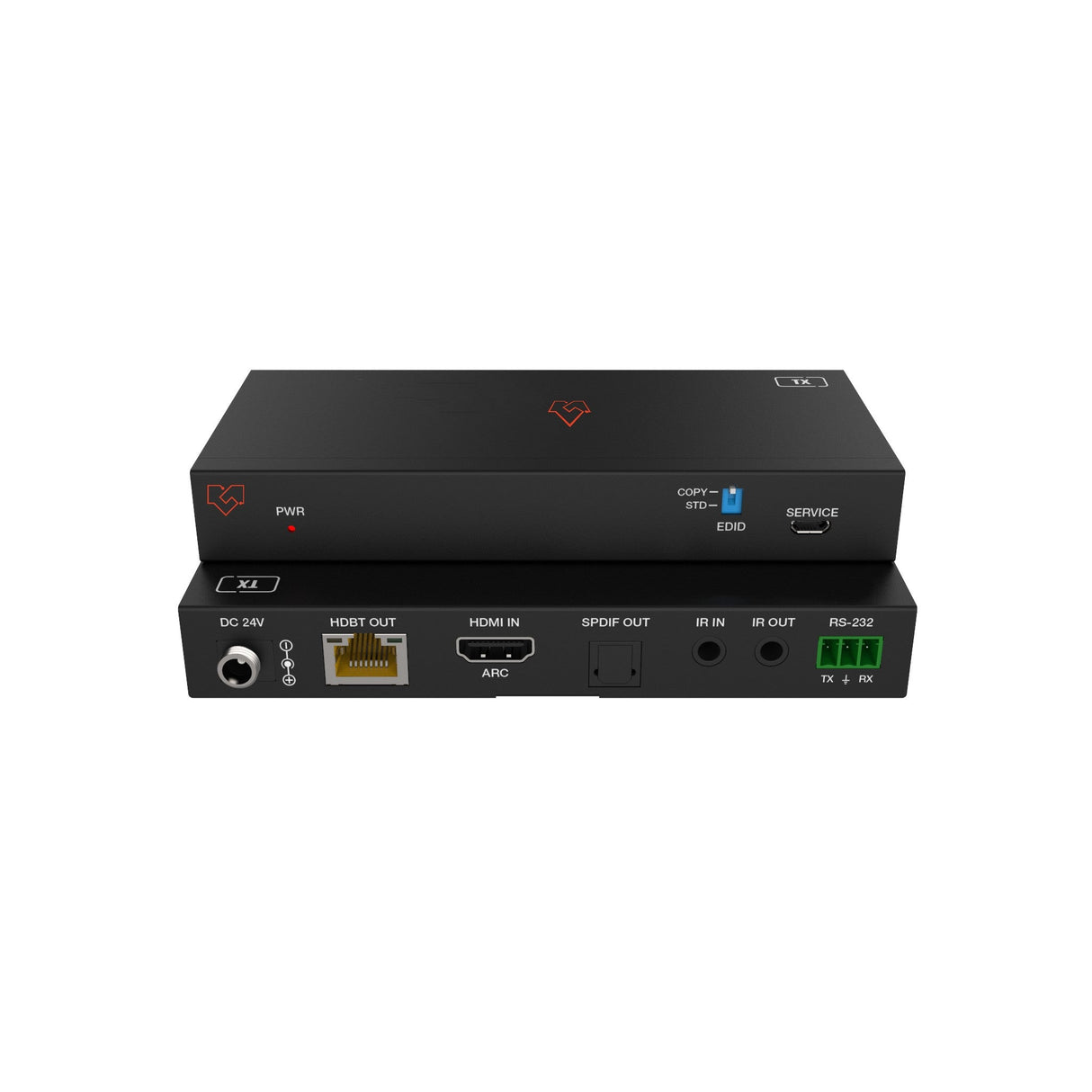

Transmitter Input: 1×HDMI IN [Type A, 19-pin female]
Transmitter Output: 1×HDBT OUT [RJ45], 1×SPDIF OUT
Transmitter Control: 1×RS-232 [Phoenix connector], 1×SERVICE [Micro-USB jack], 1×IR IN [3.5mm Stereo Mini-jack], 1×IR OUT [3.5mm Stereo Mini-jack]

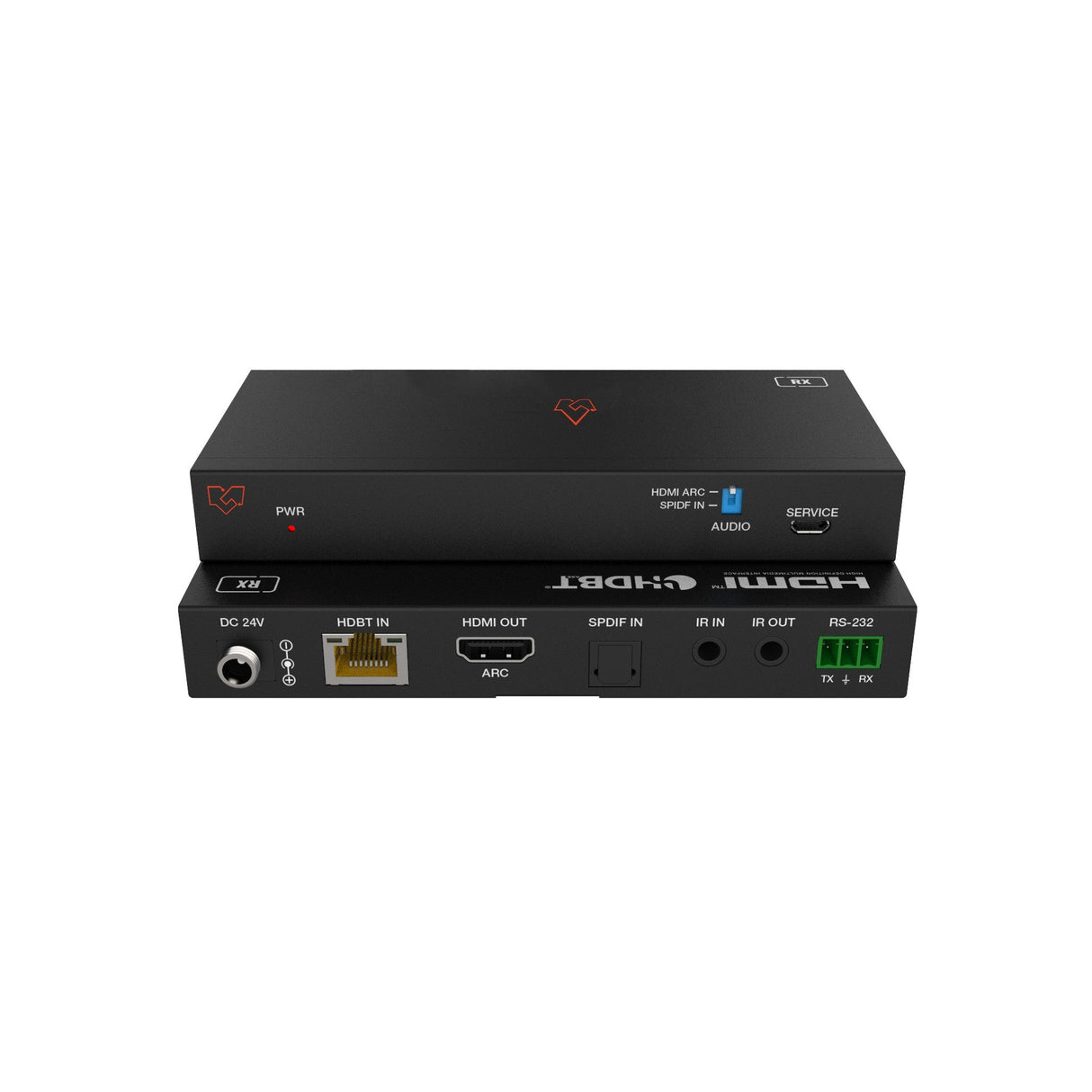

Receiver Input: 1×HDBT IN [RJ45], 1×SPDIF IN
Receiver Output: 1×HDMI OUT [Type A, 19-pin female]
Receiver Control: 1×RS-232 [Phoenix connector], 1×SERVICE [Micro-USB jack], 1×IR IN [3.5mm Stereo Mini-jack], 1×IR OUT [3.5mm Stereo Mini-jack]
Mechanical:
Housing: Metal Enclosure
Color: Black
Dimensions: Transmitter/Receiver: 5.51" (W) × 2.56" (D) × 0.71" (H)
Weight: Transmitter: 0.52 lbs, Receiver: 0.53 lbs
Power Supply: DC 24V/1A, supports bi-directional PoC function
Power Consumption: 9.6W (max)
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -4°F ~ 140°F (-20°C ~ 60°C)
Relative Humidity: 20 - 90% RH (Non-condensing)
