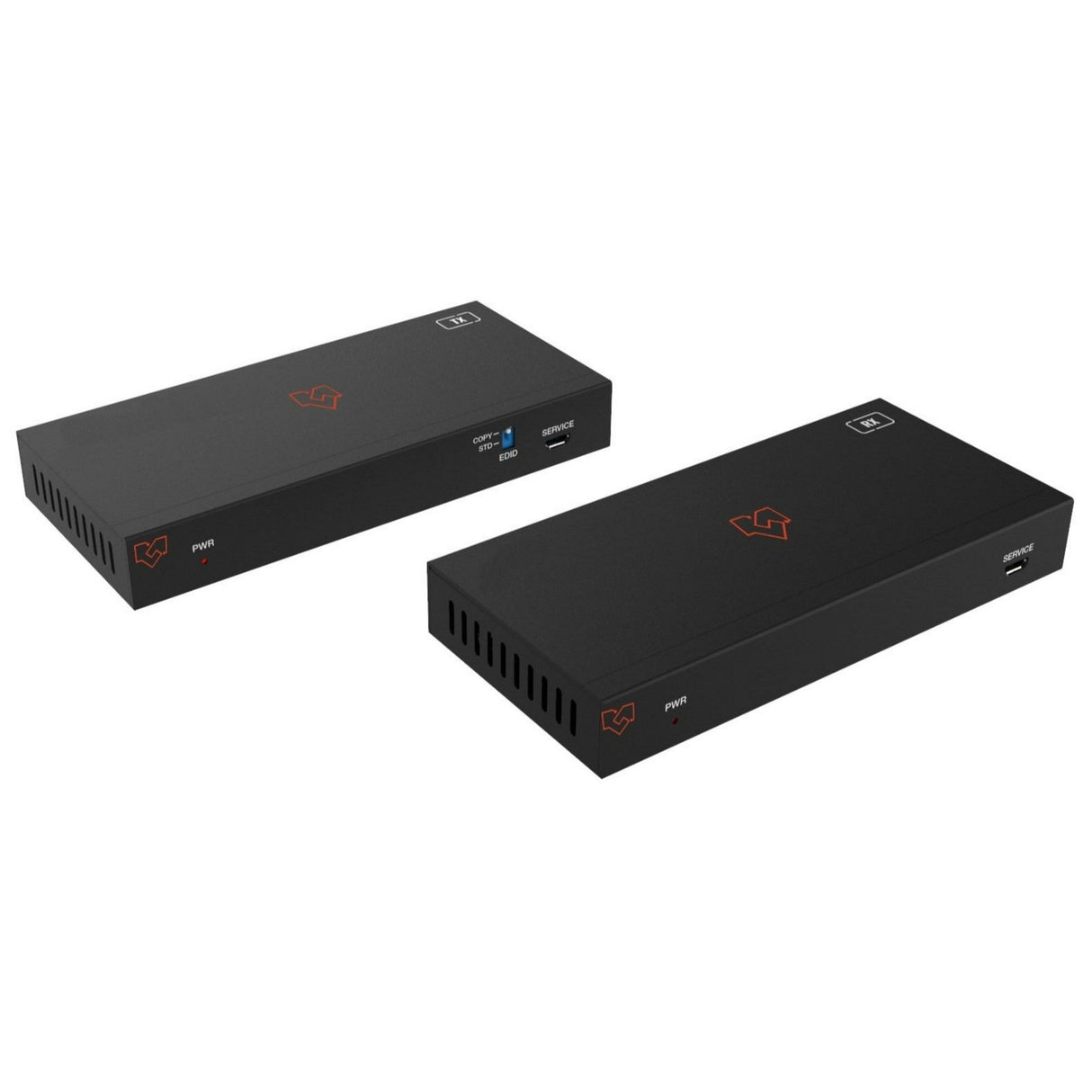

VigilLink VLEX-HT2150K-TR: 4K HDMI 2.0b HDBaseT Extender with USB and IR Control
The VigilLink VLEX-HT2150K-TR is a high-performance HDMI extender that offers exceptional video and audio quality over long distances. Supporting HDMI 2.0b and HDCP 2.2, this device is designed to deliver 4K2K video at 60Hz with full YUV 4:4:4 color resolution, ensuring vibrant and accurate colors in every frame. With a video bandwidth of 18Gbps, the VLEX-HT2150K-TR can handle high-definition video signals with ease, making it the perfect choice for home theater systems, professional AV setups, or large-scale installations. It also features HDR support, including HDR10, Dolby Vision, and HLG, allowing for a more dynamic and realistic viewing experience.
One of the standout features of the VLEX-HT2150K-TR is its extended transmission distance. It can transmit 1080p video up to 492 feet (150 meters) and 4K video up to 394 feet (120 meters) over a single Cat5e/6 cable, ensuring reliable performance even over long distances. The extender also supports USB 1.1 and bi-directional IR control, making it suitable for a wide variety of applications, including those that require USB peripherals or remote control functionality. The device is equipped with strong ESD protection (±8kV air-gap discharge and ±4kV contact discharge), ensuring durability and longevity in demanding environments.
Designed with a metal enclosure for enhanced durability, the VLEX-HT2150K-TR is a compact and reliable solution for any professional AV system. Its easy-to-use connectors include HDMI, IR, USB, and HDBT inputs and outputs, making installation a breeze. With a power consumption of just 10W, this extender also supports PoC (Power over Cable), eliminating the need for separate power supplies for both the transmitter and receiver. Operating in a temperature range of 32°F to 104°F (0°C to 40°C) and with a storage temperature range of -4°F to 140°F (-20°C to 60°C), the VLEX-HT2150K-TR is built to perform in a variety of environments.
Key Features
- HDMI 2.0b and HDCP 2.2 compliance for secure, high-quality video transmission
- Supports up to 4K@60Hz YUV 4:4:4 video resolution for sharp, vivid visuals
- Wide HDR support: HDR, HDR10, HDR10+, Dolby Vision, and HLG
- 18Gbps video bandwidth for high-quality, high-definition video signals
- Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
- Transmission distances of up to 492 feet (150 meters) at 1080p, 394 feet (120 meters) at 4K60
- Bi-directional IR control for flexible system integration
- USB 1.1 compliance for connecting USB peripherals
- ESD protection for enhanced reliability in various environments
- Power over Cable (PoC) support for simplified installation
Technical Specifications
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K2K@60Hz YUV 4:4:4
USB Compliance: USB 1.1
IR Level: 5Vp-p
IR Frequency: Wideband 20K-60KHz
Transmission Distance: 492 feet (150 meters) at 1080p@60Hz, 394 feet (120 meters) at 4K60
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth: 8-bit, 10-bit, 12-bit (1080P@60Hz); 8-bit (4K2K@60Hz YUV 4:4:4); 8-bit, 10-bit, 12-bit (4K2K@30Hz)
HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats: LPCM 7.1CH, Dolby True HD, DTS-HD Master Audio
ESD Protection: Human body model – ±8kV (air-gap discharge), ±4kV (contact discharge)
Connection:

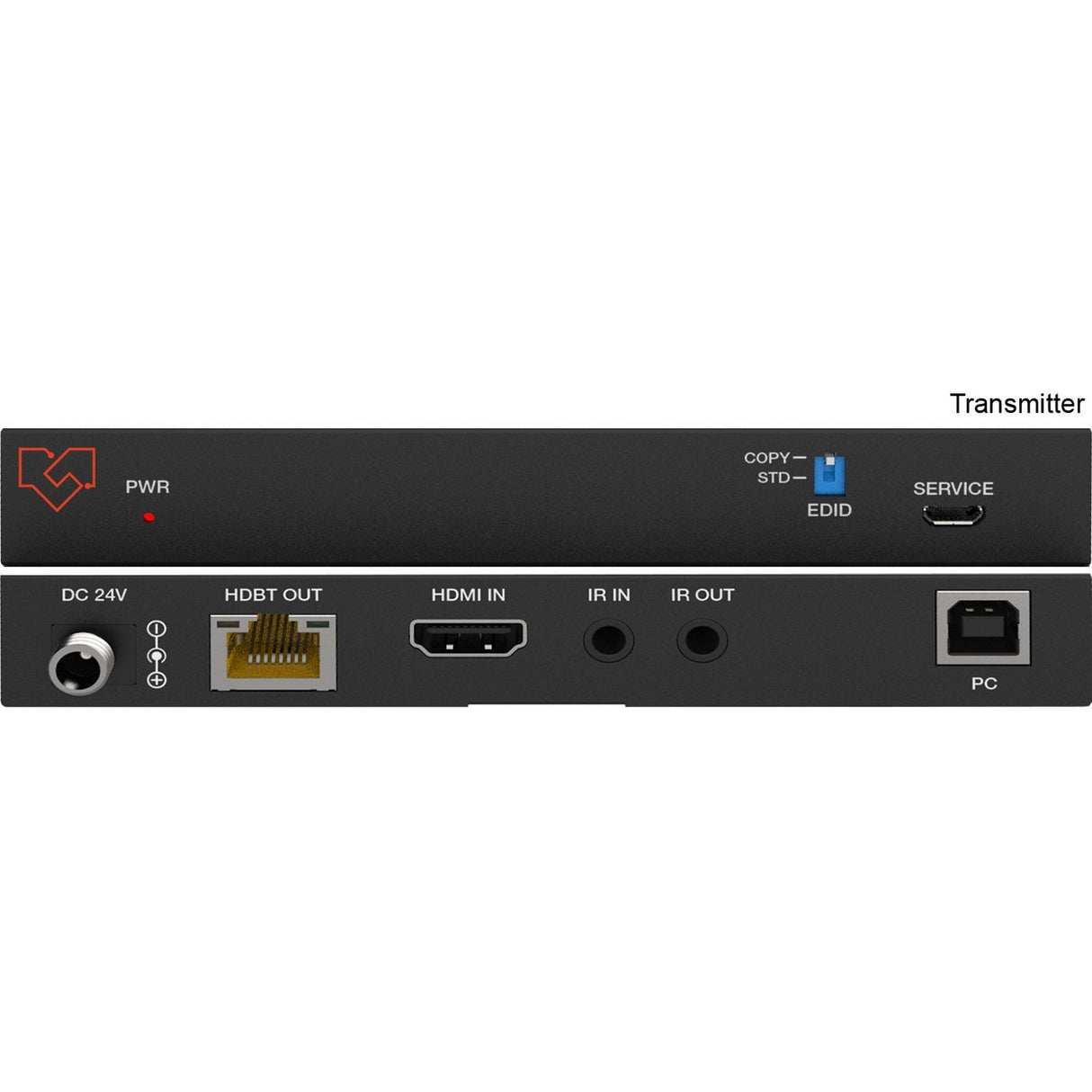

Transmitter Input: 1×HDMI IN [TypeA, 19-pin female], 1×IR IN [3.5mm Stereo Mini-jack], 1×SERVICE [Micro-USB jack], 1×USB [USB-B, 4-pin female]
Transmitter Output: 1×HDBT OUT [RJ45], 1×IR OUT [3.5mm Stereo Mini-jack]

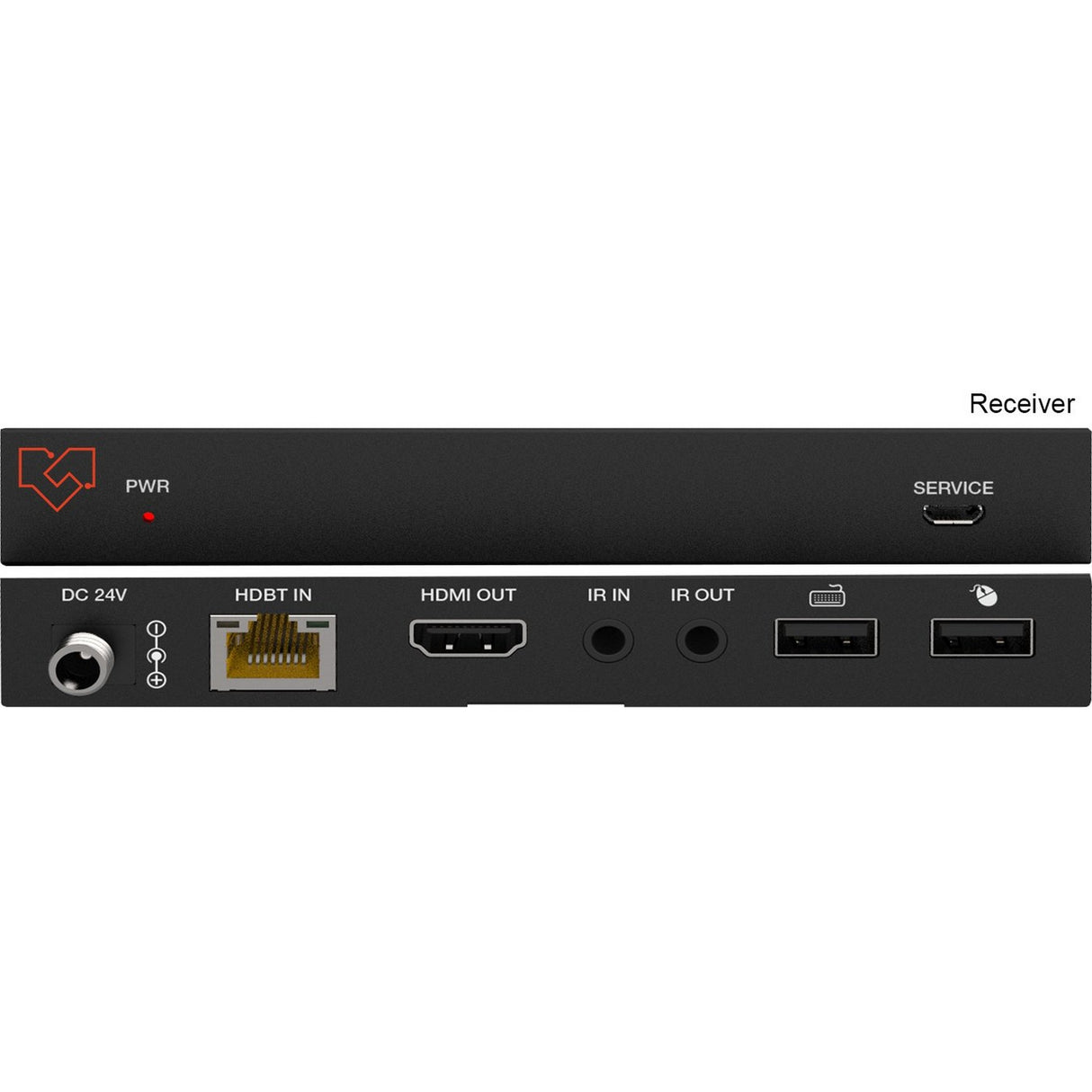

Receiver Input: 1×HDBT IN [RJ45 with light], 1×IR IN [3.5mm Stereo Mini-jack], 1×SERVICE [Micro-USB jack]
Receiver Output: 1×HDMI OUT [TypeA, 19-pin female], 1×IR OUT [3.5mm Stereo Mini-jack], 2×USB [USB-A, 4-pin female]
Mechanical:
Housing: Metal Enclosure
Color: Black
Dimensions: Transmitter/Receiver: 5.51" (W) × 2.56" (D) × 0.71" (H)
Weight: Transmitter: 0.54 lbs, Receiver: 0.54 lbs
Power Supply: DC 24V/1A, supports PoC function
Power Consumption: 10W
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -4°F ~ 140°F (-20°C ~ 60°C)
Relative Humidity: 20 - 90% RH (No condensation)
