VLEX-ACT300-TR Digital Audio Extender
The VLEX-ACT300-TR Digital Audio Extender offers a highly efficient and versatile solution for extending digital audio signals across long distances without compromising on quality. Whether you're using it in a professional audio setup or for personal use, this extender supports a wide range of audio formats, including LPCM, DTS, Dolby Digital, and Dolby Digital Plus. It utilizes advanced technology to ensure high-quality signal transmission, making it an ideal choice for home theaters, studio setups, or any environment where clear, uninterrupted audio is critical.
With support for multiple sample rates and an impressive bitrate over long distances, the VLEX-ACT300-TR allows for pristine audio quality even at extended ranges. The extender features both optical and coaxial input/output ports, ensuring compatibility with a variety of audio equipment. The receiver side also offers analog stereo audio outputs, making it a flexible solution for different use cases. This high-performance system is built to withstand demanding environments with its durable metal enclosure, ensuring that your setup is both reliable and robust.
The compact design of the VLEX-ACT300-TR is a standout feature. Despite its powerful performance, the unit’s dimensions are small and unobtrusive, making it easy to integrate into tight spaces. Its wide operating temperature range means that it can function in various conditions, while the solid power efficiency ensures low energy consumption. Whether you're extending signals over short or long distances, this device delivers an outstanding performance that meets all your digital audio needs.
Key Features
- Supports LPCM, DTS, Dolby Digital, and Dolby Digital Plus audio formats
- Supports up to 192 kHz sample rates for crystal-clear sound
- Operates with both optical (Toslink) and coaxial SPDIF inputs and outputs
- Provides analog stereo output (3.5mm audio jack) for versatile use
- Long transmission distances of up to 300 meters (depending on the sample rate)
- Compact metal enclosure in sleek black design for durability and aesthetics
- Energy-efficient with a low maximum power consumption of 3.36W
- Wide operating temperature range of 32°F to 104°F for versatility in various environments
Technical Specifications
Bitrate over Distance: 192kHz - 328.1ft, 96kHz - 492.1ft, 48kHz - 984.3ft
Supported Audio Formats: LPCM, DTS, Dolby Digital, and Dolby Digital Plus (digital in/out extender)
Sample Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, and 192 kHz up to 24-bit resolution
ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4KV (Contact discharge)
Connection
Transmitter
Input ports: 1× Optical (Toslink)
1× Coaxial SPDIF RCA
Output port: 1× RJ45

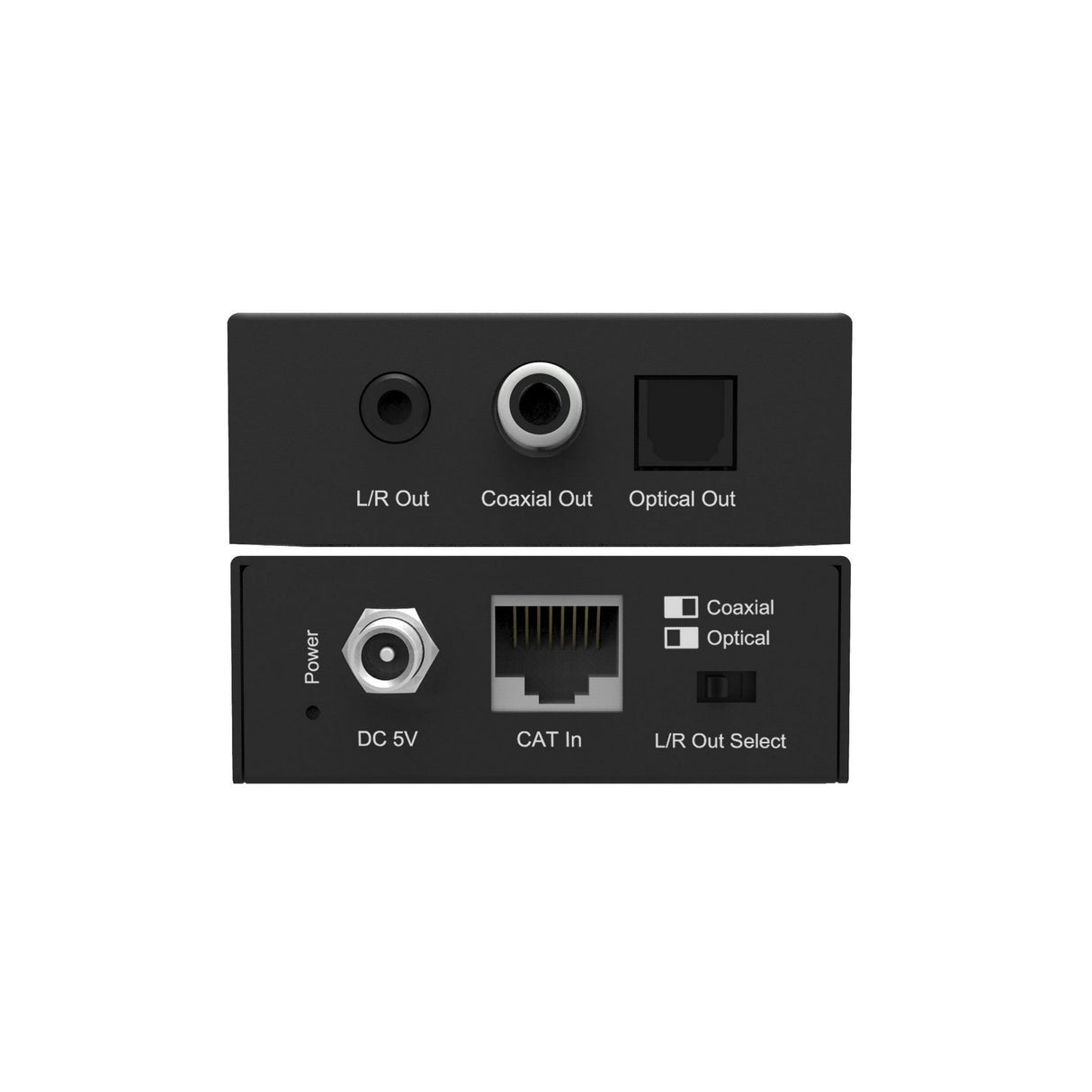

Receiver
Input port: 1× RJ45
Output ports: 1× Optical (Toslink)
1× Coaxial SPDIF RCA
1× Analog Stereo 3.5mm Audio jack
Mechanical
Housing: Metal Enclosure
Color: Black
Casing Dimensions: 2.7" (W) x 2.5" (H) x 0.9" (D)
Dimensions with Connections: 3" (W) x 2.5" (H) x 1.1" (D)
Weight: 0.88 lbs
Power Supply: 5V/1A DC
Power Consumption: 3.36W (max)
Operating Temperature: 32°F ~ 104°F
Storage Temperature: -4°F ~ 140°F
Relative Humidity: 20-90% RH (No condensation)
