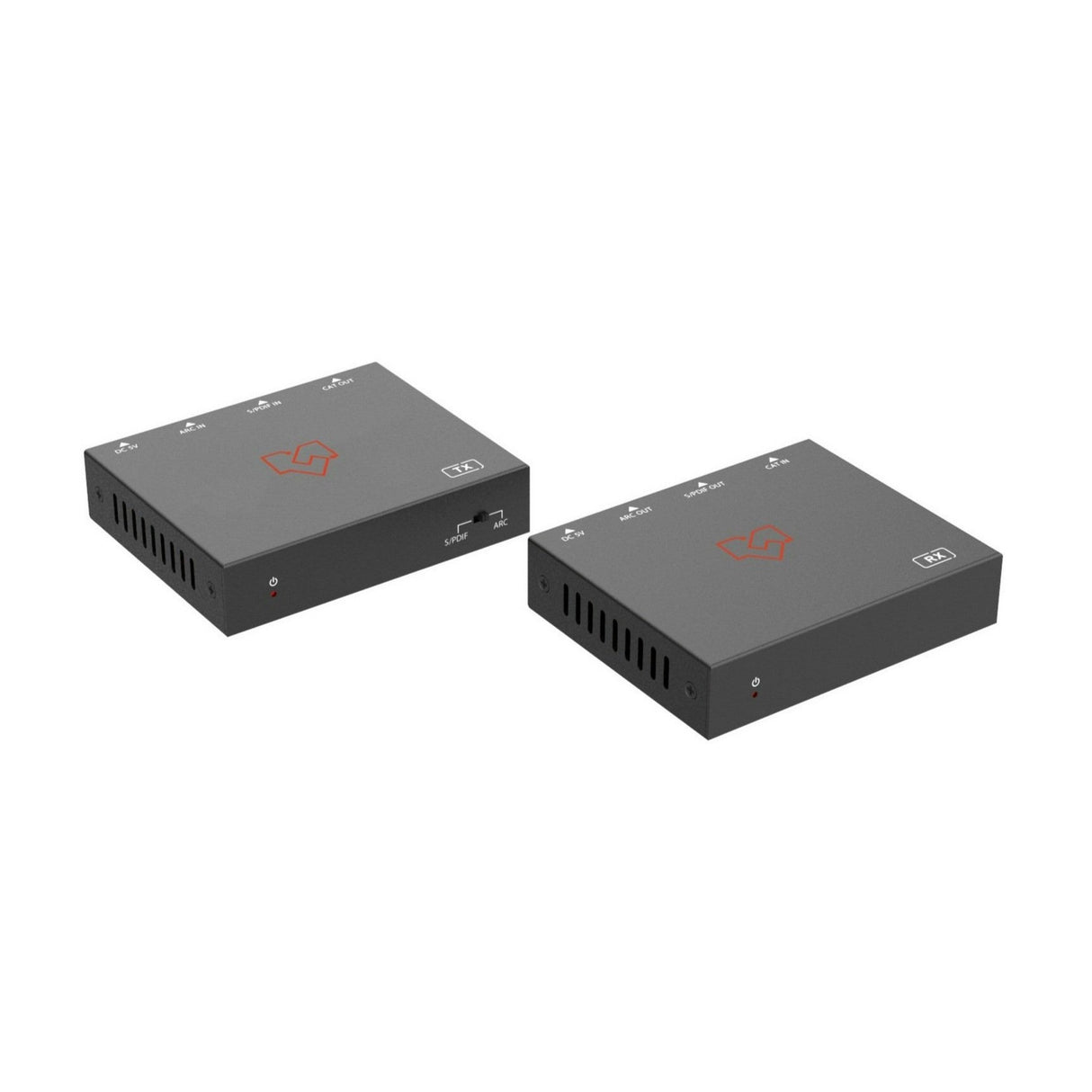

VLEX-HAACT150-TR HDMI Audio Transmitter and Receiver
The VLEX-HAACT150-TR is a high-performance HDMI audio transmitter and receiver system that allows you to send high-quality audio signals over long distances. Perfect for both home and professional audio setups, this system supports various audio formats including PCM 2.0ch, Dolby 5.1ch, and DTS 5.1ch, ensuring that your sound experience is rich and immersive. With its sleek metal housing and compact design, the VLEX-HAACT150-TR provides reliable performance without compromising on space or durability.
Whether you're looking to extend the audio range of your home theater system or need a robust solution for your professional AV setup, this unit delivers. The VLEX-HAACT150-TR supports both ARC and S/PDIF audio, making it versatile for a wide range of applications. The system's ability to transmit ARC audio over distances up to 495 feet (150 meters) at 96kHz and 295 feet (90 meters) at 192kHz ensures excellent audio quality even over long distances. The compact dimensions and user-friendly design make it a great choice for setups with limited space.
This HDMI audio transmitter and receiver combo is built to last, with advanced ESD protection (up to ±8kV for air-gap discharge and ±4kV for contact discharge), ensuring stable operation even in environments with high electrical interference. The VLEX-HAACT150-TR is powered by a DC 5V/1A power supply, and both the transmitter and receiver consume minimal power, making them energy-efficient solutions for both home and professional use.
Key Features
- Supports multiple audio formats: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
- Long transmission distance: up to 495ft (150m) for ARC audio at 96kHz, and 295ft (90m) at 192kHz
- Compact and durable metal housing in black
- High ESD protection: ±8kV (air-gap discharge), ±4kV (contact discharge)
- Power-efficient with low power consumption (0.35W for the transmitter, 0.7W for the receiver)
- Versatile input and output connections, including S/PDIF, ARC, and Micro-USB
- Ideal for both home theater and professional audio setups
Technical Specifications
Supported Audio Formats: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch

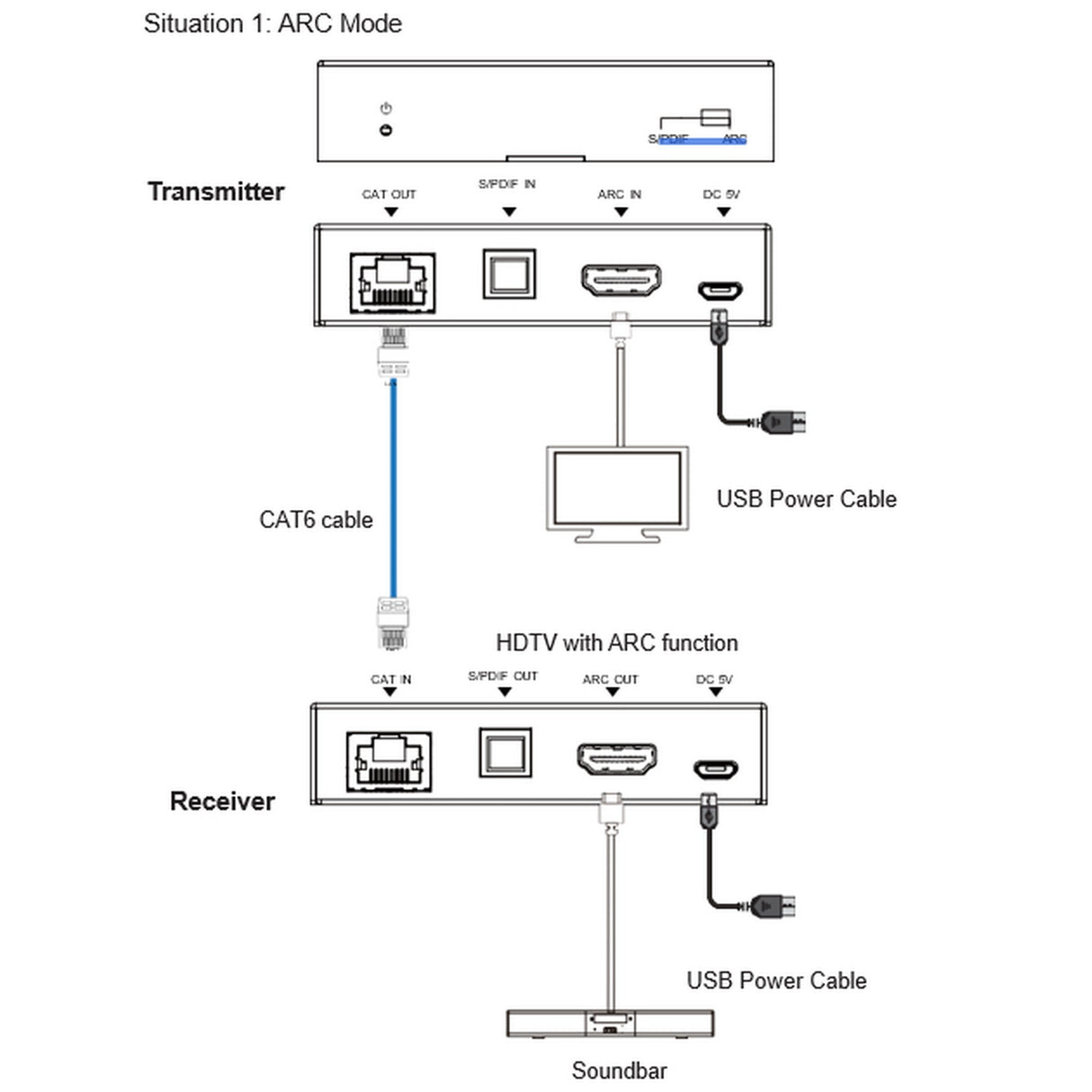

Transmission Distance and Sample Rates: ARC audio: 150m (495ft) - 96kHz, 90m (295ft) - 192kHz

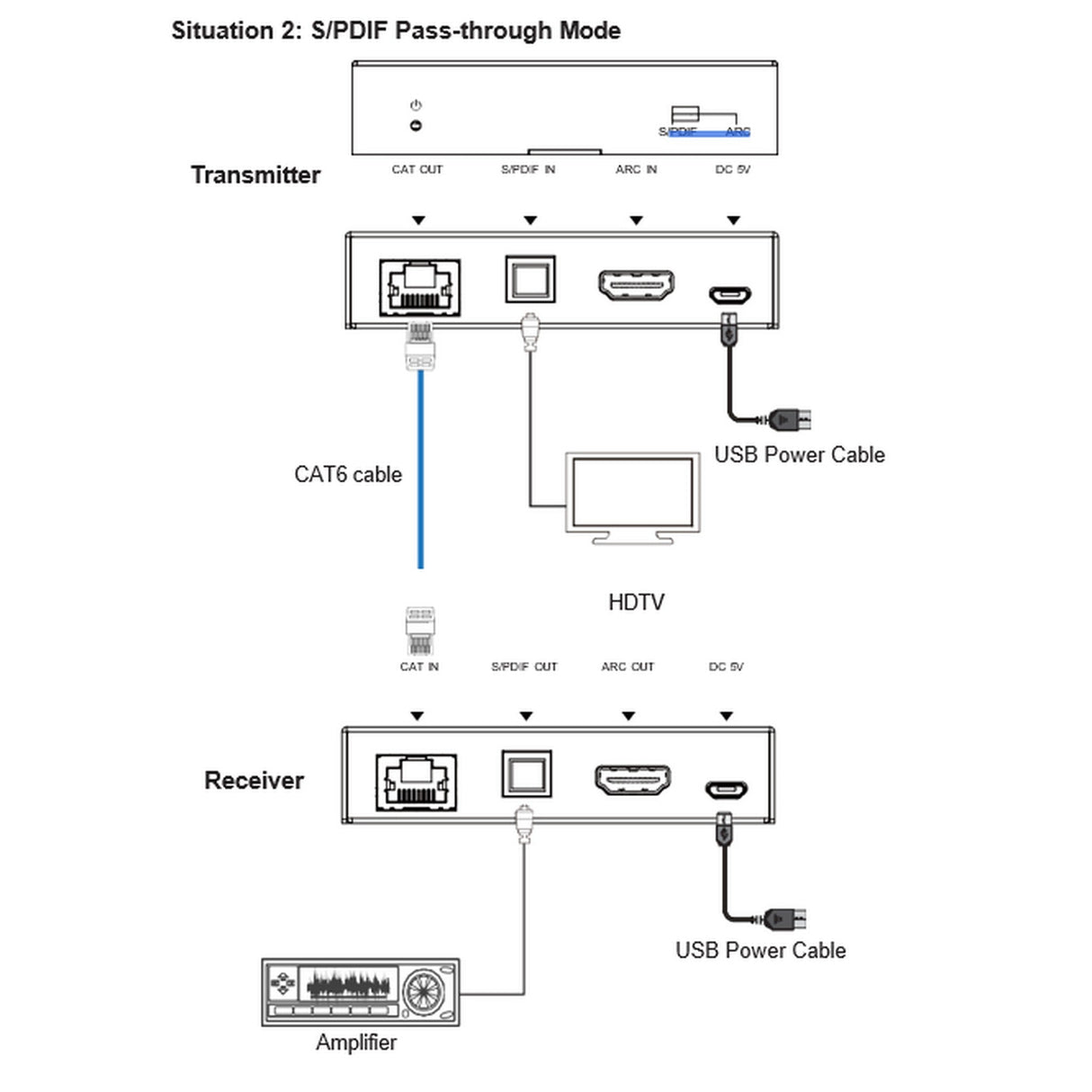

S/PDIF audio: 150m (495ft) - 96kHz
ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

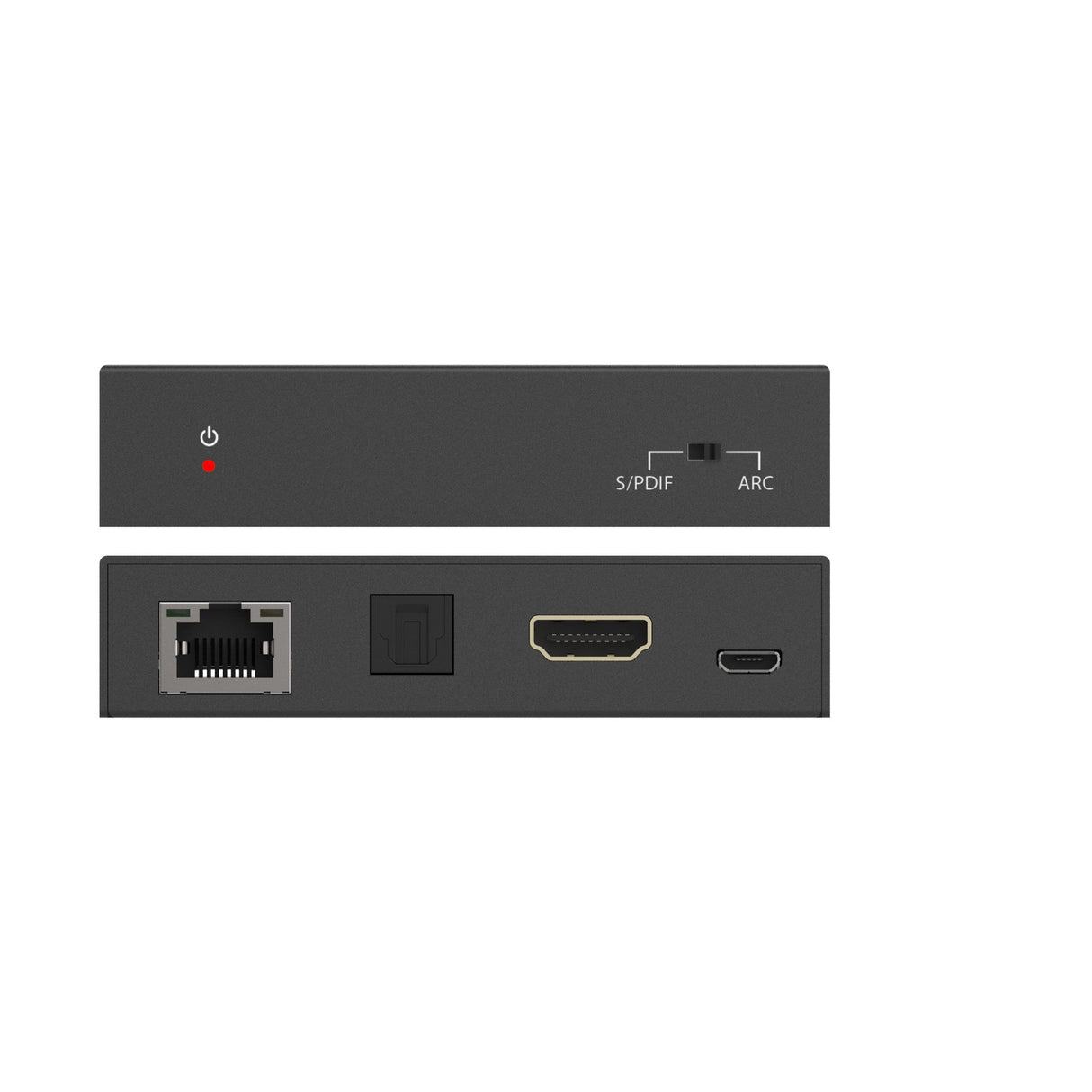

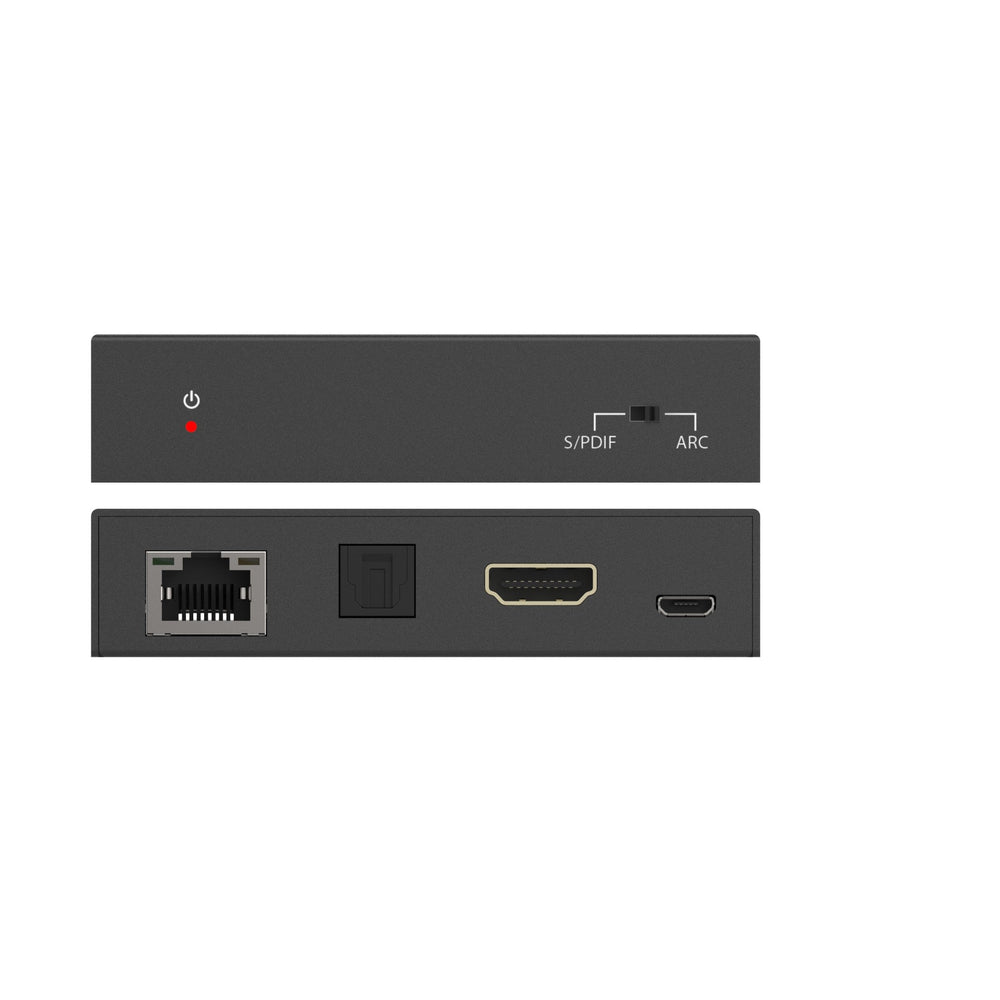

Transmitter:
Input port: 1 x S/PDIF IN [Optical Audio Jack]
1 x ARC IN [HDMI Type A, 19-pin female]
1 x Micro-USB
Outputs: 1 x CAT OUT [RJ45]

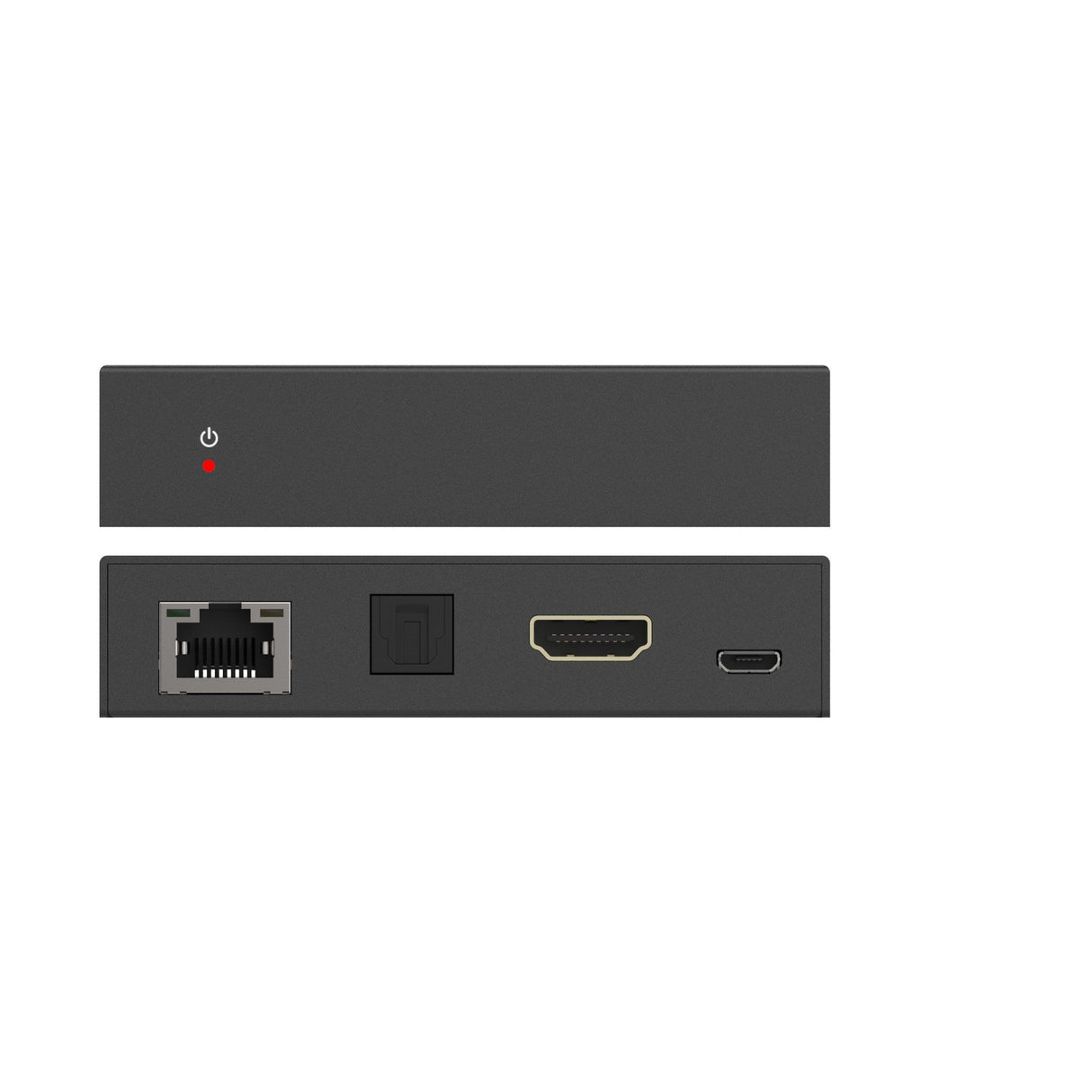

Receiver:
Inputs: 1×CAT [RJ45, female]
1 x Micro-USB
Outputs: 1 x S/PDIF OUT [Optical Audio Jack]
1 x ARC OUT [HDMI Type A, 19-pin female]
Mechanical
Housing: Metal Enclosure
Color: Black
Dimensions: Transmitter / Receiver: 3.54" (W) × 2.83" (D) × 0.79" (H)
Weight: 0.39 lbs (175g) each (Transmitter and Receiver)
Power Supply: DC 5V/1A
Power Consumption: Transmitter: 0.35W, Receiver: 0.7W
Operating Temperature: 32 - 104°F / 0 - 40°C
Storage Temperature: -4 - 140°F / -20 - 60°C
Relative Humidity: 20 - 90% RH (non-condensing)
