VigilLink VLEX-HT2150-TR: HDBaseT 2.0 4K@60Hz 4:4:4 HDMI 2.0 Extender 492ft 18Gbps
The VigilLink VLEX-HT2150-TR is a high-performance HDBaseT 2.0 extender designed to transmit uncompressed HDMI video and audio signals over long distances. Capable of extending signals up to 492 feet (150 meters) via a single CAT6 cable, this extender supports resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, ensuring pristine image quality for both residential and commercial applications.
In addition to video and audio transmission, the VLEX-HT2150-TR offers robust support for bi-directional IR control and RS-232 signals, facilitating seamless integration with various control systems. This feature allows users to manage and control their AV equipment remotely, enhancing the overall flexibility and functionality of their setups.
Designed with a durable metal enclosure and compact form factor, the VLEX-HT2150-TR ensures reliable performance even in demanding environments. Its plug-and-play design simplifies installation, making it an ideal solution for professional AV installations, digital signage, conference rooms, and home theaters.
Key Features
- Extends uncompressed HDMI video and audio signals up to 492 feet (150 meters) over a single CAT6 cable.
- Supports resolutions up to 4K@60Hz with 4:4:4 chroma subsampling.
- Compatible with HDCP 2.2 and HDCP 1.4 standards.
- Bi-directional IR and RS-232 support for seamless control integration.
- Durable metal enclosure ensures reliable performance.
- Plug-and-play design for easy installation.
Technical Specifications
HDCP Compliance: HDCP 2.2 / HDCP 1.4
Video Bandwidth: 18Gbps
Video Resolution: 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:2, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i, All HDMI 3D TV formats, All PC resolutions, including 1920 x 1200
Color Depth: 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0), 8-bit (4K60Hz 4:4:4)
Color Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats: PCM 2.0
ESD Protection: Human body model ā Ā±8kV (Air-gap discharge) & Ā±4kV (Contact discharge)

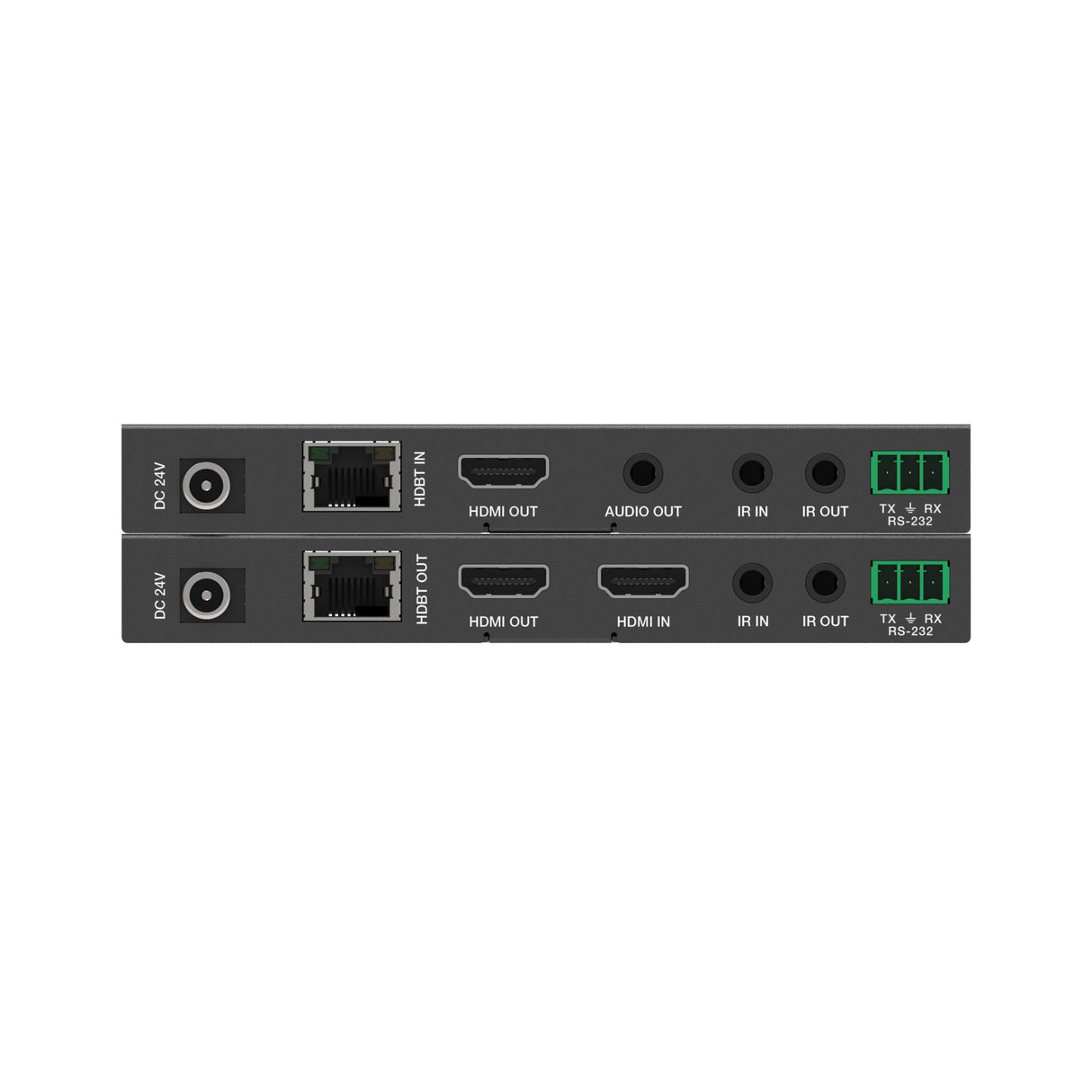

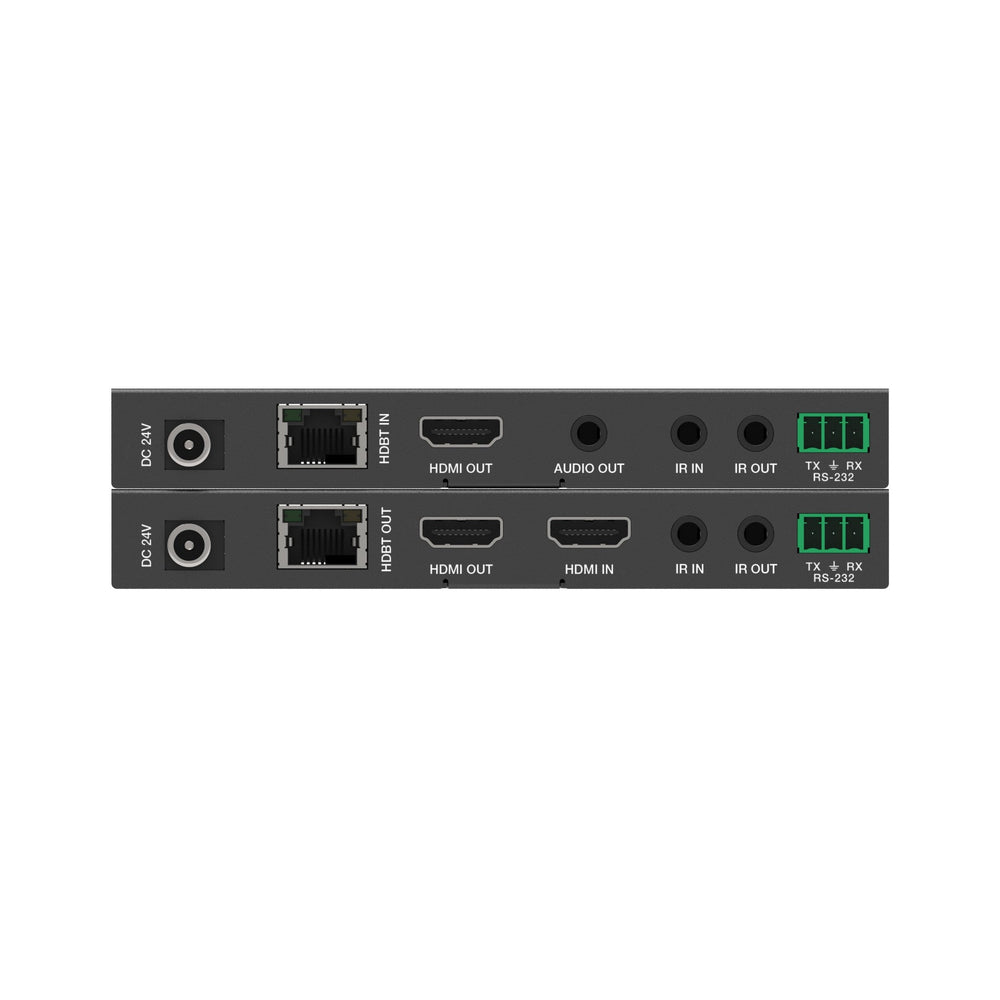

Connections
Transmitter Inputs: 1x HDMI Type A [19-pin female]
Transmitter Outputs: 1x HDMI Type A [19-pin female], 1x HDBT OUT [RJ45, 8-pin female]
Transmitter Controls: 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack], 1x RS-232 [Phoenix jack], 1x SERVICE [Mini-USB, Update port]
Receiver Inputs: 1x HDBT IN [RJ45, 8-pin female]
Receiver Outputs: 1x HDMI Type A [19-pin female], 1x AUDIO OUT [3.5mm Stereo Mini-jack]
Receiver Controls: 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack], 1x RS-232 [Phoenix jack], 1x SERVICE [Mini-USB, Update port]
Mechanical
Housing: Metal enclosure
Color: Black
Dimensions: Transmitter / Receiver: 5.51" [W] x 2.56" [D] x 0.71" [H]
Weight: Transmitter: 0.35 lbs (160g), Receiver: 0.34 lbs (155g)
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 24V/1A (Locking connector)
Power Consumption: 9.36 W
Environmental
Operating Temperature: 32 - 104Ā°F (0 - 40Ā°C)
Storage Temperature: -4 - 140Ā°F (-20 - 60Ā°C)
Relative Humidity: 20 - 90% RH (No condensation)
Resolution / Distance
4K2K: 394ft (120m)
1080P: 492ft (150m)
Resolution / Cable Length
4K60: HDMI IN/OUT: 16ft (5m)
4K30: HDMI IN/OUT: 32ft (10m)
1080P60: HDMI IN/OUT: 50ft (15m)
The use of "Premium High-Speed HDMI" cables is highly recommended.
