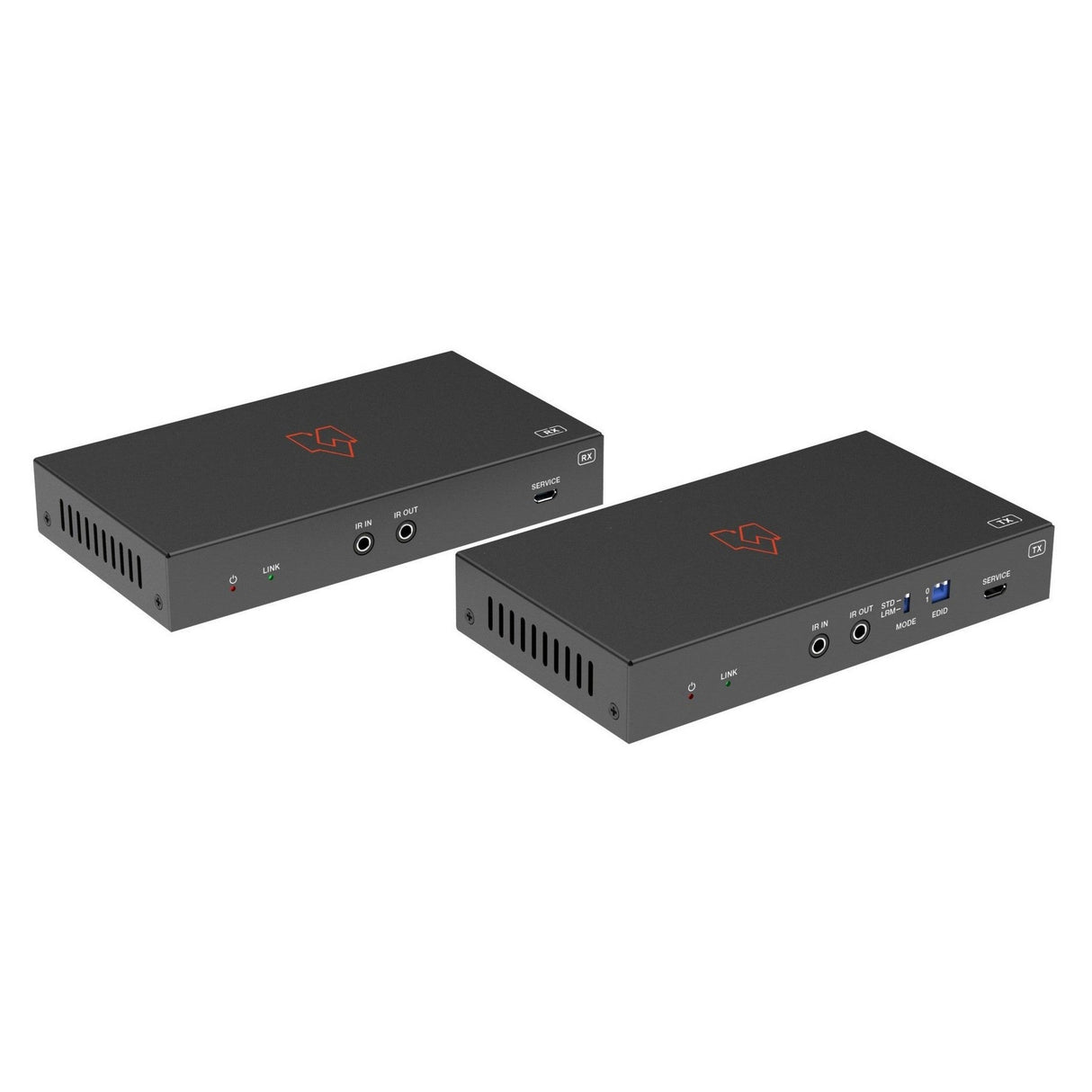

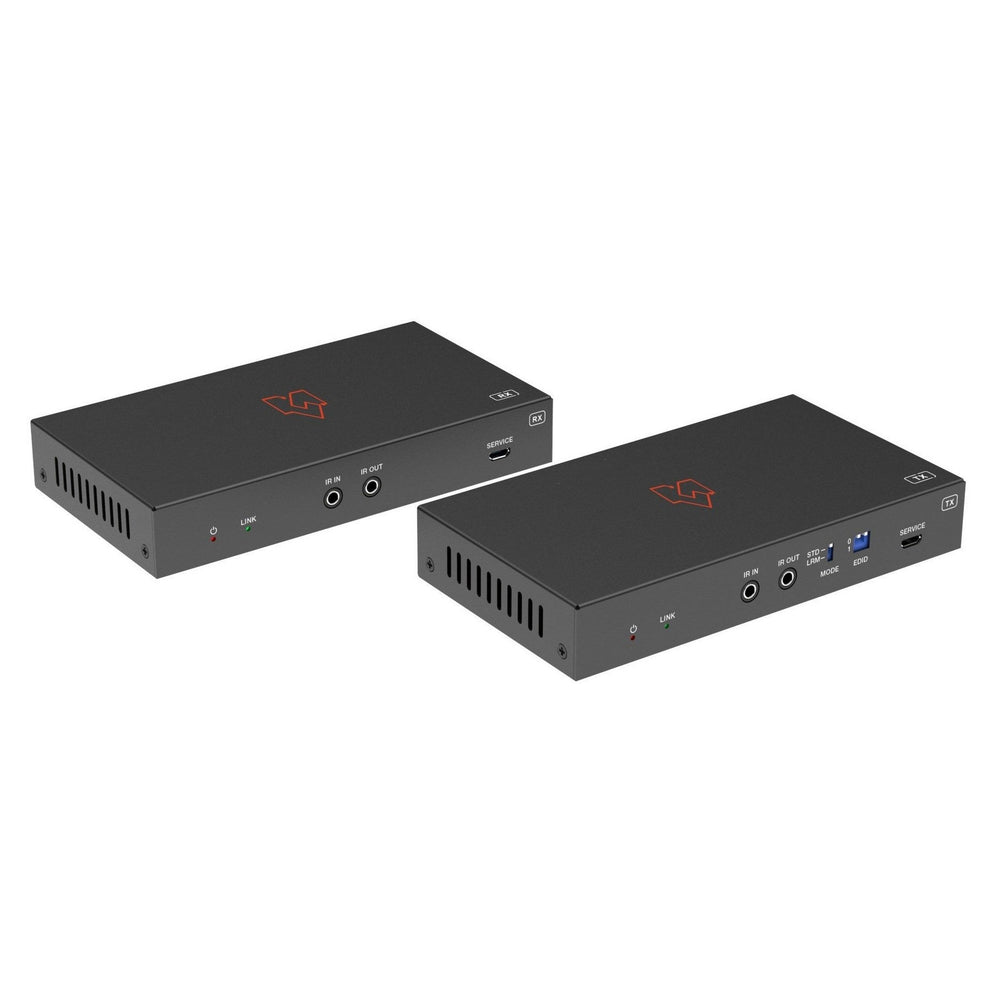

VLEX-HT3100U0-TR: HDBaseT 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender with eARC, 100m 18Gbps
The VLEX-HT3100U0-TR is a state-of-the-art HDBaseT 3.0 extender designed to transmit uncompressed HD and Ultra HD video and audio signals over long distances with exceptional clarity and reliability. Utilizing a single CAT6A/7 cable, this extender supports transmission distances up to 328 feet (100 meters), making it an ideal solution for both residential and commercial applications where high-quality signal distribution is essential.
Featuring a substantial bandwidth of 18Gbps, the VLEX-HT3100U0-TR ensures seamless delivery of high-definition content, supporting video resolutions up to 4K at 60Hz with 4:4:4 chroma subsampling. This capability guarantees that users experience crystal-clear visuals without any loss of detail or color accuracy. Additionally, the extender supports a wide range of HDR formats, including HDR10, HDR10+, Dolby Vision, and HLG, providing vibrant and lifelike images that enhance the viewing experience.
Beyond video capabilities, the VLEX-HT3100U0-TR offers comprehensive support for various audio formats such as LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD. The inclusion of eARC/ARC functionality ensures compatibility with the latest audio equipment, allowing for the transmission of high-quality audio signals alongside video. Furthermore, the extender supports bi-directional IR and RS-232 pass-through, 1GbE Ethernet, and USB 2.0 signals, offering versatile control and connectivity options for a wide range of devices.
Key Features
- Extends uncompressed HD/UHD video and audio signals up to 328 feet (100 meters) over a single CAT6A/7 cable.
- Supports high-definition video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling.
- Compatible with HDR formats including HDR10, HDR10+, Dolby Vision, and HLG for enhanced image quality.
- Provides eARC/ARC functionality for seamless integration with advanced audio systems.
- Includes bi-directional IR and RS-232 pass-through, 1GbE Ethernet, and USB 2.0 support for versatile connectivity.
- Features EDID management and audio de-embedding capabilities for flexible installation options.
- Offers bi-directional PoC (Power over Cable) function, simplifying power requirements.
- Durable metal enclosure with a sleek black finish ensures longevity and professional aesthetics.
Technical Specifications
HDMI Compliance: HDCP 2.2
USB Compliance: USB 2.0
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K@60Hz
HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth: 8/10/12-bit
Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
IR Level: 12Vp-p
Transmission Distance:
- HDBT Standard Mode: 4K60 / 328ft (100m); 1080P / 328ft (100m) over CAT6A/7 cable
- HDBT Long Reach Mode: 1080P / 492ft (150m) over CAT6/6A/7 cable

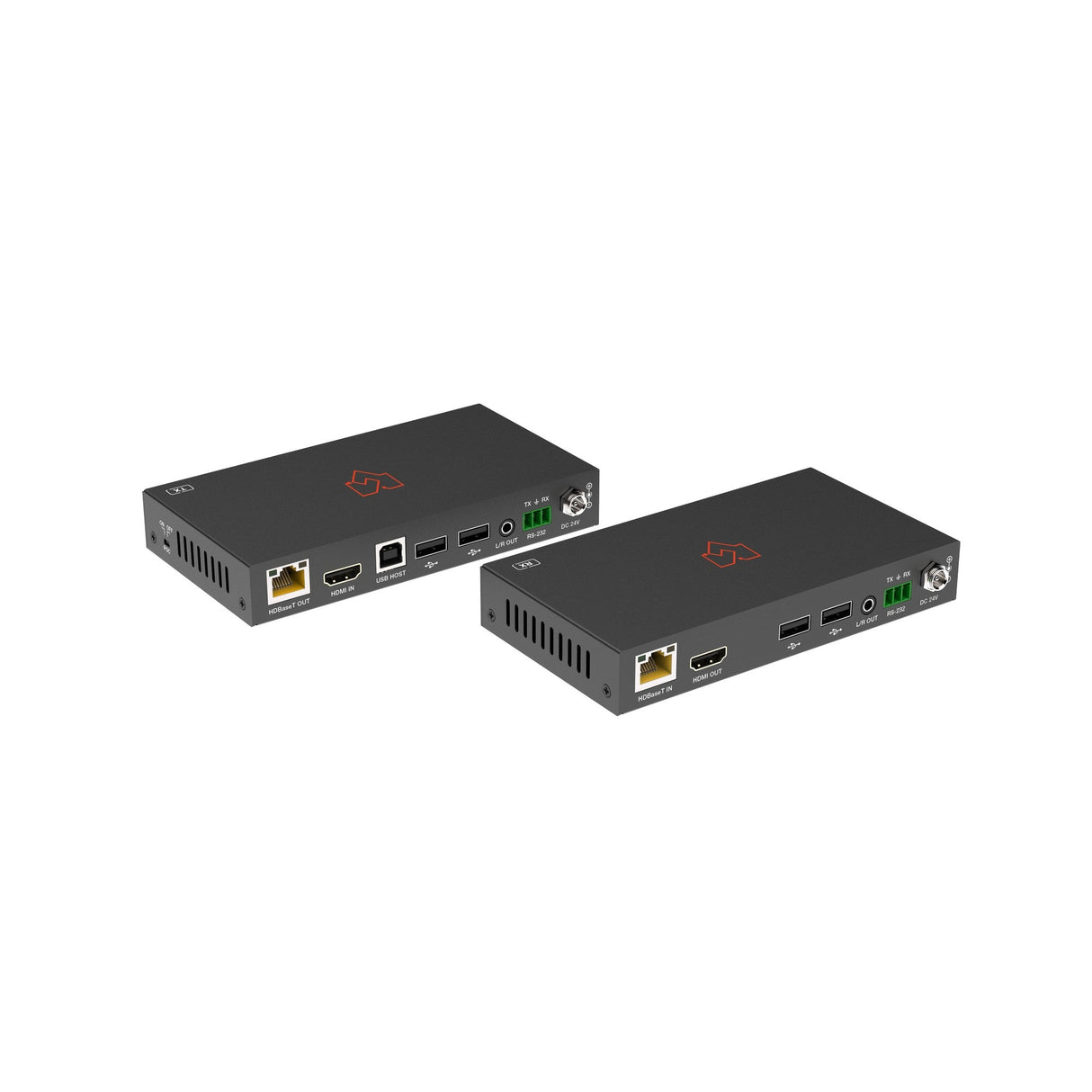

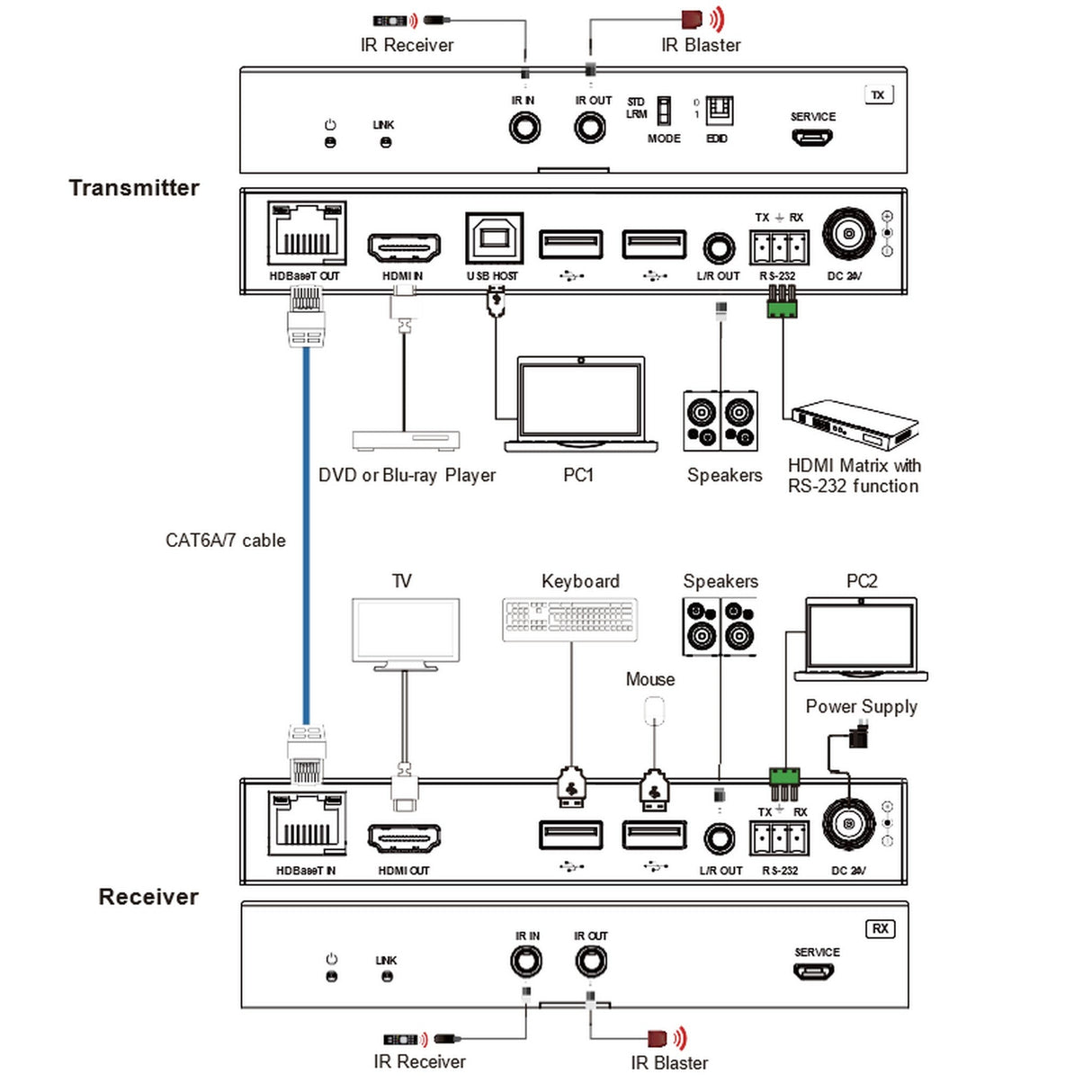

Transmitter Connections:
Inputs: 1 × HDMI IN [Type A, 19-pin female]
Outputs: 1 × HDBaseT OUT [RJ45 connector], 1 × L/R OUT [3.5mm Stereo Mini-jack]
Controls: 1 × IR IN [3.5mm Stereo Mini-jack], 1 × RS-232 [3pin-3.81mm Phoenix jack], 1 × SERVICE [Micro USB, 5-pin female], 1 × USB HOST [USB Type B], 2 × USB DEVICES [USB Type A]
Receiver Connections:
Inputs: 1 × HDBaseT IN [RJ45, 8-pin female]
Outputs: 1 × HDMI OUT [Type A, 19-pin female], 1 × L/R OUT [3.5mm Stereo Mini-jack]
Controls: 1 × IR IN [3.5mm Stereo Mini-jack], 1 × IR OUT [3.5mm Stereo Mini-jack], 1 × RS-232 [3pin-3.81mm Phoenix jack], 1 × SERVICE [Micro USB, 5-pin female], 2 × USB DEVICES [USB Type A]
Mechanical:
Housing: Metal Enclosure
Color: Black
Dimensions: Transmitter/Receiver: 5.67" [W] x 3.07" [D] x 0.91" [H]
Weight: Transmitter: 0.71 lbs (323g), Receiver: 0.70 lbs (319g)
Power Supply:
Input: AC100~240V 50/60Hz
Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption: 14.28W (POC)
Environmental:
Operating Temperature: 32 - 104°F (0 - 40°C)
Storage Temperature: -4 - 140°F (-20 - 60°C)
Relative Humidity: 20 - 90% RH (non-condensing)
