VigilLink VLEX-HT3100U-TR: HDBaseT 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender with eARC 100m 18Gbps

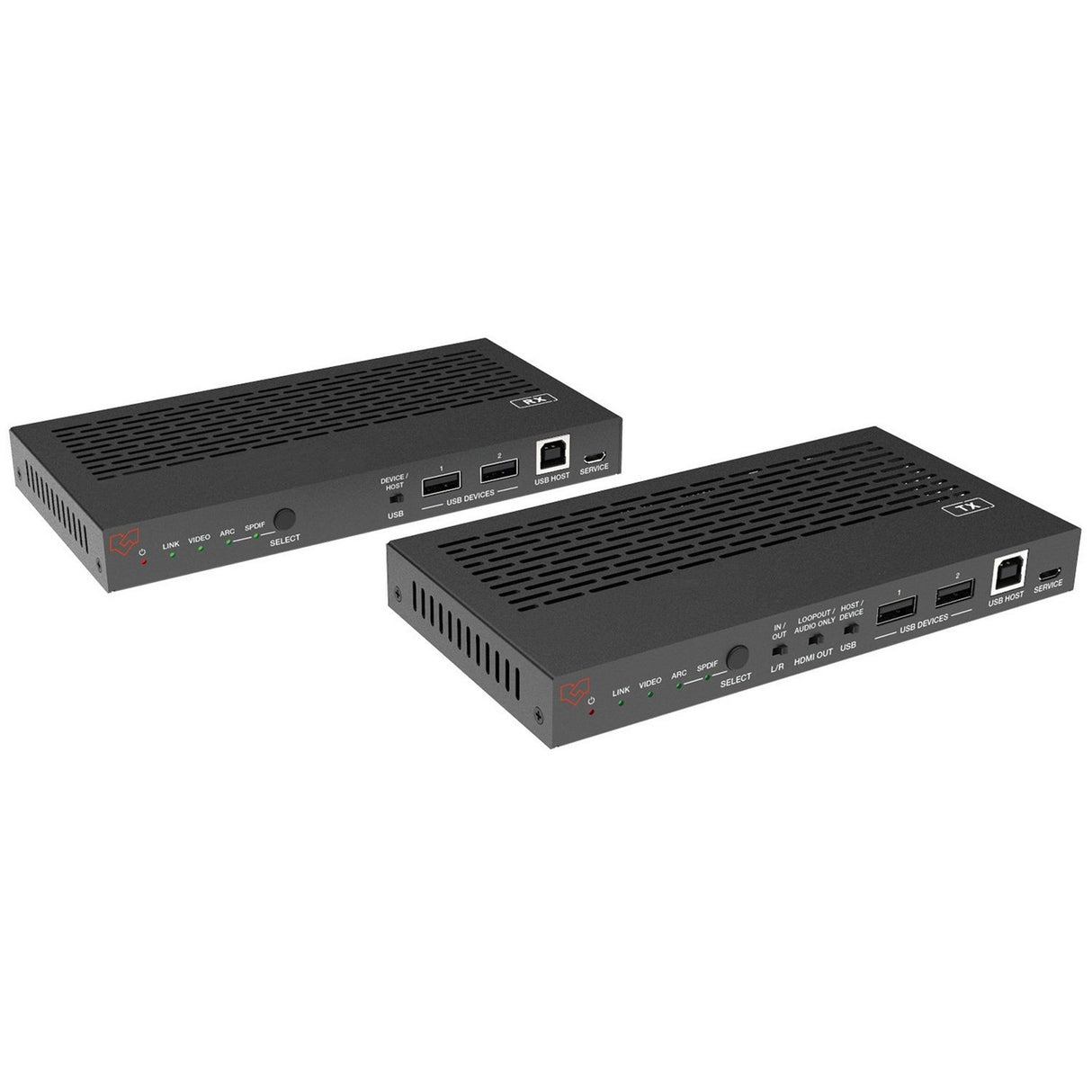

The VigilLink VLEX-HT3100U-TR is a state-of-the-art HDBaseT 3.0 extender designed to transmit uncompressed HD and UHD video and audio signals over long distances. Utilizing a single Cat6A/7 cable, this extender can seamlessly carry HDMI 2.0b signals, including eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet, and USB 2.0, up to 328 feet (100 meters). This makes it an ideal solution for both residential and commercial applications where high-quality signal transmission is essential.

One of the standout features of the VLEX-HT3100U-TR is its support for eARC/ARC functionality. This allows for the transmission of high-quality audio from the receiver's HDMI output back to the transmitter's HDMI input or to the transmitter's HDMI audio-only and SPDIF output ports. Additionally, the extender supports audio embedding and de-embedding, providing flexibility in integrating various audio sources and outputs within your setup.

The VLEX-HT3100U-TR also offers robust USB 2.0 support with configurable host/device settings, enabling seamless integration of peripheral devices such as keyboards, mice, or touchscreens. Combined with bi-directional Power over Cable (PoC), this extender simplifies installation by requiring power at only one end of the setup, reducing cable clutter and enhancing system reliability.

Key Features

• Extends uncompressed HD/UHD video and audio signals up to 328 feet (100 meters) over a single Cat6A/7 cable.
• Supports HDMI 2.0b with resolutions up to 4K@60Hz 4:4:4.
• eARC/ARC support for high-quality audio return channel functionality.
• Audio embedding and de-embedding capabilities for flexible audio integration.
• USB 2.0 support with configurable host/device settings.
• 1GbE Ethernet pass-through for network connectivity.
• Bi-directional IR and RS-232 for versatile control options.
• Bi-directional Power over Cable (PoC) simplifies installation.

Technical Specifications

HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K@60Hz 4:4:4
HDBaseT Bandwidth: 16Gbps on the main and 2Gbps on the return link
HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Depth: 8/10/12-bit
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats: PCM 2.0
SPDIF Audio Formats: LPCM 2.0, AC3 5.1, DTS 5.1
IR Level: 12Vp-p
IR Bandwidth: Up to 350Mbps
Ethernet: Up to 921600bps
Transmission Distance: 328 feet (100 meters) via a single Cat6A/7 cable
ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

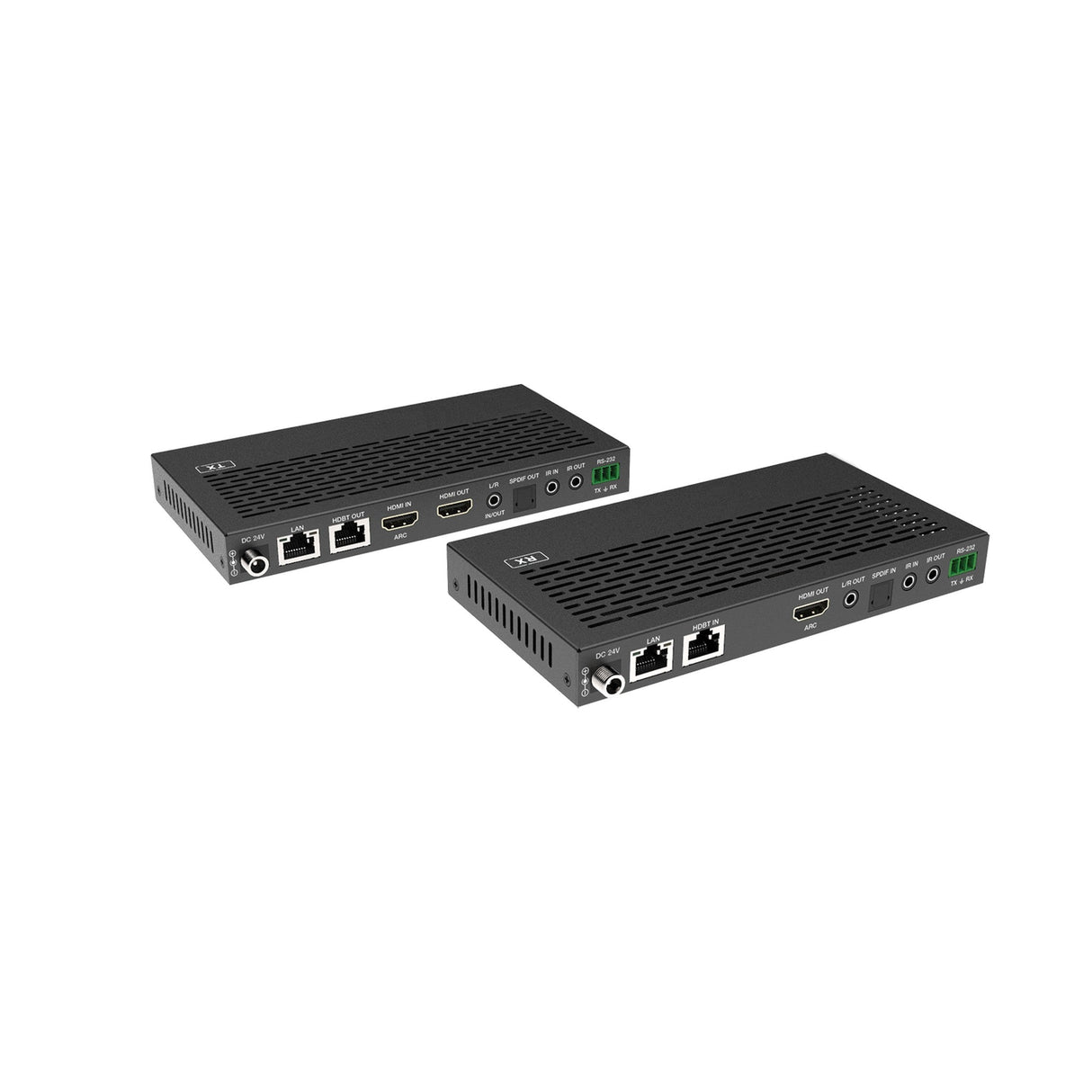

Connections

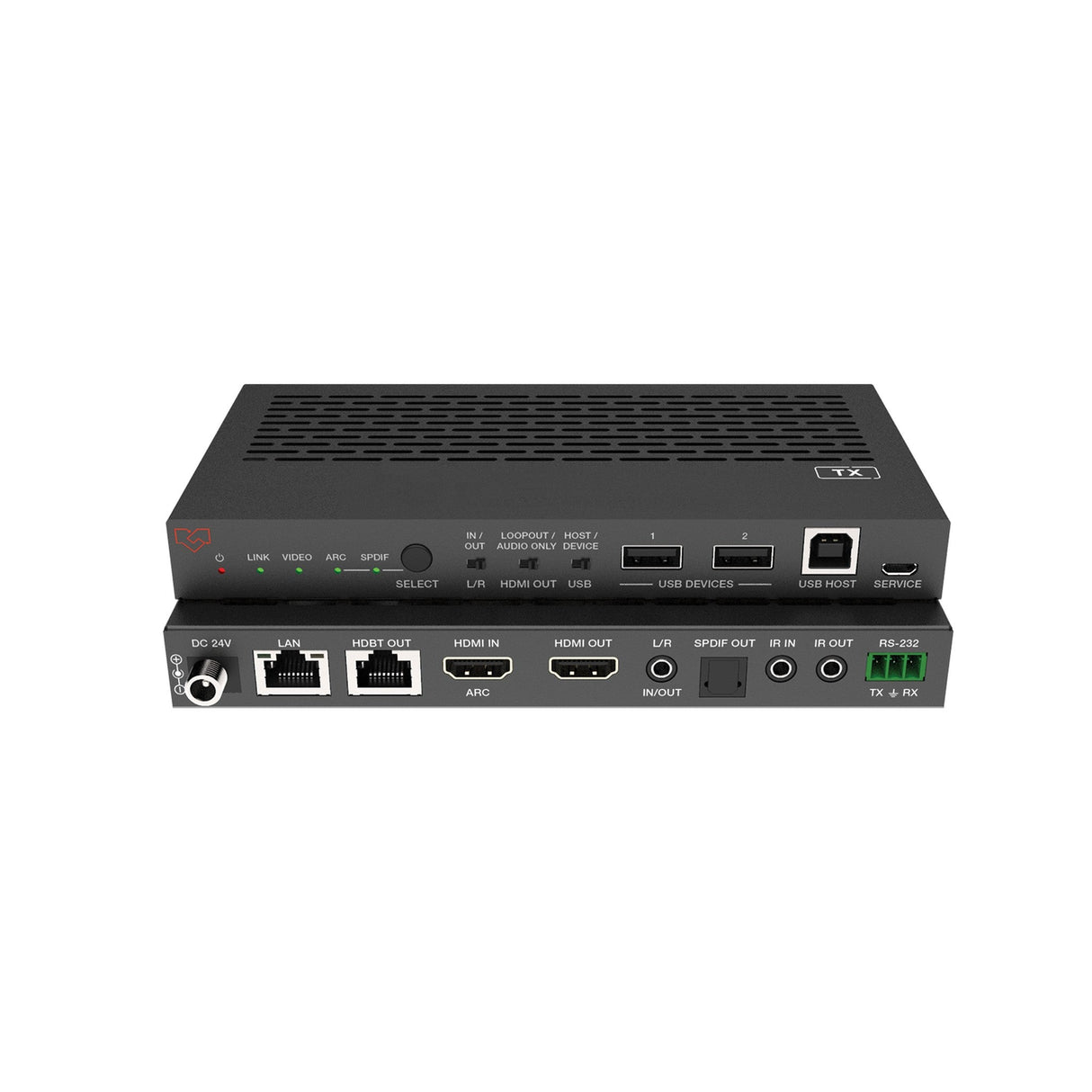

Transmitter Inputs: 1x HDMI IN [Type A, 19-pin female]
Transmitter Outputs: 1x HDMI OUT [Type A, 19-pin female], 1x HDBT OUT [RJ45, 8-pin female], 1x SPDIF OUT [S/PDIF]

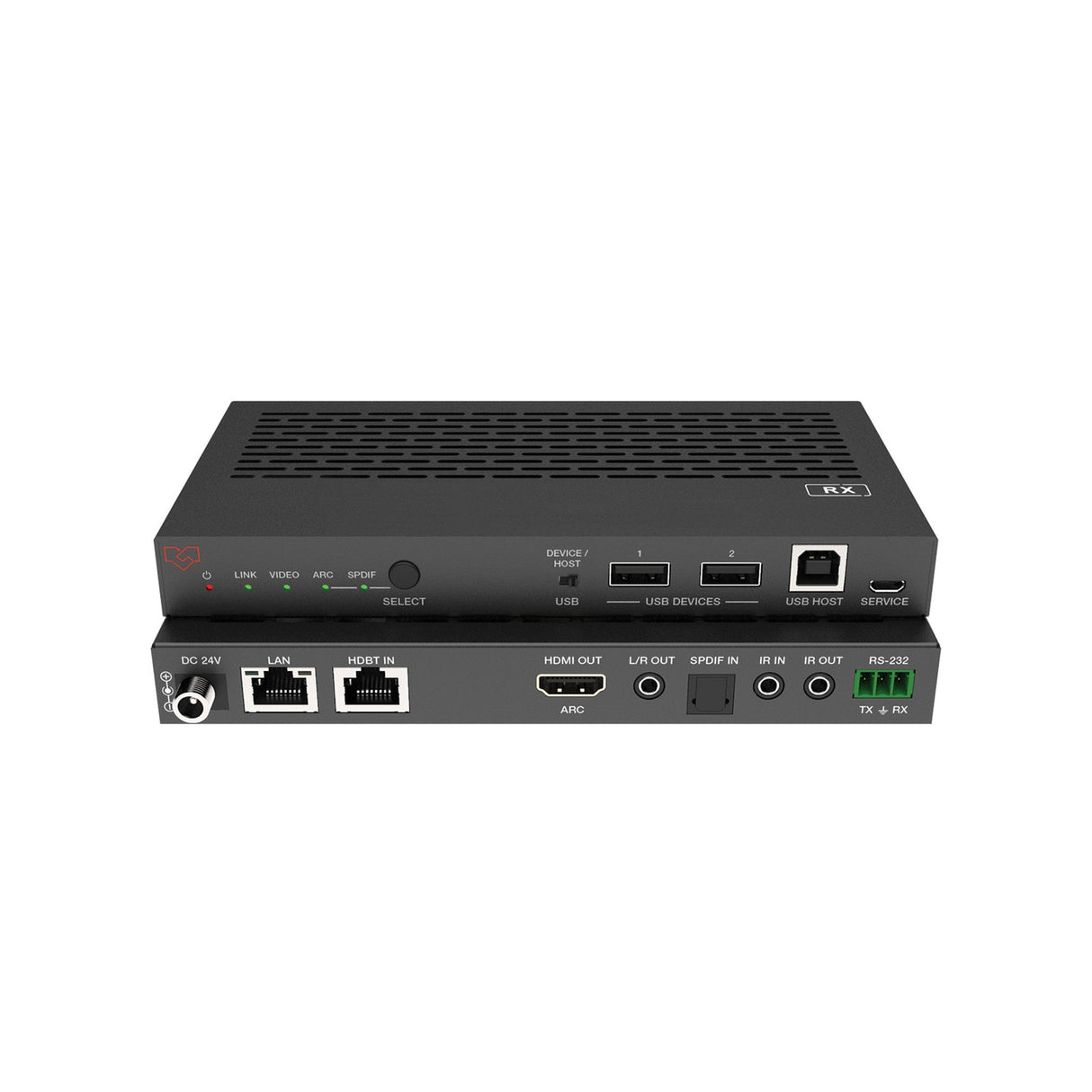

Receiver Inputs: 1x HDBT IN [RJ45, 8-pin female], 1x SPDIF IN [S/PDIF]
Receiver Outputs: 1x HDMI OUT [Type A, 19-pin female], 1×L/R OUT [3.5mm Stereo Mini-jack]
Controls: 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack], 1x RS-232 [3pin-3.81mm Phoenix jack], 1x SERVICE [Mini-USB, Update port], 1×USB HOST [USB Type B], 2×USB DEVICES [USB Type A], 1×LAN [RJ45]

Mechanical
Housing: Metal enclosure
Color: Black
Dimensions: Transmitter / Receiver: 6.69" [W] x 4.02" [D] x 0.87" [H]
Weight: Transmitter: 0.94 lbs (425g), Receiver: 0.96 lbs (437g)

Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption: 15.36W (PoC)

Environmental
Operating Temperature: 32 - 104°F (0 - 40°C)
Storage Temperature: -4 - 140°F (-20 - 60°C)
Relative Humidity: 20 - 90% RH (No condensation)

Resolution / Cable Length
4K60: HDMI IN/OUT: 16ft (5m)
4K30: HDMI IN/OUT: 32ft (10m)
1080P60: HDMI IN/OUT: 50ft (15m)
The use of "Premium High-Speed HDMI" cables is highly recommended.
