VigilLink VLEX-HT2150A-TR: HDMI 1.3 HDBaseT Extender with Audio and RS-232 Control
The VigilLink VLEX-HT2150A-TR is a high-performance HDBaseT extender designed for seamless audio and video transmission over long distances. Supporting HDMI 1.3 and HDCP 1.4 compliance, this extender ensures reliable connectivity with a variety of modern AV devices. With a video bandwidth of 6.75Gbps, it delivers sharp and clear resolutions from 480i up to 1080p at 50/60Hz and even up to 1200p at 60Hz. Whether you're using it for home theater applications, professional AV setups, or conference room installations, the VLEX-HT2150A-TR provides a stable and high-quality signal over extended distances.
Equipped with full-range color space support, including RGB and YCbCr (4:4:4 / 4:2:2), this extender ensures vivid and accurate color reproduction. It supports an 8-bit color depth at 1080p 60Hz, maintaining image integrity across long transmission distances. The VLEX-HT2150A-TR also excels in audio performance, offering compatibility with LPCM 2/5.1/7.1 channel audio, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X. This makes it ideal for high-fidelity home theater systems and professional AV environments where superior audio quality is essential.
With an impressive transmission distance of up to 492 feet (150 meters) at 1080p 60Hz, the VLEX-HT2150A-TR is built for long-range signal distribution. The device includes multiple connectivity options, such as HDMI input and output, HDBT output, 3.5mm stereo mini-jack for audio input and output, IR in/out, RS-232 control, and a service port for maintenance. Its durable metal housing and compact design ensure reliability, while the locking power connector prevents accidental disconnection. The bi-directional IR and RS-232 pass-through functionalities allow seamless control integration, making this extender a robust and versatile solution for AV installations.
Key Features
- HDMI 1.3 and HDCP 1.4 compliant
- Supports video resolutions from 480i to 1080p 50/60Hz and up to 1200p 60Hz
- 6.75Gbps video bandwidth for high-quality signal transmission
- Full-color space support: RGB, YCbCr 4:4:4 / 4:2:2
- 8-bit color depth (1080p 60Hz)
- Audio support: LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Extends signals up to 492 feet (150 meters) at 1080p 60Hz
- Bi-directional IR and RS-232 pass-through for integrated control
- Multiple connectivity options, including HDMI, HDBT, analog audio, and service ports
- Durable metal enclosure for long-term reliability
Technical Specifications
HDMI Compliance: HDMI 1.3
HDCP Compliance: HDCP 1.4
Video Bandwidth: 6.75Gbps
Video Resolution: 480i ~ 1080p 50/60Hz; Up to 1200p @60Hz
Color Space: RGB, YCbCr 4:4:4 / 4:2:2
Color Depth: 8-bit (1080p 60Hz)
Audio Formats: LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Extension Distance: Up to 492 feet (150 meters) at 1080p 60Hz

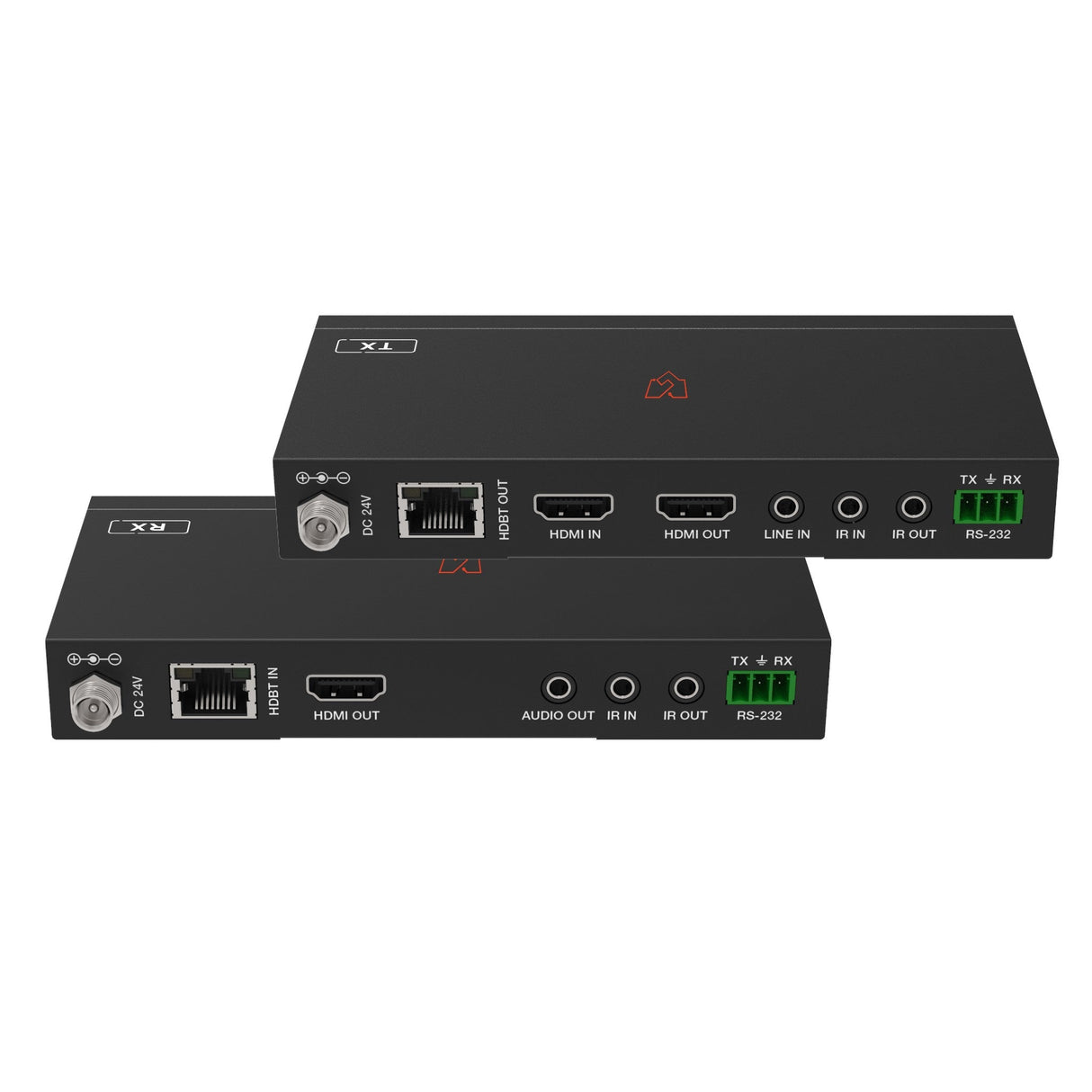

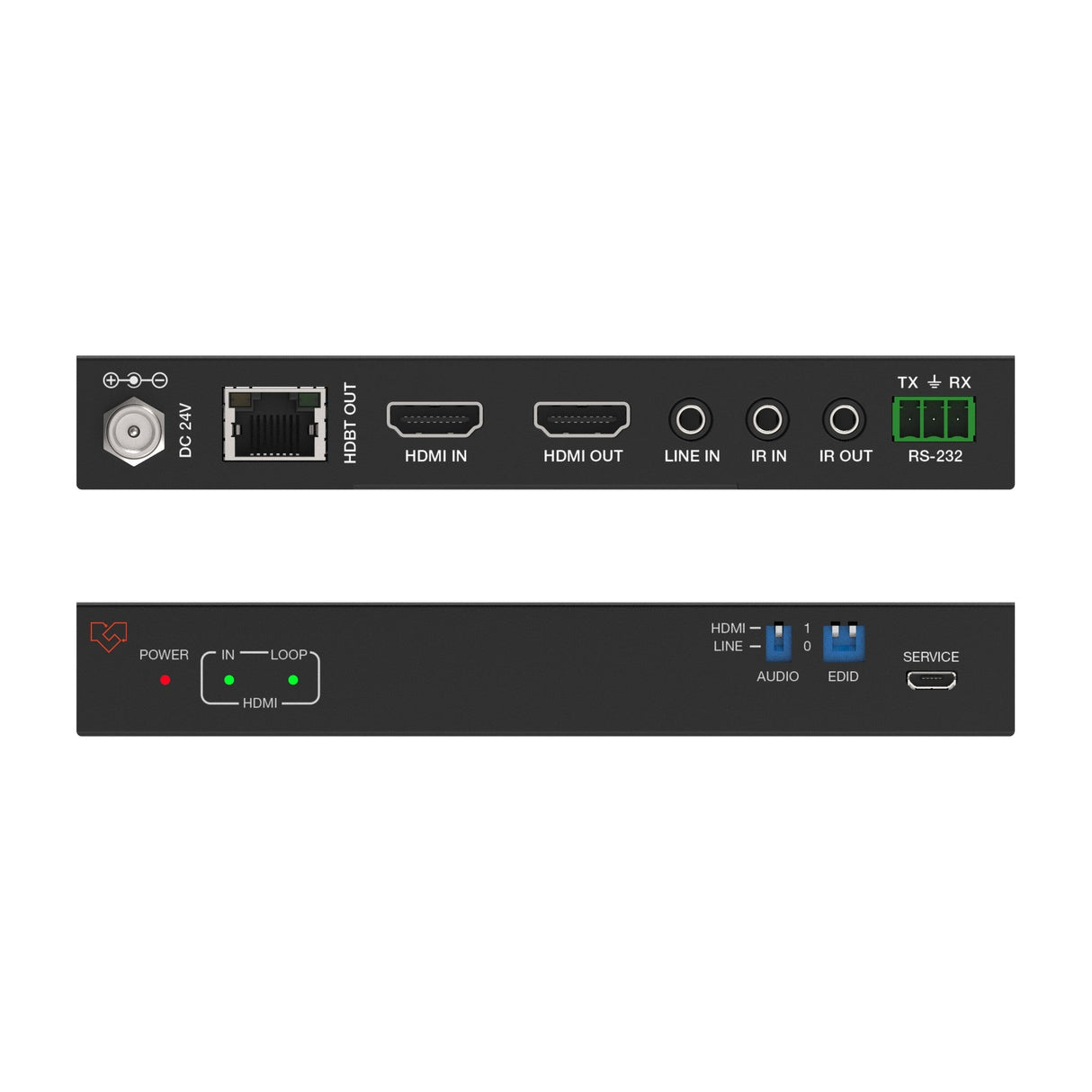

Transmitter Connections:
1 × HDMI IN [Type A, 19-pin female]
1 × LINE IN [3.5mm Stereo Mini-jack]
1 × HDBT OUT [RJ45 8-pin female]
1 × HDMI OUT [Type A, 19-pin female]
1 × AUDIO DIP Switch [1 pin]
1 × EDID DIP Switch [2-pin]
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [Phoenix jack]
1 × SERVICE [Micro-USB jack]

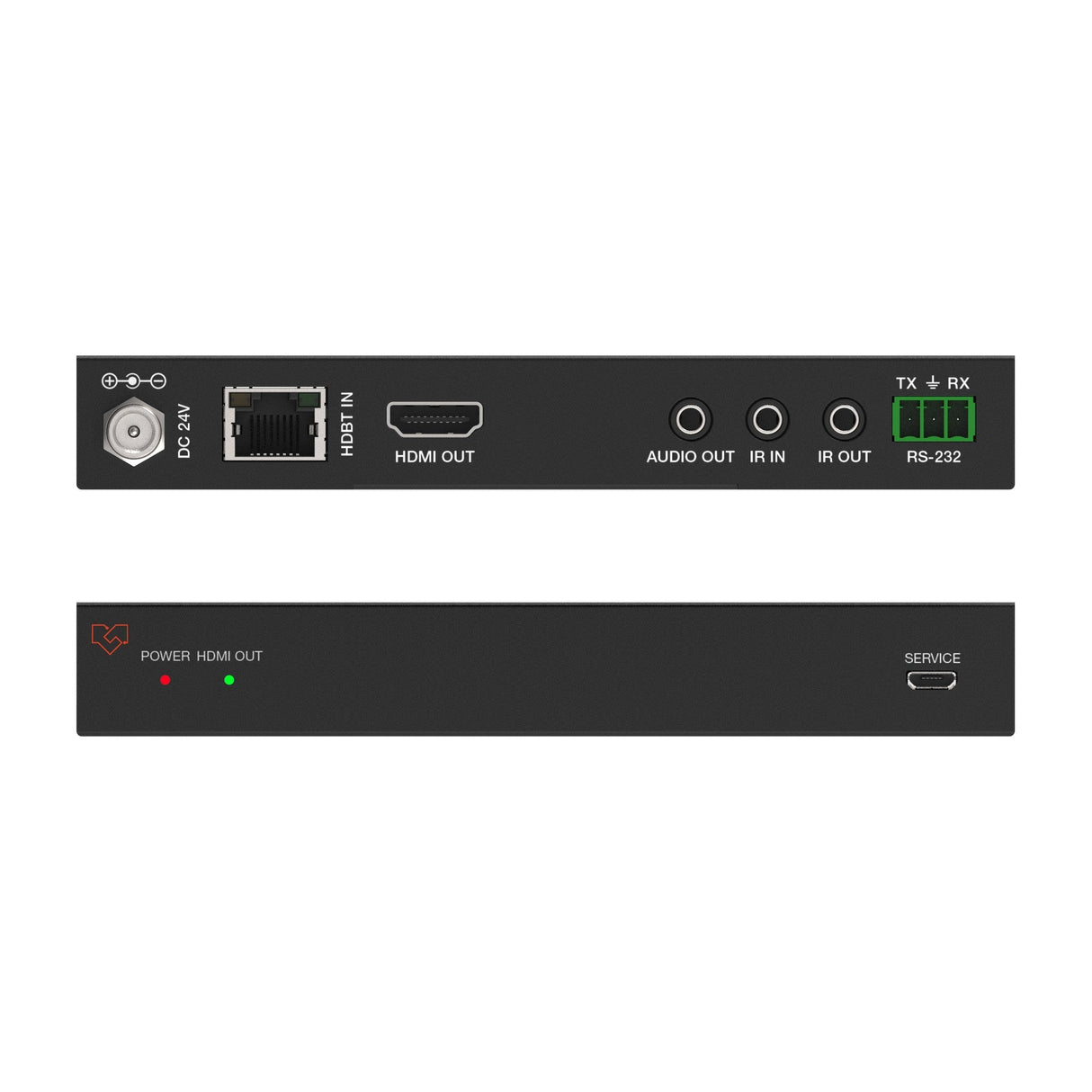

Receiver Connections
1 × HDBT IN [RJ45 8-pin female]
1 × LINE IN [3.5mm Stereo Mini-jack]
1 × HDMI OUT [Type A, 19-pin female]
1 × AUDIO OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [Phoenix jack]
1 × SERVICE [Micro-USB jack]
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
Mechanical:
Housing: Metal Enclosure
Color: Black
Dimensions: 5.78" (W) × 2.81" (D) × 0.83" (H)
Weight: Transmitter: 0.63 lbs, Receiver: 0.55 lbs
Power Supply: Input: AC100~240V 50/60Hz; Output: DC 24V/1A (Locking connector)
Power Consumption: 8.4W (max)
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -4°F ~ 140°F (-20°C ~ 60°C)
Relative Humidity: 20 - 90% RH (Non-condensing)
