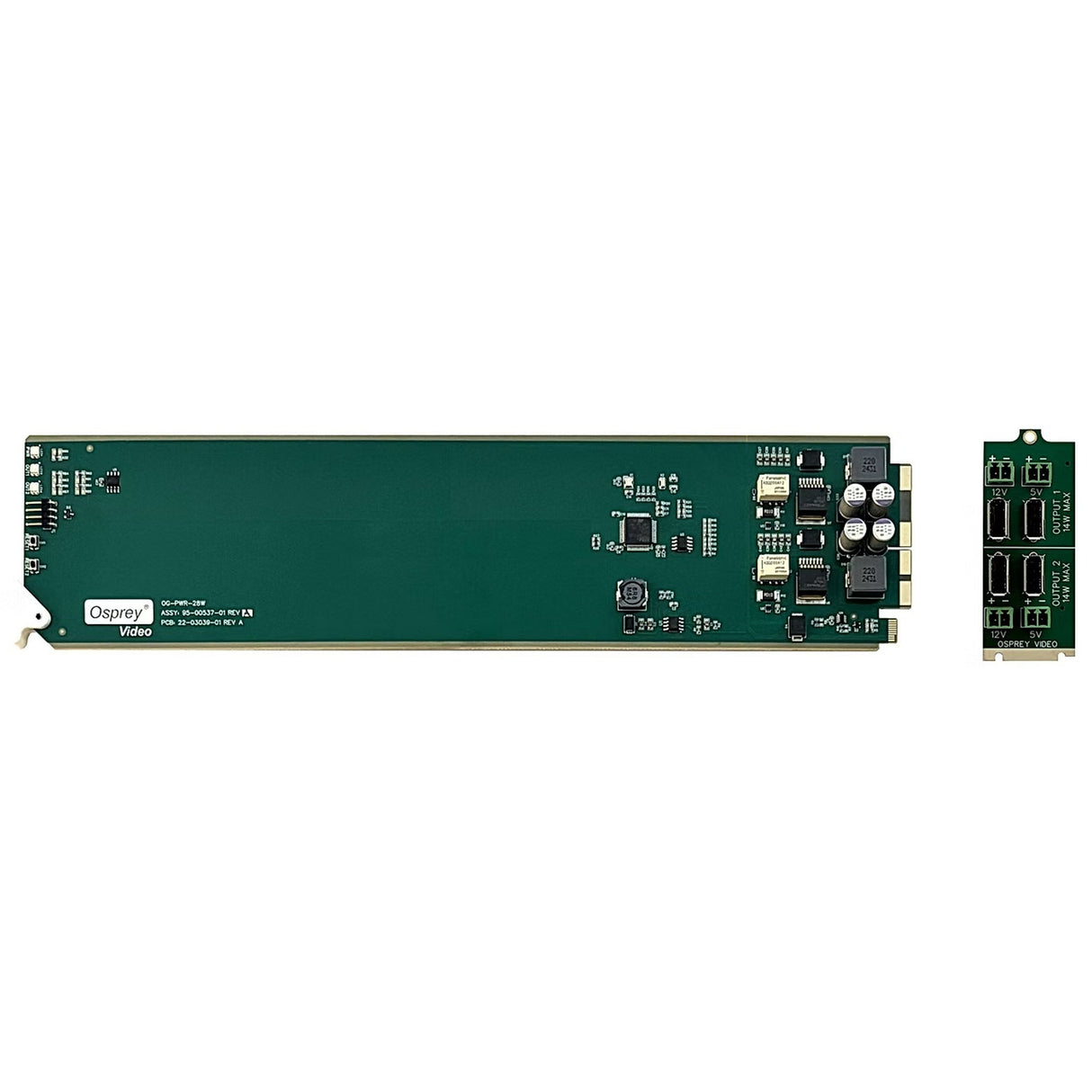

Osprey OG-PWR-28W 5V/12V Power Distribution for openGear systems
OG PWR 28W provides 5V and 12V power distribution for openGear systems. It offers dual outputs with terminal block and USB ports and supports redundant power when the frame is equipped with a second power supply. Overcurrent and short circuit protection are included.
The module supplies 8W at 5V or 14.4W at 12V on each output, shared between the terminal blocks and USB ports. It fits standard openGear two slot configurations and includes a standby power draw of 1W with a maximum load power of 30W.
Environmental ratings include operating temperatures from 0 to 40 C and storage temperatures from -40 to 60 C. The module is compatible with OGx and OG3 frames supporting up to 10 cards per frame. It includes the openGear card, rear module, and mounting hardware.
Key Features
- Dual power outputs: 5VDC and 12VDC on Output 1 and Output 2
- USB ports: 4 x USB A for 5VDC
- Terminal blocks: 2 x screw terminals for 5VDC and 2 x screw terminals for 12VDC
- Protection: Overcurrent and short circuit protection
- Redundancy: Power redundancy with a second power supply installed in the frame
Technical Specifications
- Model: OG PWR 28W
- SKU: 95 00537
- Output 1: 8W at 5V shared between 5V terminal block and USB ports or 14.4W at 12V terminal block
- Output 2: 8W at 5V shared between 5V terminal block and USB ports or 14.4W at 12V terminal block
- Power Ports: Output 1 terminal block 12V and 5V plus 2 x USB A Output 2 terminal block 12V and 5V plus 2 x USB A
- Size: openGear standard, two slots
- Power: 1W standby, 30W max
- Operating Temperature: 0 to 40 C (32 to 104 F)
- Storage Temperature: -40 to 60 C (-40 to 140 F)
- Humidity: 10 to 90 percent non condensing
- Altitude: Less than 3000m
- User Interface: openGear Dashboard control for Windows, Linux, macOS; output overcurrent status; card state; frame connection state; manufacturer and product information; front buttons for overcurrent reset
- Compatibility: OGx and OG3 up to 10 cards per frame
Whats in the Box
- openGear Card
- Rear Module
- Mounting Hardware
