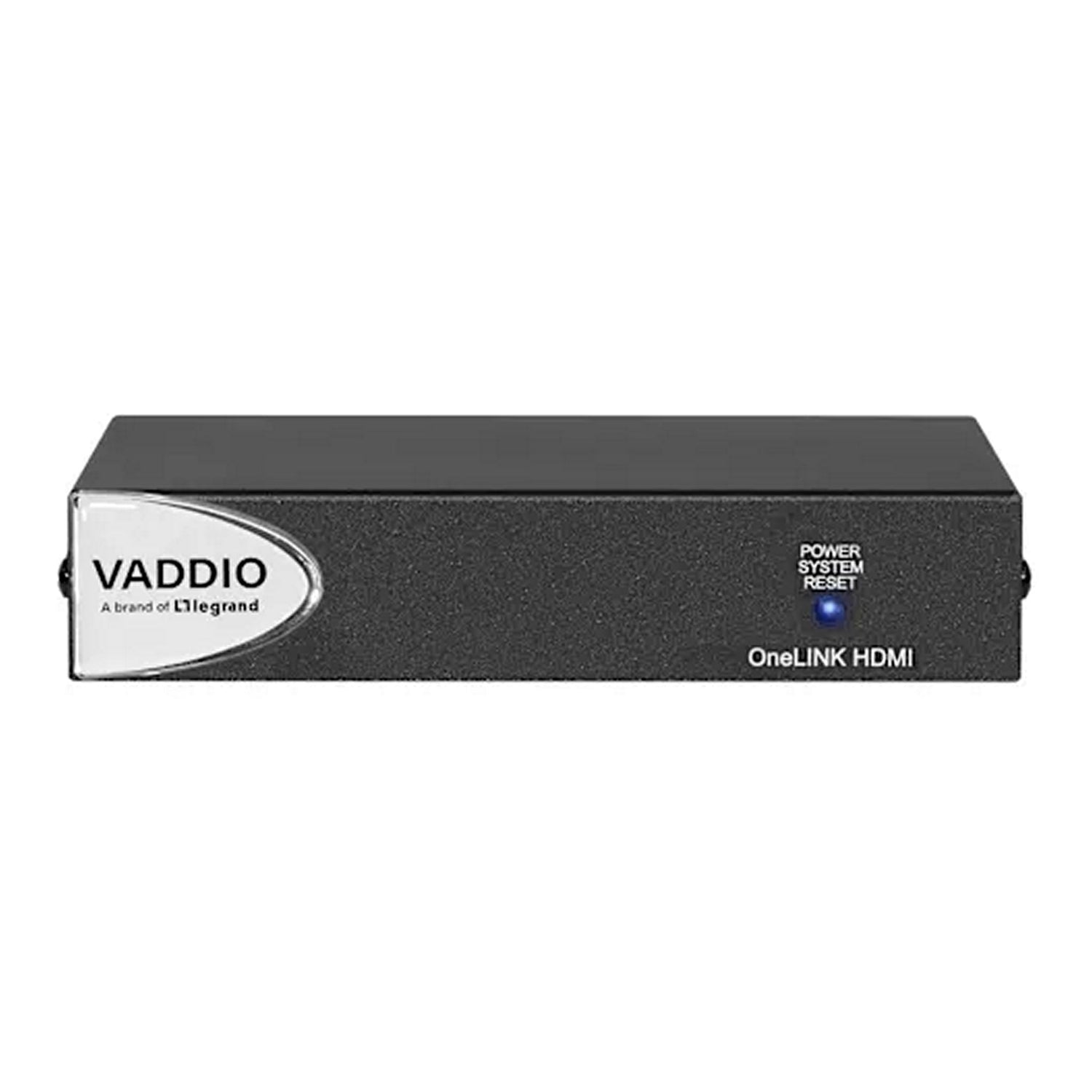

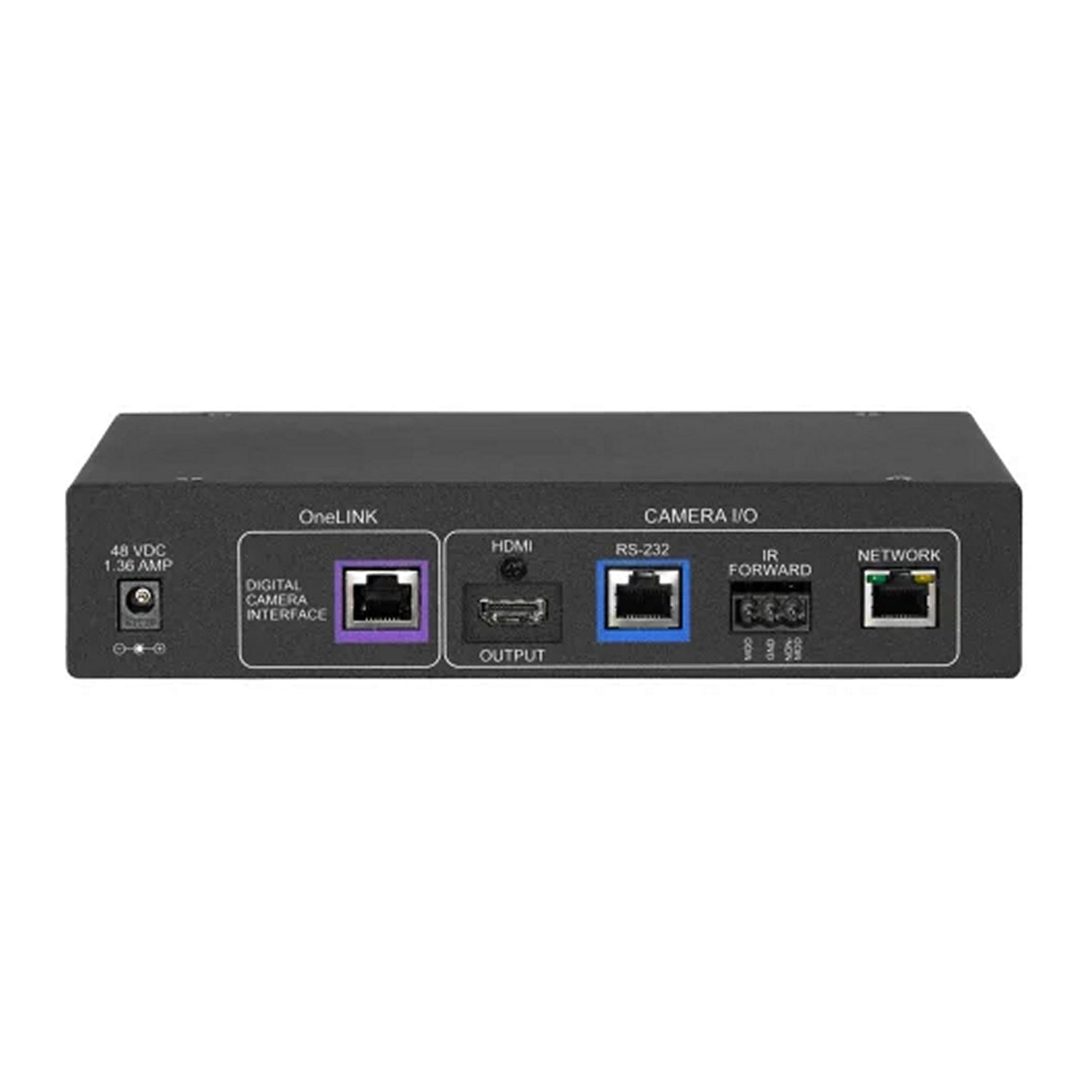

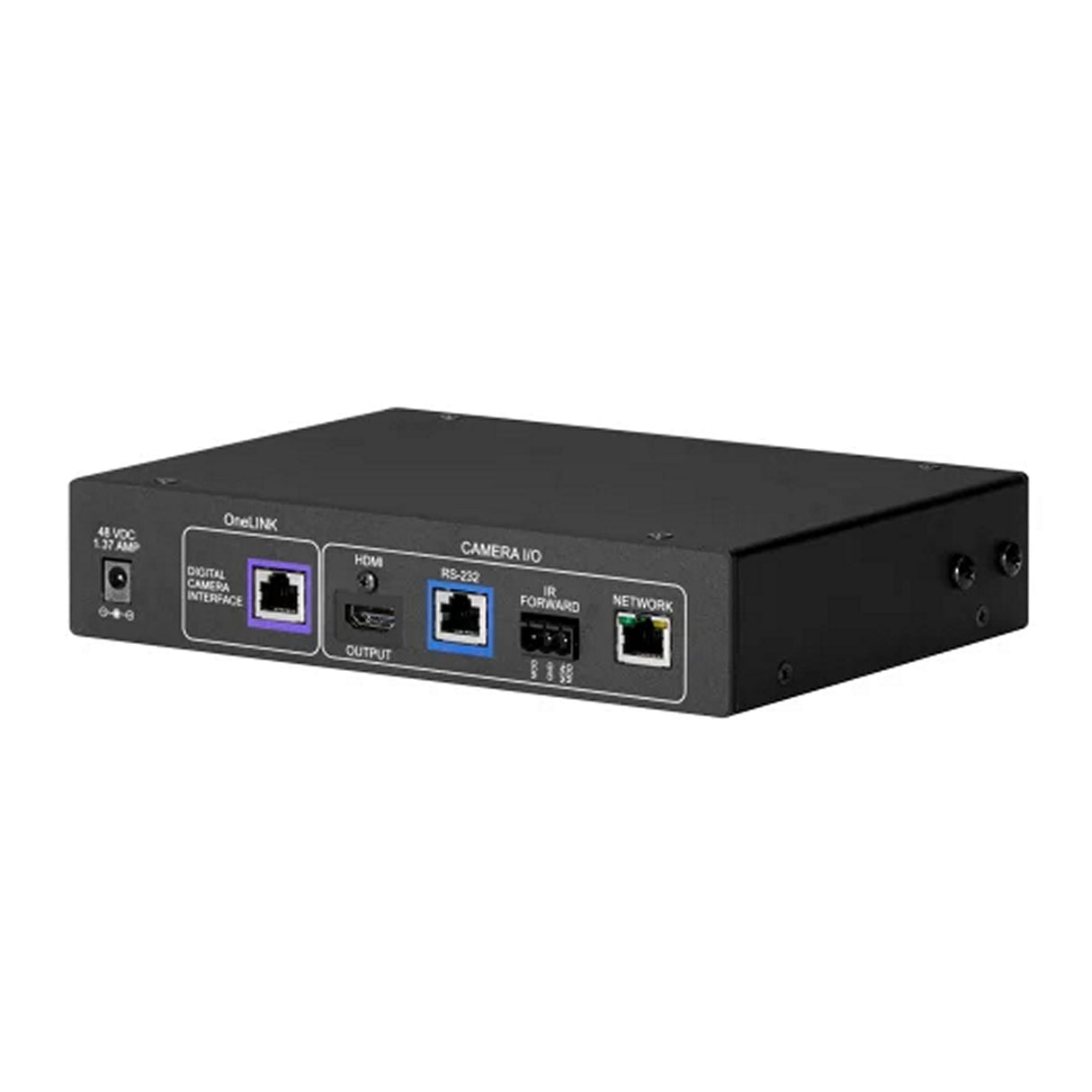

Vaddio 999-1105-043 OneLINK HDMI Extension for Vaddio HDBaseT Cameras
The Vaddio 999-1105-043 OneLINK HDMI Extension offers a streamlined solution for extending power, video, network, and control signals to Vaddio HDBaseT cameras over a single Cat-5e (or better) cable. With support for cable runs up to 328 feet (100 meters), this extension system enhances camera placement flexibility, reduces installation complexity, and minimizes cable clutter in professional AV environments.
Designed for compatibility with Vaddio RoboSHOT 12/30 HDBT and RoboSHOT 20 UHD cameras, the OneLINK HDMI Extension delivers uncompressed HDMI video up to 1080p60, bidirectional Ethernet and RS-232 control, and reliable power transmission. Its intuitive browser-based user interface simplifies configuration and system administration, making it an ideal choice for conference rooms, lecture halls, and broadcast studios.
Key Features
- Single Cable Connectivity: Transmits power, video, network, and control over a single Cat-5e/6 cable up to 328 feet.
- High-Quality Video: Supports uncompressed HDMI video resolutions up to 1080p60.
- Bidirectional Control: Enables Ethernet and RS-232 control for seamless integration with control systems.
- Browser-Based Interface: Facilitates easy configuration and system management through a web interface.
- Compact Design: Fits into standard AV setups with dimensions of 8.38" (W) x 1.72" (H) x 6.00" (D).
Technical Specifications
- Model Number: 999-1105-043
- Dimensions (W x H x D): 8.38" x 1.72" x 6.00"
- Weight: 1.55 lbs
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 20% to 80% RH (non-condensing)
- Power Supply: 48 VDC, 1.36 A
- Input Ports: HDBaseT
- Output Ports: HDMI
- Control Methods: Ethernet, RS-232, Telnet
- Compliance: CE Approved, FCC Approved, UL Listed, TAA Compliant
Included in the Box
- OneLINK HDMI Interface
- 48 VDC Power Supply with AC Cord Set
- EZCamera RS-232 Control Adapter
- Quick-Start Guide
