Vaddio 999-8210-000 AV-to-USB/IP Streaming Interface , Black

Vaddio 999-8210-000 AV Bridge, Black

Seamless Integration for Unified Communications

The Vaddio AV Bridge 999-8210-000 is a versatile audio-video interface designed to bridge professional AV equipment with modern digital platforms. It enables high-definition streaming of meetings, lectures, and events directly to PCs via USB or over IP networks, supporting resolutions up to 1080p/30 for IP and 720p/30 for USB connections. With support for standard UVC and UAC drivers, it ensures plug-and-play compatibility with most conferencing and recording software, eliminating the need for custom drivers.

Equipped with multiple video inputs—including HDMI, RGBHV, and composite—as well as balanced XLR and unbalanced RCA audio inputs, the AV Bridge offers flexible integration with various AV sources. Its advanced processing features, such as auto-scaling, noise filtering, and de-interlacing, deliver high-quality audio and video output. The device also includes an embedded web server for remote configuration and control, making it an ideal solution for diverse professional AV applications.

Key Features

• Dual Streaming Capability: Supports both USB and IP streaming (not simultaneously) for versatile connectivity.
• High-Definition Encoding: Delivers up to 1080p/30 over IP and 720p/30 over USB with H.264 and MJPEG encoding.
• Multiple Video Inputs: Includes HDMI, RGBHV, and composite inputs to accommodate various video sources.
• Audio Flexibility: Features balanced XLR and unbalanced RCA inputs with built-in compressor and EQ filter.

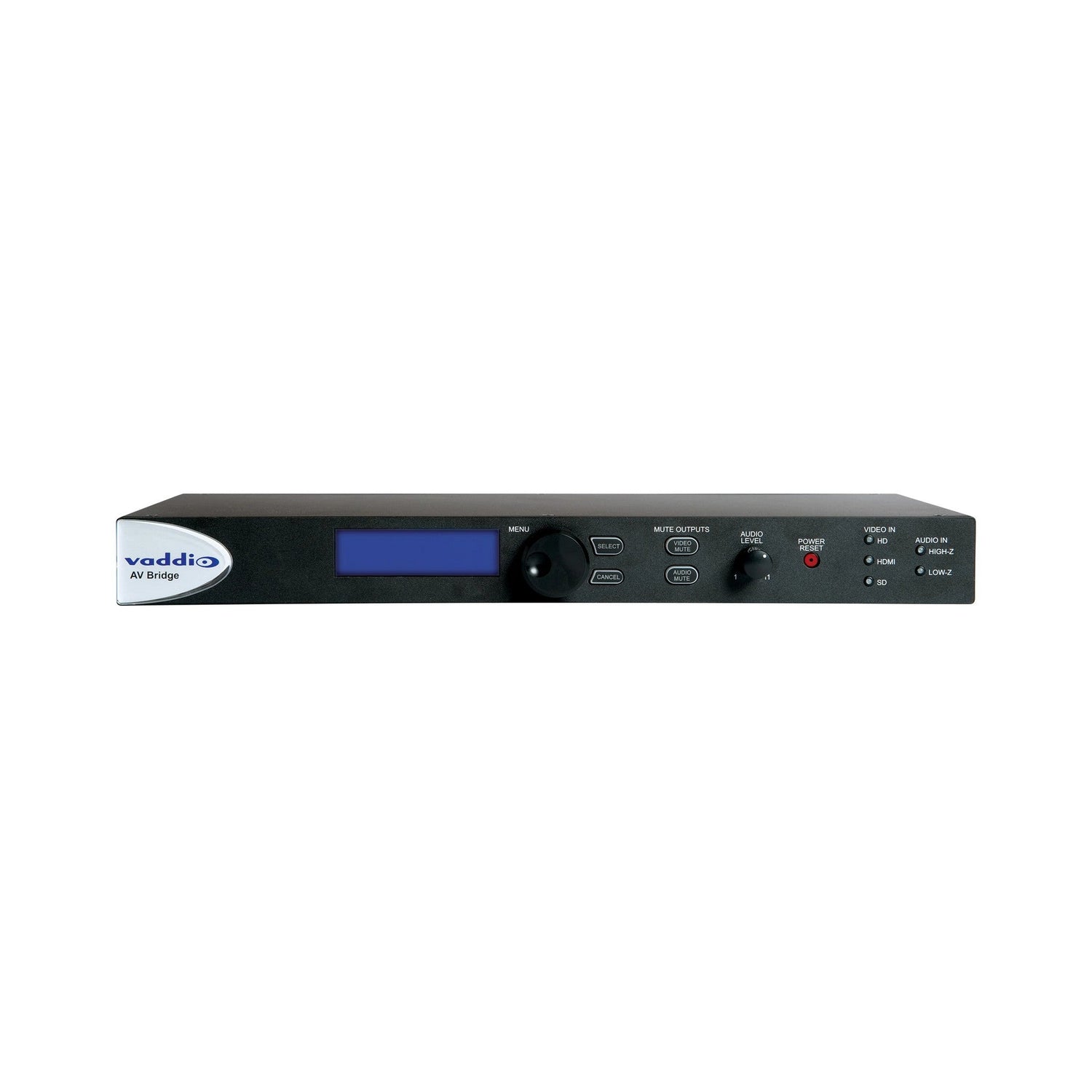

• Comprehensive Control Options: Offers front panel controls, an embedded web server, and RS-232 interface for seamless integration.

Technical Specifications

• Dimensions: 1.72" (H) x 16.73" (W) x 7.00" (D)
• Weight: Approximately 3.14 lbs (1.43 kg)

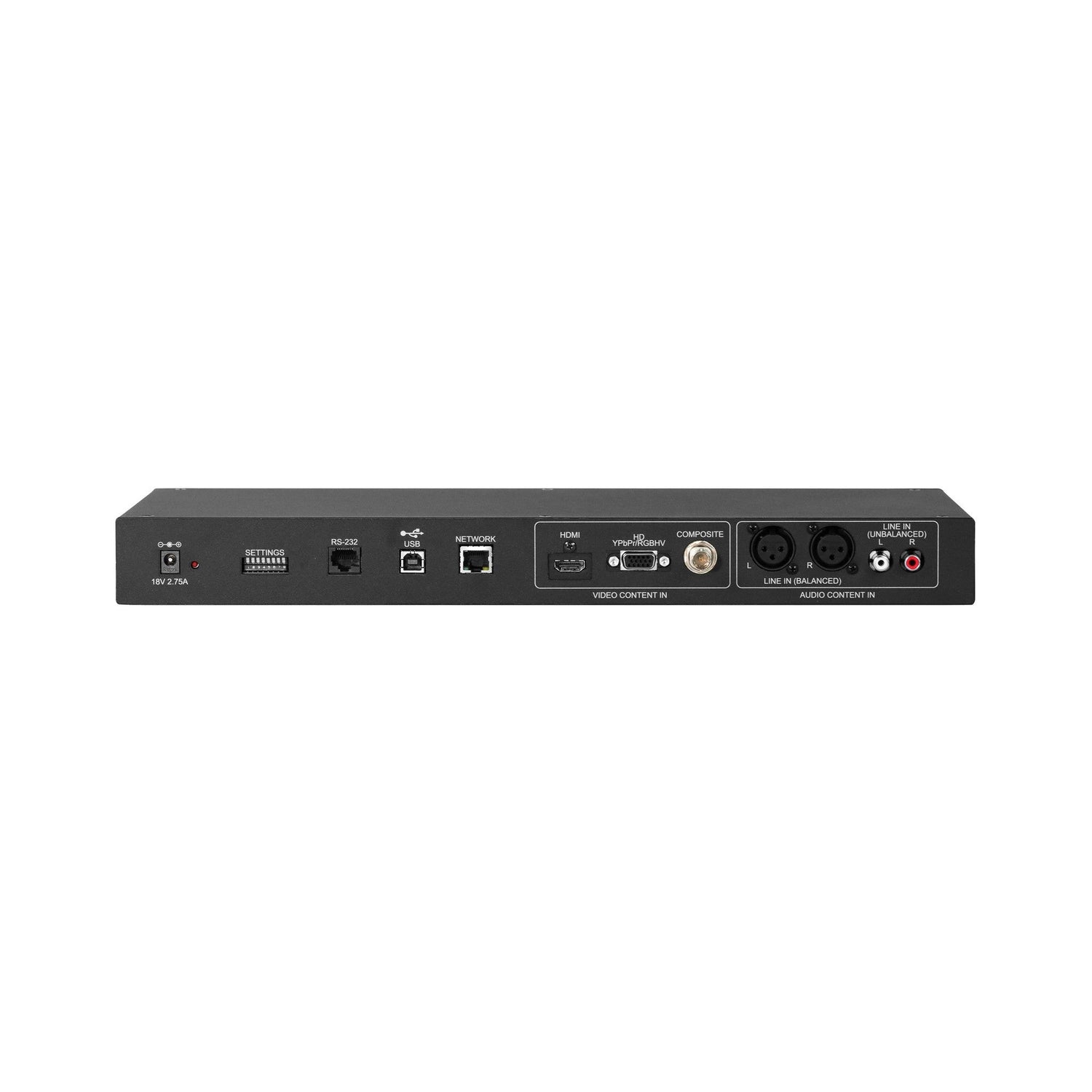

• Video Inputs: HDMI, RGBHV (HD DB-15), Composite (BNC)
• Audio Inputs: 2 x XLR (balanced), 2 x RCA (unbalanced)
• USB Interface: Type-B, USB 2.0 compliant with UVC/UAC support
• Network Interface: RJ-45, 10/100 Base-T supporting HLS, RTSP, HTTP, DHCP, DNS, NTP
• Control Interfaces: Front panel LCD, embedded web server, RS-232 (RJ-45)
• Power Supply: 12 VDC, 3 A, auto-switching
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Power Consumption: Maximum 36 W

What's Included in the Box

• AV Bridge 999-8210-000 Unit
• 18 VDC Power Supply with AC Cord Set
• 2 x Rack Ears for 1-RU Mounting
• 4 x Rubber Feet for Non-Rack Installation
• 6' (1.83 m) USB 2.0 Cable (Type-A to Type-B)
• Quick-Start Guide
