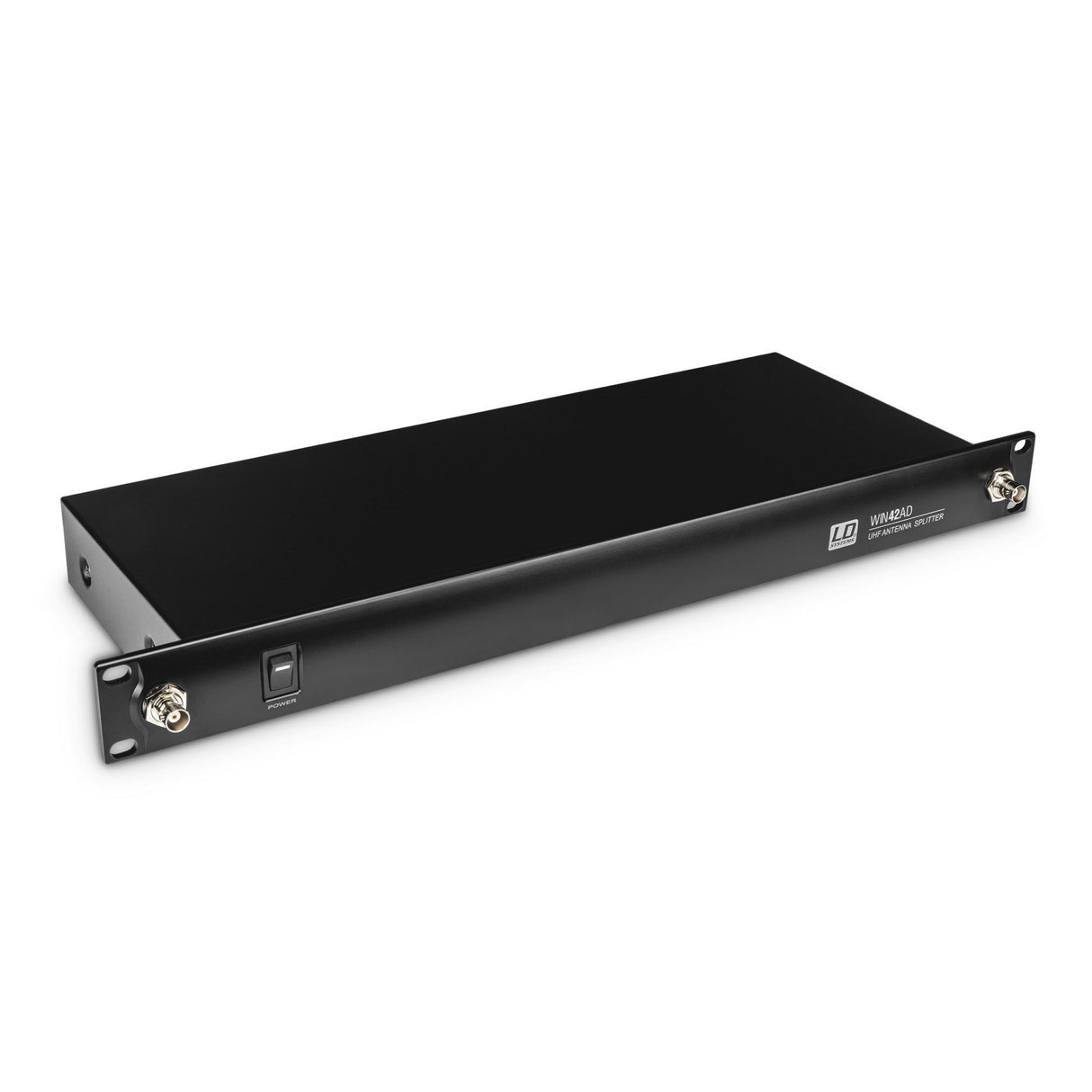

LD Systems WIN 42 AD 4-Way Antenna Split Box
The LD Systems WIN 42 AD 4-Way Antenna Split Box is an essential accessory for any professional wireless microphone setup. Designed to work with a range of wireless microphone systems operating between 500 and 900 MHz, this antenna splitter helps ensure optimal signal distribution and stability for up to four receivers. Whether you're setting up for a live performance, a conference, or any other professional event, this antenna split box provides the reliable performance you need.
Featuring robust construction and a slew of high-quality technical specifications, the LD Systems WIN 42 AD is engineered to meet the demanding needs of various wireless microphone systems. The device offers a notable Freq. bandwidth of 400 MHz and a signal gain of 3 dB, guaranteeing a steady and dependable reception. The split box also includes power supplies for both the antenna booster and the radio receiver, enhancing its versatility and functional range.
In addition, the unit comes with a comprehensive set of accessories to ensure seamless integration into your existing setup. From BNC cables to DC cables and adapters, everything you need to get started is included, making this a highly convenient and effective choice for audio professionals.
Key Features
- Antenna Split Box for professional wireless microphone systems
- Freq. range of 500-900 MHz
- Freq. bandwidth of 400 MHz
- Signal gain of 3 dB
- Two antenna inputs with BNC connections
- Four antenna outputs with BNC connections
- Input impedance of 50 Ohms
- Output impedance of 50 Ohms
- Power supply for antenna booster: 9V
- Power supply for radio receiver: 4 x 12-18V DC
- Operating voltage range: 12-18V DC, 3A
- Durable and robust construction
Specifications
- Product type: Wireless Microphone System Accessories
- Type: Antenna Splitter
- Freq. band: 500-900 MHz
- Freq. bandwidth: 400 MHz
- Signal gain: 3 dB
- Antenna inputs: 2
- Antenna input connection: BNC
- Input impedance: 50 Ohm(s)
- Power supply for antenna booster: 9 V
- Antenna outputs: 4 x 2
- Antenna output connection: BNC
- Output impedance: 50 Ohm(s)
- Power supply for radio receiver: 4 x 12-18 V DC
- Operating voltage: 12-18 V DC, 3A
- Operating voltage: 12 V DC - 18 V DC (100 mA)
- Width: 482 mm
- Height: 44.4 mm
- Depth: 160 mm
- Weight: 4.672 kg
Package Contents
- LD Systems WIN 42 AD 4-Way Antenna Split Box
