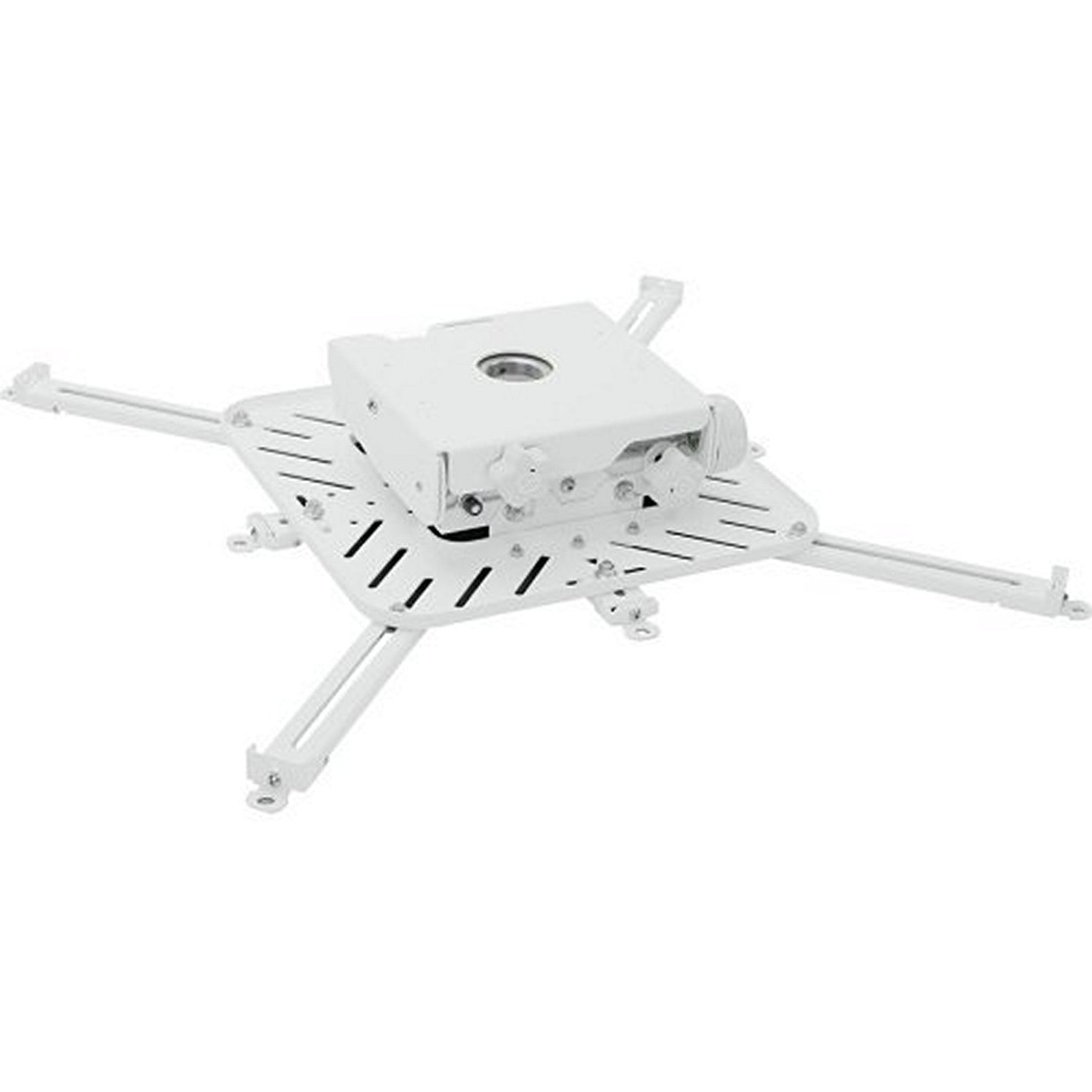

Chief VCTUW XL Universal Tool-Free Projector Mount, White

The VCTUW XL Universal Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 - 68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.

Key Features

• Low Profile
• The new VCT is 30% slimmer than the VCM mount
• Lightweight
• The new VCT is 25% lighter than the VCM mount
• Tool-free MicroZone+ Gearbox Pitch Adjustment
• The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment
• Can be hand adjusted using the tool-free knob or driven with a 1/2” (13mm) socket
• PrecisionSet technology to lock in pitch adjustments
• Tool-free MicroZoneTM Roll & Yaw Adjustments
• Gear driven tool-free knob adjustments
• Lockout nuts enable additional image lock security
• New Universal Interface
• Universal plate is sized to accommodate most patterns within footprint
• Short attachment legs reduce clutter for smaller projector installation patterns
• Long attachment legs extend reach for larger projector installation patterns

Technical Specifications

Adjustments
Micro Roll +/- 5°, Micro Pitch +/- 20°, Micro Yaw +/- 10°, Macro Yaw 360°
Certifications
TÜV Certified, UL Plenum
Color
White
Solution Type
Universal
Weight Capacity
150 lbs (68 kg)
