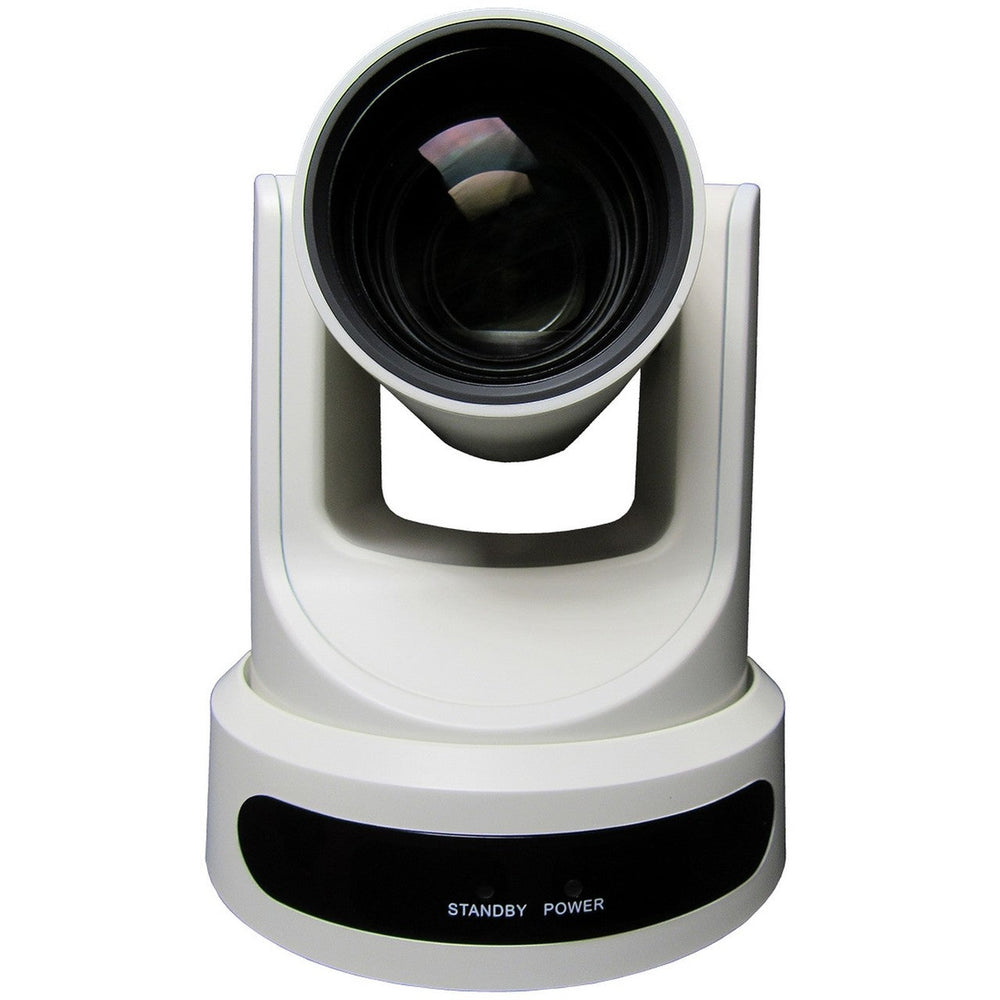

PTZOptics 20X-NDI-WH 20x Lens NDI Camera, White

NDI compatible camera with built-in NDI, NewTek’s industry leading IP technology. Supports Power, Control audio and video all over a single Ethernet cable simplifying installation and setup for live streaming systems. With support for HDMI, 3G-SDI and RTSP/RTMP Streaming (H.264, H.265 & MJPEG) this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications.

Key Features

• Video Connections: HDMI, 3G-SDI & IP Streaming
• Field of View: 60.7 degree wide-angle lens
• Low Lux: high-performance in low illumination situations
• Resolution: Full 1920x1080p HD Resolutions up to 60 frames per second
• Noise Cancellation: 2D and 3D noise reduction with our latest “low noise CMOS sensor”
• IP Streaming GUI: Easy to use Software GUI for PTZ Control and remote viewing
• NEW: Open Source IP Control Software
• 3 Year Warranty: Check out the Quality Control!
• New: Android Camera Control App
  Built-in RTSP & RTMP for Live Streaming
• Stream RTSP or RTMP video and audio to your favorite CDN
• Stream locally on your network
• Dual Streaming for both high and low resolution settings
• Benefit from easy to use far end camera control
• Support for (2) 1080p unicast users *more at lower resolutions
• Ready for unicast streaming (best for low bandwidth internal usage)
• New: Open Source IP Control Software
• New: Android Camera Control App
• New: 16 Professional Virtual Sets included for TriCaster, vMix & WireCast
  Record to your favorite management tool
• Each digital video output can still be used for video monitoring or conferencing
• Make dynamic recordings with LMS systems and record “just the talking heads” via HDMI
• Take remote camera control from the far end as PTZOptics offers over 4 different ways for camera control (IP/Network, IR Remote, RS-232, and UVC )
• Every camera has HDMI video output (Perfect for in room confidence monitors)

Technical Specifications

Video CMOS Sensor
1/2.7” CMOS, 2.12 Mega Pixels
Frame Rate
1080p 60/50/30/25, 1080i 60/50/30/25, 720p 60/50/30/25
Lens
20x, F4.42mm-88.5mm, F1.8-F2.8
Lens Zoom
20x (Optical Zoom)
Field of View
60.7 deg
Min Lux
0.5 Lux at F1.8, AGC ON
Shutter Speed
1/30s - 1/10000s
SNR
>=55dB
Vertical Flip & Mirror
Supported
Horizontal Angle of View
3.36 deg (tele) to 60.7 deg (wide)
Vertical Angle of View
1.89 deg (tele) to 34.1 deg(wide)
Pan Movement
±170 deg
Tilt Rotation
Up: 90 deg, Down: 30 deg
Presets
10 IR Presets (255 via Serial or IP)
Video Output Interface
HDMI, 3G-SDI, IP Streaming, CVBS
Network Interface
RJ45
Audio Interface
Line In, 3.5mm (HDMI & IP Stream Only)
Communication Interface
RS-232, RS485
Baud Rate
2400/4800/96000 bits
Power Supply Interface
JEITA type Power Adapter (DC IN 12V)
USB Interface
USB 2.0 (future use)
Dimension (in.)
5.6W x 6.5H x 6.7D (7.8H w/ Tilt Up)
Dimensions (mm)
142W x 164 H x 169 D (198H w/ Tilt Up)
Camera Weight
3.10 lbs. (1.41 kg)
Boxed Weight
5.4 lbs. (2.45 kg)
Power Supply
12W (Max)
Input Voltage
12V DC (10.8 - 13.0V DC)
