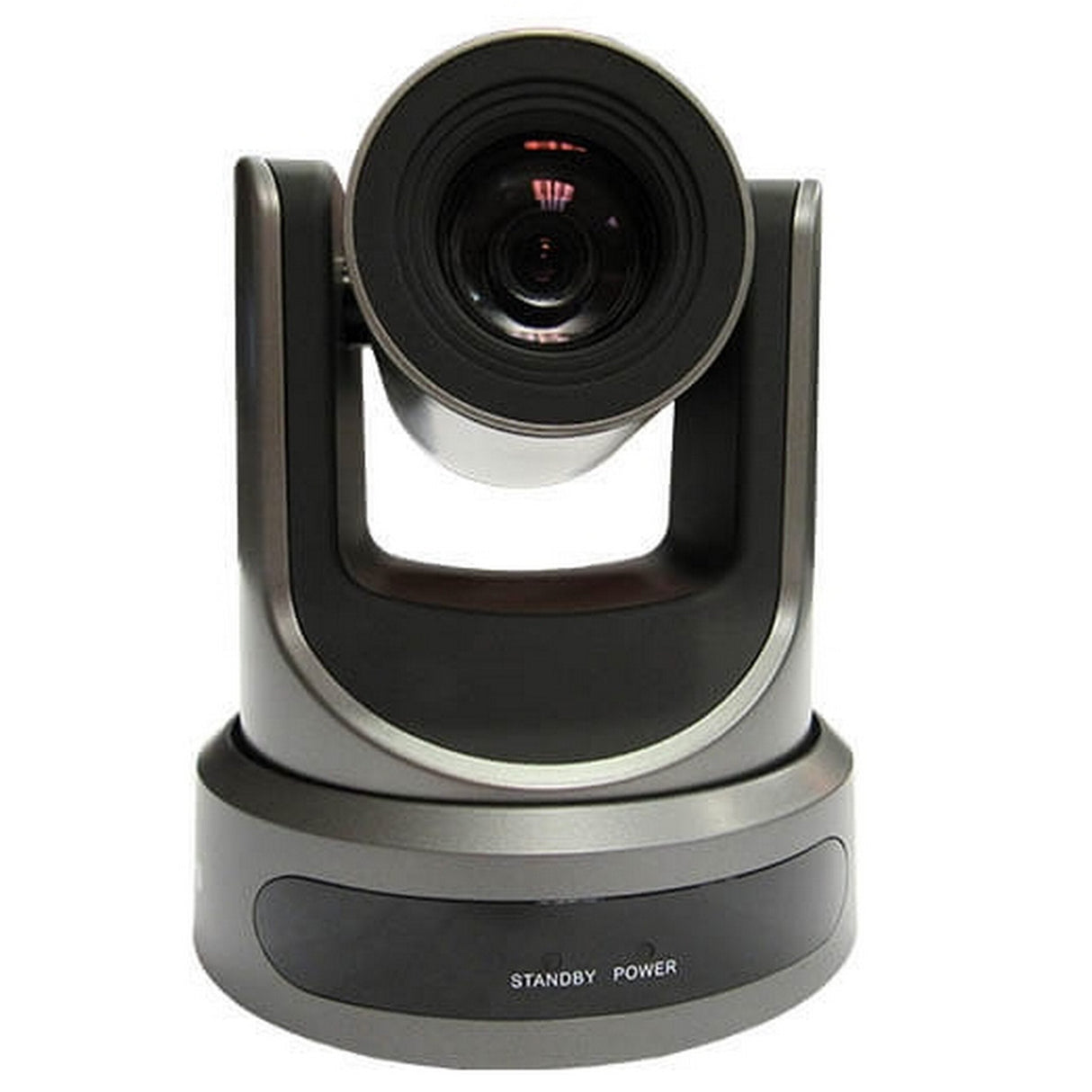

PTZOptics PT20X-USB-GY-G2 20x Optical Zoom 1080p USB PTZ Camera, Grey

The PTZOptics 20X-USB is a 1080p camera with 20X optical zoom for capturing HD images at long
distances. With support for USB 3.0, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is
ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing
applications.

Key Features

• 60.7 degree wide-angle lens.
• High performance in low light scenarios with Wide Dynamic Range.
• Full 1920x1080p HD Resolutions up to 60 frames per second.
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
• UVC 1.5 (USB), RS232 & RS485 (Serial), and IP (LAN/WAN) control
• H.264, H.265, & MJPEG Streaming over RJ-45 LAN port
• HDMI, USB 3.0, & IP streaming (all 3 simultaneously)
• RTMP & RTSP IP streaming
• Photobooth capable

Technical Specifications

Video Sensor
1/2.7” CMOS, 2.12 Mega Pixels
Frame Rates
1080p-60/50/30/25, 1080i-60/50, 720p-60/50/30/25
Frame Rates (CVBS)
576i-30, 480i-30
Focal Length
20x, F4.42mm-88.5mm, F1.8-F2.8
Lens Zoom
20x
Field of View
60.7
Min Lux
0.5 Lux at F1.8, AGC ON
Shutter Speed
1/30s - 1/10000s
SNR
>=55dB
Vertical Flip & Mirror
Supported
Horizontal Angle of View
3.36 (tele) to 60.7 (wide)
Vertical Angle of View
1.89 (tele) to 34.1(wide)
Working Environment
Indoor
Pan Movement
+/-170
Tilt Rotation
Up: 90, Down: 30
Presets
10 via IR (255 via Serial or IP)
Video Output
HDMI, USB 3.0, IP Streaming, CVBS
Network Interface
RJ45
Audio Interface
Line In, 3.5mm (USB & IP Stream Only)
Communication
RS-232, RS485, PELCO-D/P, UVC 1.5
Band Rate
2400/4800/9600 bits
Power Supply
JEITA type Power Adapter (DC IN 12V)
USB 3.0 Interface
USB 3.0 (Requires Quad Core Processor)
USB 2.0 Interface
Future Use
Power Supply
12W (Max)
Input Voltage
12V DC (10.8 - 13.0V DC)
Dimensions (in.)
5.6W x 6.5H x 6.3D (7.5H max w/ Tilt)
Camera Weight
3.10 lbs.
What’s in the Box
20X Zoom USB 3.0 Camera
Power Adapter + Cord
USB 3.0 Cable
IR Remote Control
RS-232C Cable
User Manual
