Pure Resonance Audio C5 Micro 70 Volt Ceiling Mount Speaker
The Pure Resonance Audio C5 Micro 70 Volt Ceiling Mount Speaker delivers exceptional sound performance in an ultra-compact design. Engineered for commercial environments, the C5 combines high-quality full-range audio with a minimalist appearance that blends seamlessly into any ceiling. This versatile micro speaker is ideal for background and foreground music, paging, and sound masking applications.
Featuring a powerful 4 inch full-range driver, the C5 provides clear and detailed sound with a frequency response of 90 Hz to 20 kHz and 91 dB sensitivity. Its integrated 70V/100V transformer with 8 Ohm bypass allows easy configuration for distributed or low-impedance systems. The lightweight enclosure and Easy-Mounting ring design enable fast, secure installation in offices, retail spaces, restaurants, hospitality venues, and professional facilities.
Compact, efficient, and reliable, the Pure Resonance Audio C5 is built for superior sound coverage and simplified integration into modern architectural spaces. Its discreet footprint and high-performance driver make it an excellent choice for projects requiring both form and function.
Key Features
- Compact Micro Design: Small 4 inch ceiling speaker fits tight spaces while maintaining full-range performance.
- Full-Range Audio Clarity: 90 Hz to 20 kHz response delivers balanced sound for speech and music.
- Integrated Transformer: Built-in 70V/100V transformer with 8 Ohm bypass for flexible system design.

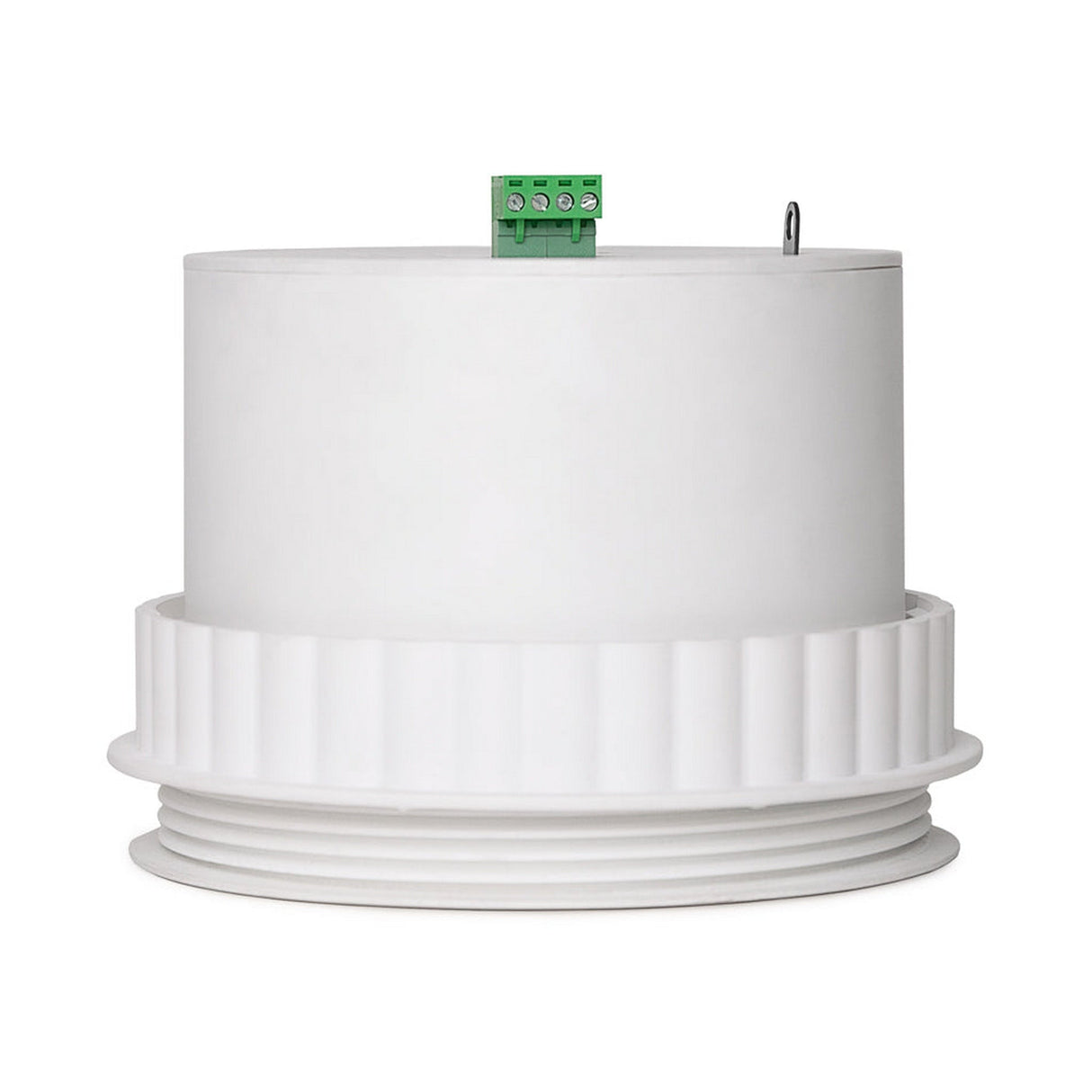

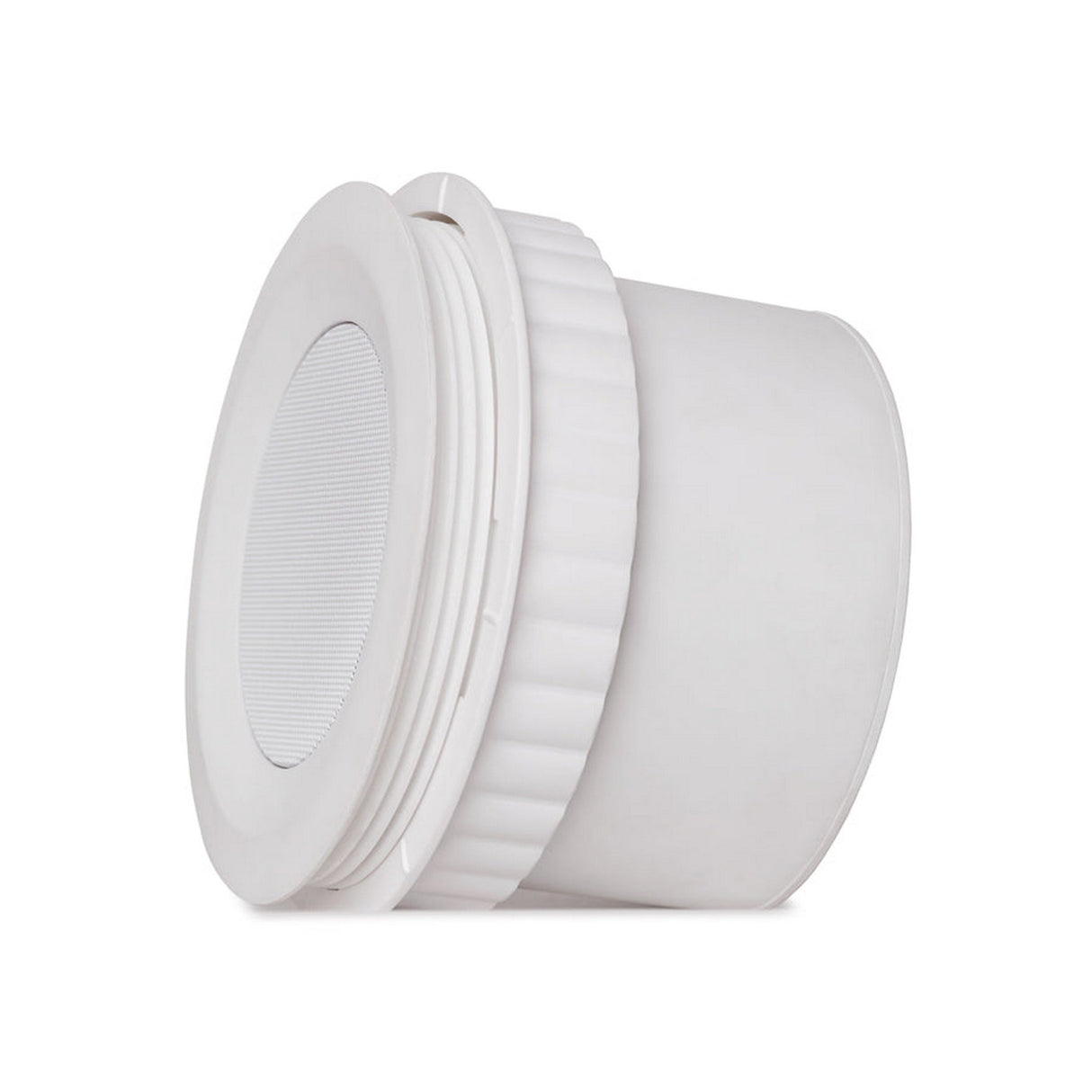

- Easy Installation: Includes screw-on Easy-Mounting ring for fast and secure ceiling mounting.
- Wide Coverage: 120-degree nominal coverage ensures even sound distribution across open areas.
Technical Specifications
- RMS Power Rating: 10 Watt
- Frequency Response: 90 Hz - 20 kHz
- Low Frequency (-10 dB): 120 Hz - 20 kHz
- Impedance: 8 Ohms
- Maximum Input Voltage: 12.8V, 20W into 8 Ohms

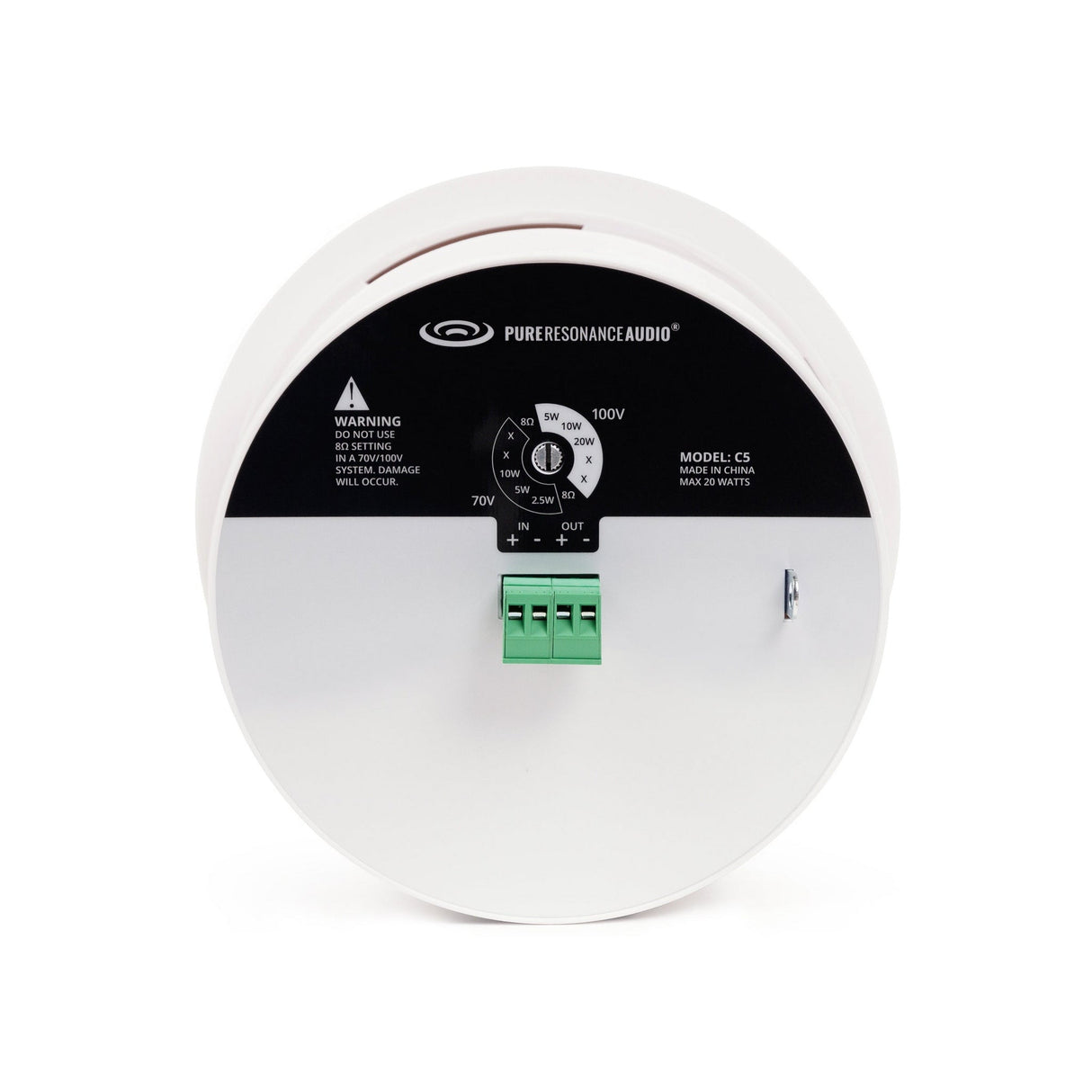

- Transformer Taps: 2.5W, 5W, 10W @ 70V; 5W, 10W, 20W @ 100V; 8 Ohm Bypass
- Transducer: Full-range 4 inch driver
- Material: Paper cone with butyl rubber surround
- Nominal Coverage Angle: 120 x 120 degrees
- 180 Degree Coverage Angle: 84 dB ±3 dB
- 140 Degree Coverage Angle: 86 dB ±3 dB
- Sensitivity (SPL): 91 dB ±3 dB
- Maximum SPL: 104 dB ±3 dB
- Cutout Size: 6.25 in (158.75 mm)
- Easy-Mounting Ring Diameter: 7.46 in (189.4 mm)
- Mounting Depth: 5.24 in (132.84 mm) without connector; 5.51 in (139.83 mm) with connector
- Overall Dimensions (Diameter x Depth): 6.7 in (170.2 mm) x 5.32 in (135 mm) without connector; 6.7 in (170.2 mm) x 5.55 in (141 mm) with connector
- Weight: 2.93 lbs (1.33 kg)
- Shipping Weight: 3.24 lbs (1.47 kg)
