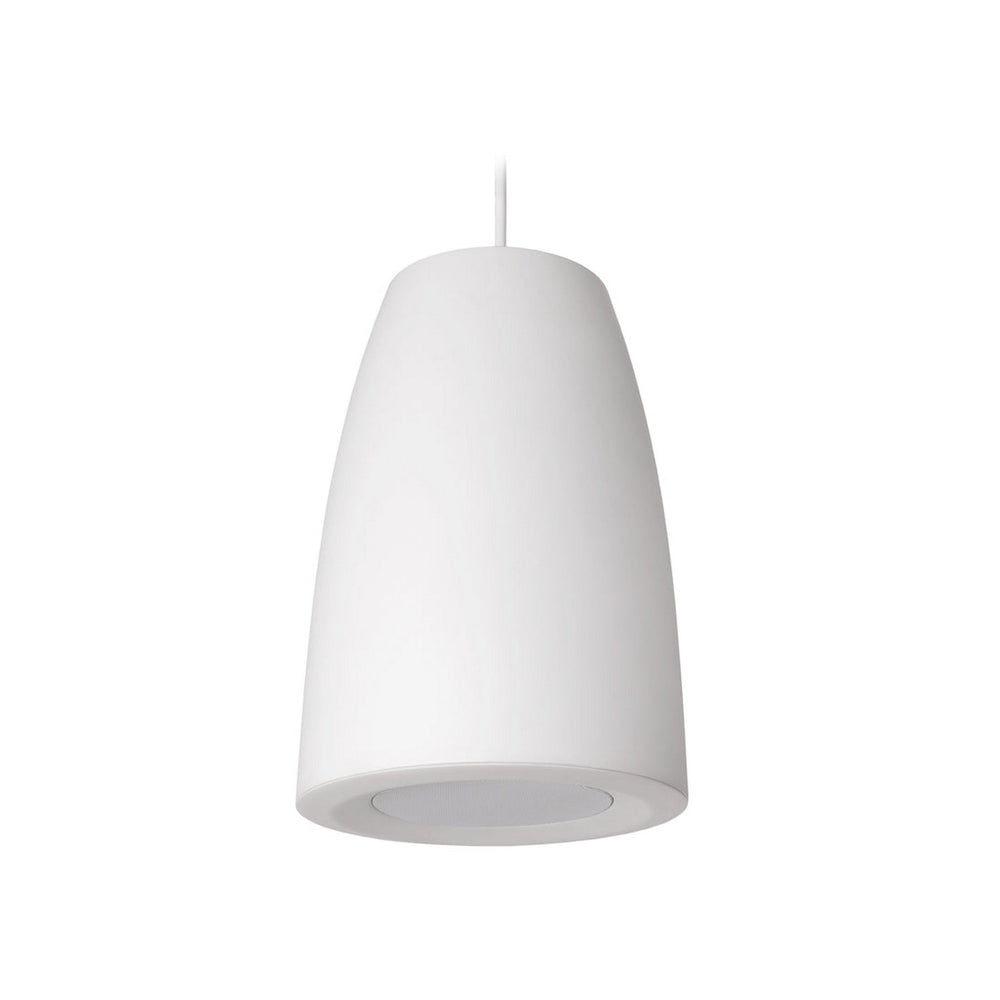

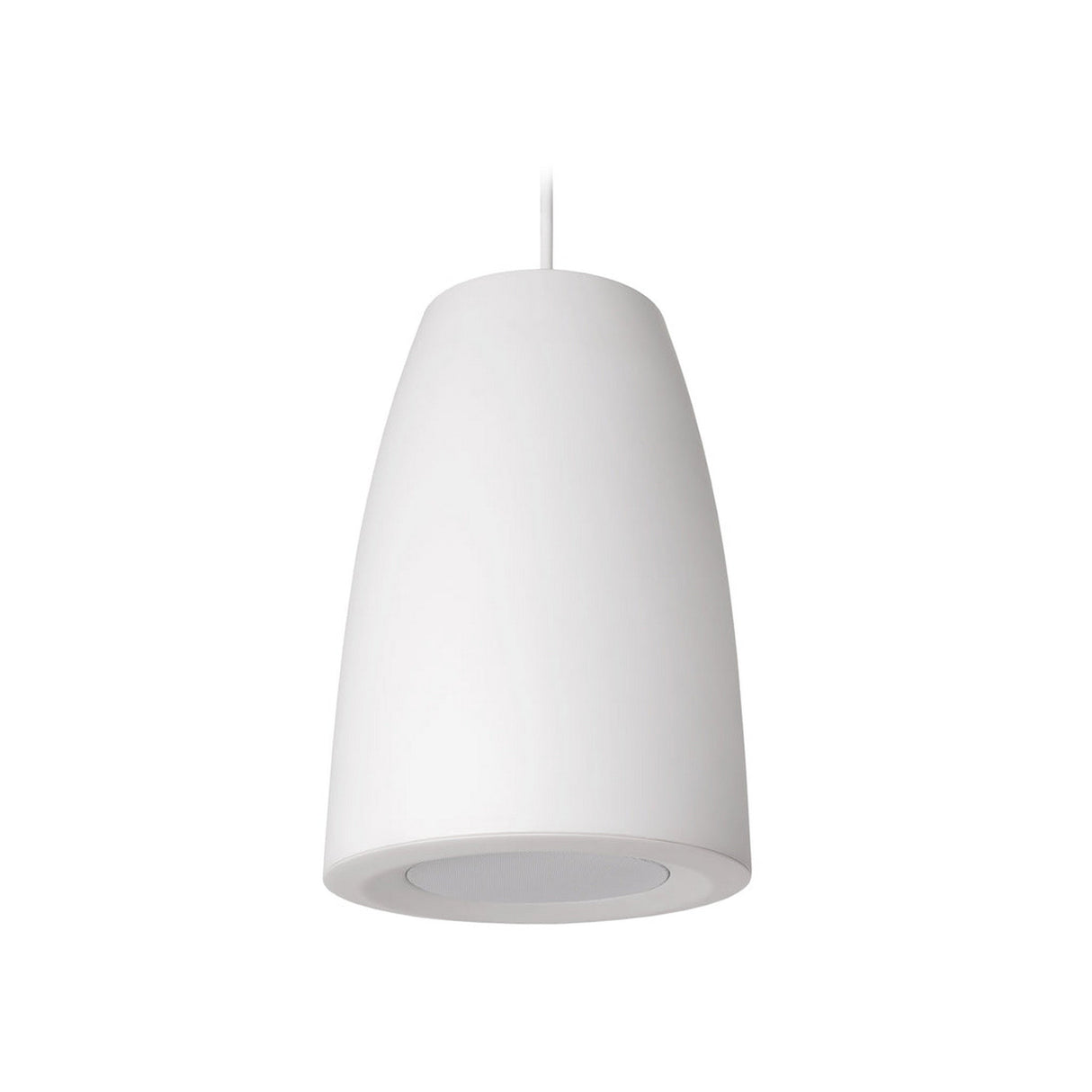

Pure Resonance Audio C5-PK-KIT 4-Inch 70 Volt Pendant Mount Speaker Kit

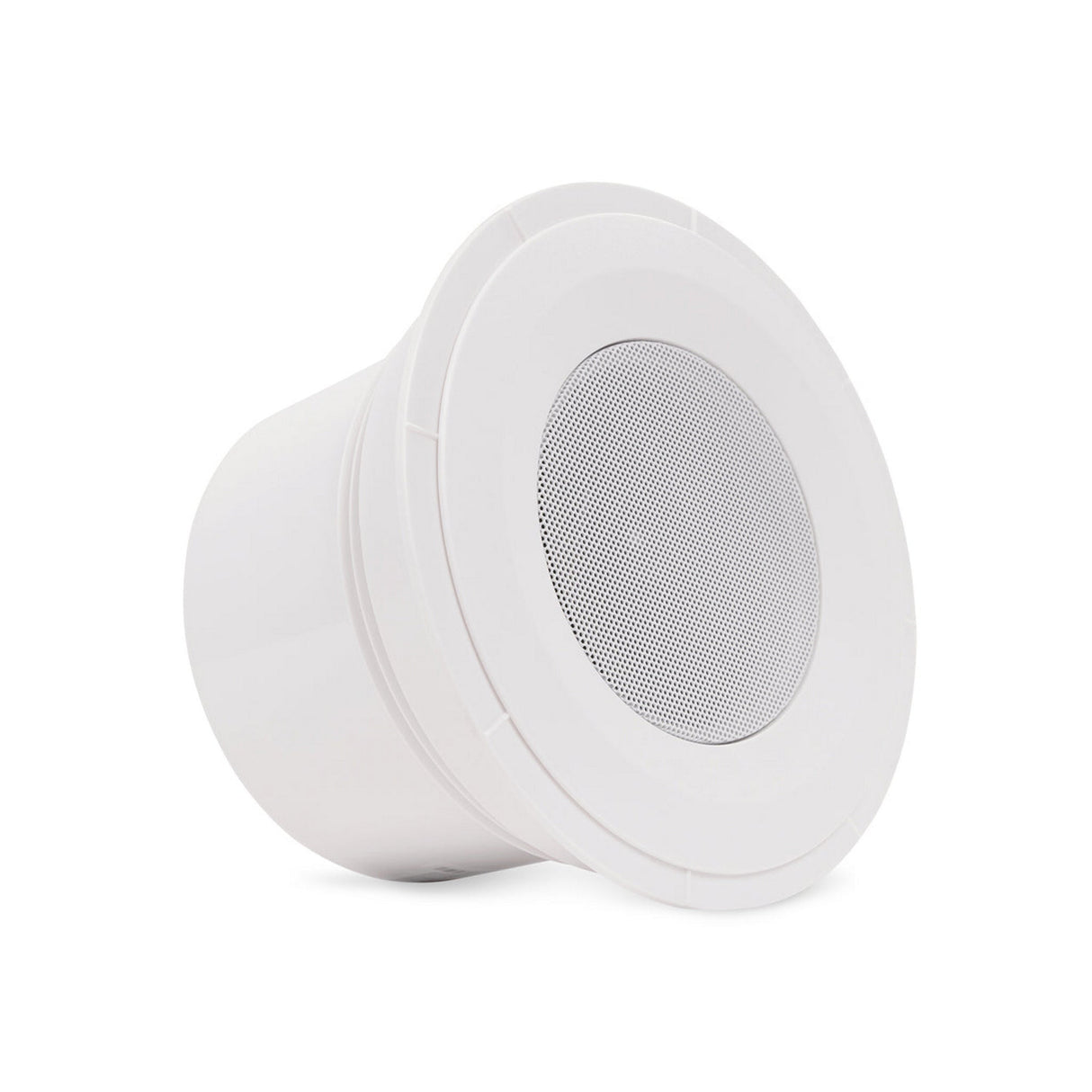

The Pure Resonance Audio C5-PK-KIT is a complete pendant-mount solution built around the C5 4" micro speaker, designed specifically for exposed plenum or high-ceiling environments. The kit combines elegant aesthetics with strong audio performance, making it ideal for offices, retail stores, restaurants, hospitality venues, and sound-masking applications.
Featuring a full-range 4" driver with built-in 70 V/100 V transformer and an 8 Ω bypass, the C5 pendant kit offers robust sound dispersion and clear voice/music reproduction. Installation is simplified via the included 12-foot 4-conductor 20 AWG speaker wire and integrated multi-strand steel safety cable with loop-nut cinch for secure single-point suspension mounting. The sleek pendant cover design blends seamlessly with open-architecture ceilings while delivering commercial-grade performance.
Versatile and dependable, this speaker kit delivers both background music and paging coverage in environments where aesthetics and structural architecture matter. With its commercial transformer taps and safety-compliant mounting hardware, the C5-PK-KIT helps ensure professional performance and installer peace of mind.
Key Features

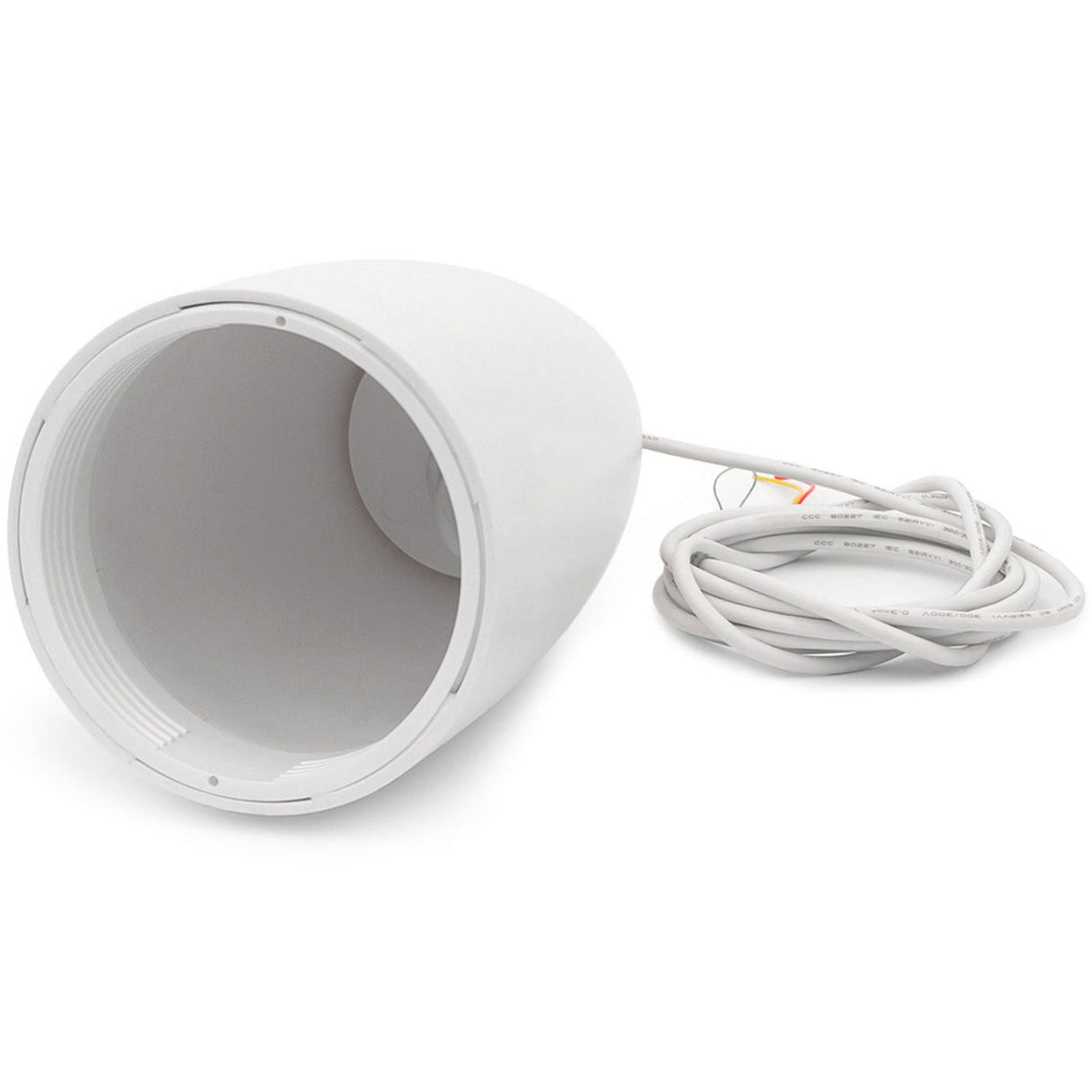

- Pendant Mount Design: Stylish cover and suspension cable allow installation in exposed plenum or open high-ceiling spaces.

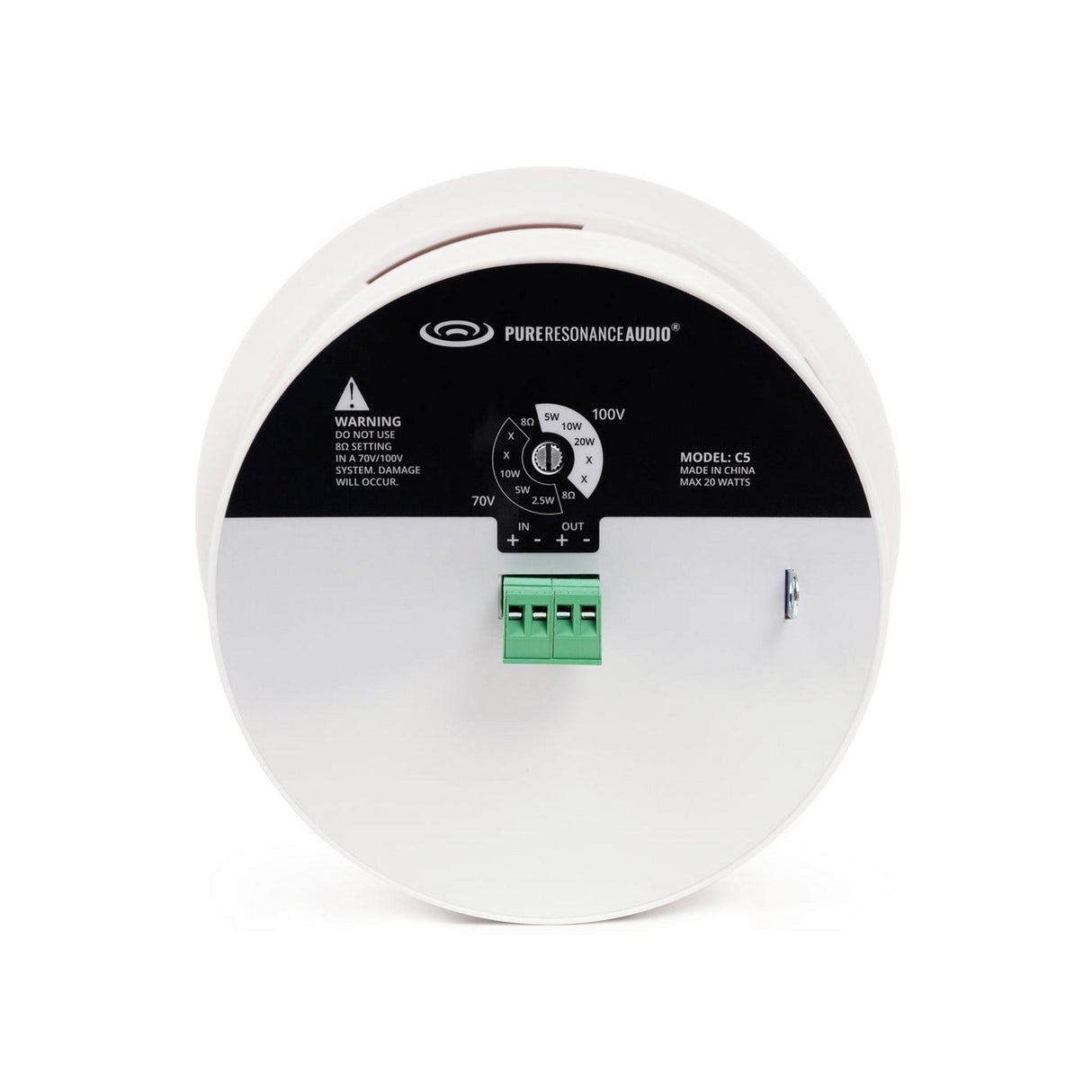

- Commercial Audio Flexibility: 70 V/100 V multi-tap transformer and 8 Ω bypass support background/foreground music and paging systems.
- Complete Suspension Kit Included: 12-ft speaker wire with steel safety cable and loop-nut cinch streamlines installation for safe mounting.
- High-Quality Sound: Full-range 4" driver delivers audio coverage optimized for modern commercial spaces.
- Quick Install & Aesthetic Appeal: Minimal visible hardware and modern pendant aesthetic for architecturally mindful environments.
Technical Specifications
- RMS Power Rating: 10 W
- Frequency Response: 90 Hz - 20 kHz
- Low Frequency (-10 dB): 120 Hz - 20 kHz
- Impedance: 8 Ω
- Maximum Input Voltage: 12.8 V, 20 W into 8 Ω
- Transformer Taps: 2.5 W, 5 W, 10 W @ 70 V; 5 W, 10 W, 20 W @ 100 V; 8 Ω bypass
- Transducer: Full-range 4" driver
- Material: Paper cone driver with butyl rubber surround
- Nominal Coverage Angle: 120° x 120°
- Sensitivity (SPL): 91 dB ±3 dB
- Maximum SPL: 104 dB ±3 dB
- Height: 9.75 in (247.65 mm)
- Top Diameter: 4.29 in (109 mm)
- Bottom Diameter: 6.75 in (171.5 mm)
- Net Weight: 4.65 lbs (2.11 kg)
