Pure Resonance Audio C5-TB Tile Bridge for C5 4-Inch Ceiling Speaker

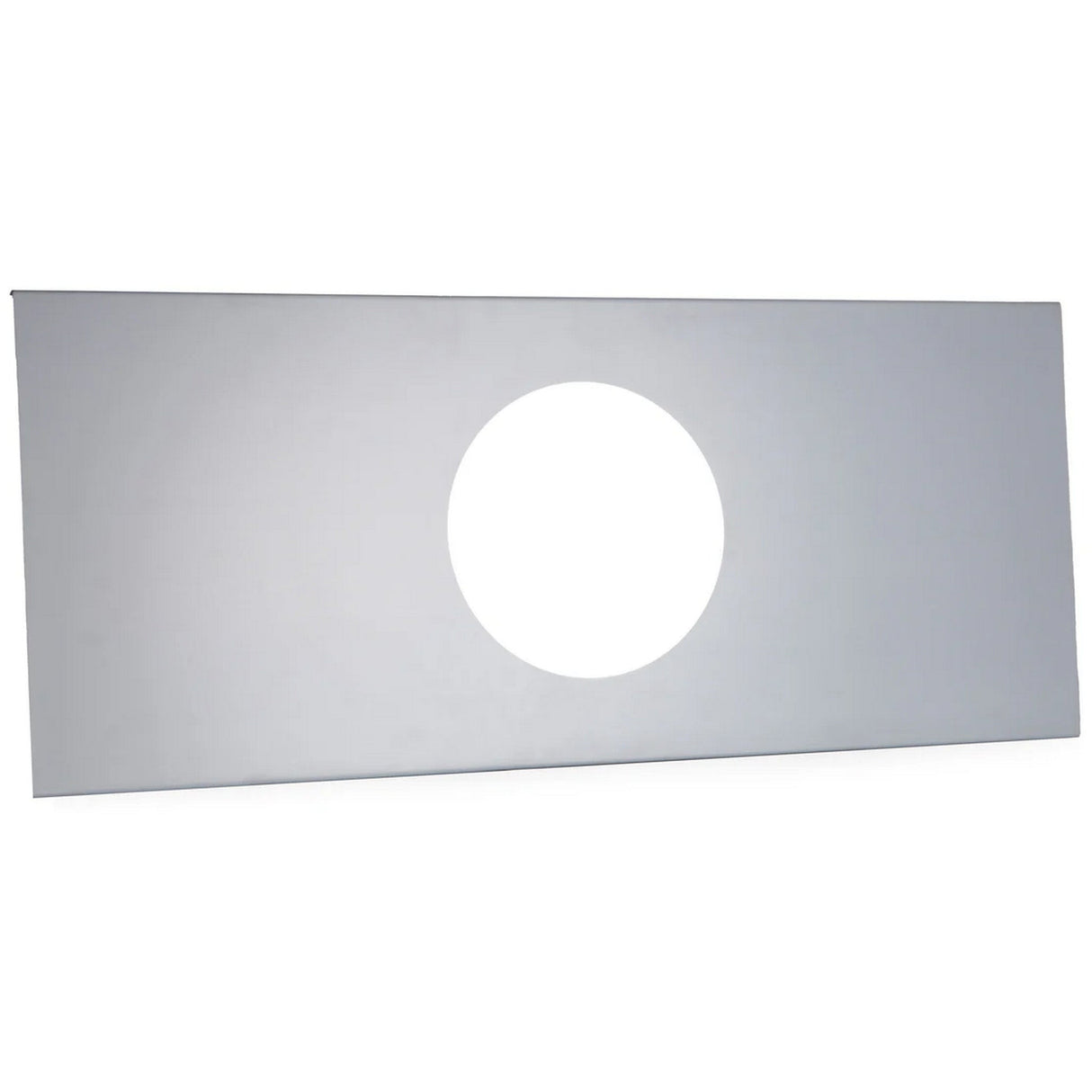

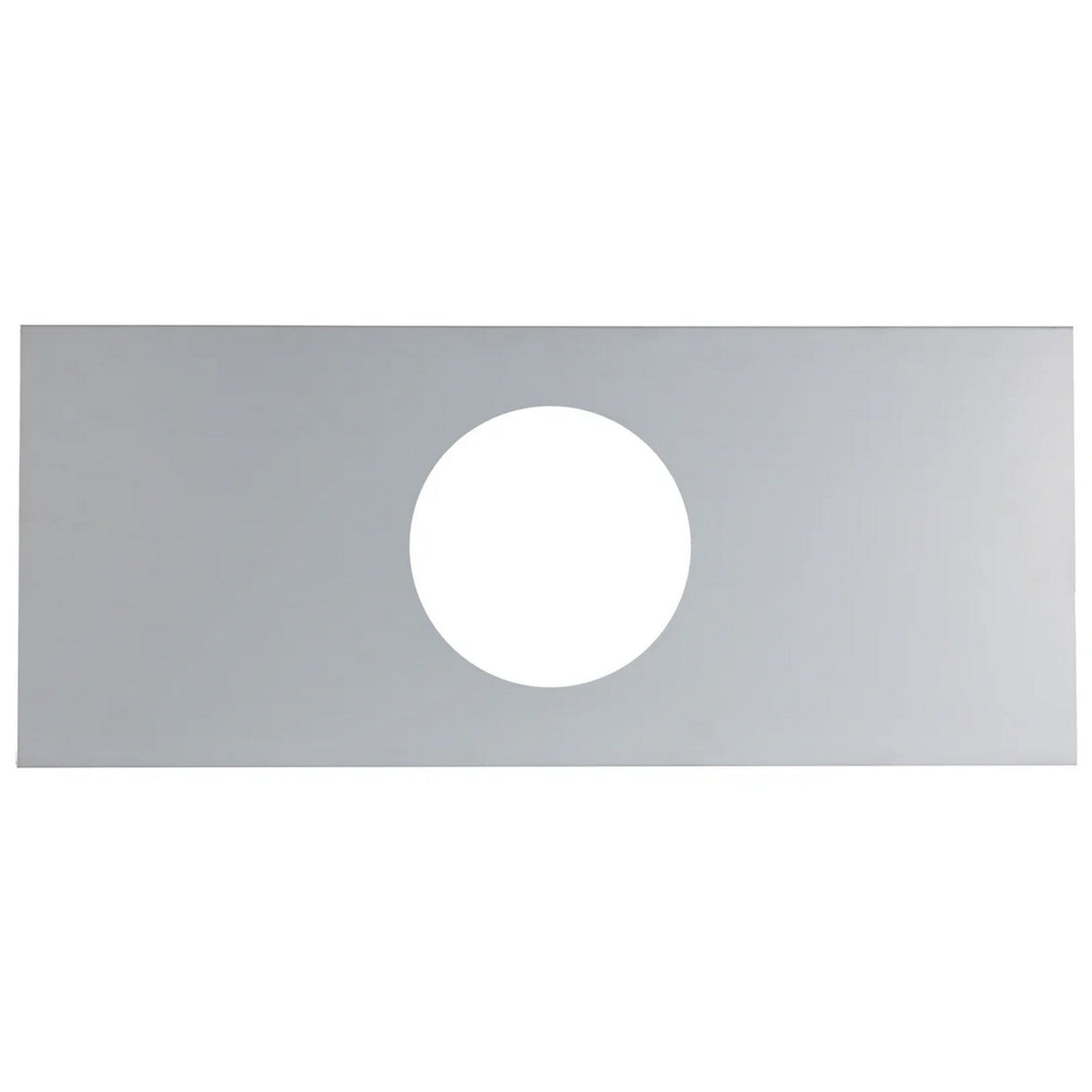

The Pure Resonance Audio C5-TB Tile Bridge is designed for drop tile or suspended ceiling installations, making it easy and secure to mount the C5 4-inch ceiling speaker in 2×2 or 2×4 tile grids. This precision-engineered bracket offers a safe, professional solution that supports the speaker while preserving clean architectural aesthetics.
Constructed from 1 mm thick electro-galvanized metal, the C5-TB features a 6.31-inch (160.4 mm) diameter mounting hole that aligns with the C5 4-inch speaker cut-out and distributes the speaker load to the ceiling grid supports. The slim 0.5-inch profile and robust steel design maintain both form and function in commercial environments.
Perfect for retail, hospitality, education or corporate audio installations, this tile bridge enables a secure, flush ceiling speaker installation without altering the look of the ceiling. Installers benefit from the simplified setup and end-users enjoy a professional finished appearance.
Key Features
- Drop-Tile Compatible: Fits 2×2 or 2×4 ceiling tile grids for easy installation.
- Precision Cut Opening: 6.31-inch diameter hole (160.4 mm) for perfect alignment with the C5 speaker.
- Heavy-Duty Construction: Made of 1 mm thick electro-galvanized steel for strength and durability.
- Low-Profile Design: Just 0.5 in deep (12.7 mm) to maintain minimal ceiling intrusion.
- Seamless Aesthetic: Keeps the ceiling surface clean and professional-looking with the speaker flush mounted.
Technical Specifications
- Material: Electro-galvanized metal
- Hole Size: 6.31 in (160.4 mm)
- Dimensions: 23.75 in × 10 in × 0.5 in (603.3 mm × 254 mm × 12.7 mm)
- Weight: 2.6 lbs (1.18 kg)
What’s in the Box
- 1 × C5-TB Speaker Tile Bridge
