Pure Resonance Audio SD5 SuperDispersion Drop Tile Ceiling Speaker Array
The Pure Resonance Audio SD5 SuperDispersion drop tile ceiling speaker array delivers exceptional 360-degree hemispheric audio coverage for wide-area sound reinforcement. Designed to replace multiple standard ceiling speakers, the SD5 provides powerful, uniform sound across large spaces, making it a cost-effective and high-performance solution for professional audio installations.
With its SuperDispersion omnidirectional design, the SD5 ensures smooth and consistent audio distribution over a 30-by-30-foot area, enhancing music playback, announcements, and paging systems. Its quick installation design allows the array to drop directly into a standard 2x2 or 2x4 ceiling grid, minimizing labor and simplifying setup without compromising on acoustic performance.
Engineered for reliability and versatility, the SD5 is ideal for classrooms, churches, restaurants, retail spaces, government facilities, and military environments. It combines superior sound quality, rugged construction, and easy integration into new or existing audio systems for unmatched performance and value.
Key Features
- 360-Degree Hemispheric Coverage: Provides uniform sound dispersion across large open areas.
- High Speech Intelligibility: Optimized design ensures clear voice reproduction and full-range clarity.
- Easy Drop Ceiling Installation: Fits standard 2x2 or 2x4 grid layouts for quick and simple setup.

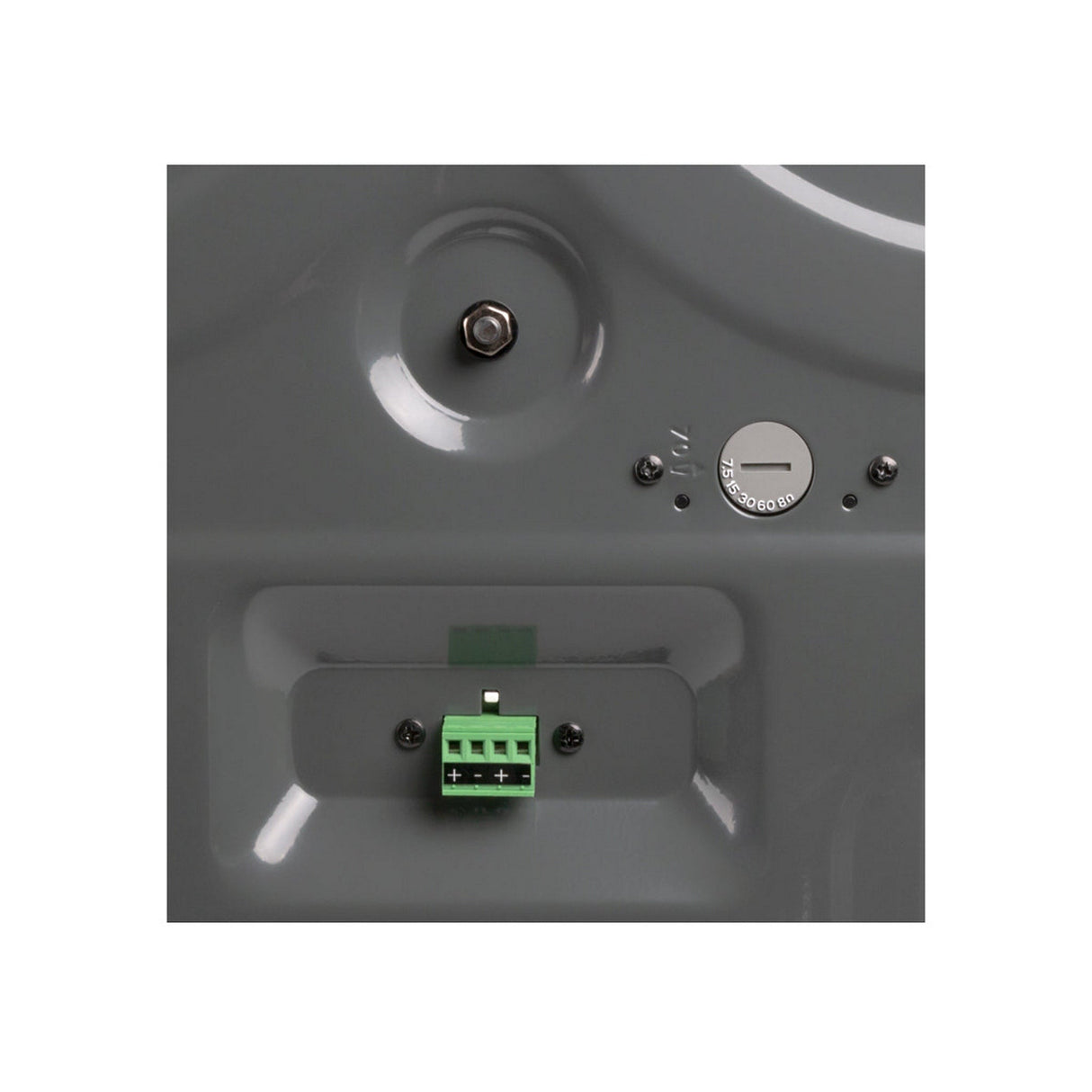

- Selectable 8 Ohm or 70 Volt Operation: Multi-tap transformer with 8 Ohm bypass for flexible configurations.

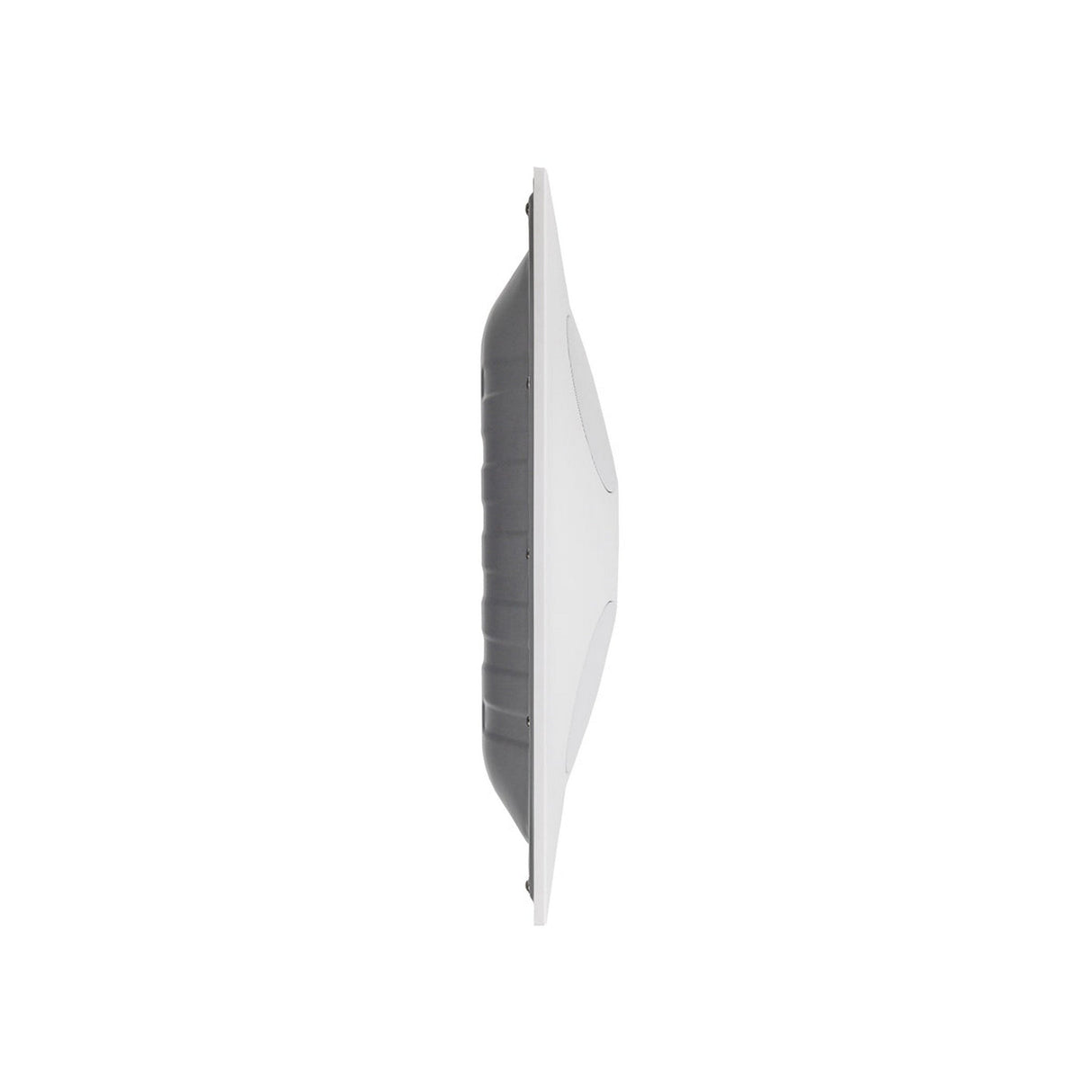

- Durable, Low-Profile Design: Lightweight aluminum construction with a sleek professional finish.
Technical Specifications
- Power Handling: 63W RMS
- Frequency Response: 46 Hz - 20 kHz
- Sensitivity: 90 dB @ 2.83V/1m
- Impedance: 8 Ohms nominal
- 70 Volt Transformer Taps: 7.5W, 15W, 30W, 60W @ 70V; 8 Ohm bypass
- Dispersion Pattern: 360 degrees by 180 degrees

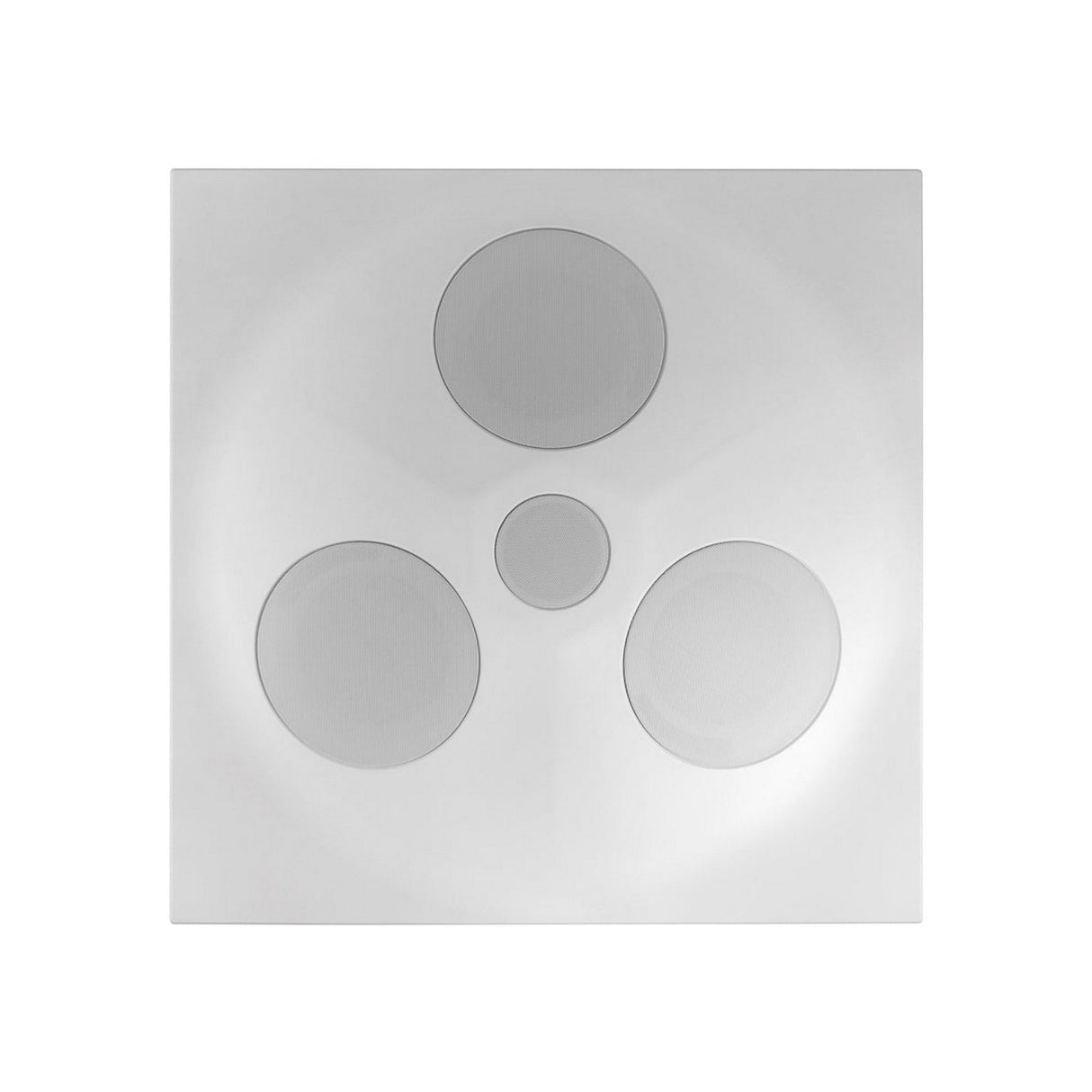

- Driver Complement: Three 5.25-inch drivers and one 3-inch tweeter
- Dimensions: 23.75 in x 23.75 in x 5.0 in
- Net Weight: 21.20 lbs (9.62 kg)
- Shipping Dimensions: 27.79 in x 27.79 in x 8.82 in
- Shipping Weight: 29 lbs (13.2 kg)
