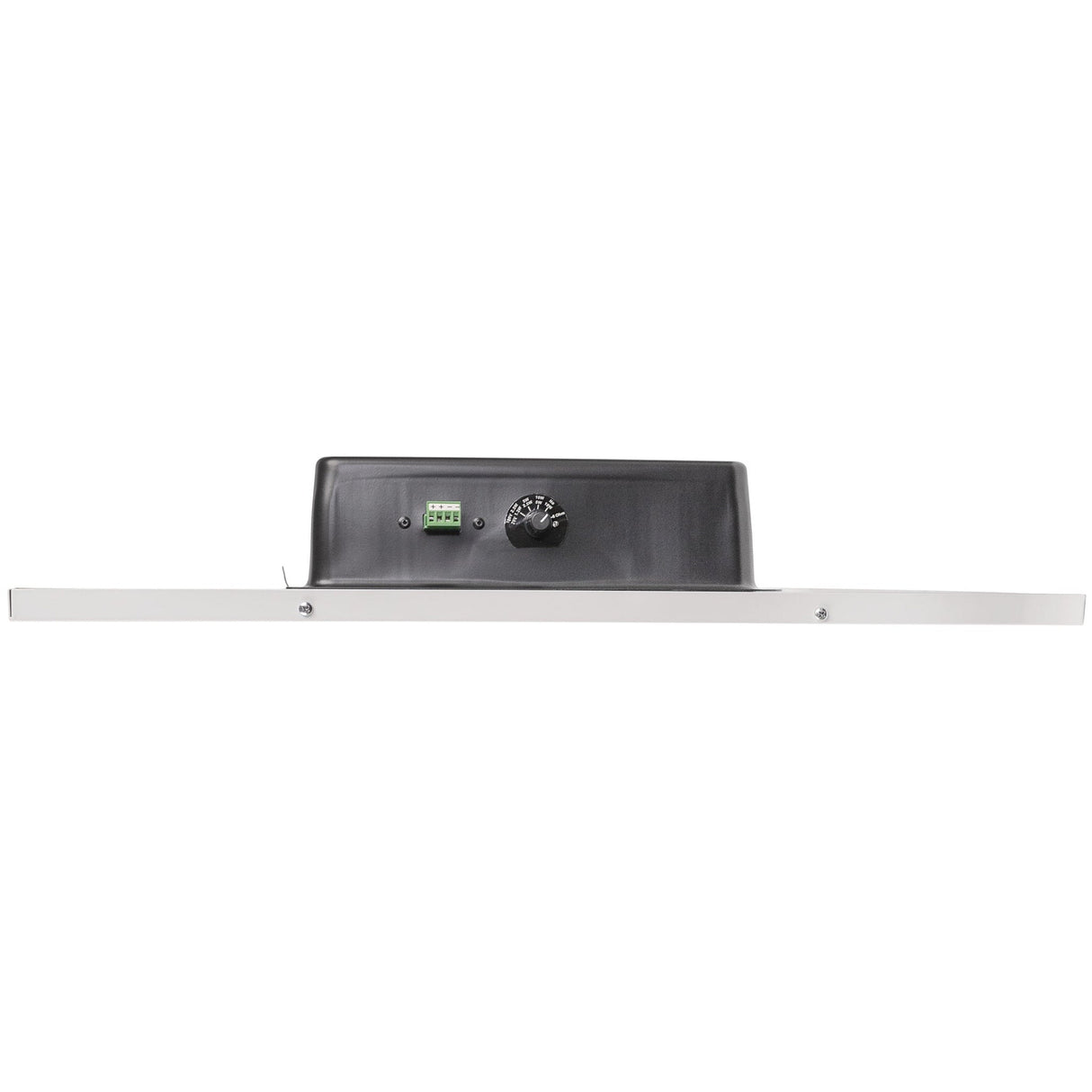

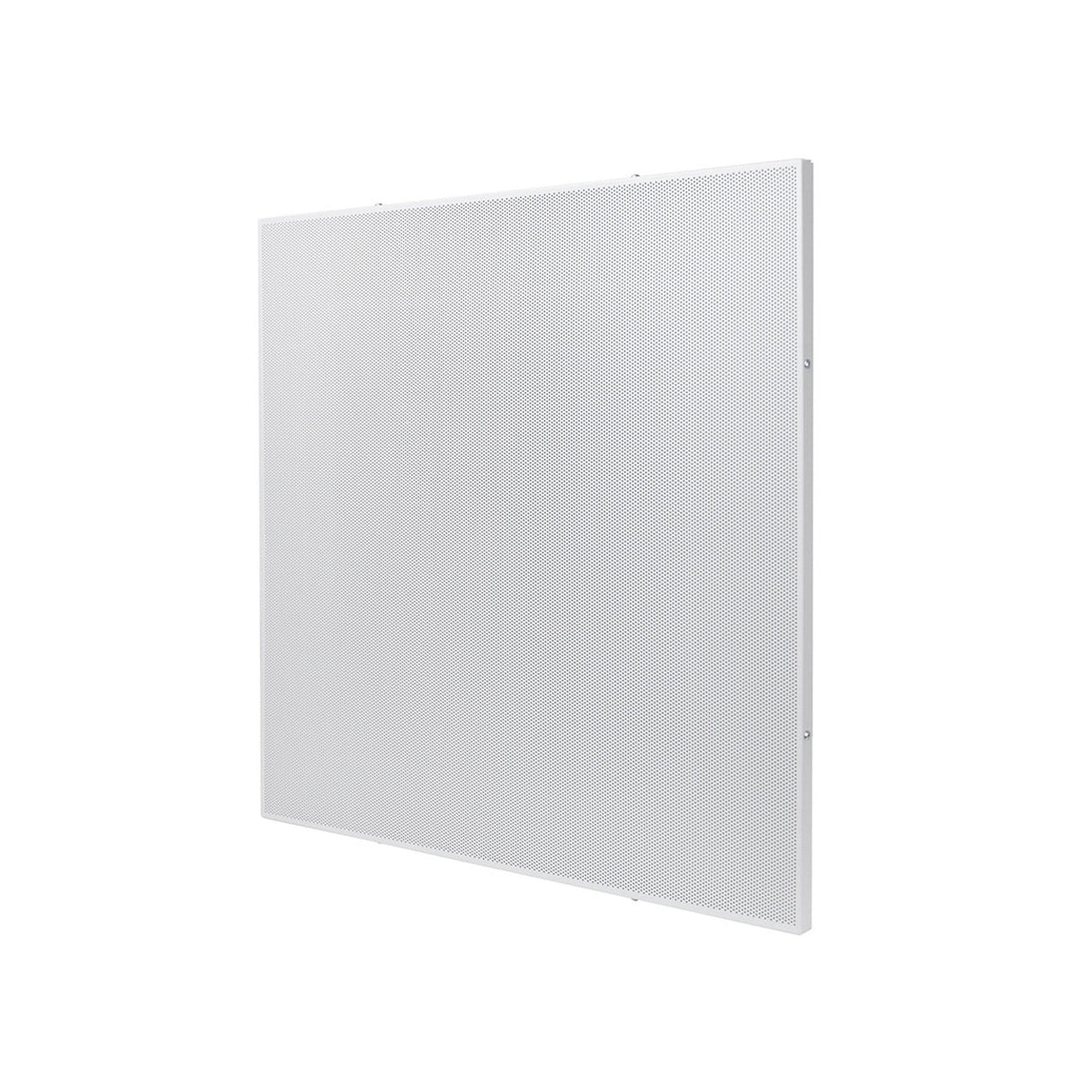

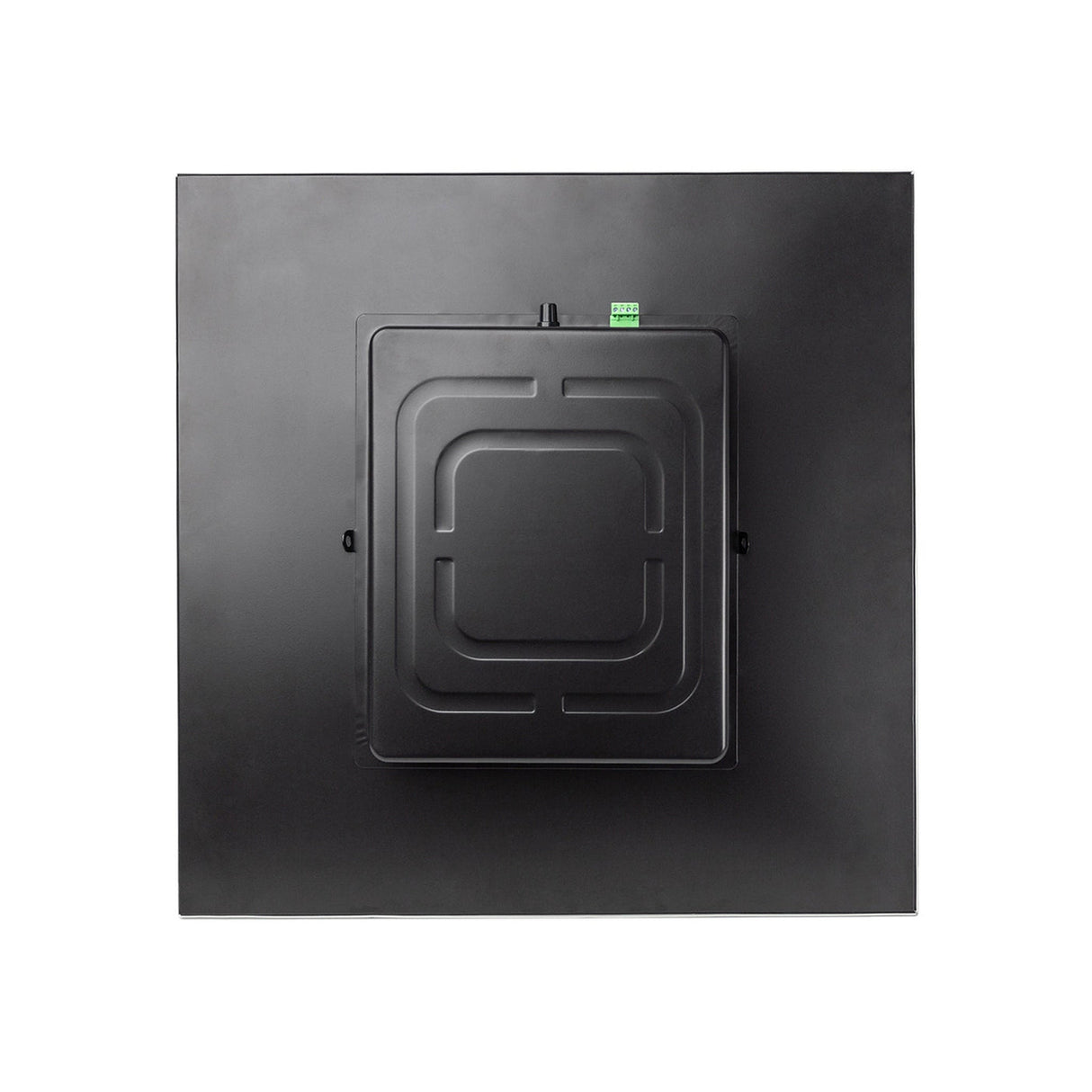

Pure Resonance Audio SP8 SoundPlane 2x2 Low Profile 8-Inch Ceiling Tile Speaker
The Pure Resonance Audio SP8 SoundPlane 2x2 low-profile 8 inch ceiling tile speaker delivers professional-grade full-range sound performance in a compact and modern design. Engineered for drop-tile ceiling systems, this innovative flat speaker integrates seamlessly into standard 2x2 ceiling grids, offering crystal-clear audio for background music, paging, and distributed sound environments.
Designed with an 8 inch paper cone driver and built-in 70V/100V transformer, the SP8 ensures versatile integration with commercial sound systems while maintaining superior clarity and consistency. Its ultra-slim 3.9 inch mounting depth makes it an ideal choice for installations with limited plenum space, such as offices, classrooms, retail stores, and hospitality environments.
Reliable, efficient, and easy to install, the SP8 combines aesthetic simplicity with excellent performance. This ceiling tile speaker provides smooth frequency response and dependable operation for long-term use in professional audio applications.
Key Features
- Low-Profile Design: Ultra-slim 3.9 inch mounting depth fits tight ceiling spaces effortlessly.
- Full-Range 8 Inch Driver: High-quality paper cone driver delivers clear and natural sound.
- Flexible Impedance Options: Supports both 8 Ohm and 70V/100V distributed audio systems.
- Quick Drop-Tile Installation: Designed for standard 2x2 grid ceilings for fast and clean setup.
- Professional Construction: Durable square grill and pluggable terminal block for secure and reliable connections.
Technical Specifications
- RMS Power: 20W @ 8 Ohms
- Frequency Response: 200 Hz - 16 kHz
- Sensitivity (1M/1W): 92 dB
- Nominal Impedance: 8 Ohms

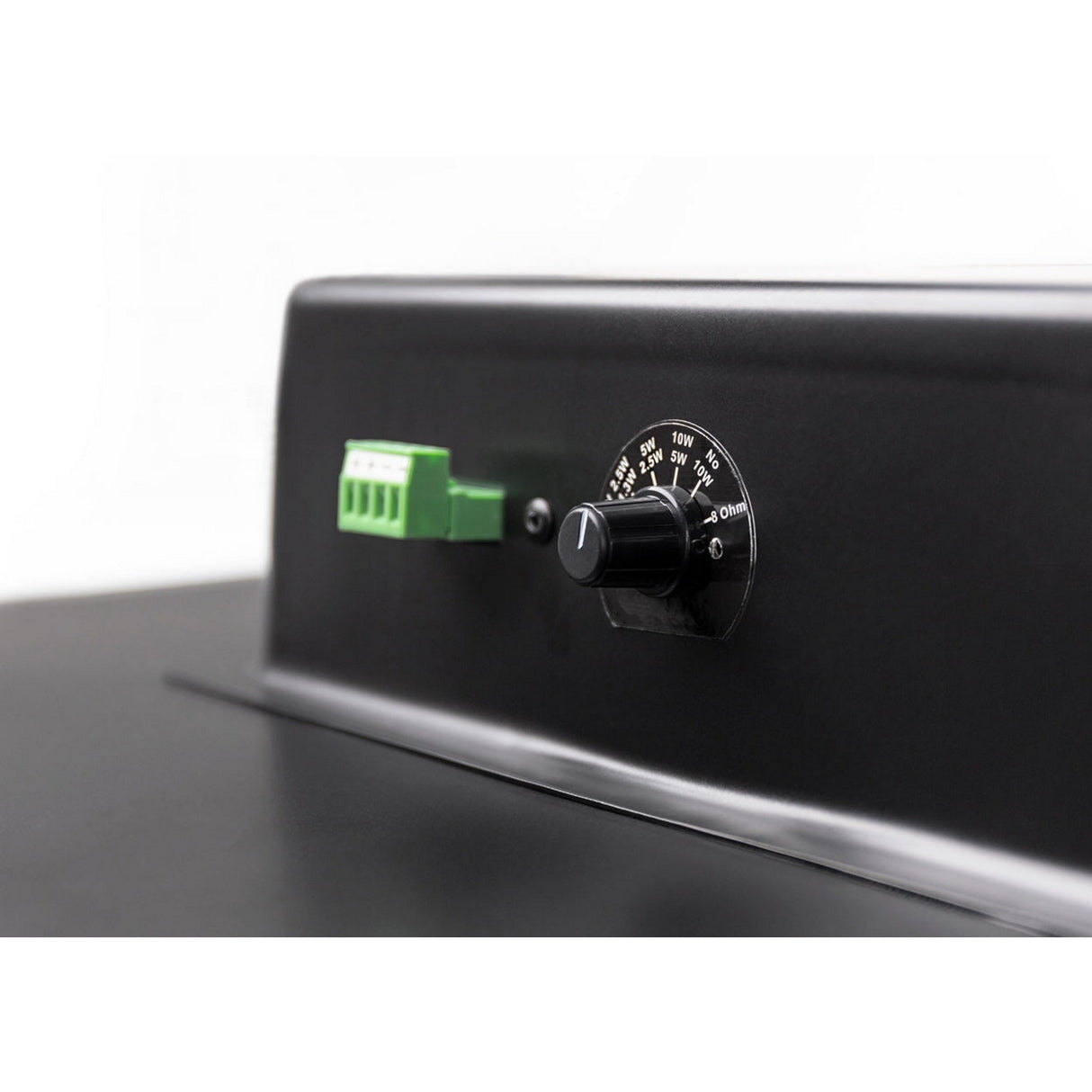

- Transformer: 70V: 1.3W / 2.5W / 5W / 10W / 8 Ohm; 100V: 2.5W / 5W / 10W / 8 Ohm
- Speaker Size: 8 Inch Paper Cone
- Audio Input: Phoenix Type Pluggable Terminal Block

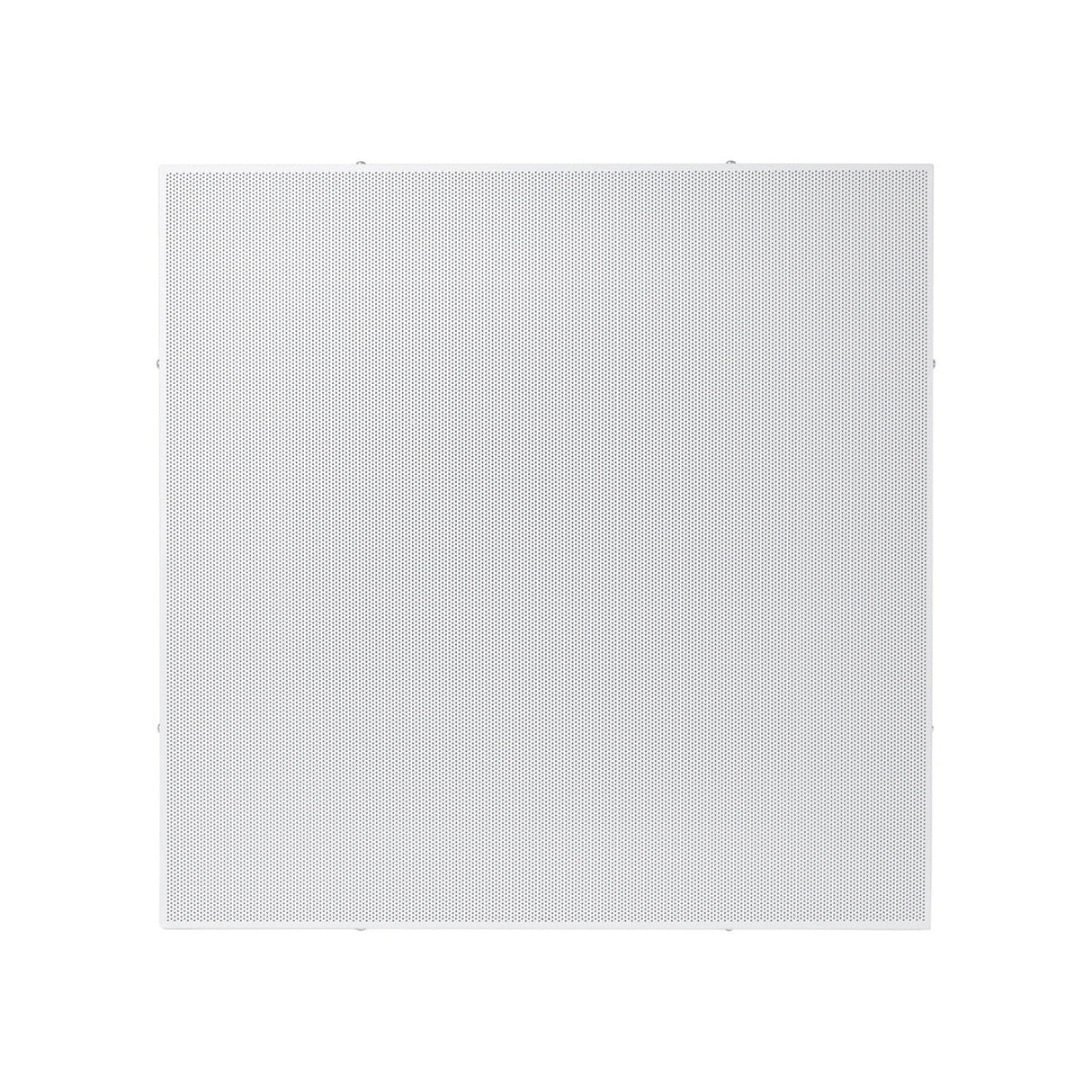

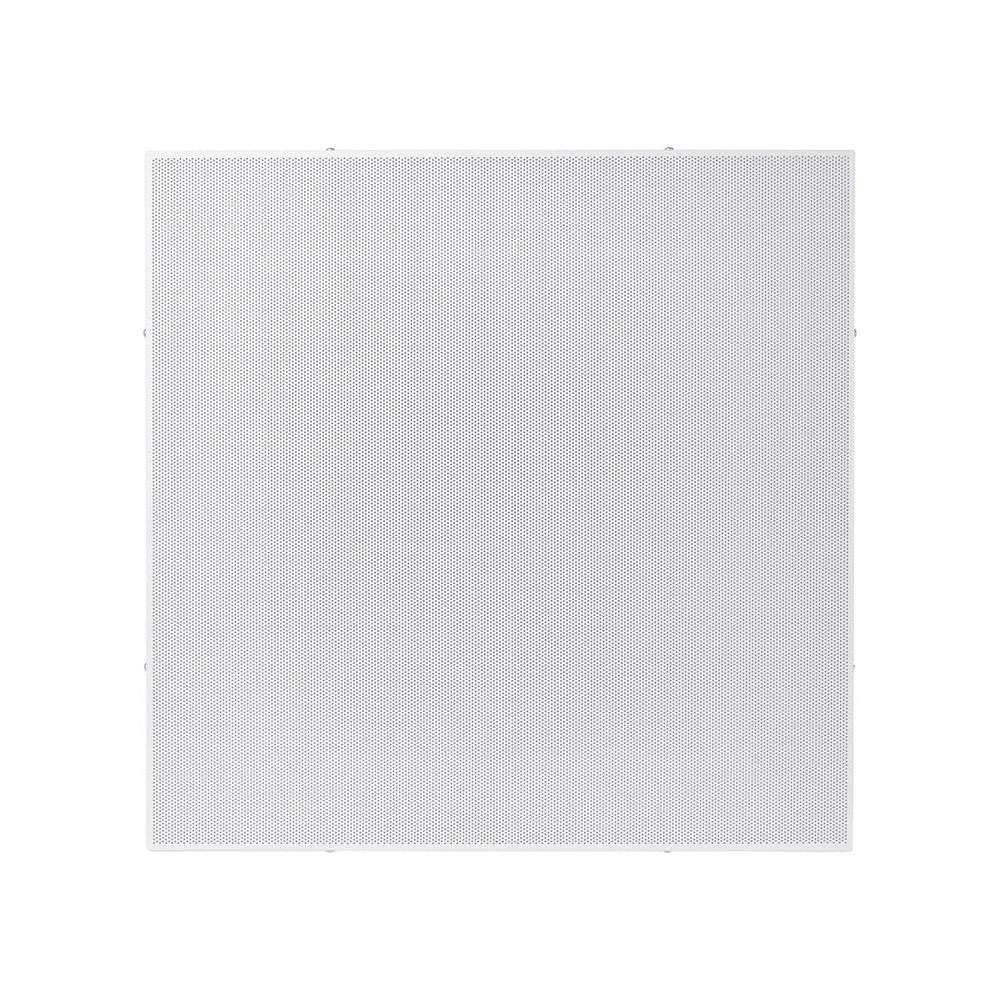

- Grill Type: Square Grill
- Mounting Depth: 3.9 in (100 mm)
- Dimensions: 23.8 in x 23.8 in x 3.9 in (605 mm x 605 mm x 100 mm)
- Net Weight: 13.6 lbs (6.2 kg)
- Shipping Weight: 18 lbs (8.16 kg)
