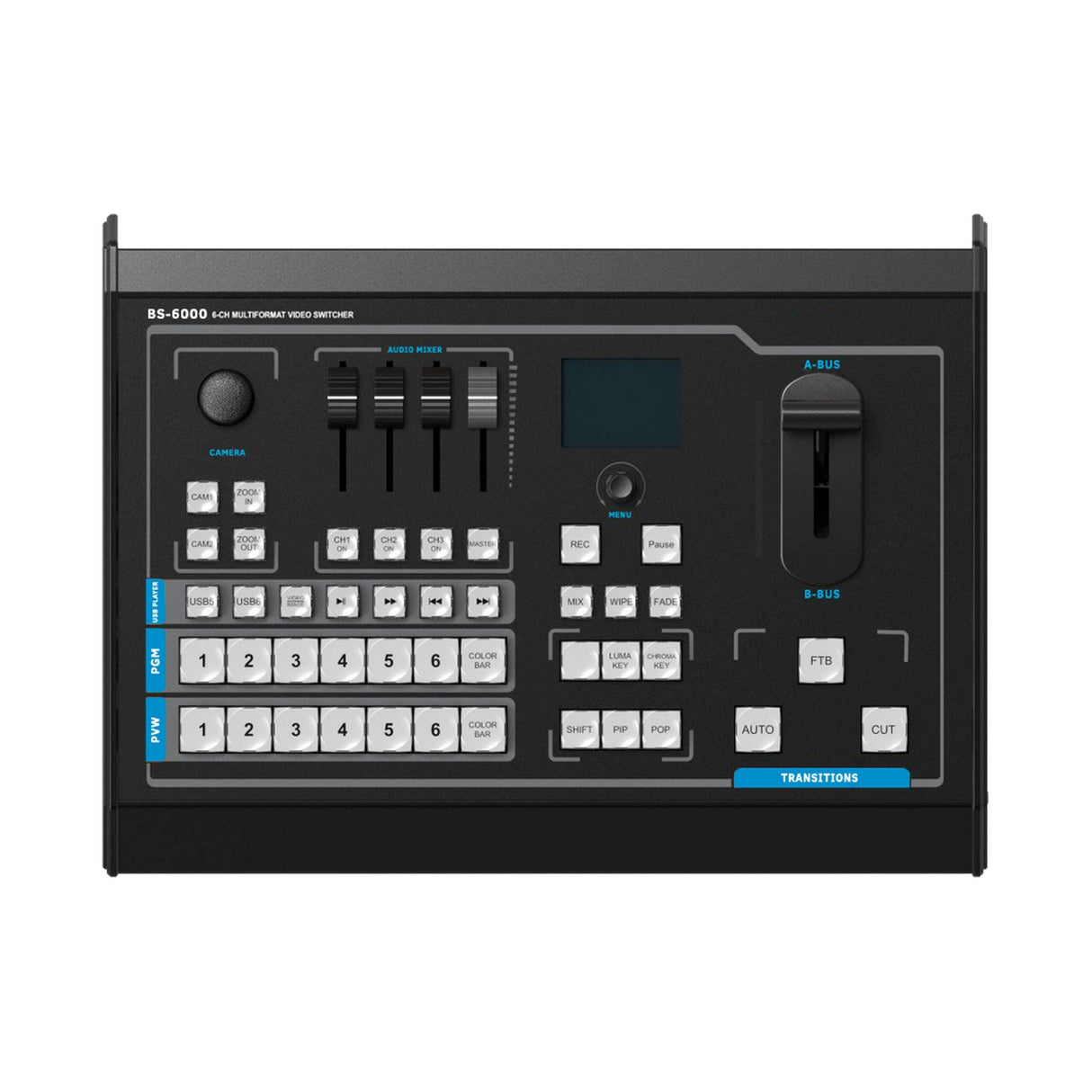

PureLink BS-6000 6 x 1 Full HD Broadcast Switch with Camera Control and Recording
The BS-6000 is a feature packed high performance broadcast switch featuring chroma/luma key, PTZ camera control, on board recording, and on-board media playback. The BS-6000 is a feature packed high performance broadcast switch featuring chroma/luma key, PTZ camera control, on board recording, and on-board media playback. The BS-6000 also features 16 transition effects, an audio mixer, Picture-in-Picture (PIP), Picture-Outside-of-Picture (POP), and multi-view output. With PTZ camera control, onboard recording and media playback there is no need to have additional devices to perform these functions. With all of these built-in features, you will have everything you need in a powerful compact solution, ideal for house of worship, rental, hotel av, conferences, seminars, and more.
Key Features
- Full HD 1080P60
- Chroma and Luma keying
- (4) 3G-SDI inputs
- (2) inputs that can be set to HDMI, DVI, VGA, or USB
- Onboard SD Card recording
- (2) USB inputs for onboard media playback with transport controls
- PTZ of up to (2) cameras supporting VISCA or PELCO control standards
- XLR and RCA audio inputs with (3) channel fader mixer
- (10) transition effects
- PIP and POP
- (1) 3G-SDI and (1) HDMI multiview monitor outputs
- (1) 3G-SDI and (1) HDMI program outputs
- Headphone monitor jack
- Compact footprint
Technical Specifications
Functions
TRANSITIONS
Manual T-bar/AUTO/CUT
TRANSITION EFFECTS
Wipe/Mix/Fade/FTB/Color Bar
KEYS & LAYOUTS
Luma Key/Chroma Key/PiP/PoP/Multiview
AUDIO MIXER
Following/Mixing
RECORD
SD card, H.264, record for PGM up to 1080p60
Inputs
(1) SD/HD/3G-SD (75Ī©), (2) HDMI 2.0 type-A(100Ī©)
(1) DVI-I(VGA-compatible)
USB MEDIA PLAYER
(2) USB type-A
ANALOG AUDIO INPUTS
(1) XLR (balanced L/R) x1, RCA(L/R)
LAN
(1) RJ45, Synchronize local time
Outputs
Interface
(2) HD/3G-SDI (75Ī©), (2) HDMI type-A(100Ī©)
MULTIVIEW OUTPUTS
(1) HDMI type-Ax1, 3G-SDI (75Q)
ANALOG AUDIO OUTPUT
(1) RCA(L/R)
REMOTE CAMERA CONTROL
(1) RS-422(Compatible RS-485)
TALLY PORT
DB-15
Standards
SDI INPUT FORMAT SUPPORT
1080p 60/59.94/50/30/29.97/25/24/23.98
1080psF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50 PAL, 525i 59.94 NTSC
HDMI INPUT FORMAT SUPPORT
4K 60/50/30
2K 60/50/30 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
1080i 50/59.94/60
720p 60/59.94/50/30/29.97/25/24/23.98
576i 50, 576p 50
PGM OUTPUT FORMAT
1080p 60/50/30/25/24, 1080i 60/50
MULTIVIEW OUTPUT FORMAT
1080p 60
SDI COMPLIANCE
SMPTE 292M/SMPTE 259M/SMPTE 424M
Enclosure
PRODUCT DIMENSIONS
430 x 300 x 44 mm
Product Weight
5Kg
Power
POWER SUPPLY
DC 12V 5A, 20W
Warranty
Limited Warranty (3-Years)
