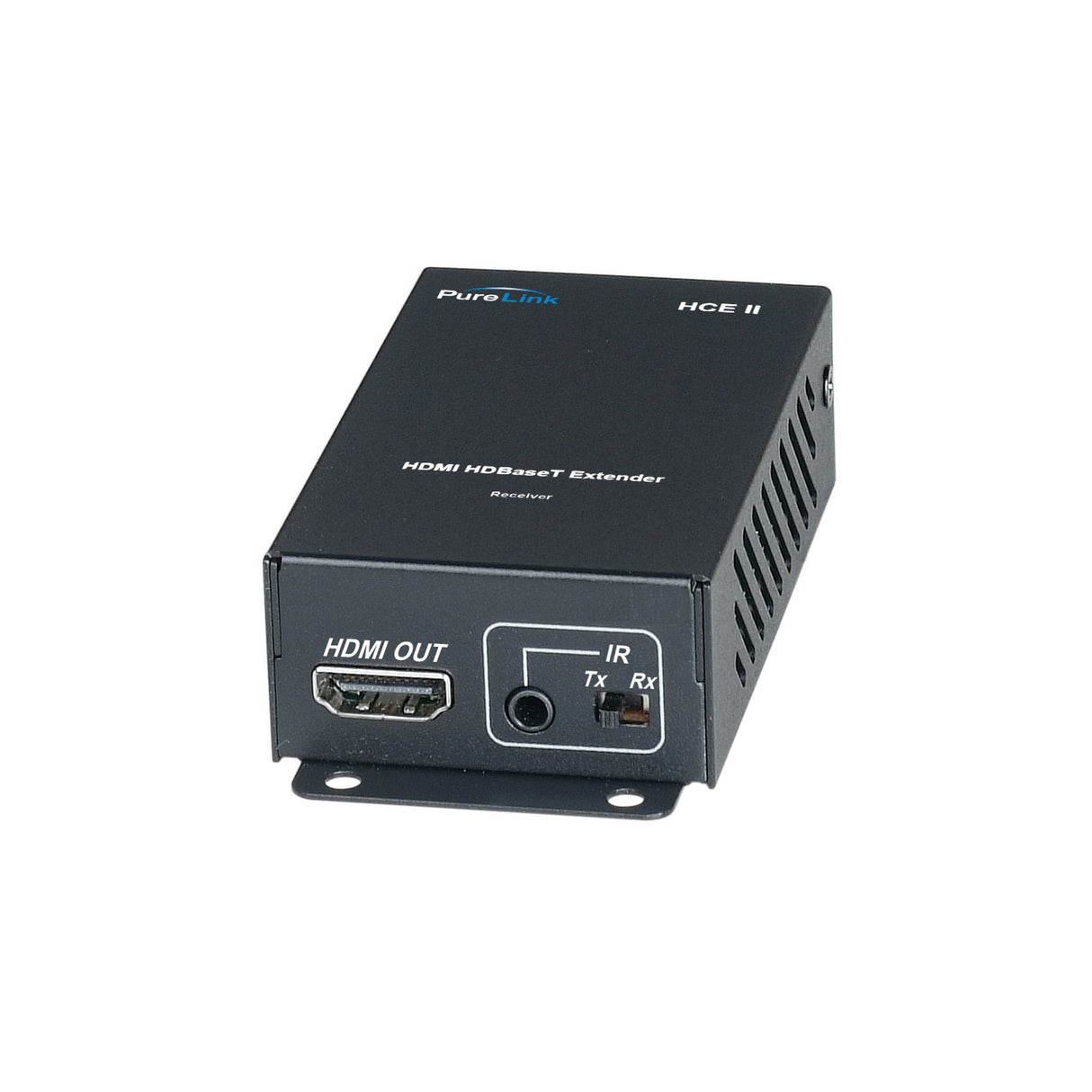

PureLink HCE II Rx HDMI over HDBaseT Extender, Receiver
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
PureLink HCE II Rx HDMI over HDBaseT Extender, Receiver
The HCE II Tx/Rx provides an accessible, easy-to-install solution for extending HDMI video and embedded audio over long distances using a single CATx cable. The HCE II supports full 3D content and extends uncompressed HDCP- protected HDMI content and embedded lossless audio formats with bi-directional control signals (IR) up to 230 feet (70m) at 1080p and up to 130 feet (40 meters) at 4K/Ultra-HD resolutions.
Key Features
- Integrated HDBaseT technology
- Supports cable lengths up to 230 ft. (70 m) for resolutions up to 1080p
- Supports cable lengths up to 130 ft. (40 m) for resolutions up to Ultra HD/4K
- HDMI v1.4 support
- IR control
- Ultra slim design
Technical Specifications
Performance
Supported Distance
up to 130 ft. (40m) at Ultra HD/4K 30Hz and up to 230 ft. (70m) at 1920x1200 60Hz or 1080p 60Hz
Supported Resolutions
VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz), 480i ~ 1080p, Ultra HD (4K) @ 30Hz
Compliance
HDMI 1.4, HDCP 2.2
Video Bandwidth
10.2 Gbps
IR Extension
Bi-directional IR control
Power Supply
DC 5V, 2A
Operating Temperature
32F ~ 131F (0 Degrees Celsius ~ 55 Degrees Celsius)
Storage Temperature
-4F ~ 185F (-20 Degrees Celsius ~ 85 Degrees Celsius)
Relative Humidity
10% ~ 80%
MTBF
50,000 hours
Enclosure
Product Dimensions
4.01 x 3.34 x 1.02 inches / 102.1 x 85.0 x 26.0 mm
Product Weight
0.61lbs (0.28Kg)
Warranty
Limited Warranty (3-Years)
