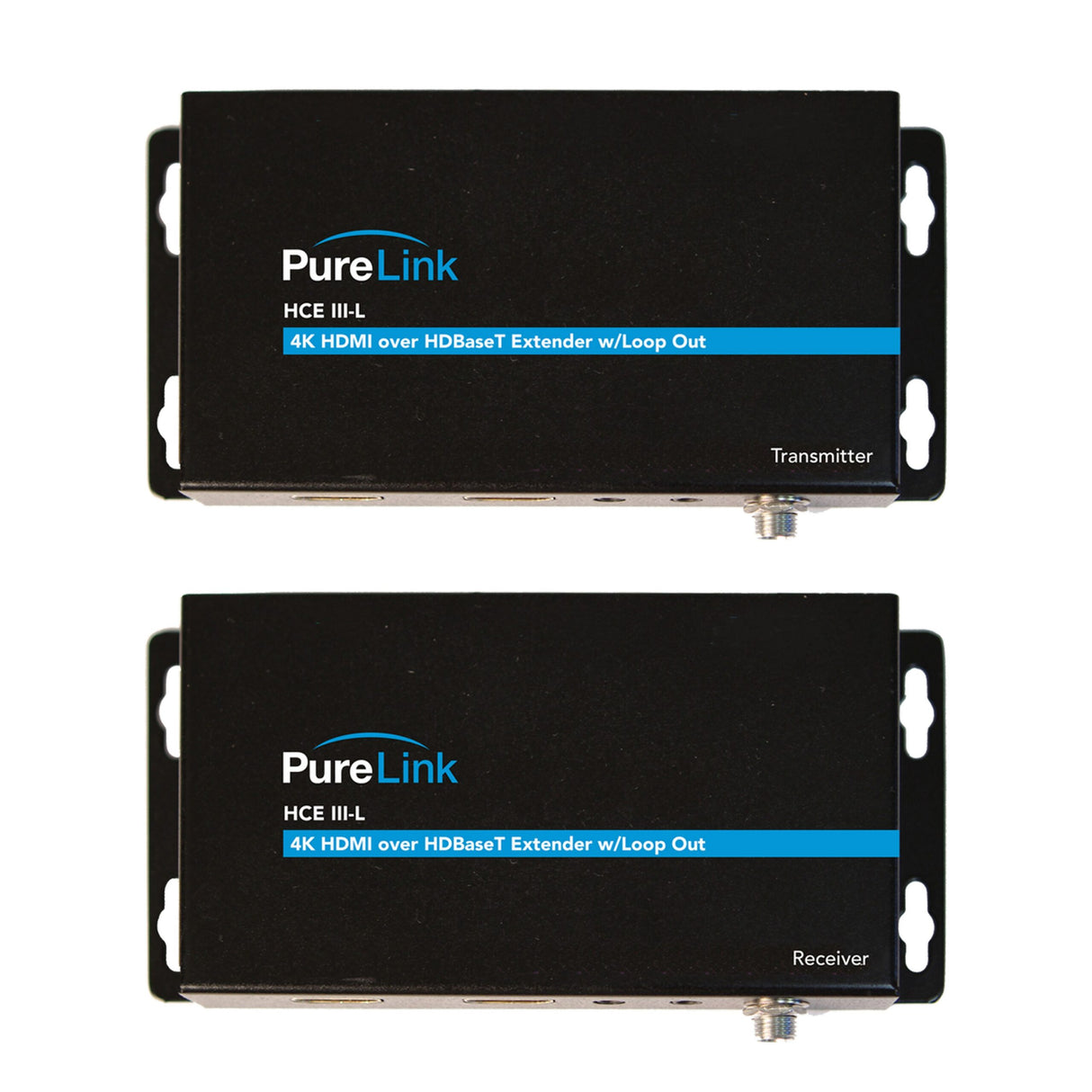

PureLink HCE III-L Tx/Rx 4K HDMI over HDBaseT Extension System

The HCE III-L Tx/Rx is a premium HDMI 2.0 HDBaseT Extension System for Ultra HD/4K and HDR formats featuring an HDMI loop out on the transmitter for preview monitoring, as well as an additional output on the receiver for local distribution. The HCE III-L Tx/Rx supports 4K@60Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps with HDCP 2.2 compliance. The HCE III can transmit Ultra HD/4K signals to distances up to 130 feet (40 meters) and 1080p to distances up to 230 ft. (70 meters) over a single category cable with embedded multi-channel audio, CEC pass-through, bi-directional RS-232 and IR control, and PoC.

Key Features

• Supports resolutions up to 4K@60Hz (4:4:4)
• Supports data rates up to 18 Gbps
• HDCP 2.2/ HDCP 1.4 Compliant
• Transmits Ultra HD/4K signals up to 130 ft. (40m)
• Supports HDR10 and Full 3D
• HDMI loop-out on transmitter and additional HDMI output on receiver
• Bi-directional IR and RS-232 extension
• Bi-directional PoC (Rx powered by Tx or Tx powered by Rx)
• EDID selector (auto, local, remote)

Technical Specifications

Performance
Supported Distance
Ultra HD/4K up to 130ft. (40m), 1080p up to 230 ft. (70m)
Supported Resolutions
4K@60Hz (4:4:4), 1080p, 1080i, 720p(50Hz), 576p, 480p, 576i, 480i
Compliance
HDMI 2.0, HDCP 2.2, HDCP 1.4
Video Bandwidth
up to 18 Gbps
RS-232
(1) RS-232 <3-pin phoenix>
IR Extension
(1) x IR input <3.5mm stereo mini-jack>; 1 x IR output <3.5mm stereo mini-jack>
Power Supply
DC 24V/1A
Operating Temperature
32 ~ 117 F (0 to 47 C)
Storage Temperature
- 40 ~ 158 F (-40 to 70 C)
Relative Humidity
0 ~ 90% non-condensing
MTBF
50,000 hours
Rack Mounting Option
Standard 19 inch rack-mountable design
Enclosure
Rack Mounting Option
Standard 19 inch rack-mountable design
Product Dimensions
5.5” x 2.6” x 0.8” (139.4mm x 66.8mm x 20mm)
Product Weight
1.19 lbs. (0.54kg)
PRODUCT DIMENSIONS
12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
Product Weight
7.7 lbs (3.5 kg)
