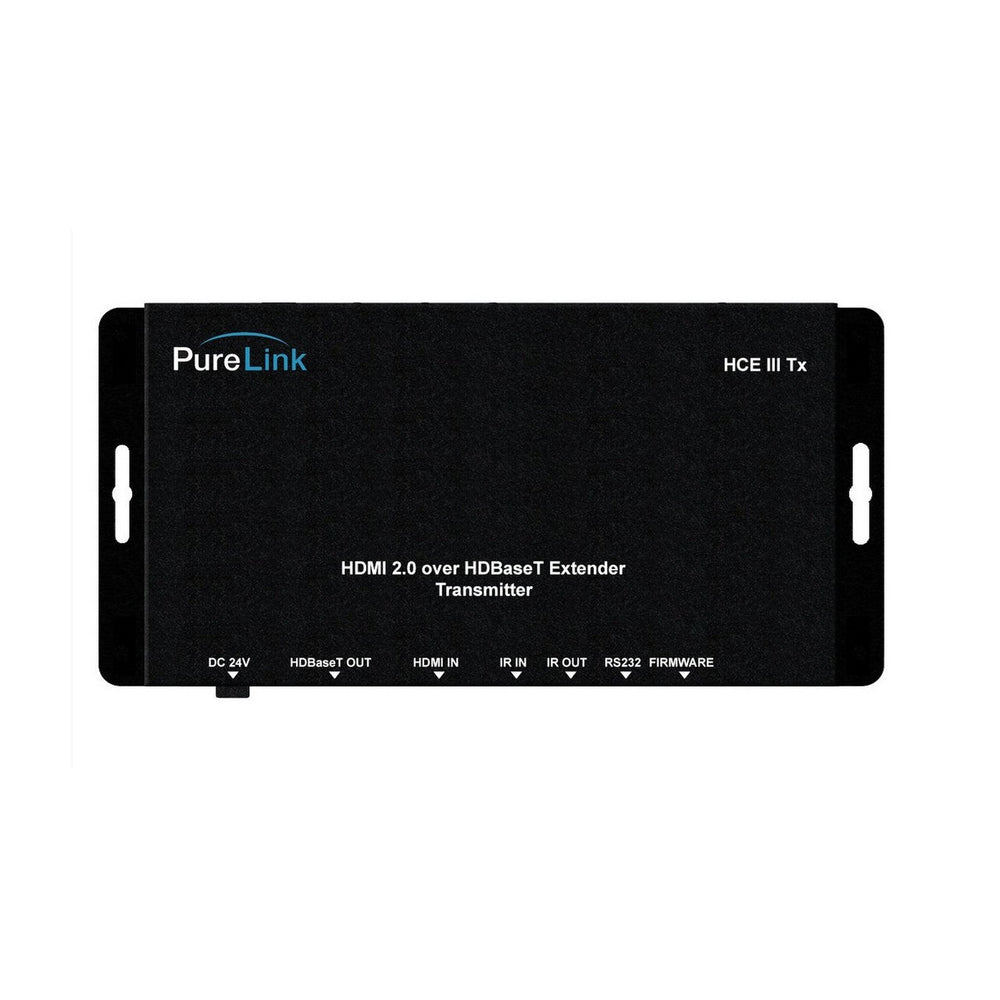

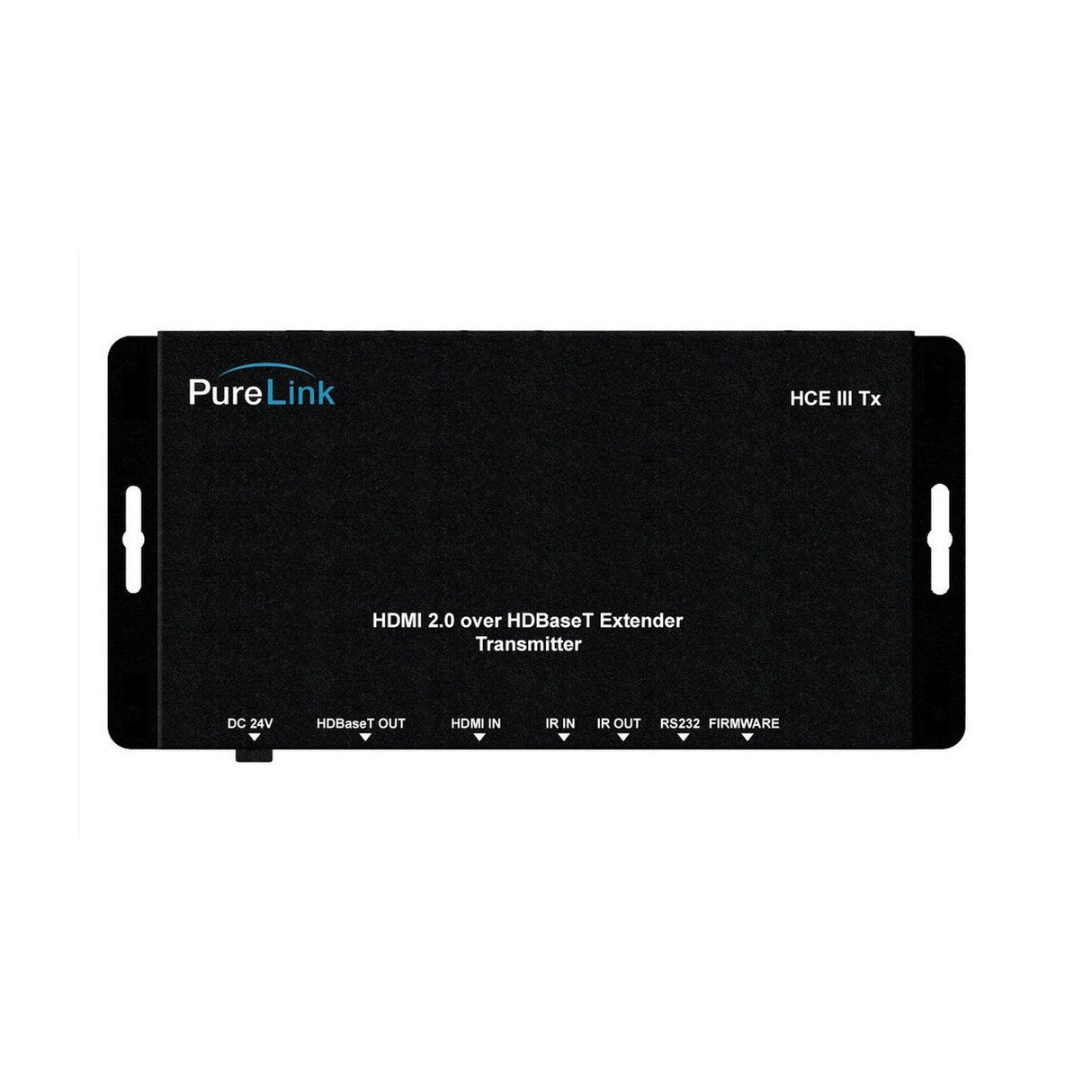

PureLink HCE III TX/RX 4K Over HDBaseT Extension System with Control and Bi-Directional PoE
The HCE III Tx/Rx HDBaseT extension system offers full HDMI 2.0 compliance supporting HDR (High Dynamic Range) and 4K@60Hz with 4:4:4 chroma sampling. Featuring PureLink's proprietary Prcis codec, a light compression technology, the HCE III can transport Ultra HD/4K, multi-channel audio, and High Dynamic Range (10 bits support) content over a single CATx cable.
Key Features
- Supports resolutions up to 4K@60Hz (4:4:4)
- Supports HDR (High Dynamic Range) formats
- HDCP 2.2 compliant
- Extends HDMI up to 130 ft. (40m) at Ultra HD/4K and up to 230 ft. (70m) at 1080p
- Prcis codec - visually lossless signal transmission
- High bandwidth support - up to 18 Gbps
- Supports BT.2020 color representation
- Bi-directional PoE (Power over Ethernet)
- Bi-directional RS232 & IR extension
- CEC pass-through
Technical Specifications
General
Power Input
AC100 - 240V 50/60Hz
Power Output
DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption
24W (max)
Operational Temperature
32 ~ 117 F
Storage Temperature
- 4 ~ 140 F
Humidity
0 ~ 90% non-condensing
MTBF
50,000 hours
Dimensions (W x D x H)
7.2" x 3.5" x 0.7"
Weight
1.0 lbs
HDMI Version
HDMI 2.0
HDCP Compliance
HDCP 2.2
Data Rate
18 Gbps
Resolution
Ultra HD/4K up to 4096 x 2160 @50/60Hz (RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0)
HDMI Audio
LPCM 2/5.1/7.1 Ch, Dolby Digital+, Dolby TrueHD, Dolby Digital, Dolby Atmos, DTS:X, DTS-HD Master Audio, DTS 5.1
Transmitter Inputs
1 x HDMI Type A <19-pin female>, 1 x IR input <3.5mm stereo mini-jack>, 1 x RS232
Transmitter Outputs
1 x HDBaseT
Receiver Inputs
1 x HDBaseT
Receiver Outputs
1 x HDMI Type A <19-pin female>, 1 x IR input <3.5mm stereo mini-jack>
