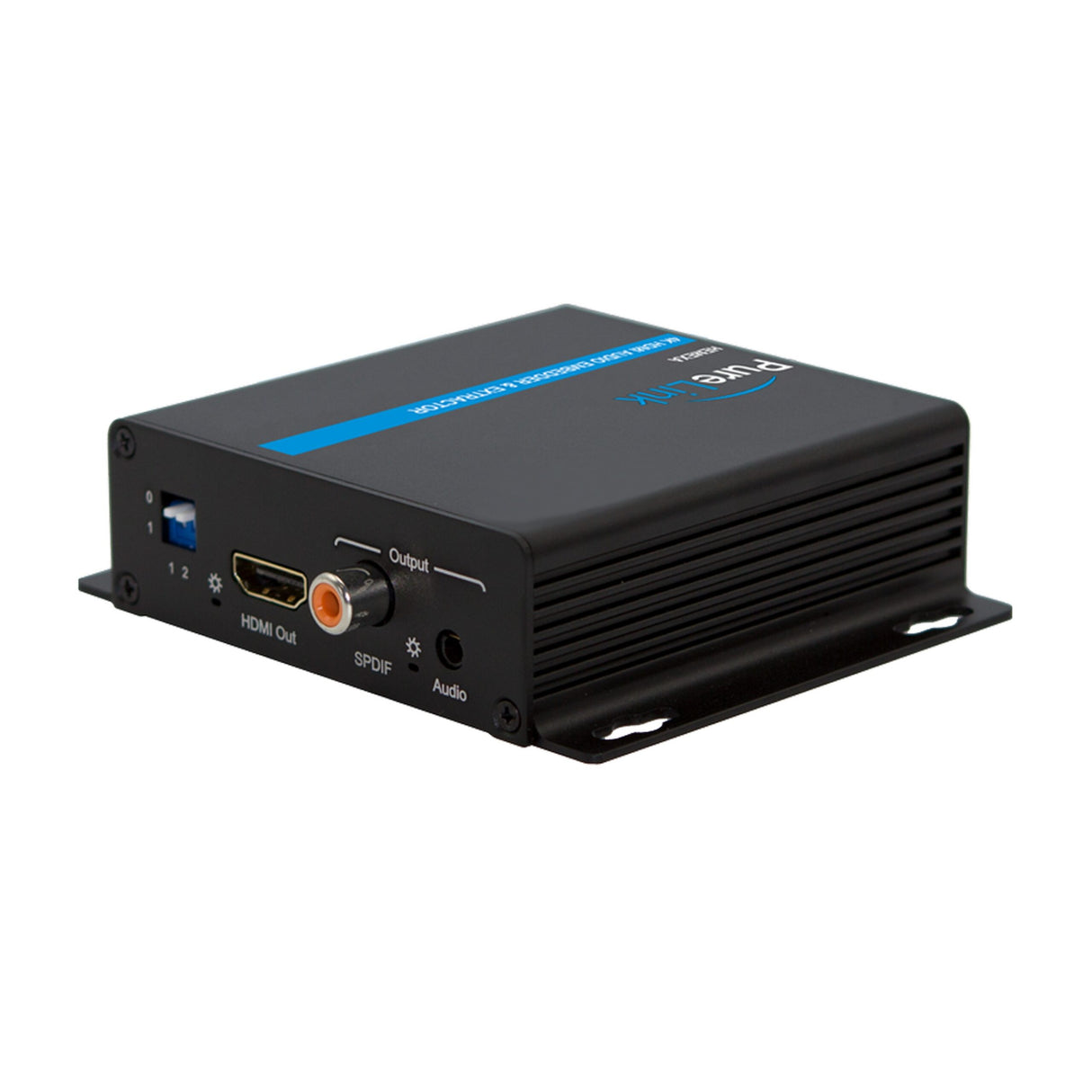

PureLink HEMEXA 4K HDMI Audio Embedder and Extractor

PureLink | SKU: PUR-HEMEXA
$26999

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

PureLink HEMEXA 4K HDMI Audio Embedder and Extractor

The HEMEXA HDMI audio embedder and extractor supports up to 4K 60Hz resolutions. Easily embed or extract 2 channel analog or 5.1 SPDIF audio to or from any HDMI signal. The HEMEXA’s compact size makes it ideal for a technician’s toolbox and in applications including conferencing, live events, education, rental and staging, broadcast, house of worship, and many more.

Key Features

  • Audio embedding of 5.1 SPDIF, Analog Audio 2.0 PCM
  • Extract digital HDMI audio signal from HDMI input to 2 channel analog stereo output or 5.1 channel audio output
  • Supports uncompressed PCM, Dolby, DTS audio
  • Supports resolution up to 4K 60Hz (18Gbps)
  • HDCP 2.2/1.4
  • Supports CEC

Technical Specifications

Hardware
Input Signal Type(s)
(1) HDMI Type A <19-pin female>
(1) Analog Stereo Audio <3.5mm>
Output Signal Type(s)
(1) HDMI Type A <19-pin female>
(1) Analog Stereo Audio <3.5mm>
(1) Digital Audio
Performance
Compliance
HDCP 2.2/1.4
Video input format
0.5-1.0 Volts P-P
Supported Audio Formats
PCM, DTS-HD Master Audio, Dolby true-HD, etc.
Power Consumption
1.5 watts (Maximum)
Input DDC Signal
5 volts p-p (TTL)
Operating Temperature
-5C to 40C (23F to 104F)
Operating Humidity
5 to 90% RH (No Condensation)
Support Video format
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
Support Video Color Format
xv-YCC/deep color 36bit
Data Rate
18 Gbps
Enclosure
Product Dimensions
104.4mm x 89mm x 28.3mm
Product weight
155g
