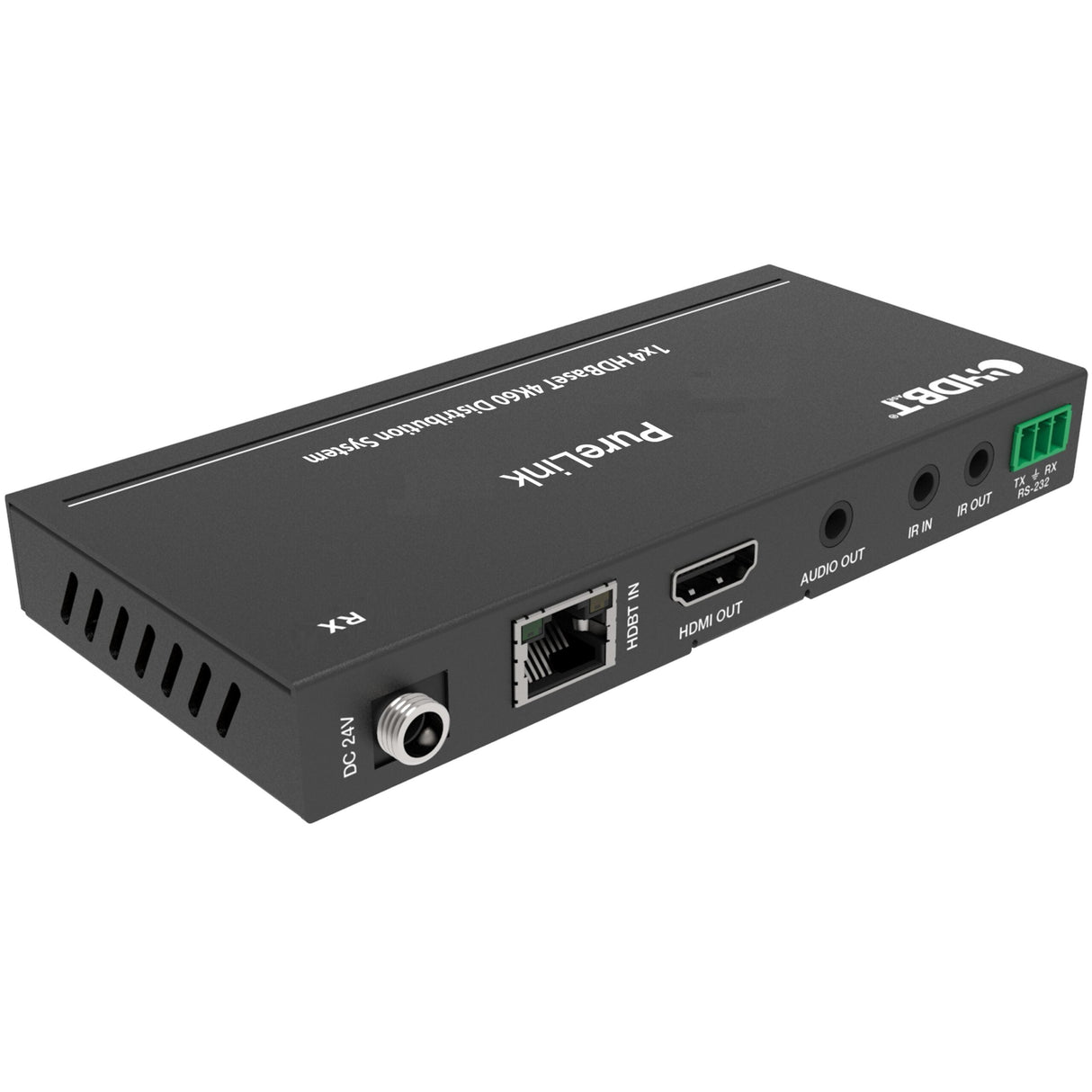

PureLink HT140-U 4K 1 x 4 HDBaseT Distribution System
The HT-140U 4K60 HDBaseT distribution system makes signal distribution simple and effective. Compatibility with virtually every video and audio format means hassle free installation and operation. Our EDID management system makes it easy to select from over 30 EDID tables, alleviating issues of handshaking in all applications.
Key Features
- Distribute 4K60 4:4:4 HDR signals
- 120 meter extension @ 4K60
- 150 meter extension @ 1080P60
- Receivers powered via PoC
- 32 Selectable EDID tables
- IR and RS232 extension
- Diagnostic LEDs on Transmitter and Receivers
Technical Specifications
Performance
HDCP Compliance
1.3, 1.4, 2.2
Main Power
Captive 24VDC
Power Supply
100-240VAC 50/60Hz
Diagnostics
LED: Power
Connections
Input Type(s)
HDMI 2.0b 4K60 4:4:4 HDR, HDR10+, HLG, Dolby Vision. HDMI Loop Out on TX
Output Type(s)
4x HDBaseT: 120 meters extension @ 4K60, 150 meters extension @ 1080P60 CAT6/6a/7
Audio Input Type(s)
7.1 passthrough TX: SPDIF digital audio extraction, balanced analog stereo extraction
Control Ports
HDBaseT extension of bidirectional IR and RS-232 API control and feedback
Enclosure
PRODUCT DIMENSIONS
TX: 220mm x 130mm x 40mm RX: 140mm x 65mm x 18mm
Product Weight
853g
