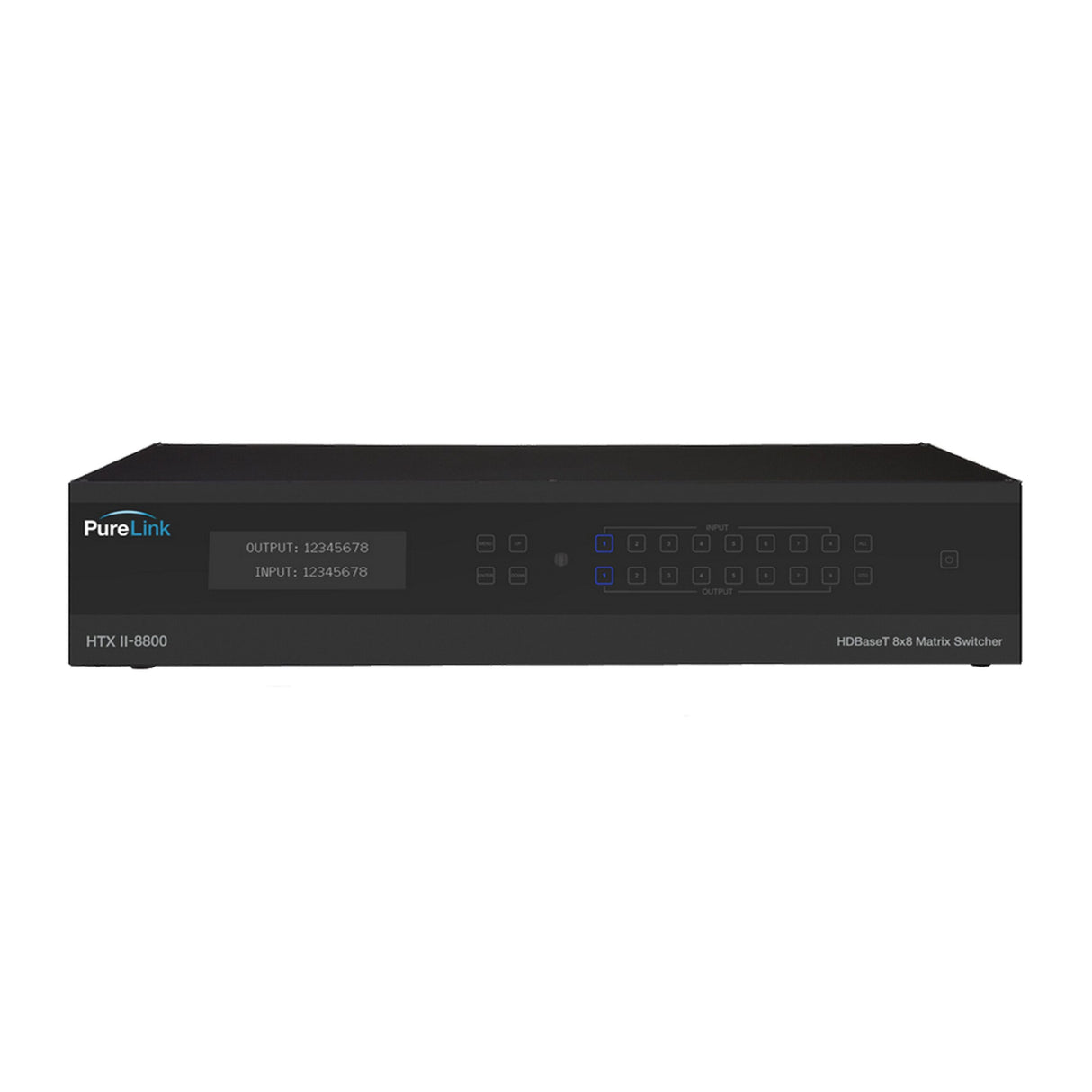

PureLink HTX II-8800 8 x 8 4K HDMI to HDBaseT Matrix Switcher
The HDTools HTX II-8800 provides independent switching of (8) Ultra HD/4K sources to (6) remote destinations via HDBaseT (with HTX II receivers, sold separately) and (2) local destinations via HDMI. The HTX II-8800 also features a built-in independent audio matrix with (16) audio outputs <8 audio breakouts/ 6 HDBaseT outputs/ 2 HDMI outputs> and (22) audio inputs [8 HDMI inputs/ 8 ARC audio inputs/ 6 external audio sources) with volume, mute, and delay adjustment.
Key Features
- HDMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, and DVI compliant
- (8) HDMI inputs, (6) HDBaseTTM outputs, and (2) independent HDMI outputs
- Supports resolutions up to 4K@60HZ (4:4:4) on all HDMI ports
- Supports automatic 4K@60Hz (4:4:4) to 4K@60Hz (4:2:0) conversion for all HDBaseT outputs
- Supports distances up to 330 ft. (100 m) via CATx
- Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and
- DTS-HD Master Audio)
- Built-in independent audio matrix with Volume, Mute, and Audio delay for lip-sync adjustment (LPCM only)
- HDR, ARC, CEC and smart EDID management supported
- 24V PoE on all HDBaseT ports
- Control via on-panel Button, IR, RS-232, LAN and Web GUI
- 2U rack-mounted design with aluminum front panel housing
Technical Specifications
Hardware
Input Signal Type(s)
HDMI
Output Signal Type(s)
HDBaseT, HDMI
Performance
Supported Resolutions
up to 4K@50/60Hz (4:4:4)
Data Transfer Rate
18 Gbps
Color Space
RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit 10-bit 12-bit
Compliance
HDMI 2.0/1.4, HDCP 2.2
Supported HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Supported Audio Formats
PCM 2.0, 32K/44.1K/48K/88.2K/96K/192K,16/20/24bit
RS-232
Yes
IR Extension
Yes
LAN
Yes
Control Options
Front panel; web UI
Power Consumption
85 Watts (max)
Power Supply
100-240VAC 50/60Hz
Power Injection for CATx Extenders
Enabled on all HDBaseT outputs
Operating Temperature
32 ~ 104 F (0 to 40 C)
Storage Temperature
-4 ~ 140 F (-20 to 60 C)
Relative Humidity
20 ~ 90% non-condensing
MTBF
50,000 hours
Rack Mounting Option
Standard 19 inch rack-mountable design
Connections
Input Type(s)
(8) HDMI Type A <19-pin female>, (10) IR In <3.5mm Stereo mini-jack>, (6) RS-232 , (2) Coaxial Audio In
Output Type(s)
(2) HDMI Type A <19-pin female>, (9) IR Out <3.5mm Stereo mini-jack>, (8) L/R Audio Out <3.5mm Stereo mini-jack>, (8) Coaxial Audio Out
Enclosure
Enclosure Type
All metal, black powder coat finish
Rack Mounting Option
Standard 19 inch rack-mountable design
Product Dimensions
19ā x 14.7ā x 3.49ā
Product Weight
14.77 lbs.
