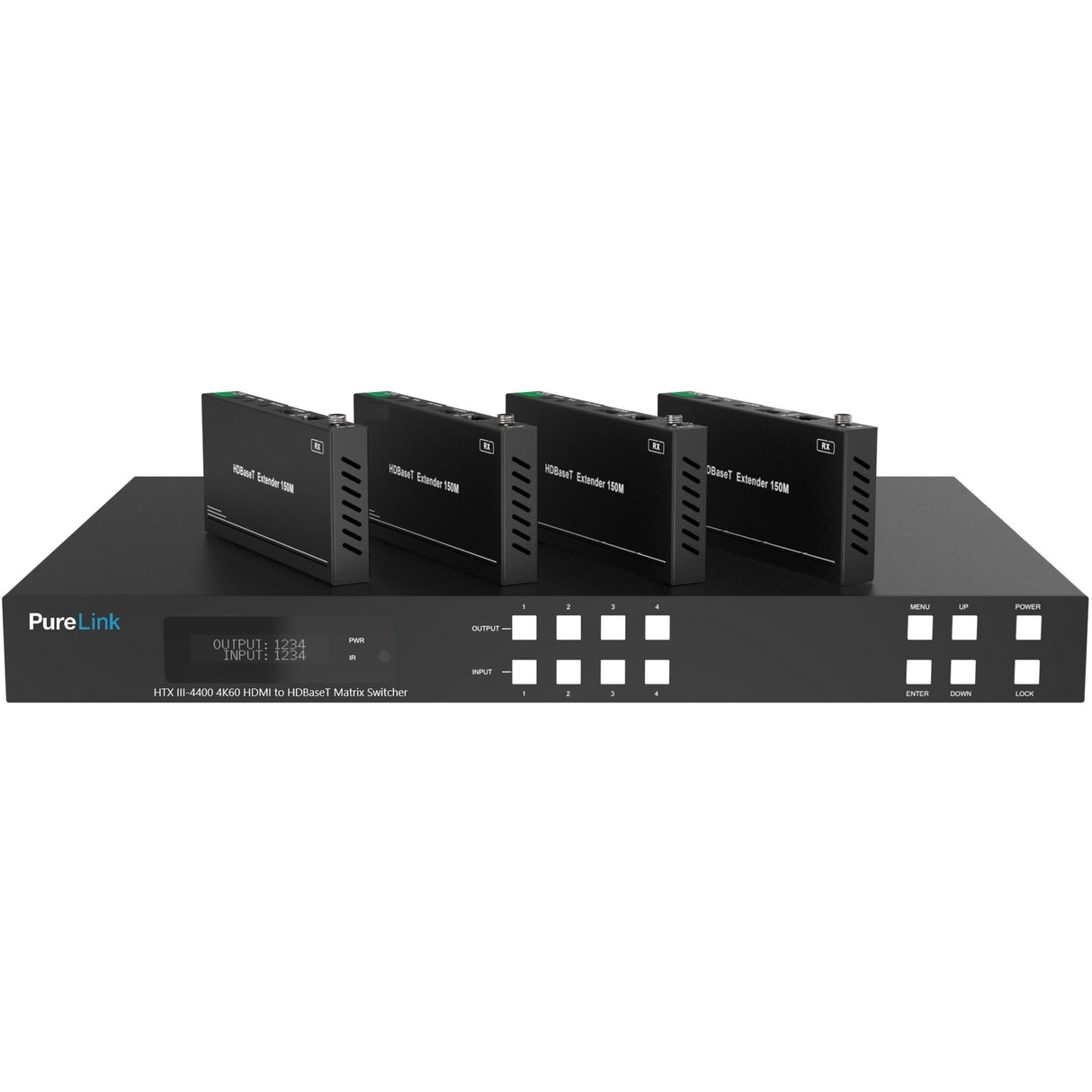

PureLink HTX III-4400 4 x 4 4K60 HDMI to HDBaseT/HDMI Matrix Switcher
The HDTools HTX III-4400 provides matrix switching and extension up to 150 meters (492 feet) of (4) Ultra HD/4K sources via HDBaseT (with HTX III-RX receivers, sold separately). Each HDBaseT output includes a mirrored local HDMI output on the matrix. The HTX III-4400 also features de-embedding of balanced stereo analog audio and SPDIF on the switch for each output, and unbalanced stereo analog de-embedding on each Receiver.
The HTX III-4400 is HDCP 2.2 compliant, provides IR and RS232 extension, and offers PoC power for all HDBaseT Receivers.
Key Features
- HDMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, HDR, HDR 10+
- (4) HDMI inputs, (4) HDBaseT outputs with mirrored HDMI outputs
- Supports resolutions up to 4K@60HZ (4:4:4) HDR on all HDMI ports
- Supports distances up to 492 ft. (150 m) via CATx
- Supports pass-through audio up to 7.1 channels of High-Definition audio (LPCM, Dolby TrueHD, and
- DTS-HD Master Audio)
- CEC control of peripherals
- 24V PoC on all HDBaseT ports
- Control via on-panel Buttons, IR, Web GUI, and RS-232, LAN via API
- Crestron and QSC modules available
- 22 selectable EDID
- 2 User Defined
- 16 readable (from HDMI or HDBaseT output connections)
Technical Specifications
Hardware
Input Signal Type(s)
HDMI
Output Signal Type(s)
HDBaseT, HDMI
Performance
Supported Resolutions
up to 4K@50/60Hz (4:4:4)
Supported Audio Formats
PCM 2.0, 32K/44.1K/48K/88.2K/96K/192K,16/20/24bit
Compliance
HDMI 2.0/1.4, HDCP 2.2
Data Transfer Rate
18 Gbps
Color Space
RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
8-bit 10-bit 12-bit
Supported HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
RS-232
Yes
IR Extension
Yes
LAN
Yes
Control Options
Front panel; web UI
Power Consumption
85 Watts (max)
Power Supply
100-240VAC 50/60Hz
Power Injection for CATx Extenders
Enabled on all HDBaseT outputs
Operating Temperature
32 Degrees ~ 104 F (0 Degrees to 40 Degrees C)
Storage Temperature
-4 Degrees ~ 140 Degrees F (-20 Degrees to 60 Degrees C)
Relative Humidity
20 ~ 90% non-condensing
MTBF
50,000 hours
Connections
Input Type(s)
(4) HDMI Type A <19-pin female>, (4) IR In <3.5mm Stereo mini-jack>, (1) Ethernet
Output Type(s)
(4) HDMI Type A <19-pin female>, (4) IR Out <3.5mm Stereo mini-jack>, ) L/R Audio Out
Enclosure
Enclosure Type
All metal, black powder coat finish
Product Dimensions
19ā x 14.7ā x 3.49ā
Product Weight
14.77 lbs.
Warranty
Limited Warranty (3-Years)
