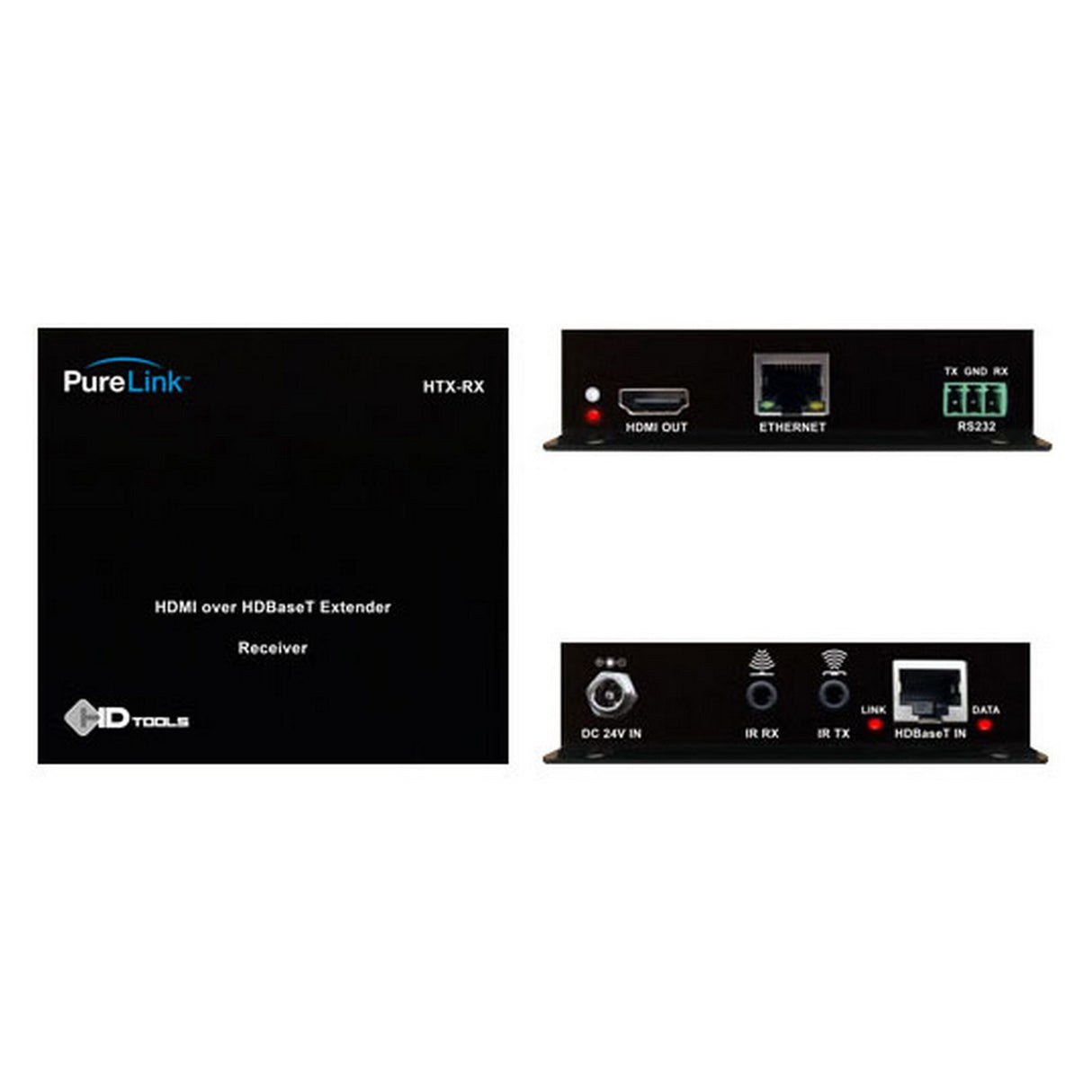

PureLink HTX-Rx HDBaseT Receiver for HTX Series
PureLink HTX-Rx HDBaseT Receiver for HTX Series
Free Shipping
PureLink HTX-Rx HDBaseT Receiver for HTX Series
Designed as a simplified extension solution for the HTX-8800-U/4400-U matrix switchers , the HTX Rx 4K HDMI over HDBaseT Extender Receiver provides an accessible, easy-to-install solution for extending Ultra HD/4K HDMI video and embedded audio over long distances using a single CATx cable. The HTX Rx supports full 3D content and extends uncompressed HDMI video and embedded lossless audio formats with bi-directional control signals (IR) up to 330 ft. at Ultra HD/4K resolutions. Using POE technology, the HTX Rx can draw power from the HTX matrix chassis, eliminating the need for additional power supplies.
Key Features
- Supports distances up to 330 ft. (100m)
- HDMI v1.4b uncompressed video/audio up to 10.2 Gbps
- Receives PoE from HTX-8800/4400 matrix switchers
- Bi-directional IR and RS232
- LED indicators for HDMI and HDBaseT signal status
- Supports HD multichannel audio including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
- Compact enclosure enables discreet installation behind displays
- Ethernet port for easy third party device networking
Technical Specifications
Performance
Supported Distance
up to 330 ft.
RS-232
Yes
LAN
Yes
Power Injection for CATx Extenders
Enabled
Enclosure
Rack Mounting Option
Standard 19 inch rack-mountable design
Product Dimensions
4ā x 4ā x 0.9ā in.
Product Weight
0.5 lbs.
PRODUCT DIMENSIONS
12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
Product Weight
7.7 lbs (3.5 kg)
