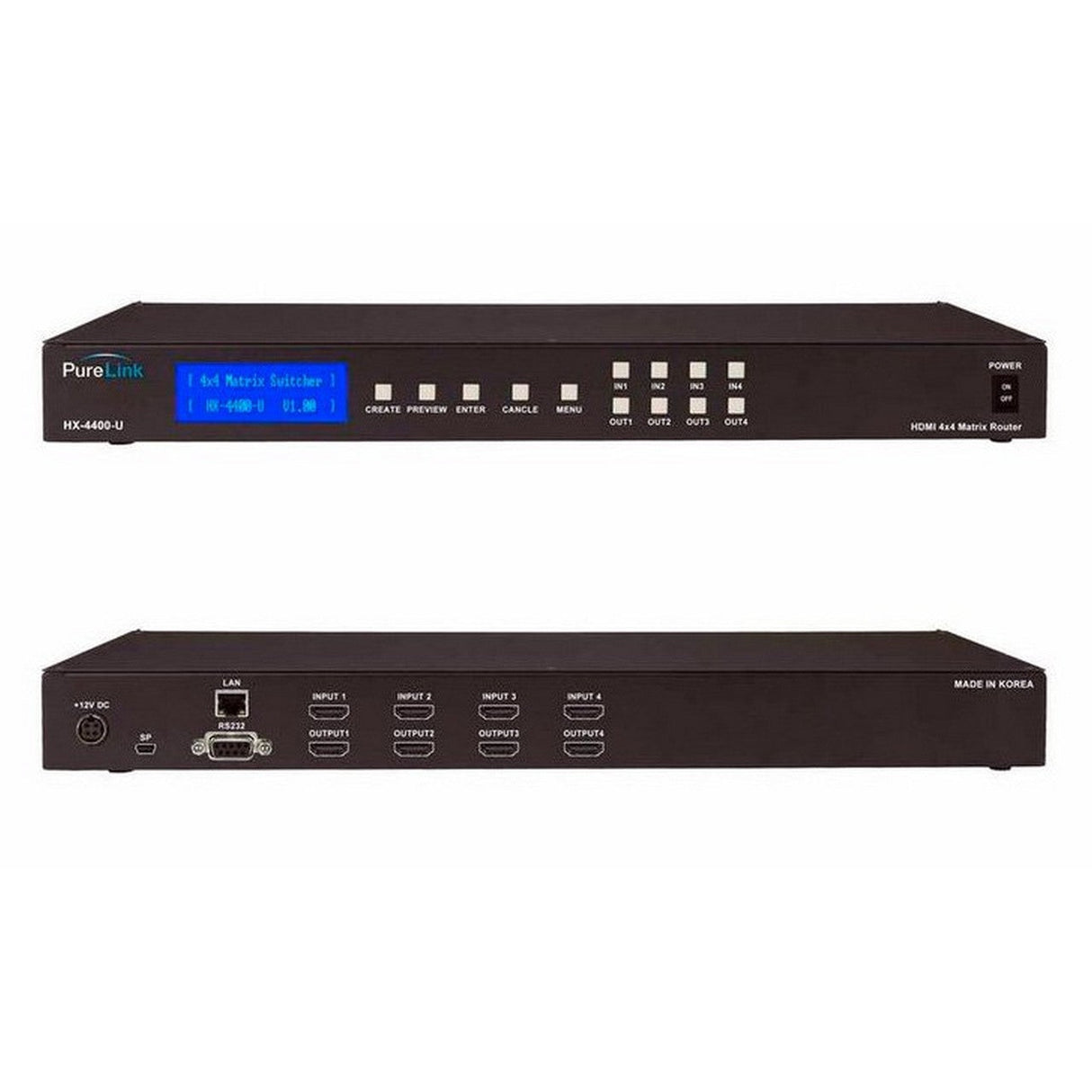

PureLink HX-4400-U 4 x 4 HDMI Integrated Matrix Switcher
The HX-4400-U provides switching options for up to 4 HDMI inputs and 4 HDMI outputs, and feature PureLink's legendary EDID/HDCP Management System, consistently praised by system integrators as the most reliable in the industry.
Key Features
- Compliant to HDMI v1.4, the next generation standard for A/V
- 19" standard rack type case (1U)
- Imbedded monitor distribution function for all output channels
- Enhanced quality and color of digital signals
- External EDID read function, supports HDMI or DVI displays.
- Supporting Function
- Supports high resolution up to UHD (4K2K)
- Control through 4 different method
- Select directly with front push buttons
- Control method through RS-232C COM port
- It has an instantaneous noise protection circuit in input and output ports; therefore it can protect expensive equipment from fault caused by noises (if any).
- Convenient to change firmware through direct update by PC.
Technical Specifications
Input type
HDMI 4port
Output type
HDMI 4port
Graphic Resolution
HDTV Resolution up to UHD ( 4K2K )
PC Resolution up to 1920 x 1200 @ 60Hz
Data Rate
5 Gbps
MTBF
95,000 hours
Connector type
HDMI 19 Pin Female
Supported format
HDMI 1.4
HDCP Compliant
Yes
Power Supply
DC +12V , 5.0A
Dimension
19"(W) x 8.0"(D) x 1.75"(H) (482.6 x 203.2 x 44.45 mm)
Weight
6.7 lbs (3.04 kg)
Item Includes
Main Frame
HX-4400-U
Power Adapter - DC12V, 5A, 60W
RS-232C & LAN cables
Rack Ears
Owner's manual
