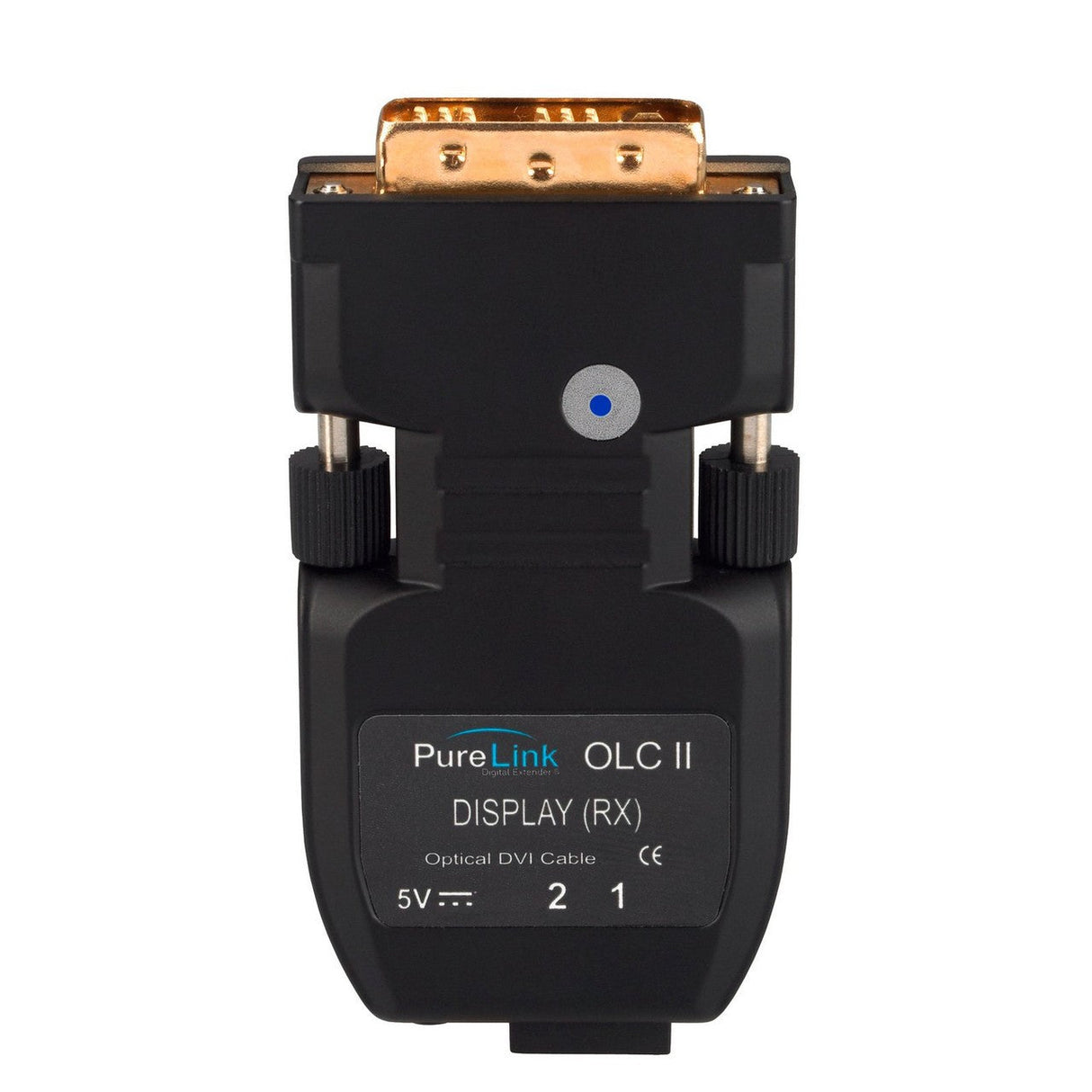

PureLink OLC II TX/RX DVI to 2 LC Fiber Transmitter/Receiver Kit

PureLink’s new OLC II DVI Pure Fiber Optic Extension Modules extend 1080p HD content up to 6500 feet over a single-mode and up to 1,640 ft over a multi-mode cable. Featuring PureLink’s unique Auto-EDID feature, a separate DDC connection is no longer necessary. This simplifies cable management and ensures rapid communications between devices. The transmitter and receiver are detachable and housed in exceedingly compact DVI enclosures. Since it is a detachable type, the LC fiber cable can be run through small conduits and other tight spaces without extender set. There is no special mounting needed for OLC II. Simply, the transmitter and receiver units connect directly to video source and monitor.

Key Features

• Plug and Play
• Built-in auto EDID management function
• Video signal extends up to 6500ft
• Support Single Mode and
• Multi Mode
• Fully compatible with DDWG
• DVI standard
• Ideal solution for PC application
• No HDCP

Technical Specifications

Fiber optical cabling between transmitter and Receiver
Type / Number of fiber
2 Strand fiber optic cable, 50/125 m or 62.5/125 m multimode & singlemode
Connector
2 Female LC connectors
Operating distance
Up to 6,600 ft ( 2000m ) singlemode / up to 1,650 ft ( 500m ) multimode
NOTE
Operating distance is approximate. This is a typical distance. The maximum distance may be greater than these typical numbers depending on factors such as fiber type, bandwidth, connector splicing, losss, bend radius and environmental factors.
Nominal peak wavelength
850 nm (Multimode) 1310nm (Singlemode)
Transmission power
Singlemode
-5 dBm, typical
Multimode
-5 dBM, typical
Maximum receiver sensitivity
Singlemode
-17 dBm, typical
Multimode
-11 dBm, typical
Optical loss budget
Singlemode
12 dB, Max
Multimode
8 dB, Max
Video
Maximum Channel Data Rate
1.65 Gbps per color
Pixel clock
165 MHzz
Supported resolution
Up to 1920 x 1200 / 1080p @ 60Hz single link (up to 6,600ft) Singlemode
Up to 1920 x 1200 / 1080p @ 60Hz single link (up to 1,650ft) Multimode
Formats
RGB & YCbCr digital
Standard
DVI 1.0
Video connector - Transmitter & Receiver
Signal Type
Single link DVI-D
Connector
Female DVI-D
General Information
Power supply
Ext. adapter - Input
100-240 VAC, 50-60 Hz, Output
12VDC, 1A, 5 watts(max)
NOTE
Both transmitter and receiver extender need to be powered locally by provided external power supply adapter.
Power consumption
Transmitter
1 watt
Receiver
1 watt
Cooling ; Convection
Dimension (W x D x H)
1.6'' x 0.4'' x 2.8'' (40 x 10 x 71 mm)
Weight
0.33 lbs (0.15 kg)
NOTE
All nominal levels are at - 9%
NOTE
Specifications are subject to change with or without notice.
