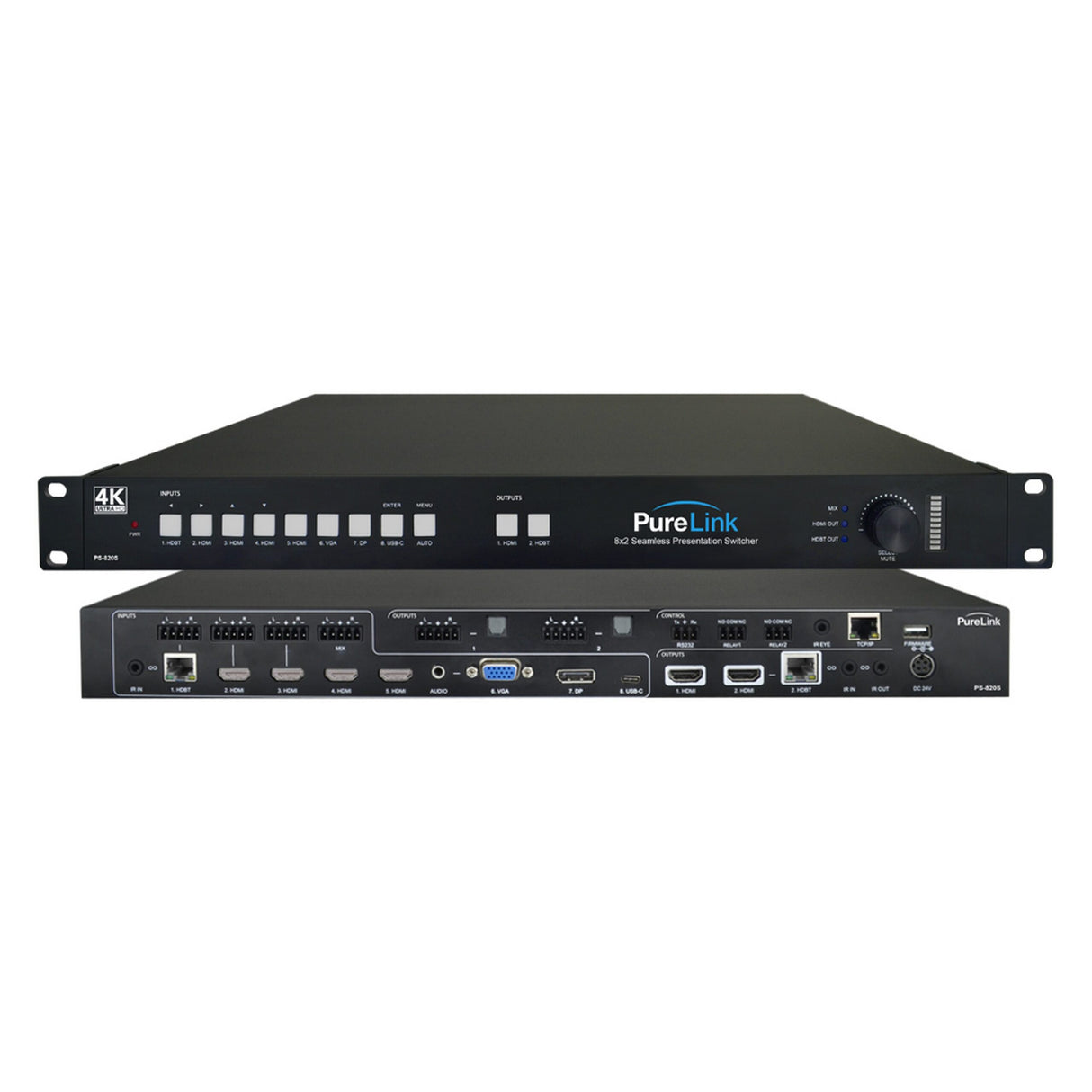

PureLink PS-820S 8 x 2 4K/60 Seamless Presentation Switcher
The HDTools PS-820S is an 8x2 seamless presentation switcher with 18 Gbps support and true 4K/60 @ 4:4:4 instant switching and individual video scaling for each output buss. The PS-820S features flexible input options including HDMI, HDBaseT, DisplayPort, and USB-C, as well as balanced audio embedding and audio mixing via S/PDIF. Together with convenient control options including relay control, the PS-820S provides a feature-rich solution for conference rooms, home theater, broadcast studios, hotel AV, auditoriums, and staging/rental environments that require seamless 4K/60 video and audio distribution.
Key Features
- 4K@60Hz 4:4:4 support with Don’t Blink Switching Technology
- (8) inputs including HDBaseT, HDMI, DisplayPort, and USB-C
- Audio embedding and mixing with volume control via balanced audio inputs
- HDCP 2.2 compliant
- Complete EDID management for individual inputs
- CEC control
- Proprietary Precis codec for lossless video transmission
- HDBaseT Distance: 40m@4K and 70m@1080p
- Auto-switching on HDMI and HDBaseT outputs
- Audio de-embedding with volume control via balanced analog and S/PDIF audio outputs
- Local/pass-through IR and RS-232, TCP/IP, relay, CEC and OSD
Technical Specifications
Hardware
Output Signal Type(s)
Configurable via PureMedia universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
Performance
Supported Distance
Supported Resolutions
HDBaseT/HDMI/DP - up to 4K@60Hz 4:4:4 | VGA - up to 1920x1200, 50/60Hz
Video Bandwidth
18 Gbps
Compliance
HDMI 2.0, HDCP 2.2
Control Options
RS-232, IR, LAN
Power Consumption
85W (max)
Power Supply
Input: AC100~240V, 50/60Hz | Output: 24V DC6A
Operating Temperature
14F ~ 131 F (-10C to 55 C)
Storage Temperature
-13F ~ 158 F (-25C to 70C)
Relative Humidity
10~90% non-condensing
MTBF
50,000 hours
Rack Mounting Option
Standard 19 inch rack-mountable design
Connections
Input Type(s)
(1) HDBaseT
(4) HDMI
(1) Display Port
(1) VGA <15-pin female>
(1) USB-C
Output Type(s)
(2) HDMI
(1) HDBaseT
Audio Input Type(s)
(1) External balanced audio (L+R) for 1-HDBT input port <5-pin terminal block>
(1) External balanced audio (L+R) for 2-HDBT input port <5-pin terminal block>
(1) External balanced audio (L+R) for 3-HDBT input port <5-pin terminal block>
(1) Stereo auxiliary audio for 6-VGA input port <3.5mm jack>
(1) Balanced MIX audio <5-pin terminal block>
Audio Output Type(s)
(1) Balanced audio (L+R) for 1-HDMI output audio de-embedding <5-pin terminal block>
(1) Digital SPDIF audio (L+R) for 1-HDMI output audio de-embedding
(1) Balanced audio (L+R) for 2-HDBT output audio de-embedding <5-pin terminal block>
(1) Digital SPDIF audio (L+R) for 2-HDBT output audio de-embedding
Control Ports
(1) RS232 <3-pin terminal block>, (2) Relay <3-pin terminal blocks>
(1) IR Eye <3.5mm jack>, (2) IR in <3.5mm jacks>
(1) IR out <3.5mm jack>, (1) TCP/IP
(1) Firmware
Enclosure
Enclosure Type
All metal, black powder coat finish
Rack Mounting Option
Standard 19 inch rack-mountable design
Product Dimensions
17.2 x 1.7 x 14.0 in. (WxHxD)
Product Weight
6.33 lbs.
