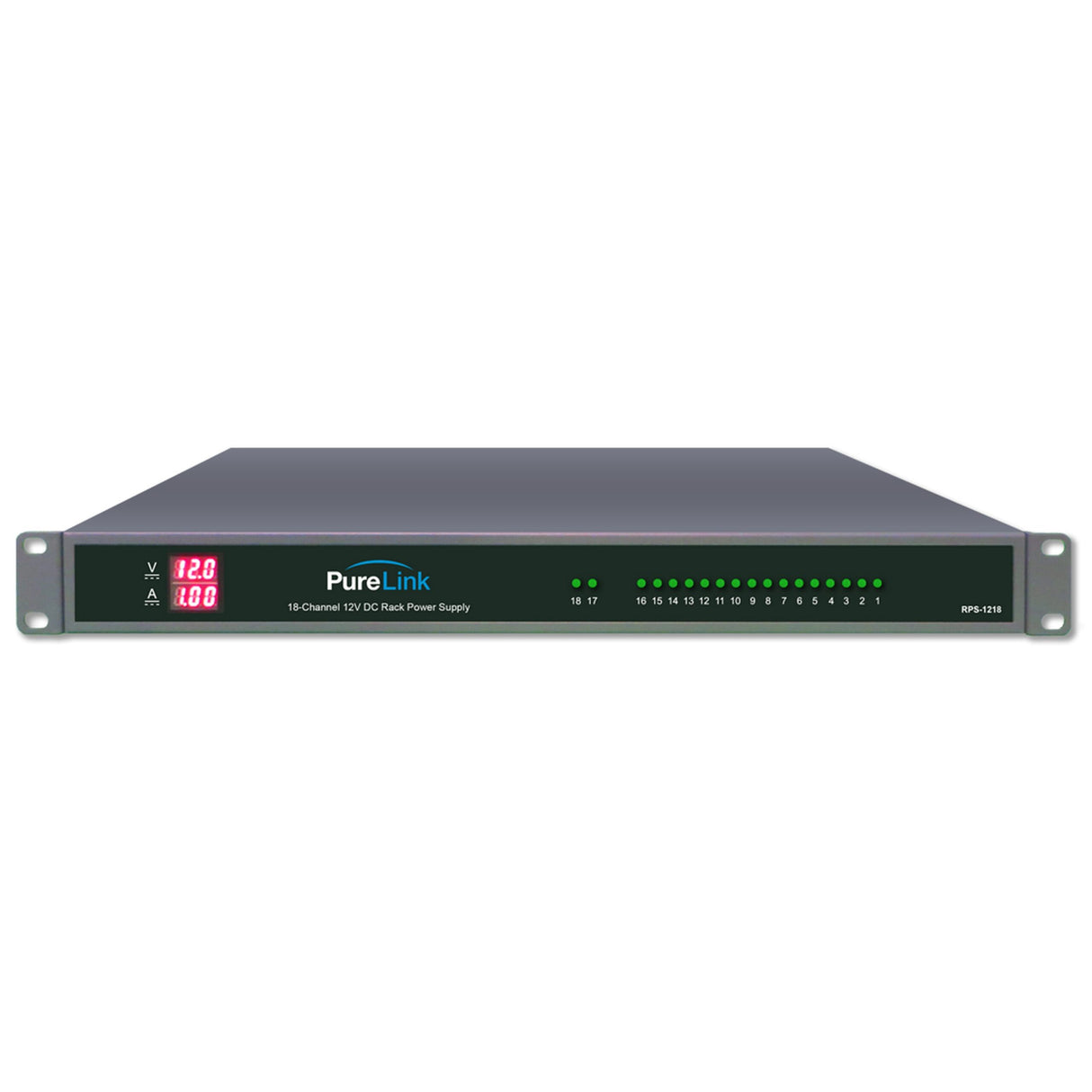

PureLink RPS-1218 18-Channel 12V DC Rack Power Supply
The HDTools RPS-1218 is a 1U rack mount power distribution solution for up to 18 (12V DC) devices in your rack. Each output is supported with its own automatic fuse and status LED. The RPS-1218 also features lateral cooling to maintain optimal performance and reliability, while its slim design keeps the rack space organized for a variety of applications.
Key Features
- 18 Channels - 12V DC power (up to 20A)
- Diagnostic LED indicator for each power output
- Real-time system volt/amp and output meters
- Heavy duty, 1U rack mountable enclosure
- Compatible with Media Axis, PureMedia, PureStream, and HDTools products
- Phoenix output terminations
- Each channel is protected with automatic PTC fuse
- UL listed
Technical Specifications
Voltage per Output
12V DC
Current per Output
1~16 (1.6 A max) | 17~18 (5A max)
Total Current Output
20 A max
Number of Outputs
18
Interface
Front panel volt/current digital meter
Calibration
Front panel fine output adjustment
Protection
PTC fuse per channel
Output Connections
phoenix
Input Voltage
110-220 VAC 50/60 Hz switch selectable
Input Connection
IEC 320 - NEMA 5-15P power cable (supplied)
Power Consumption
Max load ~400 Watts
Operating Temperature
-10 to +40 C
Storage Temperature
-14 to +86 C
Certifications
UL, CE, RoHS
Enclosure
Enclosure Type
Steel, powder coated
Rack Mounting Option
Standard 19-inch rack-mountable design
Product Dimensions
51 x 28 x 9.6 cm
Product Weight
4KG
PRODUCT DIMENSIONS
12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)
Product Weight
7.7 lbs (3.5 kg)
Warranty
Limited Warranty (3-Years)
