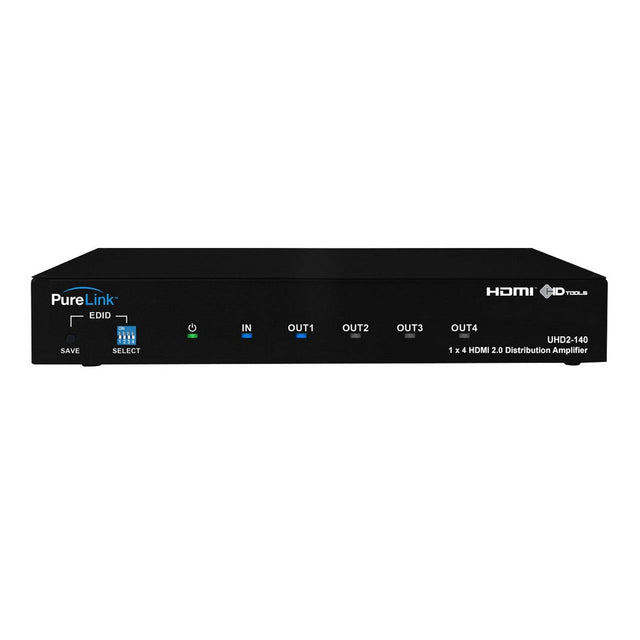

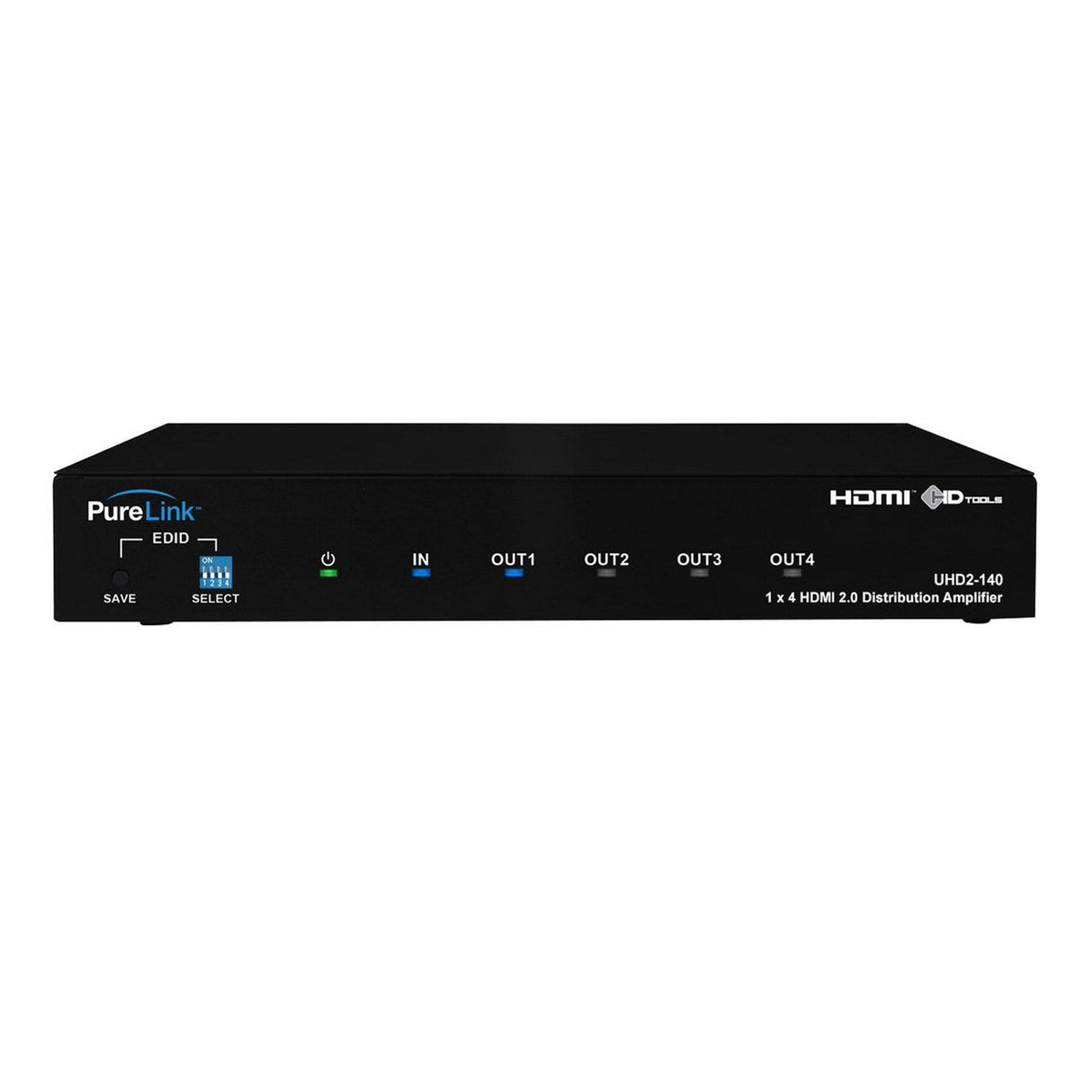

PureLink UHD2-140 HDMI 2.0 4K HDCP 2.2 1 x 4 Distribution
The HDTools UHD2-140 HDMI 2.0 Distribution Amplifier provides a reliable Ultra HD/4K signal distribution solution with unique features to simplify and enhance integration. The UHD2-140 is designed to split a single HDMI input to four independent outputs providing complete 4K/60 (4:4:4) video distribution with support for HDR (High Dynamic Range) content and HDCP 2.2 compliance.
Key Features
- (4) HDMI outputs from a single HDMI source
- Supports video resolutions up to 4K@60Hz (4:4:4)
- Supports HDR (High Dynamic Range) content and BT.2020 color space
- High-bandwidth support - up to 18 Gpbs
- HDCP 2.2 compliant
- Equalization & re-clocking for optimal signal quality
- Auto-EDID management - factory default settings and EDID emulation
- Active input & output LED indicators
Technical Specifications
Model
UHD2-140
Input type
HDMI Single Link , 1port
Output type
HDMI Single Link , 4port
Graphic Resolution
VGA/SVGA/XGA/UXGA/WUXGA 480i/p, 720i/p, 1080i/p@60hz, 4096 x 2160 @50/60Hz (RGB 4:4:4 YCbCr 4:4:4, 4:2:2, 4:2:0)
Connector type
DC Power Jack; HDMI 19 Pin Female; Serial Female
Supported format
DDWG DVI 1.0, HDMI 2.0
HDCP Compliant
HDCP 2.2
Power Supply
DC +5V 2A, 1,00mA (max)
Dimension (W x D x H)
6.6" x 3.96" x 1.58"
Weight
1.0 lbs
