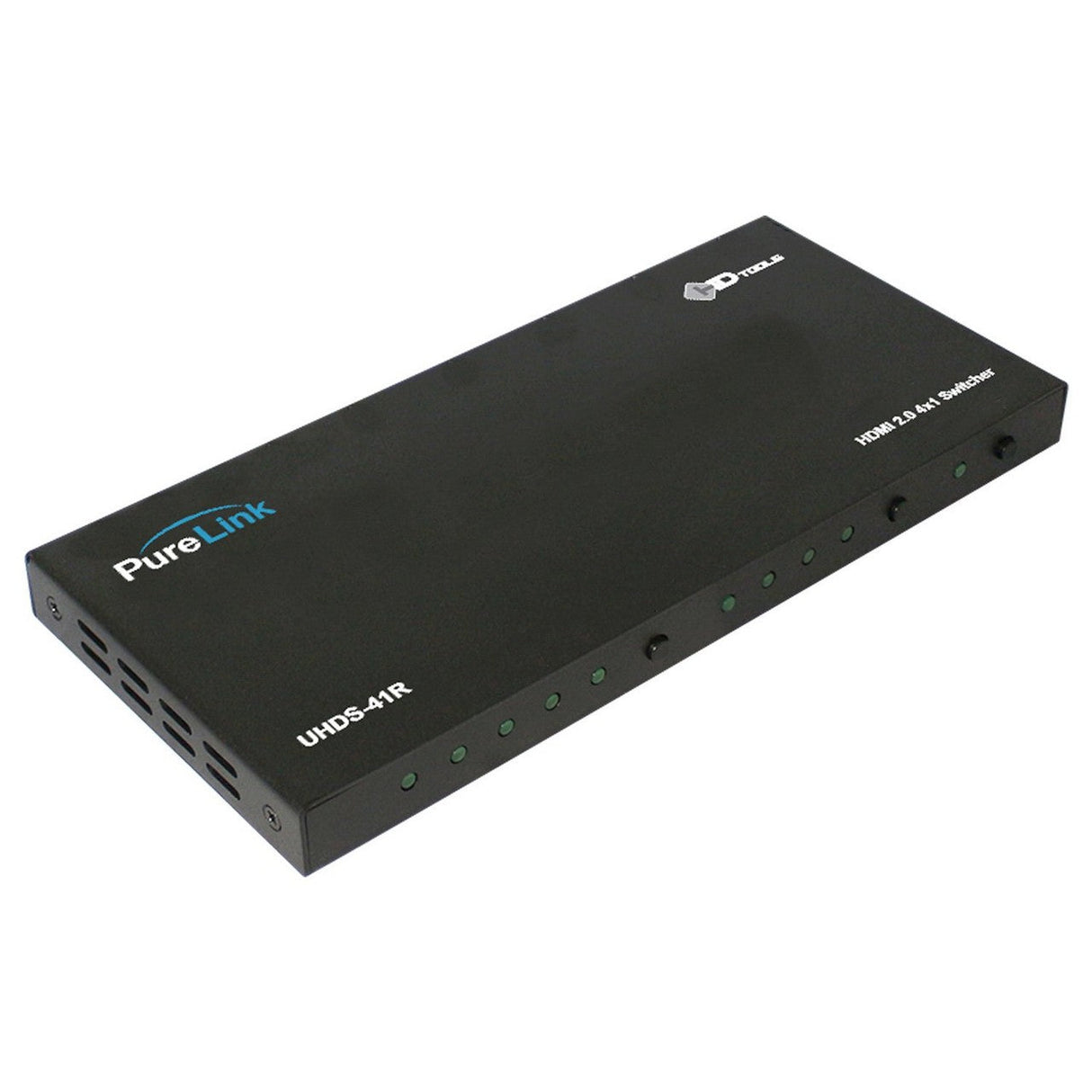

PureLink UHDS-41R 4 x 1 HDMI 2.0 Switcher
The HDTools UHDS-41R provides switching of up to four (4) Ultra HD/4K sources to a single Ultra HD/4K display. The UHDS-41R combines the latest technologies, including HDMI 2.0 and HDCP 2.2 support, with user-friendly configuration and operation via RS-232, IR, or front panel control to deliver a simple and effective multi-input A/V switching solution.
Key Features
- 4x1 Ultra HD (4K @50/60Hz) digital A/V switcher
- HDMI 2.0 and HDCP 2.2 compliance
- Auto-switching - Automatic input switching by signal detection
- ARC < Audio Return Channel > - Allows ARC-enabled TVs to transmit audio back to an AV receiver
- Easy operation via manual toggle buttons, IR remote, and RS-232C
- Full 3D compatibility
- Auto-EDID management
- Supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master audio, LPCM
- DVI and Displayport compatible (with adapters)
Technical Specifications
Model
UHDS-41R
Input Signal
HDMI single link, 4 ports
Output Signal
HDMI single link
Bandwidth
18 Gbps
Supporting Display Resolutions
PC
VGA ~ WUXGA
(up to 1920 x 1200 @60Hz)
HDTV
480i ~ 1080p,
Up to Ultra HD 4K
4096 x 2160 @50/60Hz (RGB 4:4:4 YCbCr 4:4:4, 4:2:2, 4:2:0)
Connector Type
4 x HDMI inputs
1 x HDMI output
1 x IR
1 x RS232
1 x Analog audio out
1 x DC power jack
HDCP SUPPORT
HDCP 2.2
ESD Protection Human Body Model
- 8kV (air-gap discharge) / - 4kV (contact discharge)
Conformations
HDMI version 2.0 / DVI version
1.0
Power Rating
DC +5V , 1A
Power Consumption
Max 2.5W
Dimensions (WxDxH)
7.1" x 3.3" x 0.5"
Weight
0.6 Lbs
