PureLink VIP-CAM-10-10x-USB2 USB 2.0 1080p PTZ Camera with 10x Zoom
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

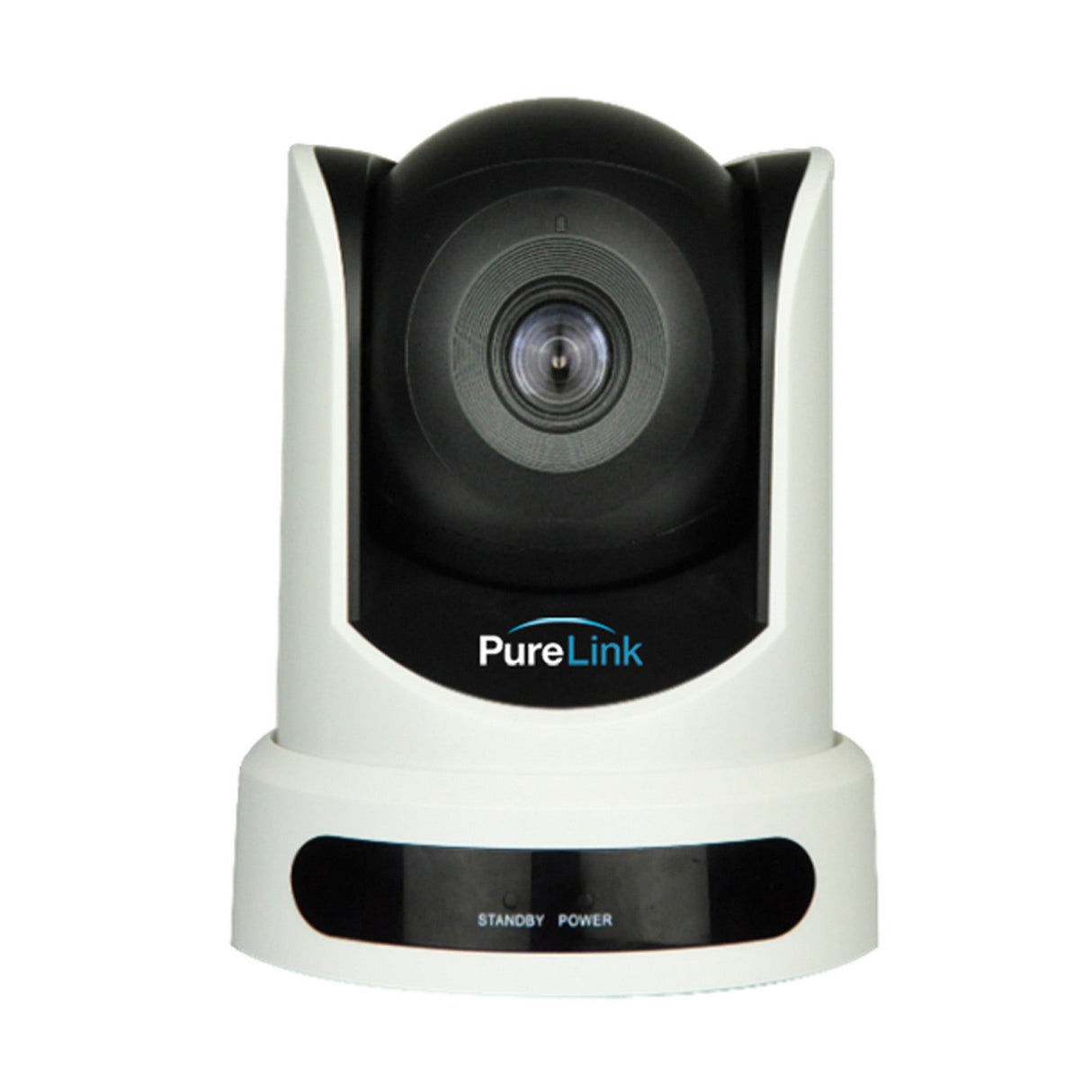

PureLink VIP-CAM-10-10x-USB2 USB 2.0 1080p PTZ Camera with 10x Zoom
The VIP-CAM-10-10x-USB2 1080p camera features high-performance optics, 10x zoom range, and smooth and stable pan/tilt/zoom functionality. With a USB 2.0 output and high-quality image capture even in low light, this plug and play camera is ideal for broadcasting high-definition video signals in conferencing, education, training webinars, online meetings, live events, streaming, security/surveillance applications, and many more.
Key Features
- Full-featured USB 2.0 interface
- 1080p Full HD
- CMOS image sensor for superior low light image quality
- Controlled using VISCA/PELCO via RS-232 or remote control
- H.264 Slice/ H.264 SVC encoding support
- 10 programmable presets
Technical Specifications
Camera
IMAGE SENSOR
1/2.7'', CMOS, Effective Pixel: 2.07M
SUPPORTED RESOLUTIONS
Resolutions up to 1080p
Lens
10x optical zoom, f5.13mm ~ 46.3mm, F1.8 ~ F2.8
DIGITAL ZOOM
16x
MINIMUM ILLUMINATION
0.5 Lux @ (F1.8, AGC ON)
SHUTTER SPEED
1/30s ~ 1/10000s
WHITE BALANCE
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
S/N rate
≥55dB
TILT SPEED
2.7 ~ 31.5/s
NOISE REDUCTION
2D & 3D digital noise reduction
Video Format
H.264 AVC: max to 1080P@30fps
H.264 SVC: max to 1080P@30fps
MJPEG: max to 1080P@30fps
Scanning Mode
Progressive
Backlight Compensation
Supported
Color System / Compression
YUV 4:2:2 / H.264 / MJPEG
ETC
Image Freeze - Supported
Horizontal Angle of View
53.6° ~ 6.41°
Vertical Angle of View
31.7° ~ 3.61°
Horizontal Rotation Range
±170°
H & V Flip
Supported
Preset Accuracy
0.1°
Pan & Tilt
PAN SPEED
2.7° ~ 35.7°/s.
TILT SPEED
2.7 ~ 31.5/s
PRESET NUMBER
10 programmable presets
Interface
Audio Port
(1) 3.5mm Audio Interface
UVC Protocol
UVC 1.1~ 1.5
UVC PTZ Control
Supported
Operate System
Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
USB Interface
(1) USB 2.0
Audio on USB
Supported
Communication Interface
(1) RS-232 In <8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P>
General
POWER SUPPLY
DC 12V
POWER CONSUMPTION
12W (Max)
OPERATING TEMPERATURE
-10 Degrees C ~ 40 Degrees C (14 Degrees F ~ 104 Degrees F)
STORAGE TEMPERATURE
-40 Degrees C ~ 60 Degrees C (-40 Degrees F ~ 140 Degrees F)
Current Consumption
1.0A (Max)
MBTF
>30,000 hours
Warranty
Limited Warranty (3-Years)
