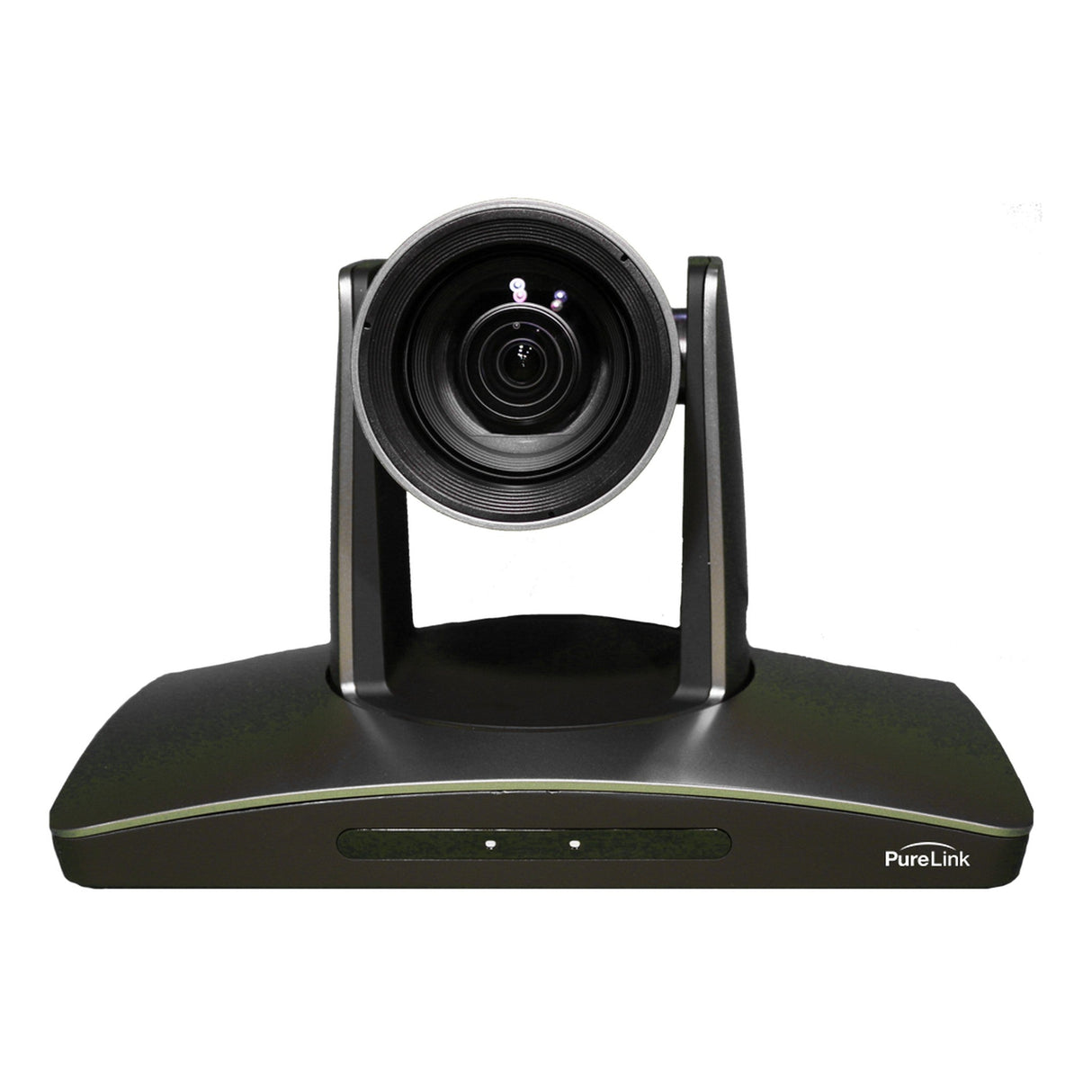

PureLink VIP-CAM-100-NDI NDI PTZ Camera with 3G-SDI, HDMI and RTSP, Outputs

The VIP-CAM-100-NDI is a 1080p camera with 20x optical zoom and 12x digital zoom for capturing HD images from long distances. NDI has quickly become the desired new way of transport, and the VIP-CAM-100-NDI answers this need with extremely simple, quick and easy connectivity. With support for HDMI, 3G-SDI and IP Streaming in addition to the NDI output, this camera is ideal for broadcasting high-definition video signals in conferencing, live broadcast, and security/surveillance applications.

Key Features

• NDI HX output for easy and reliable distribution of signal
• 20x High Performance Optical Zoom w 12x Digital Zoom (240x total zoom)
• Advanced PTZ (Pan-Tilt-Zoom) function for higher precision and reliability
• HDMI, 3G-SDI, RTSP and RTMP outputs
• VISCA and PELCO control

Technical Specifications

IMAGE SENSOR
1/2.8” Exmor CMOS, 2.14MP
SUPPORTED RESOLUTIONS
1080p/60, 1080[/30, 1080i/60, 720p/60, 720p/30,
1080p/50, 1080p/25, 1080i/50, 720p/50, 720p/25
FOCAL
f = 4.7mm - 94.0mm
IRIS
F1.6 - F3.5
OPTICAL ZOOM
20x
DIGITAL ZOOM
12x
SHORTEST FOCUS DISTANCE
10mm - 1.000mm
FIELD OF VIEW
59.5° - 2.9°
MINIMUM ILLUMINATION
0.5Lux (Color), 0.1Lux (B/W)
SHUTTER SPEED
1/1- 1/10,000s
AGC
Auto/Manual
WHITE BALANCE
Auto, Indoor, Outdoor, One Push, Manual, Auto Track
AE CONTROL
Auto, Manual, Shutter Priority, Iris Priority
S/N rate
≥ 50db
TILT RANGE
-30° - +90°
TILT SPEED
0.1° - 90°/s
WEIGHT
1.7 kg
DISPLAY
DC 12V
Pan & Tilt
PAN RANGE
-170° - +170°
TILT RANGE
-30° - +90°
PAN SPEED
0.1° - 120°/s
TILT SPEED
0.1° - 90°/s
PRESET NUMBER
256
OSD
Available
IMAGE FLIP
Enabled
VIDEO COMPRESSION
H.265, H.264
Network
MAXIMUM IMAGE SIZE
1920x1080 @60fps
VIDEO COMPRESSION
H.265, H.264
AUIDO COMPRESSION
AAC
PROTOCOL
NDI HX, RTSP, RTMP, ONVIF
NETWORK SUPPORT
Dual Stream; up to (10) simultaneous users
Interface
ETHERNET
RJ45, 100M
VIDEO OUTPUT
NDI HX, HDMI, 3G-SDI, RTSP, RTMP
CONTROL INTERFACE
RS-232, IR, RS-485
General
CONTROL PROTOCOL
VISCA and Daisy Chain Support, PELCO-P, PELCO-D
ADDRESS
0 - 63
DISPLAY
DC 12V
POWER CONSUMPTION
<15W
OPERATING TEMPERATURE
0 Degrees C - 40 Degrees C
STORAGE TEMPERATURE
- Degrees 20C - 60 Degrees C
DIMENSIONS
8.9” x 6.2” x 8.1”
ENCLOSURE
GRAY
WEIGHT
1.7 kg
Warranty
Limited Warranty (3-Years)
