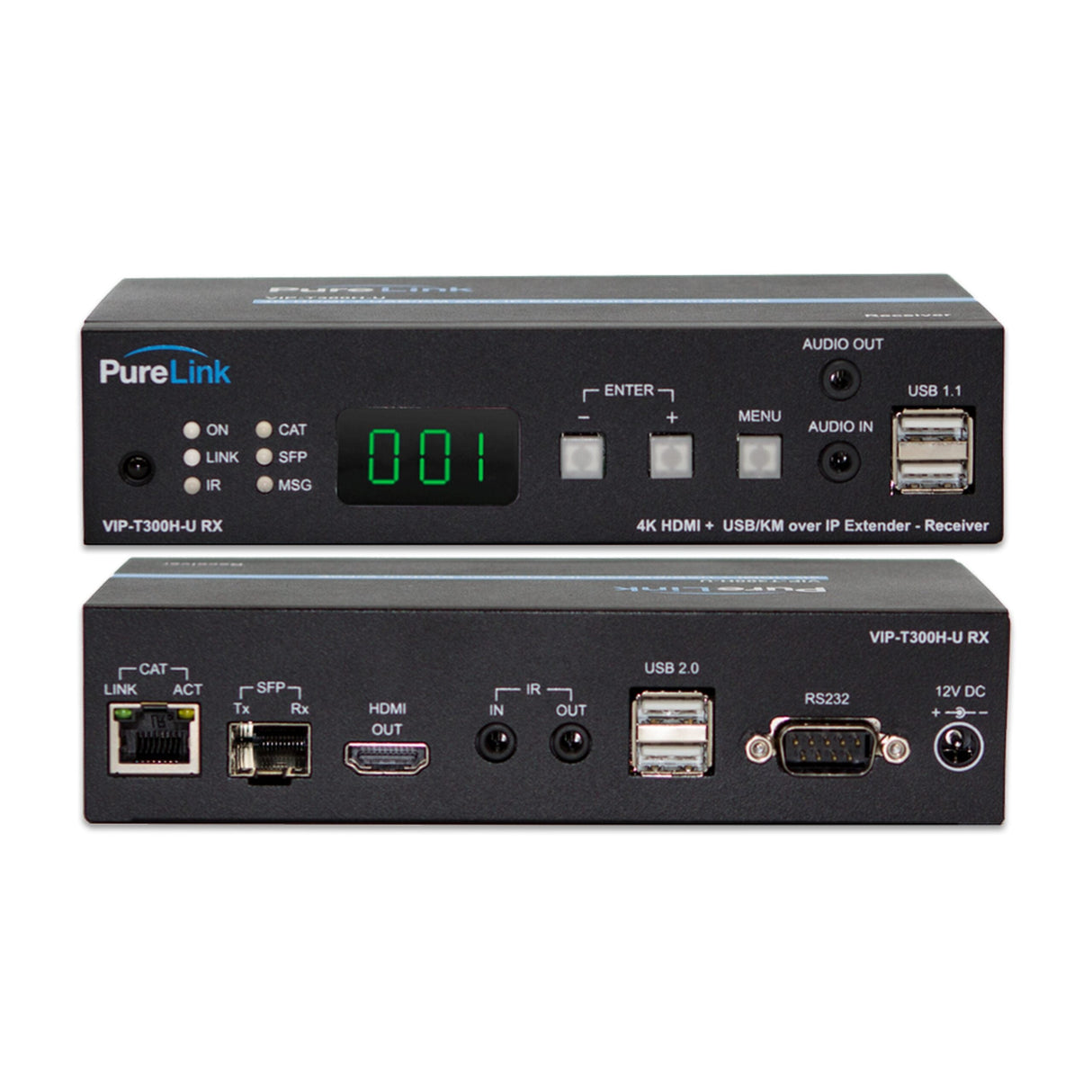

PureLink VIP-EXT-T300-1 Ultra HD 4K HDMI and USB/KM over IP CAT/Fiber Extension System
The VIP-EXT-T300-1 4K HDMI & USB/KM over IP Extension System provides extension of Ultra HD/4K video, audio, RS-232, IR, and USB signal extension - point-to-point or over the network. The VIP-EXT-T300-1 supports cable distances up to 150 m., and doubles the range when used with a network switch (up to 300 m.). Implementing video extension over an IP network delivers added flexibility, allowing users to expand existing systems to support multi-signal distribution and matrix switching.
Key Features
- 4K@30Hz, 4:4:4
- Fiber or CAT transport - 1G port
- Extend signals up to to 300 m. using network switch
- HDCP 2.2 compliant
- Q-SYS integration via VIP-300-T300-QSYS driver
- Max data rate 250Mbps;
- Ultra-low latency (<17mS)
- Comprehensive diagnostics via front panel and API
- Control via web UI, front panel, IR remote, VPX Management Software, Crestron module
- API development for third-party control
- Supports instant switching
- Built-in video wall processing (up to 8x8)
- Built-in scaler on receiver (decoder)
- Image rotation 0, 90, 180 degrees
- IR and RS232 extension
- TCP/IP to RS232 conversion
- USB 2.0 for keyboard/mouse, camera, or hard drive
- HDMI loop-out on TX (encoder)
- PoE 802.3af (under 5W)
- Supports Dolby, DTS, and LPCM audio
- Matrix switching systems up to 999 sources and 65K displays
- TAA compliant
- Rack-mounting option available
Technical Specifications
Hardware
Output Signal Type(s)
Configurable via PureMedia universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
Performance
Supported Distance
up to (150m) via CAT - TX direct to RX
up to (300m) via CAT - TX to network switch to RX
up to 37 miles (60km) via Fiber - TX direct to RX
up to 74 miles (120km) via Fiber - TX to network switch to RX
Supported Resolutions
up to 4K@30Hz (4:4:4)
Supported Audio Formats
Up to 7.1 LPCM 192Khz
Dolby True HD
DTS-HD Master Audio
ATMOS
DTS:X
Power Consumption
500mA (Typical, No USB Device)
Power Supply
DC 12V 1500mA
PoE (Power Over Ethernet)
802.3af
Operating Temperature
32 Degrees - 131 Degrees F (0 Degrees - 55 Degrees C)
Relative Humidity
95% NCH
Connections
Input Type(s)
TX: (1) HDMI Type-A
RX: (1) CAT
Output Type(s)
TX: (1) HDMI Type-A
RX: (1) HDMI
Audio Input Type(s)
TX: (1) Analog audio <3.5mm stereo>
Audio Output Type(s)
RX: (1) Analog audio <3.5mm stereo>
Control Ports
TX & RX: (1) RS-232
Software
VPX Software Suite
Compatible
Enclosure
Product Dimensions
TX: 8.2 x 4.8 x 1.5 in.
RX: 6.5 x 4.0 x 1.5 in.
Product weight
TX: 1.5 lbs.
RX: 1.1 lbs.
Warranty
Limited Warranty (3-Years)
