PXM PX786 Gate 4 DMX ArtNet Interface with Display
Gate 4 DMX: A Device for Converting Art-Net Signals
Looking for a device that can convert Art-Net signals to four output DMX512 ports? Look no further than Gate 4 DMX. This powerful device is powered by 12-24V DC and comes protected in a housing designed for a 35mm DIN rail to prevent mechanical damage.
Equipped with an Ethernet interface working in 10/100BaseTX protocol, the protocol version is Art-Net4 (compatible with Art-Net 1-4). The DMX512 ports have optical and galvanic isolation, ensuring reliable data transfer.

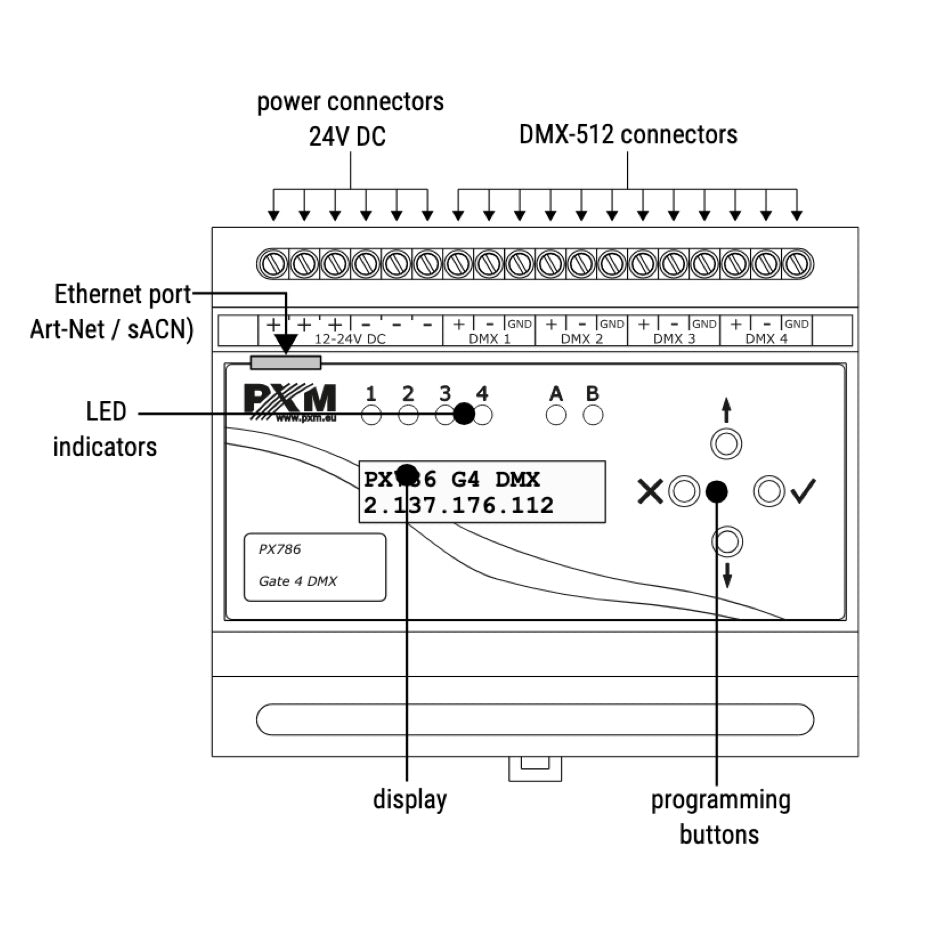

The device features six LEDs installed on the housing, with four two-color ones dedicated to data transfer on DMX ports, and two one-color ones providing information about the Art-Net network connection status. Additionally, the gate PX786 has a display and four buttons that allow users to change the configuration, including Art-Net, Ethernet, and DMX settings (such as Brake, MAB, MBF, and the number of DMX channels transmitted).
Key Features
- Art-Net to DMX Conversion: Converts Art-Net signals into four output DMX512 ports
- Power Input: Operated by 12 - 24V DC power source
- DIN Rail Housing: Shielded with a robust 35mm DIN rail housing resisting mechanical damage
- Ethernet Interface: Equipped with 10/100BaseTX protocol Ethernet interface
- Art-Net Compatibility: Compatibility with Art-Net 1 - 4 through Art-Net4 protocol
- DMX Isolation: DMX512 ports offer optical and galvanic isolation
- Status Indicators: Six LEDs on housing signal data transfer and Art-Net network status
- User Interface: User-friendly display and four buttons for convenient configuration changes including Art-Net, Ethernet, and DMX settings (Brake, MAB, MBF, number of transmitted DMX channels)
Technical Specifications
- DMX IN/OUT lines: 0/4
- DMX lines connectors: Screw terminals
- Optically Isolated DMX Line: Yes
- Power Supply: 12 - 24 V DC
- Power Consumption: Max. 4 W
- Weight: 0.2 kg
- Width: 105 mm (6 DIN rail modules)
- Height: 86 mm
- Depth: 60 mm
Use-Case Highlights
- Live Event Production: Ideal for concerts, stage shows, touring rigs, and event lighting systems.
- Architectural Lighting: Reliable ArtNet-to-DMX conversion for permanent lighting installations.
- Broadcast & Studio: Stable DMX networking for studio lighting and production environments.
- System Integrators: Perfect for building scalable, multi-universe lighting control networks.
Package Contents
- PXM PX786 Gate 4 DMX / ArtNet Interface with Display
Frequently Asked Questions
What is the PXM PX786 used for?
The PX786 is a DMX and Art-Net interface used to control lighting systems through network-based and DMX protocols.
Does the PX786 support Art-Net control?
Yes. It supports Art-Net for network-based lighting control integration.
Is the PX786 suitable for stage lighting?
Yes. It is designed for professional lighting control in stage and event environments.
What type of device is the PX786?
It is a DMX/Art-Net interface used as a lighting control gateway.
Who should use the PX786 interface?
It is ideal for lighting technicians and AV professionals managing lighting systems.
